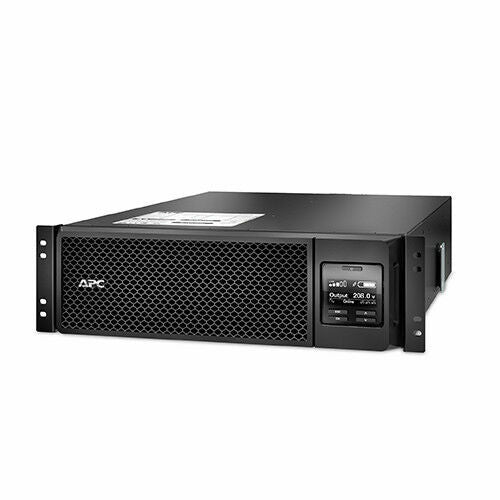

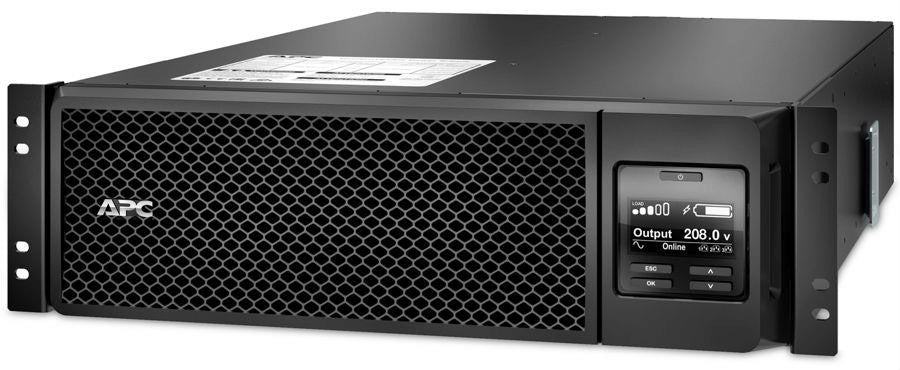

APC Smart-UPS SRT 5000 VA RM 208V Double Conversion Power Solution SRT5KRMXLT

Key Features

• High-density, double conversion online power protection ensures continuous operation for critical equipment.
• Pure sine wave output provides stable power, safeguarding sensitive electronics from damage.
• Unity Power Factor enhances power efficiency for optimized energy consumption.
• Expandable runtime capability with external battery packs (sold separately) for extended operation.
• Embedded Network Management Card facilitates remote monitoring and management over a network.
• LCD interface assists with configuration, status monitoring, and alerts for efficient management.
• Includes PowerChute Network Shutdown for automated server and virtual machine shutdowns.
• Hot-swappable batteries allow quick replacements without downtime, ensuring consistent power availability.
• Advanced battery management extends overall battery life and performance.
• Automatic internal bypass maintains uninterrupted power during overload or faults.
• LED indicators provide at-a-glance status updates for ease of use.

Key Specifications

• Output Power Capacity: 4800W / 5400 VA
• UPS Topology: Double Conversion Online
• Form Factor: Rackmount 3U (convertible to tower with accessories)
• Input Voltage: 208V AC 1 phase (supports 240V)
• Output Voltage: 208V (also supports 240V)
• Output Connections: 2 NEMA L6-20R, 2 NEMA L6-30R
• Battery Type: Lead-acid, internal
• Battery Life: 3 to 5 years
• Recharge Time: Typically 1.5 hours
• Dimensions (H x W x D): 5.1 in x 17.008 in x 28.3 in
• Weight: 123.0 lbs (55.79 kg)

Product Overview

The APC Smart-UPS SRT 5000 VA RM 208V is designed to provide robust power protection in business environments. With a capacity of 5.4 kVA, it supports critical servers and network devices. The double-conversion design ensures the highest level of power quality by continuously converting incoming AC power to DC and back to AC as pure sine wave output. This capability ensures that sensitive electronic equipment is protected against power fluctuations and outages.

Intended Use

This UPS is essential for mission-critical applications requiring uninterrupted power supply. It is particularly effective for servers, networking devices, point-of-sale systems, and medical equipment. Through its dual functionality, it can be rack-mounted or set up as a tower, thus enhancing its adaptability in various office or data center layouts.

Integration and Monitoring

With an embedded Network Management Card, the APC Smart-UPS SRT allows for convenient remote management and monitoring via network interfaces. This integration aids IT managers in monitoring power conditions and enables timely interventions to prevent outages. Coupled with the included PowerChute Network Shutdown software, it allows for the graceful shutdown of connected devices, preserving valuable data and ensuring business continuity.

Efficiency and Sustainability

This UPS boasts a unity power factor, illustrating its efficiency in delivering maximum power without excess waste. It supports environmentally friendly operations with high energy efficiency ratings, including ENERGY STAR certification. The intelligent battery management system further optimizes charging cycles, effectively extending battery longevity and performance.

Reliability and Features

Featuring hot-swappable batteries, the APC Smart-UPS SRT minimizes downtime during maintenance or battery replacement. Automatic internal bypass functionality provides an additional layer of safety by maintaining power flow during faults or overload conditions. Coupled with audible and visible alarms, users can quickly respond to any issues, thereby maintaining uninterrupted operations.

Investing in the APC Smart-UPS SRT 5000 VA RM 208V ensures that your critical operations are backed by reliable power protection suitable for the demands of modern IT environments. Its advanced features and flexible options make it an excellent choice for businesses focused on operational continuity. Contact us to learn more or secure this solution for your business today.
