Honeywell Xenon Ultra 1962h HD Healthcare Scanner Contactless Charge Kit 1962HHD-5USB-9WC

Key Features

• Capture damaged, low-contrast and poorly printed clinical barcodes with a 1280 x 1080 pixel area imager.
• Read dense 5 mil healthcare barcodes from 0.29 in with the high density focus imager in this kit.
• Target the correct label first time using the 525 nm green-dot aimer on crowded wristbands and vials.
• Keep clinicians moving by decoding at hand speeds of up to 4 meters per second without pausing to align.
• Wipe down the white anti-microbial, disinfectant-ready housing routinely with common hospital cleaners.
• Protect resting patients with selectable Patient Do-Not-Disturb, vibration and scan lamp operating modes.
• Roam up to 100 m from the base on Class 1 Bluetooth 4.2, or lock range to 10 m Class 2 by configuration.
• Cover long shifts with the 3300 mAh lithium-ion pack, rated for up to 80,000 scans and 22 hours of use.
• Recharge without metal contacts, cutting the corrosion-related failures that repeated cleaning causes.
• Mount the horizontal charge and communication base on a desk or a wall to suit tight nursing stations.
• Survive ward mishaps with 50 drops to concrete from 1.8 m (6 ft) and 2,000 tumbles from 0.5 m (1.6 ft).
• Deploy fleets and push firmware from one console using the Honeywell Scanner Management Utility.

Key Specifications

• Imager: High density (HD) focus 2D area imager, 1280 x 1080 pixel array
• Depth of Field, 5 mil Code 39: 0.29 to 11.62 in (7 to 295 mm), HD focus
• Depth of Field, 13 mil UPC: 0 to 19.77 in (0 to 502 mm), HD focus
• Wireless: Bluetooth 4.2, 2.4 GHz; Class 1 100 m default, Class 2 10 m programmable
• Battery: 3300 mAh lithium-ion, up to 80,000 scans, 22 h use, 4.5 h charge
• Charging Method: Contactless (wireless) charging through the base
• Base Dimensions: 8.3 x 2.9 x 3.0 in (211.3 x 74.2 x 77.7 mm) desktop/wall
• Scanner Weight: 255 g, contactless-charging model with battery
• Scanner Dimensions: 4.3 x 2.8 x 6.3 in (108.2 x 70.4 x 160.2 mm)
• Included Cable: USB Type A straight cable, 2.7 m (8.9 ft)
• Sealing: IP52 scanner; IP41 charge and communication base
• Warranty: 3-year scanner; 1-year lithium-ion battery pack

Cordless Healthcare Imaging Scanner

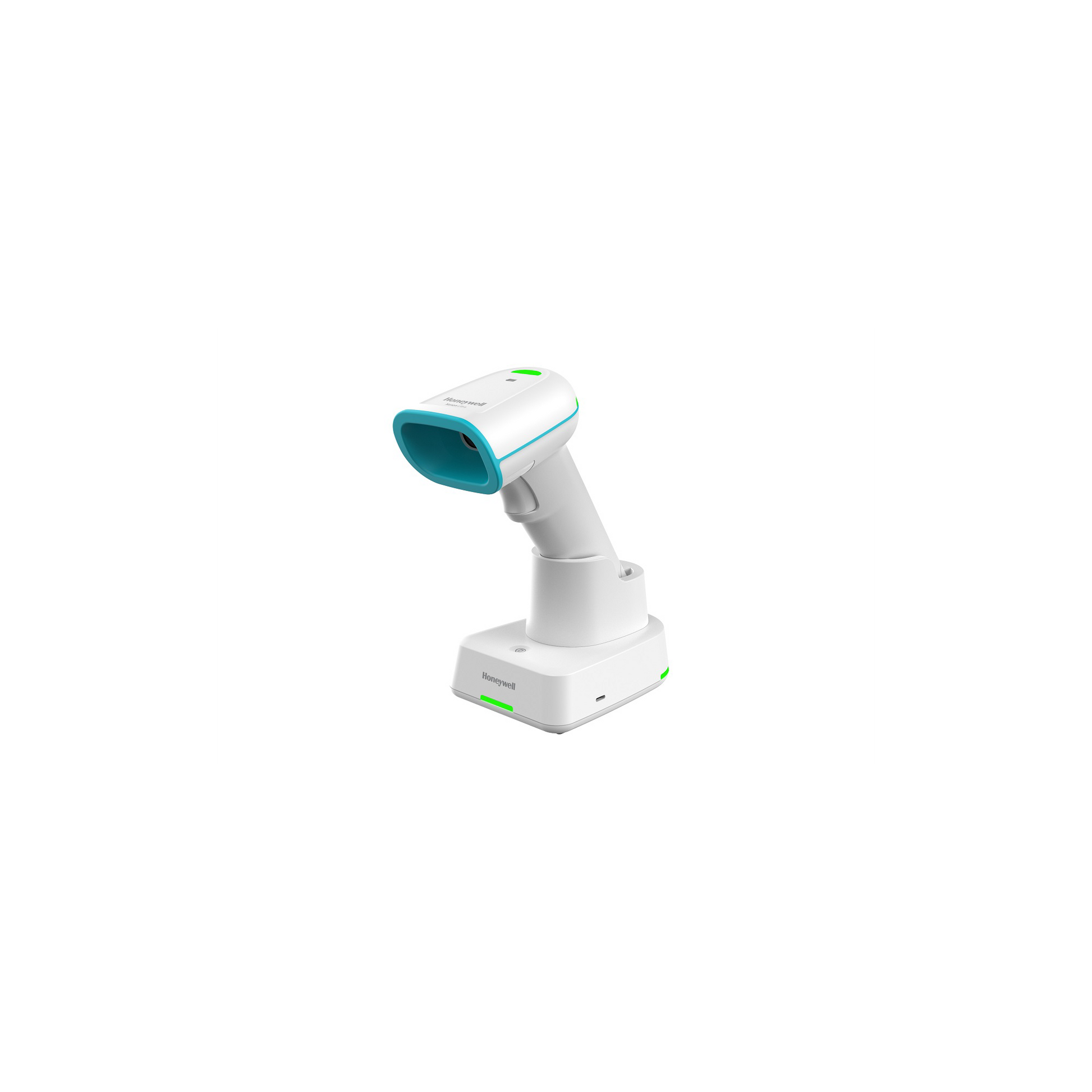

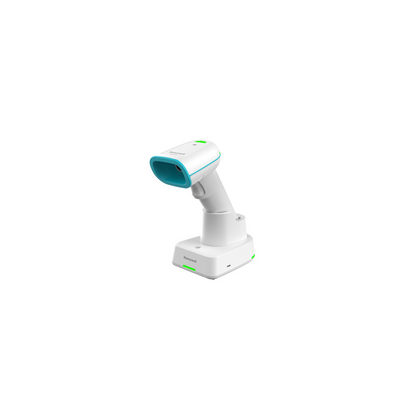

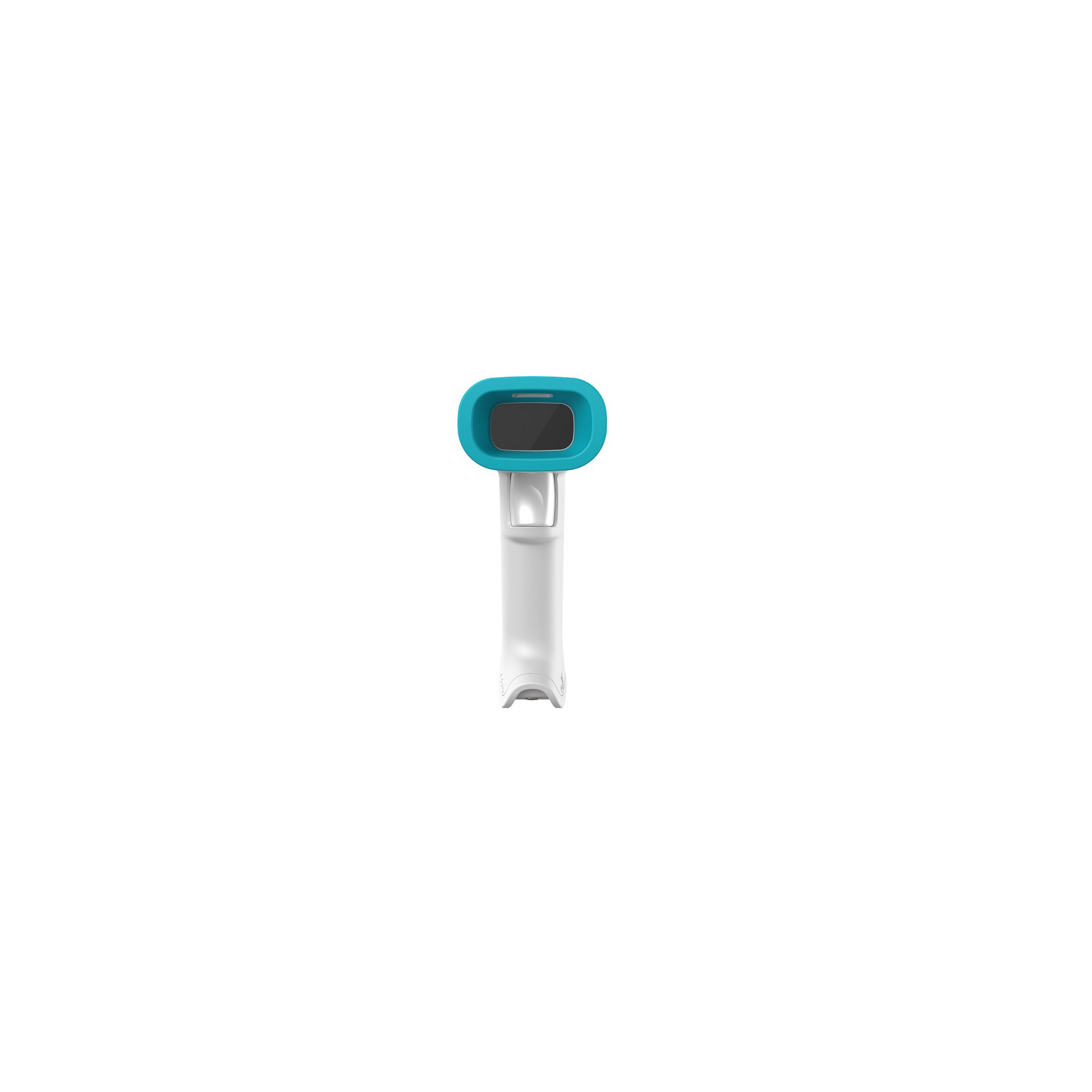

The Honeywell Xenon Ultra 1962h is a cordless handheld area-imaging barcode scanner engineered specifically for clinical environments, and this configuration uses the high density (HD) focus imager inside a white anti-microbial, disinfectant-ready housing. The handheld body measures 4.3 x 2.8 x 6.3 in (108.2 x 70.4 x 160.2 mm) and weighs 255 g as the contactless model with its lithium-ion battery, keeping the unit manageable through long medication administration rounds. Honeywell positions the Xenon Ultra range as the premium evolution of the legacy Xenon and Xenon XP healthcare scanners, retaining the familiar handheld form factor while adding a 1280 x 1080 pixel sensor, a 525 nm green-dot aimer and selectable Patient Do-Not-Disturb, vibration and scan lamp operating modes for bedside use.

Kit Contents And Connectivity

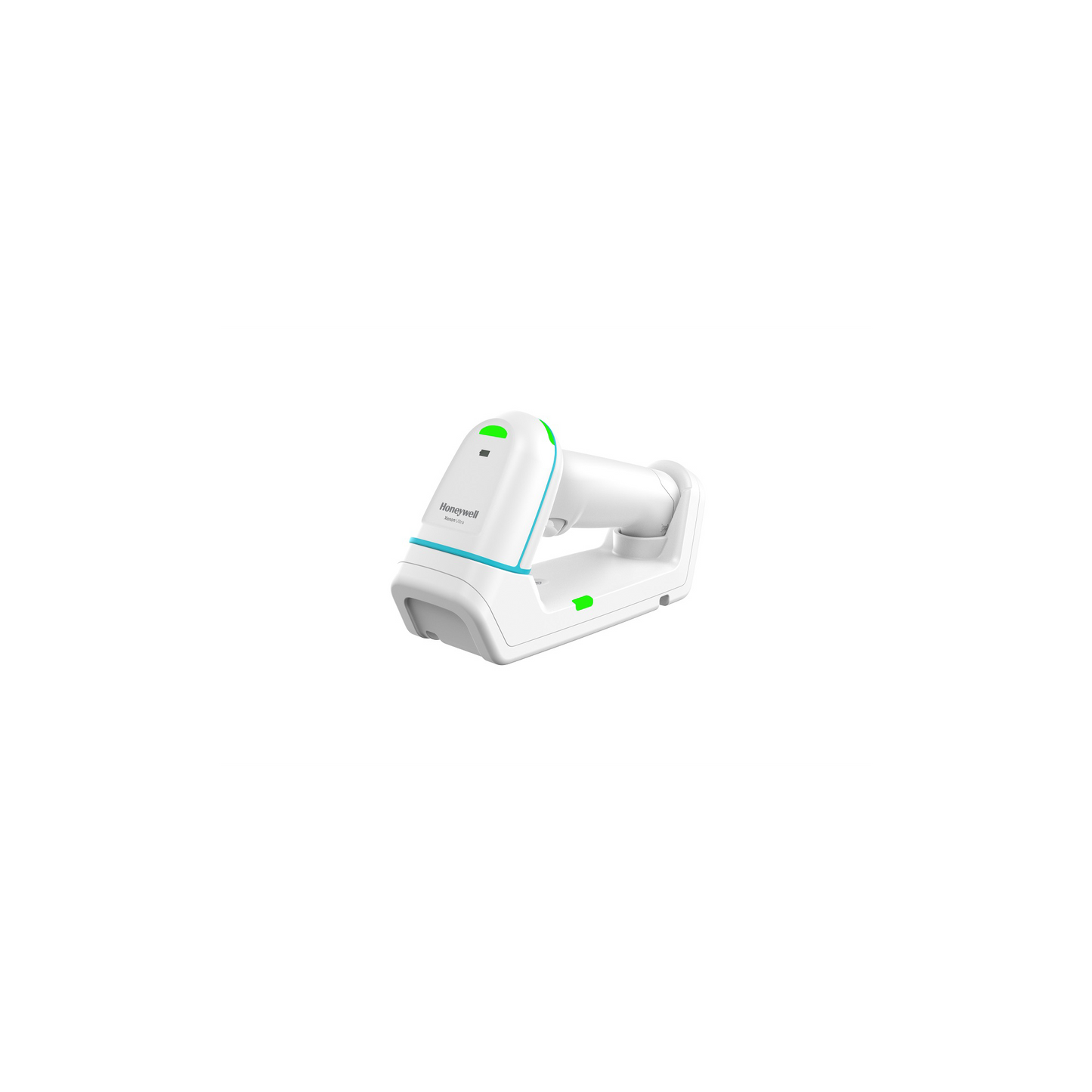

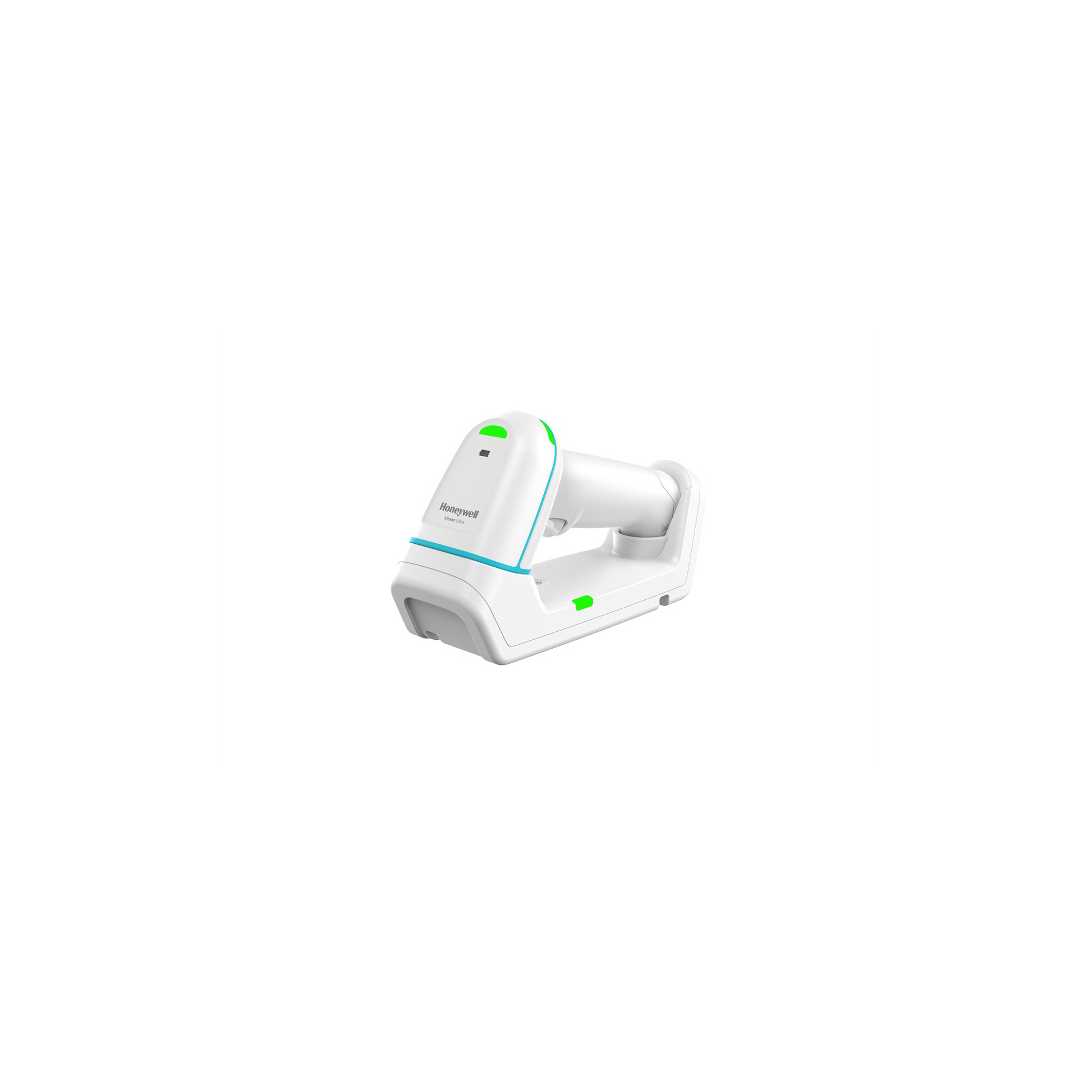

Part number 1962HHD-5USB-9WC is supplied as a USB contactless charge kit containing the white anti-microbial 1962h handheld with HD focus in its contactless variant, a lithium-ion battery, a USB Type A 2.7 m straight cable and the Contactless Horizontal Desktop/Wall mount Charge and Communication Base. The base carries both wireless charging and the wired host connection, and the platform supports USB, keyboard wedge and RS-232 host interfaces. What is not included: published kit contents list no external power supply, so confirm power requirements for the contactless base before ordering, no holster or stand, no spare battery and no software license or service contract. The contactless handheld is matched to the contactless base and is not interchangeable with a contact-charging cradle.

Imaging And Decode Performance

The HD focus imager in this kit is tuned for the dense, small-format labels common in pharmacy and laboratory work. Honeywell publishes a typical HD reading range of 0.29 to 11.62 in (7 to 295 mm) on 5 mil Code 39, 0 to 19.77 in (0 to 502 mm) on 13 mil UPC, 2 to 249 mm on 10 mil Data Matrix and 0.17 to 32.07 in (4 to 814 mm) on 20 mil Code 39. The 1280 x 1080 pixel sensor presents a 42° horizontal by 36° vertical field of view, tolerates motion up to 4 meters per second and resolves print contrast as low as 15%. Reading angles extend to 360° roll with 65° pitch and 65° skew, and the unit operates across an ambient light range of 0 to 100,000 lux.

Contactless Charging Advantage

The defining feature of this part number is contactless charging. Honeywell describes the contactless version as the premium option that helps reduce the number of failed devices caused by corrosion, which is the common failure mode when charging contacts are exposed to repeated disinfection. The handheld and the horizontal base are both contactless variants and are sold as a matched pair, so the scanner replenishes its 3300 mAh lithium-ion battery without any exposed metal interface. That battery still delivers up to 80,000 scans per charge and around 22 hours of operation, and the contactless build adds only a few grams over the contact-charging equivalent.

Durability And Disinfection

Cleaning frequency is the main enemy of scanners in patient care, so every 1962h ships with an anti-microbial disinfectant-ready housing that Honeywell states can be cleaned regularly with a wide variety of cleaning solutions. The handheld is sealed to IP52 and the charge and communication base to IP41. Honeywell rates the scanner for 50 drops to concrete from 1.8 m (6 ft) and 2,000 tumbles from 0.5 m (1.6 ft), with electrostatic discharge immunity of plus or minus 8 kV indirect and plus or minus 15 kV direct air. Operating temperature spans 0°C to 50°C (32°F to 122°F), storage spans -40°C to 70°C (-40°F to 158°F) and humidity tolerance is 0% to 95% relative, non-condensing.

Deployment And Management

Fleet administration is handled through the Honeywell Scanner Management Utility, which automates how scanners are deployed and updated across a site and is documented by Honeywell for upgrading and downgrading 1962 series firmware. The charge and communication base acts as the wired host connection, so the paired handheld presents scanned data to the application exactly as a corded scanner would, and the platform supports USB, keyboard wedge and RS-232 host interfaces.

Typical Healthcare Deployments

Honeywell and its distribution channel position the 1962h for bedside care, patient admissions, specimen collection, pharmacy dispensing and inventory or component tracking. In practice that covers positive patient identification at the bedside, closed-loop medication administration, phlebotomy and laboratory specimen labeling, blood bank verification, sterile processing and central supply replenishment. The anti-microbial housing and Patient Do-Not-Disturb mode also suit long-term care, outpatient clinics, infusion centers and pharmacy retail counters where equipment is shared between staff and cleaned between shifts.
