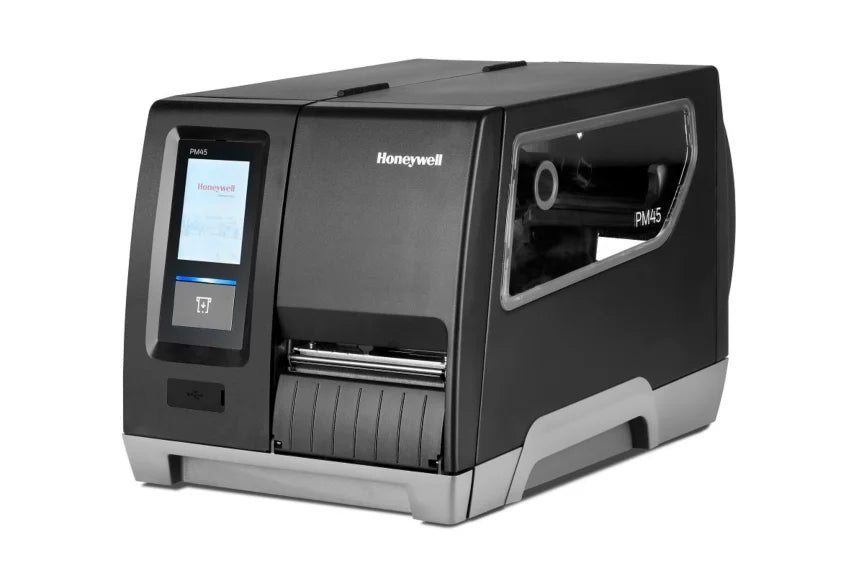

Honeywell PM45A Industrial Label Printer 300 DPI Touch US Power Cord PM45A10000000301

Key Features

• Prints at 300 dpi for sharp barcodes, small text and compliance marks on labels and tags.
• Runs at up to 12 ips (300 mm/s) at 300 dpi to keep high-volume label production moving.
• Prints a full 4.17 inches (105.7 mm) wide, covering standard 4-inch shipping and product label formats.
• Thermal transfer printing produces durable labels that survive abrasion, heat and solvents.
• Full touch colour interface guides operators through setup and diagnostics in 11 languages.
• Wired Ethernet, USB and serial connectivity integrate the printer into existing networks.
• All-metal chassis and a large clear media window stand up to warehouse and production floor duty.
• Tool-free printhead and platen replacement keeps routine maintenance in the hands of your own staff.
• Handles media rolls up to 213 mm (8.38 in) in diameter to reduce reload stops on long print runs.
• Honeywell command set support drops the printer into existing label workflows without rewriting them.

Key Specifications

• Print Resolution: 300 dpi
• Maximum Print Speed: Up to 12 ips (300 mm/s) at 300 dpi; range 2-12 ips (50-300 mm/s)
• Print Method: Thermal Transfer
• Maximum Print Width: 4.17 inches (105.7 mm) at 300 dpi
• Display: Full Touch UI, 11 languages
• Connectivity: Ethernet 10/100 Mbps, USB 2.0 host, USB 2.0 device, RS-232
• Media Handling: Standard tear-off; no rewinder or label taken sensor in this configuration
• Memory: 512 MB Flash, 256 MB SDRAM, plus external USB memory (FAT16/FAT32)
• Media Types: Labels, tags and linered media; gap, notch, black mark and continuous sensing
• Maximum Media Roll: 213 mm (8.38 in) outer diameter
• Ribbon: 25 mm (1 in) core, up to 450 m (1,476 ft) capacity
• Printer Languages: Fingerprint, Direct Protocol, IPL, ZSim2 (ZPL-II), DPL and XML

Built for Industrial Duty

The Honeywell PM45A (PM45A10000000301) is a 4-inch industrial label printer built for continuous duty in manufacturing, warehousing, distribution and healthcare environments. Its all-metal chassis and large media window are designed for floors where dust, vibration and temperature swings are normal rather than exceptional, and the unit is rated for operation from +5 C to +40 C. Tool-free printhead and platen replacement means routine consumable and wear-part changes stay with your own maintenance staff instead of requiring a service call, which keeps a line running when a printhead reaches end of life mid-shift. The printer weighs 13.2 kg (29.1 lbs) and measures 483 x 295 x 284 mm.

Print Performance

This configuration prints at 300 dpi across a maximum width of 4.17 inches (105.7 mm), and runs at up to 12 ips (300 mm/s). Honeywell rates the PM45 across a 2-12 ips (50-300 mm/s) range, so throughput can be tuned against media and label complexity rather than fixed at one speed. Print registration is held to plus or minus 0.5 mm, which matters where a barcode has to fall inside a defined print zone on a pre-printed label. At 300 dpi this unit trades top speed for the finer dot pitch needed by dense two-dimensional codes, small point sizes and detailed graphics.

Thermal Transfer Printing

The PM45A10000000301 is a thermal transfer configuration, melting resin or wax ribbon onto the label surface to produce marks that resist abrasion, heat, moisture and many solvents. Ribbon is loaded on a 25 mm (1 in) core and the printer accepts rolls up to 450 m (1,476 ft), so ribbon changes are infrequent even on long production runs. Thermal transfer is the right choice for asset tags, regulatory and compliance labels, laboratory and specimen identification, and any label expected to remain legible and scannable for the life of the item it is attached to.

Standard Connectivity

The PM45A10000000301 ships with the PM45's standard wired interface set: Ethernet 10/100 Mbps, USB 2.0 host, USB 2.0 device and RS-232 serial. This covers integration with WMS, ERP, MES and label management platforms over the network, direct host connection over USB, and legacy serial equipment still in service on older lines. The USB host port also accepts a keyboard or scanner for standalone label entry and takes firmware updates from a USB drive. Wi-Fi, Bluetooth, parallel, industrial, applicator and RFID interfaces are options on the PM45 platform but are not fitted to this part number; if you need one of them, order the configuration that includes it.

Media Handling

Media handling on this configuration is standard tear-off. The printer accepts labels, tags and linered media with gap, notch, black mark and continuous sensing, and takes rolls up to 213 mm (8.38 in) in outer diameter, which reduces reload stops on long runs. A rewinder, full batch rewinder and label taken sensor are all available on the PM45 platform as factory options, but none of them are fitted to this part number. If your workflow needs printed labels taken back up onto a roll, or needs the printer to hold the next label until the last one is removed, order the configuration that includes those options rather than adding them later.

Touch Interface

This unit carries the full touch colour interface. Operators work through setup, media calibration, diagnostics and error recovery on screen in any of 11 supported languages, which shortens training and reduces the number of issues that escalate to IT. On-screen guidance is particularly useful in multi-shift operations and in sites where several printer models are in service and muscle memory cannot be relied on. The touch build costs more than the icon build; the return is fewer calls, faster recovery from a media jam or a calibration drift, and less dependence on one experienced operator knowing the sequence.

Software and Integration

The PM45A supports Fingerprint, Direct Protocol, Intermec Printer Language, ZSim2 (ZPL-II), DPL and XML, so it can be dropped into an existing label environment without rewriting templates, including environments originally built around Intermec or Zebra command sets. Memory is 512 MB Flash and 256 MB SDRAM, with support for an external USB memory device formatted FAT16 or FAT32 for fonts, graphics and stored formats. Honeywell's printer management tooling handles configuration, firmware and monitoring across a fleet, which keeps the administrative overhead flat as the number of installed printers grows.

Configuration Notes

Part number PM45A10000000301 decodes to: Full Touch UI display; Ethernet only; no rewinder or label taken sensor; fixed hanger; Thermal Transfer at 300 dpi; US power cord included. No parallel, industrial, applicator or RFID interface is fitted. PM45A part numbers differ only in these positions, and the differences carry real cost and capability, so confirm the exact part number against your requirement before ordering rather than matching on the model name alone.

For operations that need dependable 300 dpi industrial label printing with a full touch interface and thermal transfer output, the Honeywell PM45A PM45A10000000301 is a well-specified, serviceable choice that integrates with the systems you already run. Contact us to learn more or secure this solution for your business today.
