Honeywell PM65 Industrial Label Printer 300 DPI Rewinder Wi-Fi PM65A11000030301

Key Features

• Print labels up to 167.4 mm (6.59 in) wide, covering pallet placards and large compliance formats.
• Produce crisp 300 dpi output at speeds reaching 250 mm/s (10 ips) to keep packing lines moving.
• Connect through built-in Ethernet, Wi-Fi 802.11ax and Bluetooth without buying an add-on radio kit.
• Drive the printer from a 3.5-inch touch screen that responds to bare fingers, gloved hands or a stylus.
• Load ribbons up to 450 m (1,476 ft) long to cut the number of changeover stops on lengthy print runs.
• Feed rolls up to 213 mm (8.38 in) across on 38 mm to 76 mm cores for extended unattended operation.
• Switch between thermal transfer and direct thermal media so one chassis covers both label programs.
• Retire older printers without rewriting formats using ZSim, DPL, IPL, Fingerprint and Direct Protocol.
• Monitor and update the fleet remotely with the Printer Edge web interface and SOTI Connect to avoid site visits.
• Stamp every label automatically from the standard real-time clock for shift records and traceability.
• Hold complex formats, graphics and fonts on board using 512 MB of flash memory and 256 MB of SDRAM.
• Wind printed labels back onto a roll with the factory-fitted internal rewinder and label taken sensor.

Key Specifications

• Print Resolution: 300 dpi (11.8 dots/mm); printhead field-replaceable as PM65-TPH-300
• Print Speed: 50 mm/s to 250 mm/s (2 ips to 10 ips)
• Print Method: Thermal transfer configuration that also accepts direct thermal media
• Maximum Print Width: 167.4 mm (6.59 in), identical at both 203 dpi and 300 dpi
• Media Width: 51 mm to 178 mm (2 in to 7 in), labels, tags and linered stock
• Media Roll: Up to 213 mm (8.38 in) outer diameter on 38 mm to 76 mm (1.5 in to 3 in) cores
• Ribbon: Up to 450 m (1,476 ft) on a 25.4 mm (1 in) core; wax, mid-range or resin
• Memory: 512 MB flash memory and 256 MB SDRAM, plus FAT16 or FAT32 USB storage
• Wired Interfaces: Ethernet 10/100 Mbps, USB 2.0 Host x2, USB 2.0 Device, RS-232
• Wireless: Wi-Fi 802.11 a/b/g/n/ac/ax, North America radio, plus Bluetooth
• Media Handling: Internal rewinder with label taken sensor, factory fitted
• Operating Environment: 5°C to 40°C (41°F to 104°F), 20 to 85 percent RH non-condensing

Wide Format Industrial Printer

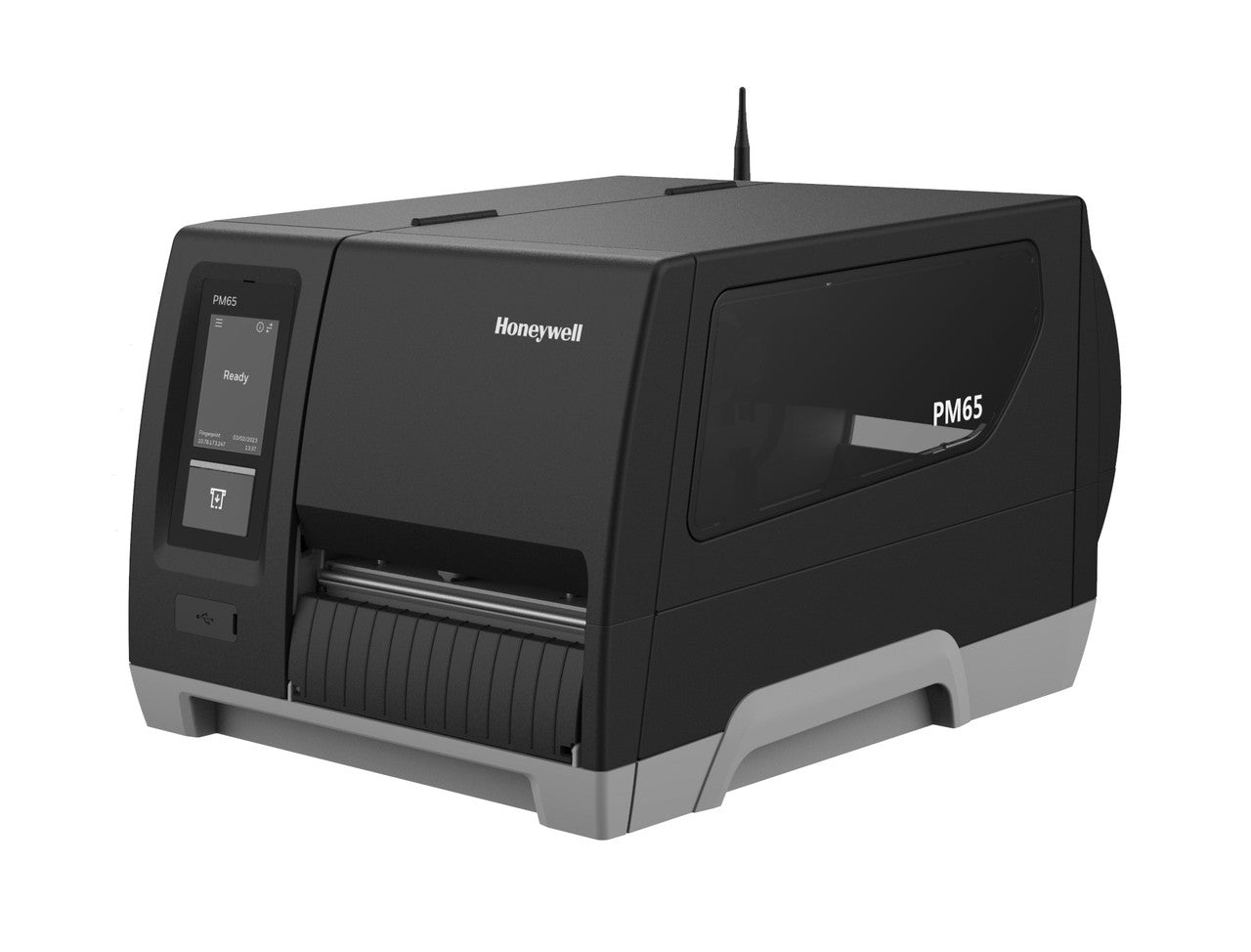

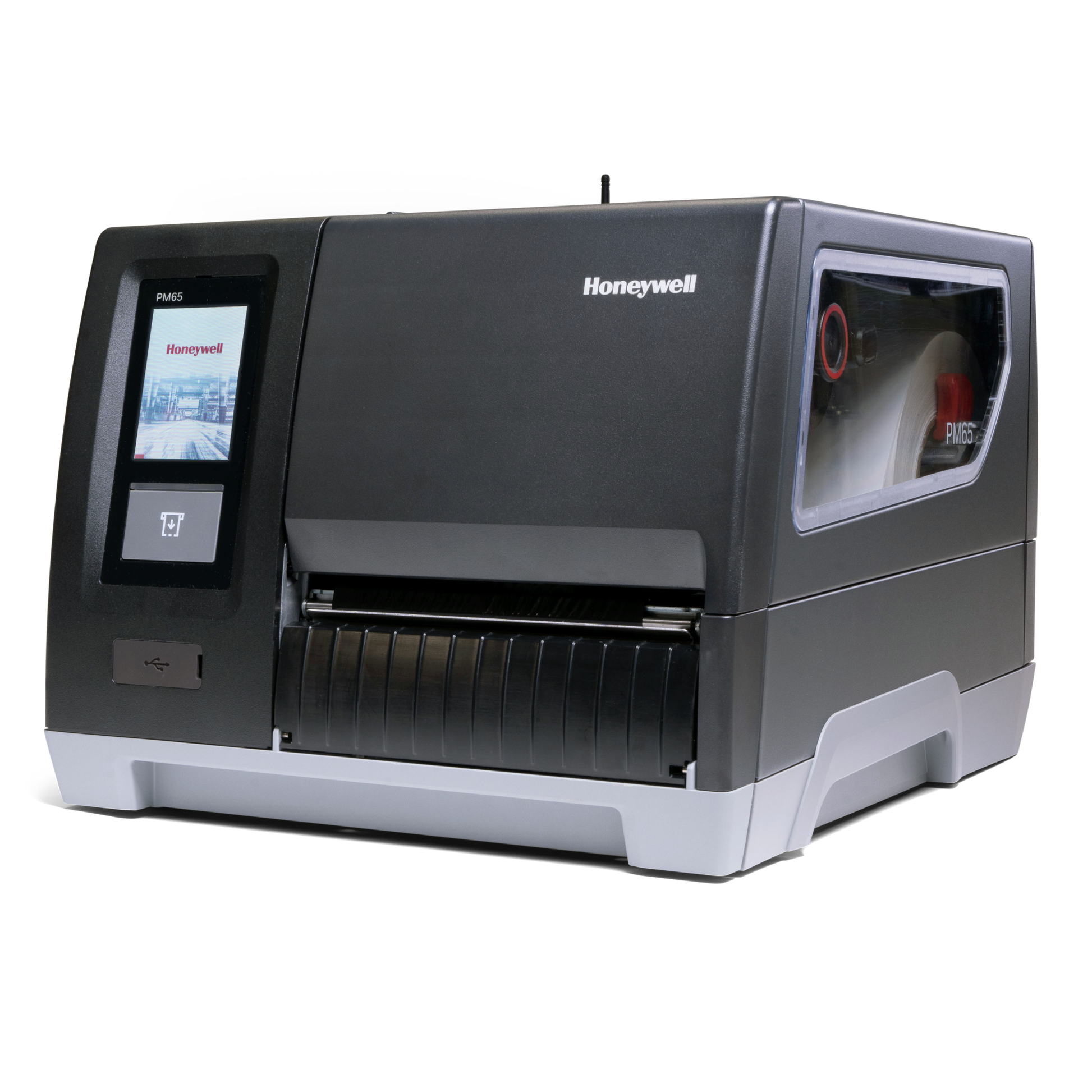

The Honeywell PM65A11000030301 is a six-inch industrial label printer built on the Honeywell Printer Edge platform for continuous, high-volume production printing. The unit measures 484 mm x 292 mm x 350 mm (19.1 in x 11.5 in x 13.8 in) and weighs 13.7 kg (30.2 lb), so it sits on a bench, cart or packing station without a dedicated enclosure. It is configured for thermal transfer printing at 300 dpi and also accepts direct thermal media, letting a single chassis cover both ribbon and ribbon-free label stock. A 3.5-inch full touch screen on the front panel accepts input from bare fingers, gloved hands or a stylus, so operators adjust settings without removing personal protective equipment.

Included Kit And Connectivity

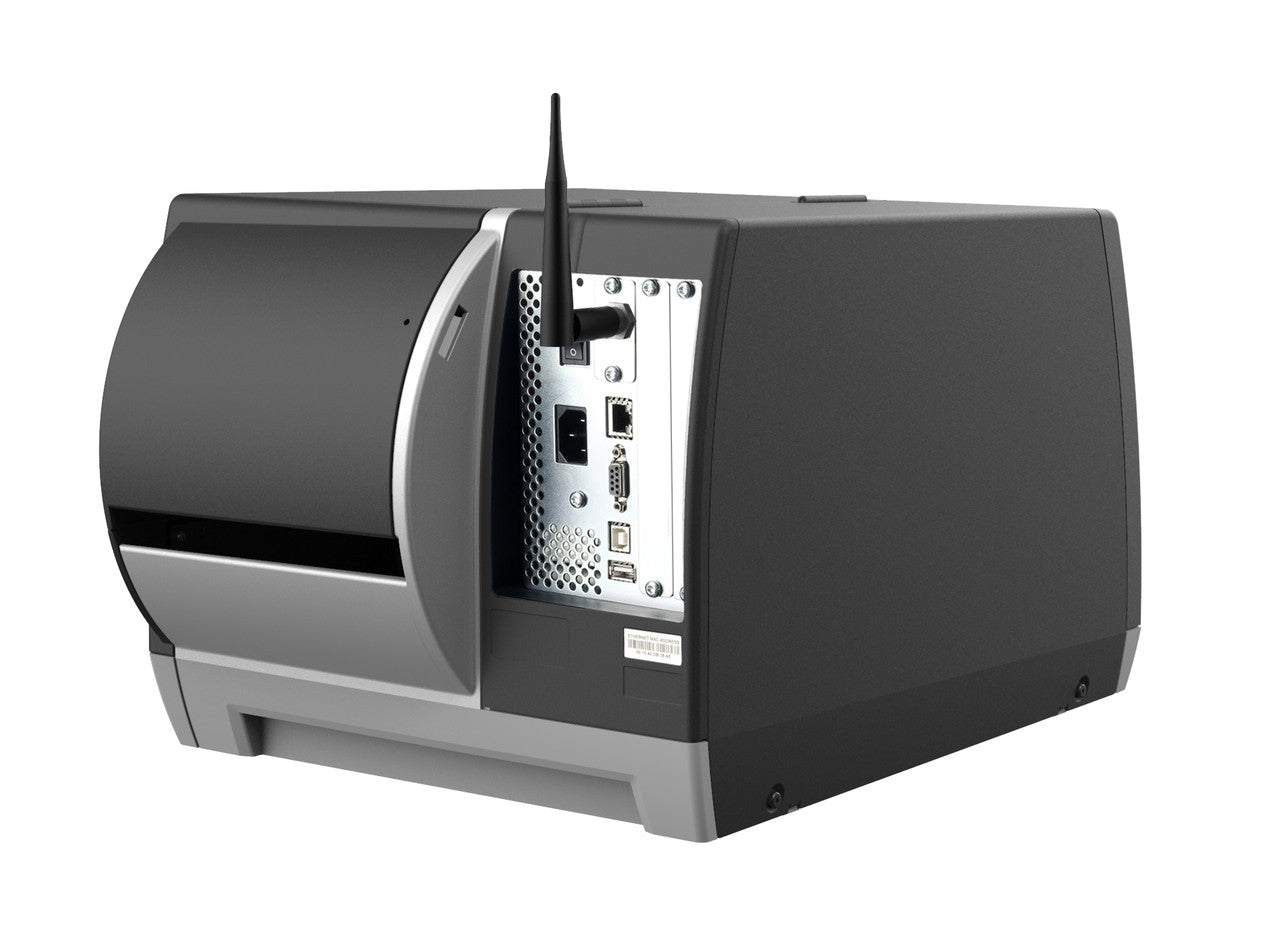

This configuration ships with the PM65A printer, the PM65 regulatory sheet, a large collapsible core, a collapsible core, a ribbon core, a batch plate supplied uninstalled and a United States power cord. The internal rewinder and label taken sensor are factory fitted. Ethernet 10/100 Mbps, two USB 2.0 host ports, a USB 2.0 device port and an RS-232 serial port are built in, and the installed radio adds 802.11 a/b/g/n/ac/ax Wi-Fi for North America together with Bluetooth. A real-time clock is standard. Label stock, ribbon, cables, software licenses and stands are not supplied, and the label dispenser, media cutter, RFID encoder and parallel, industrial or applicator interface boards remain separately ordered options.

Print Speed And Media

The 300 dpi printhead resolves 11.8 dots per millimeter across a maximum print width of 167.4 mm (6.59 in) and runs from 50 mm/s to 250 mm/s (2 ips to 10 ips), so throughput can be traded against print darkness on demanding substrates. Media between 51 mm and 178 mm (2 in and 7 in) wide feeds from rolls of up to 213 mm (8.38 in) outer diameter on cores of 38 mm to 76 mm (1.5 in to 3 in). Ribbon capacity reaches 450 m (1,476 ft) on a 25.4 mm (1 in) core in widths from 50.8 mm to 172.7 mm (2 in to 6.8 in), and wax, mid-range and resin formulations are all supported. Labels, tags and linered stock run as standard media types.

Internal Rewinder And Sensor

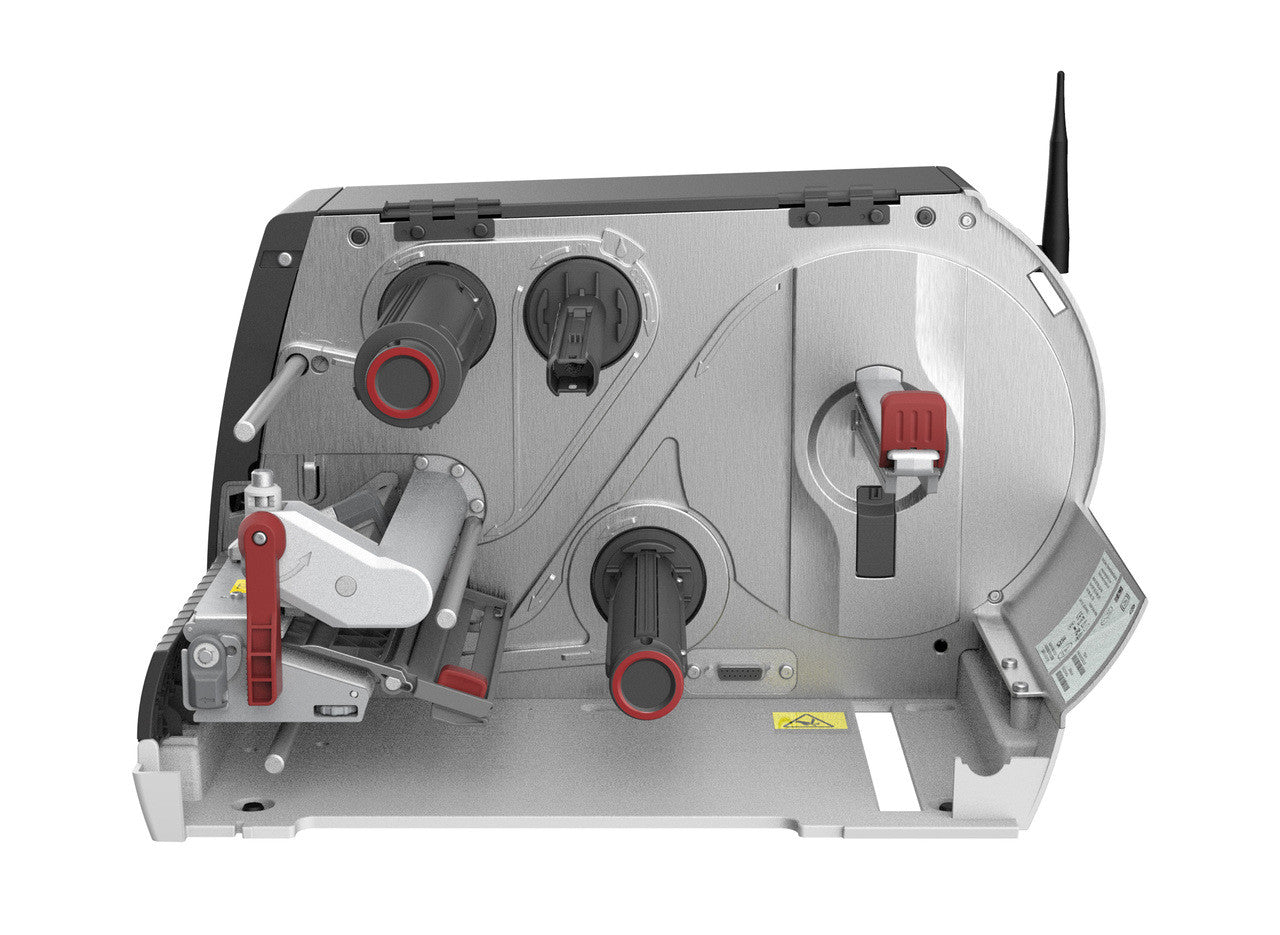

The factory-fitted internal rewinder winds printed output back onto a roll instead of dropping it into a catch tray, which keeps finished labels in sequence for batch application and keeps the work area clear during long unattended runs. The accompanying label taken sensor detects when the current label has been removed and holds the next one until the operator is ready, preventing labels from stacking up at the outfeed during on-demand picking and packing. Adding the separately ordered PM65-LD label dispenser to this rewinder-equipped chassis converts it to peel-off operation, where the liner is wound onto the rewinder and labels are presented ready for application.

Durability And Operating Range

The printer operates between 5°C and 40°C (41°F and 104°F) at 20 to 85 percent relative humidity, non-condensing, and tolerates storage from -20°C to 70°C. It accepts any supply from 100 V AC to 240 V AC at 50 Hz to 60 Hz, so the same unit can be redeployed between facilities without a power conversion. Regulatory coverage includes RoHS compliance, CE marking and FCC Class B, and the printer is ENERGY STAR 3.0 qualified. Honeywell backs the hardware with a one year factory warranty, and field-replaceable printheads and platen rollers are available so a worn consumable does not take the printer out of service.

Remote Management And Software

Printer Edge presents a browser-based configuration interface for local setup. SOTI Connect and the optional Honeywell Operational Intelligence subscription extend this to remote monitoring, firmware distribution and diagnostic reporting across a printer estate, so configuration profiles, certificates and label formats reach the device without an engineer traveling to the site. The printer is a supported output target for BarTender, NiceLabel and TEKLYNX LABELVIEW, which lets established label templates and print automation carry over unchanged. Firmware, fonts and formats can also be loaded locally from a FAT16 or FAT32 USB memory device.

Typical Deployments

This printer suits manufacturing, warehousing and distribution operations that need finer detail than a 203 dpi head delivers, including dense two-dimensional codes, small point sizes and detailed graphics on six-inch wide stock. Pharmaceutical, medical device and electronics manufacturers use 300 dpi output for serialization and unique device identification labels where scan reliability at small symbol sizes is critical. The internal rewinder and label taken sensor make it a fit for batch production and kitting cells, where labels are printed ahead of application and must stay in sequence, and for on-demand packing stations that apply one label at a time.

Barcode Printer Shop supplies the Honeywell PM65A11000030301 with its factory-fitted rewinder, plus the ribbons and media to match. Contact us to learn more or secure this solution for your business today.
