Zebra ZT410 Industrial 300 DPI Thermal Transfer Barcode Label Printer ZT41043-T010000Z

Note: This printer has a 3 week lead time

Key Features

• Prints at 300 DPI for crisp, scannable barcodes and small text on compliance, asset, and product labels.
• Reaches up to 12 inches per second to keep production lines and shipping operations moving without delay.
• All-metal frame and bi-fold door withstand demanding manufacturing, warehouse, and distribution environments.
• Color-coded, side-loading media and ribbon paths simplify supply changes and reduce operator training time.
• Tear-off mode delivers labels ready for immediate application without additional handling or finishing steps.
• Built-in USB 2.0, USB host, RS-232 serial, 10/100 Ethernet, and Bluetooth 2.1 connectivity for flexible deployment.
• Supports both thermal transfer and direct thermal printing for variable label durability and supply costs.
• Tool-less printhead and platen replacement reduce maintenance time and keep operators productive on the floor.
• Driven by Zebra Link-OS for remote configuration, monitoring, and firmware management across the printer fleet.
• Compatible with EZPL, ZPL II, and XML programming for direct integration with existing label workflows.
• Backed by Zebra's industrial design heritage with proven reliability across manufacturing, transportation, healthcare, and retail.

Key Specifications

• Print Resolution: 300 dpi (12 dots/mm) for crisp barcodes and small text
• Maximum Print Speed: Up to 12 ips (305 mm/s) at 300 dpi resolution
• Print Method: Thermal Transfer and Direct Thermal printing supported
• Maximum Print Width: 4.09 inches (104 mm) for standard 4-inch labels
• Memory: 256 MB RAM and 512 MB Flash (64 MB user-available)
• Standard Connectivity: USB 2.0, USB Host, RS-232 Serial, 10/100 Ethernet, Bluetooth 2.1
• Programming Languages: EZPL, ZPL II, and XML for flexible label design
• Supported Media Types: Continuous, die-cut, notch, and black-mark labels
• Media Thickness Range: 0.0023 to 0.010 inches (0.058 to 0.25 mm)
• Dimensions: 19.5" D x 10.6" W x 12.75" H (495 x 269 x 324 mm)
• Weight: 36 lbs (16.3 kg) in a rugged all-metal industrial frame

Industrial-Grade Build

The Zebra ZT410 industrial printer (ZT41043-T010000Z) is engineered for the demands of manufacturing, warehouse, distribution, and healthcare environments. Its all-metal frame, bi-fold door, and reinforced print mechanism are built to operate continuously through dust, vibration, and temperature swings common in production settings. The side-loading media and ribbon path is color-coded and LED-lit, allowing operators to load supplies quickly with minimal training, even during shift changes. This rugged construction reduces downtime and supports long product lifecycles in mission-critical labeling applications.

High-Volume Print Performance

With 300 dpi resolution and print speeds of up to 12 inches per second, the ZT41043-T010000Z handles dense, small-format barcodes, fine text, regulatory labeling, and graphics with sharp clarity. The printer supports both thermal transfer and direct thermal modes, giving operations teams flexibility to balance label durability against supply cost depending on application. The 4.09-inch maximum print width covers standard product, shipping, and compliance label formats. Combined with 256 MB of RAM and 512 MB of Flash memory, the ZT410 manages complex label templates and high job throughput without bottlenecks.

Versatile Connectivity Options

The ZT41043-T010000Z ships with USB 2.0 high-speed, USB Host, RS-232 serial, 10/100 Ethernet, and Bluetooth 2.1 interfaces in the standard configuration. This connectivity mix allows businesses to integrate the printer into both legacy serial-based environments and modern networked print workflows without additional adapters. The USB Host port supports keyboard and scanner input for standalone label entry, as well as firmware updates from a USB drive. Ethernet enables centralized management across distributed sites, while Bluetooth supports pairing with mobile devices for configuration or print dispatch in environments where cabled networking is impractical.

Streamlined Media Handling

Tear-off mode is the standard label handling option in this configuration, presenting completed labels for immediate application without additional finishing hardware. The ZT41043-T010000Z accepts continuous, die-cut, notch, and black-mark media at thicknesses from 0.0023 to 0.010 inches, supporting a broad mix of paper, synthetic, and thermal transfer label stocks. The tool-less printhead and platen roller design lets technicians swap consumable parts on-site without specialty tools, minimizing the time required for routine maintenance and reducing dependency on outside service calls.

Link-OS Software Ecosystem

The ZT410 runs on Zebra's Link-OS environment with Print DNA software, providing IT and operations teams with centralized tools for configuration, monitoring, security, and firmware management across the printer fleet. PrintSecure offers more than thirty configurable security settings including connection whitelisting and HTTPS certificate management to support compliance requirements. The printer accepts EZPL, ZPL II, and XML commands, allowing it to drop into existing label environments without rewriting templates. Remote management capabilities reduce the need for on-site IT visits when printers move between facilities or require updates.

Application Fit

The Zebra ZT41043-T010000Z is a strong fit for warehouse and distribution centers running shipping label and pallet labeling at scale, manufacturing lines producing UDI, asset, and work-in-process tags, healthcare facilities printing patient and specimen labels, and retail back-of-house operations issuing receiving and pricing labels. Its 4-inch print width matches the most common industrial label formats, and the standard connectivity set ensures it integrates with WMS, ERP, MES, and EHR platforms commonly deployed in these settings. Operations managers gain a printer that can stand up to 24/7 duty cycles.

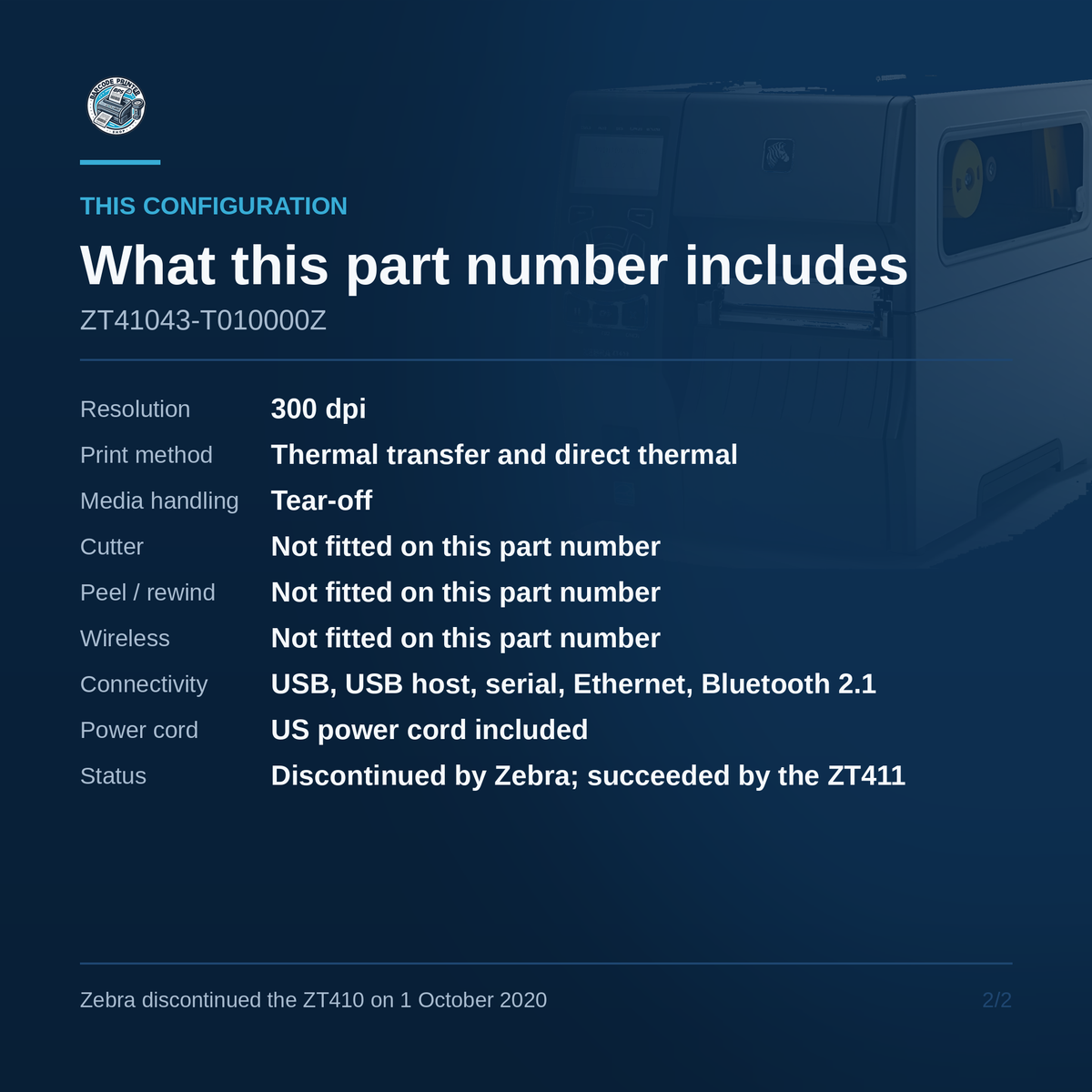

Discontinued Status and Availability

Zebra has discontinued the ZT410 platform and replaced it with the ZT411. Barcode Printer Shop carries the ZT41043-T010000Z in limited quantities for organizations that need to match an existing fleet, source replacement units, or maintain validated workflows where introducing a new printer model would require requalification. Once current stock is depleted, replacement availability moves to the ZT411 (ZT41143-T010000Z) with comparable feature parity. Confirm quantity needs early to secure remaining inventory.

For warehouse, manufacturing, healthcare, and retail operations that depend on validated 4-inch industrial label printing at 300 DPI, the Zebra ZT41043-T010000Z delivers proven Link-OS performance from a platform with active fleets across thousands of sites. Contact us to learn more or secure this solution for your business today.
