Honeywell Voyager XP 1472g Cordless 1D/2D Barcode Scanner USB Kit with Charge Base 1472G2D-2USB-5-N

Key Features

• Cordless 1D, PDF and 2D area imager for retail, counter, stockroom and light industrial scanning.
• Reads DotCode alongside the standard 1D and 2D set, covering tobacco track-and-trace requirements.
• Captures barcodes off a phone, tablet or monitor as readily as off printed labels.
• Bluetooth 4.2 with adaptive frequency hopping works at up to 100 m line of sight from its base.
• Replaceable 2400 mAh battery delivers up to 100,000 scans or 28 hours between charges.
• Reads a 13 mil UPC in motion at up to 70 cm per second, so operators need not pause on each label.
• IP52 sealed against dust and dripping water for counter and back-of-house environments.
• Withstands 30 drops to concrete from 1.8 m and 1,000 tumbles at 0.5 m.
• Supports USB, Keyboard Wedge and RS-232 hosts, with the cable determining the interface.
• Ships as a kit with the charge and communication base and a 3 m USB Type A cable included.
• TAA compliant and supplied in the North America and Latin America regional configuration.
• Backed by a three-year Honeywell factory warranty, with one year on the battery.

Key Specifications

• Scan Engine: Area imager, 1040 x 720 pixel array with LED aimer, 1D, PDF and 2D
• Scan Angles: 39.2 degrees horizontal by 27.4 degrees vertical
• Motion Tolerance: Up to 70 cm per second on a 13 mil UPC at optimal focus
• Typical Read Range: 13 mil UPC 18 to 400 mm; 5 mil Code 39 20 to 205 mm; 20 mil QR 5 to 325 mm
• Wireless: Bluetooth 4.2, 2.4 to 2.5 GHz, adaptive frequency hopping; up to 100 m line of sight
• Battery: Replaceable 2400 mAh lithium-ion; up to 100,000 scans or 28 hours per charge
• Charge Time: 7 hours over the USB cable, or 4 hours from an external 5 V power adapter rated 1 A
• Host Interfaces: USB, Keyboard Wedge and RS-232, cable dependent
• Environmental: IP52; 30 drops to concrete at 1.8 m; 1,000 tumbles at 0.5 m; 0 to 50 degrees C
• Dimensions and Weight: Scanner 82 x 62 x 173 mm, 210 g; base 132 x 102 x 81 mm, 179 g
• In the Box: Black 1472G2D-2-N scanner, CCB01-010BT-V1N-N charge and communication base, CBL-500-300-S00 3 m USB Type A straight cable
• Warranty: Three-year factory warranty; battery one year

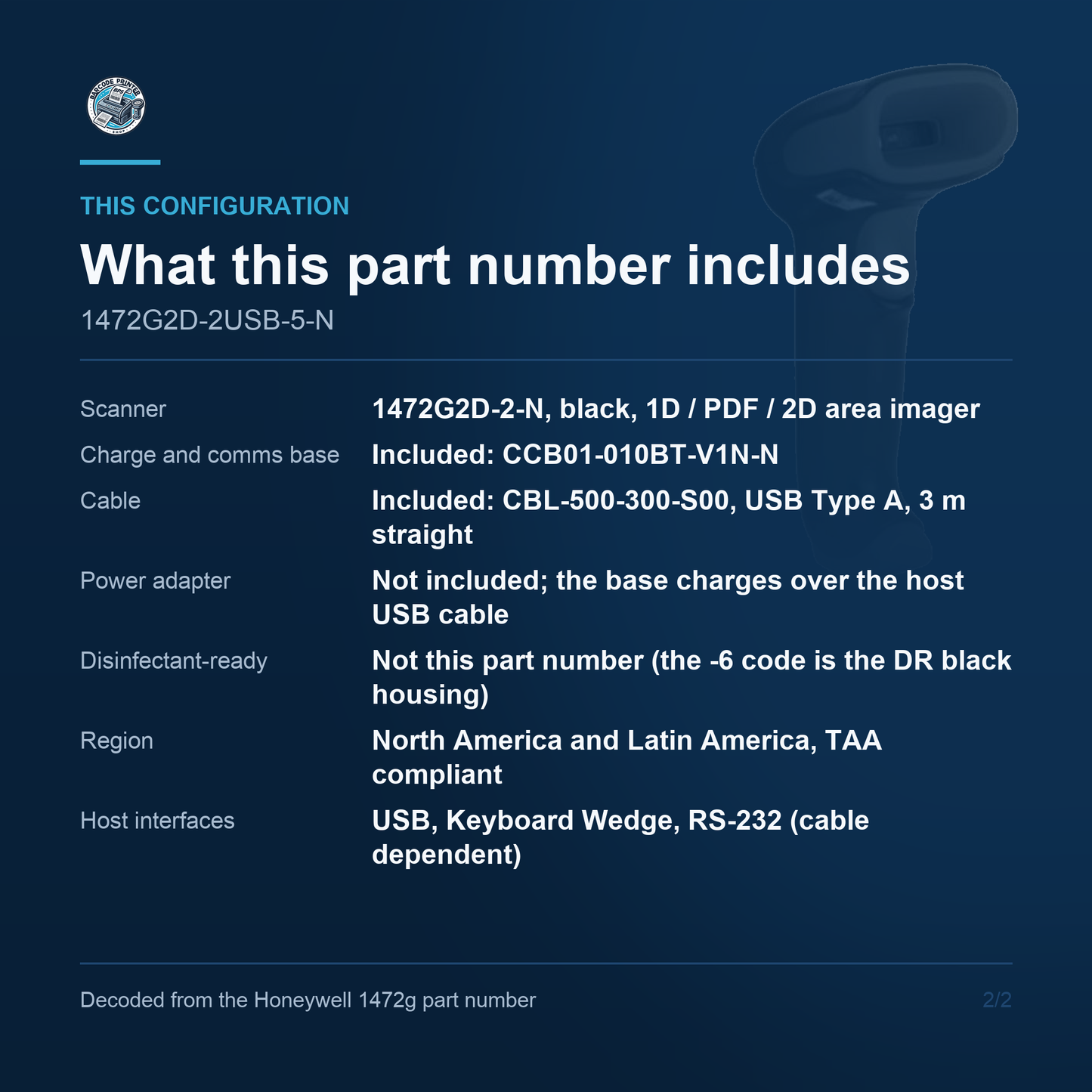

What Is Included

1472G2D-2USB-5-N is a complete kit rather than a bare scanner, and that is the single most important thing to know before ordering it. Three items ship under this one part number: the black Voyager XP 1472g cordless scanner, the CCB01-010BT-V1N-N charge and communication base, and a CBL-500-300-S00 3 metre USB Type A straight cable. The base is in the box. That is everything needed to put a working cordless scanning station on a counter, and it is why this part number should never be listed or sold as scanner only. Honeywell publishes the scanner on its own under a separate code for sites that already have bases.

Scan Performance

The Voyager XP 1472g uses a 1040 by 720 area imager with an LED aimer, reading standard 1D, PDF and 2D symbologies plus DotCode, which is what tobacco track-and-trace schemes require. Because it is an imager rather than a laser it reads a barcode off a phone screen or a monitor as readily as off a printed label, covering mobile coupons and digital proofs of purchase. Motion tolerance is up to 70 cm per second on a 13 mil UPC, so an operator can sweep the scanner across a label rather than holding it still. Typical read range on a 13 mil UPC runs from 18 mm out to 400 mm.

Cordless Operation

The 1472g links to its base over Bluetooth 4.2 in the 2.4 GHz band with adaptive frequency hopping, which is the mechanism that keeps it working in a room full of other radios rather than degrading as stations are added. Honeywell specifies up to 100 metres line of sight between scanner and base, which covers walking a stockroom aisle or a small warehouse floor without carrying the host. Batch mode stores scans taken out of range and uploads them on return, so an operator who walks past the edge of coverage does not silently lose reads. Pairing is done by scanning the barcode on the base.

Battery and Runtime

The replaceable 2400 mAh lithium-ion battery is rated for up to 100,000 scans at one scan per second, or up to 28 hours of operation, which covers a long shift with margin. Charging from empty takes about seven hours through the USB cable, or about four hours from an external 5 V power adapter rated at 1 A, so the normal pattern is to return the scanner to its base between uses and charge overnight. Note that an earlier revision of Honeywell's data sheet quoted 50,000 scans and 14 hours; the current Rev I figures are the ones above. Because the battery is replaceable, an ageing pack does not retire the scanner.

Durability

The 1472g is rated IP52, sealed against dust and dripping water, and is engineered to withstand 30 drops to concrete from 1.8 metres plus 1,000 tumbles at 0.5 metres. That is a meaningful step above the entry-level cordless class and is the reason the scanner suits a busy till, a receiving desk or a stockroom bench where it will be dropped rather than simply set down. Operating range is 0 to 50 degrees Celsius when not charging, narrowing to 5 to 40 degrees while charging, at 0 to 95 percent non-condensing humidity. The scanner weighs 210 g and the base 179 g.

Host Integration

Host connection is decided by the cable rather than the scanner: USB, Keyboard Wedge and RS-232 are all supported, and a USB Type C cable is available where a modern host requires it. The kit ships with a 3 metre USB Type A straight cable, which is what most deployments use, running the scanner in keyboard-wedge mode so scanned data arrives at the host as though typed with nothing to write or configure. Honeywell's EZConfig utility handles setup and configuration cloning across a fleet. Note that RS485 for IBM 46xx hosts is not confirmed on this family and should not be assumed.

Ordering Notes

Part number 1472G2D-2USB-5-N is the black, non-disinfectant-ready, 1D and 2D area imaging kit in the North America and Latin America regional configuration, TAA compliant. On this family the 2D or 1D marker sets the imager type rather than the SR and HD focus codes used on Honeywell's Xenon families, the first numeric segment sets housing colour, and the presence of USB in the code means a cable is included. A disinfectant-ready black variant exists under a different code. Confirm the exact part number against the requirement before ordering, and match what is already installed when adding to a fleet.

For retail, hospitality, stockroom and light industrial operations that need a durable cordless scanning station out of one box, the Honeywell Voyager XP 1472g 1472G2D-2USB-5-N is a well-proven choice backed by a three-year factory warranty. Contact us to learn more or secure this solution for your business today.
