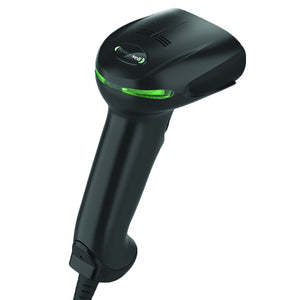

Honeywell Xenon XP 1950g Corded 1D/2D Barcode Scanner Black Standard Range USB Kit with Cable 1950GSR-2USB-N

Key Features

• Corded 1D and 2D area imager with a 1280 x 800 sensor for retail, counter and warehouse work.
• Standard Range focus optics, covering the everyday range from a near label out to a shelf edge or a pallet placard.
• Reads 1D, PDF, 2D, postal, Digimarc, DotCode and OCR symbologies from one engine.
• Captures barcodes off a phone, tablet or monitor as readily as off printed labels.
• Reads a 13 mil UPC in motion at up to 400 cm per second, so operators need not pause on each label.
• IP52 sealed against dust and dripping water for counter, stockroom and shop-floor environments.
• Engineered to withstand 50 drops to concrete from 1.8 m plus 2,000 tumbles at 0.5 m.
• Host powered over the cable, so there is no battery to charge, replace or manage.
• Supports USB, Keyboard Wedge, RS-232 and IBM 46xx over RS485, with the cable setting the interface.
• Light at 5.2 oz, so a full shift of handheld scanning does not build up wrist fatigue.
• Ships with a 3 m USB Type A straight cable; no stand or cradle is included.
• Backed by a five-year Honeywell factory warranty.

Key Specifications

• Scan Engine: Area imager, 1280 x 800 pixel array, Standard Range focus
• Symbologies: 1D, PDF, 2D, postal, Digimarc, DotCode and OCR
• Motion Tolerance: Up to 400 cm per second on a 13 mil UPC at optimal focus
• Scan Tolerance: Roll 360 degrees, pitch 45 degrees, skew 65 degrees
• Host Interfaces: USB, Keyboard Wedge, RS-232 and IBM 46xx over RS485, cable dependent
• Power: Host powered, 4.4 to 5.5 V DC; 2.5 W operating, 500 mA at 5 V DC
• Environmental: IP52; 50 drops to concrete at 1.8 m; 2,000 tumbles at 0.5 m; 0 to 50 degrees C
• Colour: Black
• Dimensions and Weight: 104.1 x 71.1 x 160 mm (4.1 x 2.8 x 6.3 in); 147 g (5.2 oz)
• In the Box: Black scanner and CBL-500-300-S00 3 m USB Type A straight cable; no stand or cradle
• Warranty: Five-year factory warranty

What Is Included

1950GSR-2USB-N is the USB kit. Two items ship under this part number: the black Xenon XP 1950g corded scanner and a CBL-500-300-S00 3 metre USB Type A straight cable. There is no stand and no cradle in the box. That is the right configuration for handheld use at a bench, a receiving desk or a picking station, where the scanner is picked up for each read and set back down. If the position needs hands-free presentation scanning, Honeywell publishes an otherwise identical part number that adds an integrated ratchet stand, and that is the one to order instead.

Scan Performance

The Xenon XP 1950g uses a 1280 x 800 area imager reading 1D, PDF, 2D, postal, Digimarc, DotCode and OCR symbologies from a single engine, so one scanner covers retail barcodes, shipping labels, pharmaceutical codes and tobacco track-and-trace. Because it is an imager rather than a laser it reads off a phone screen or a monitor as readily as off a printed label. Motion tolerance runs to 400 cm per second on a 13 mil UPC, and the engine tolerates 360 degrees of roll, 45 of pitch and 65 of skew, so an awkwardly angled label still reads first time. This part number carries the Standard Range engine.

Standard Range Focus

Focus option is the decision that most often gets made wrong on this family, because it is not visible from the model name. Standard Range optics cover the everyday working distance most retail, warehouse and back-office scanning actually uses, from a label held near the scanner out to a shelf edge or a carton on a bench. It is the default choice unless the application is specifically dominated by very small, very dense codes, in which case the High Density variant is the one to order. SR is the safer pick for a mixed workload. Both variants share the same body, cable options and warranty.

Corded Operation

Being corded rather than cordless changes the ownership picture more than it changes the scanning. There is no battery to charge, degrade or replace, no pairing to maintain, and no cradle occupying counter space. The scanner takes 4.4 to 5.5 V DC from the host over the cable, drawing 2.5 W in operation, so a single USB port powers it and carries its data. In practice that makes a corded scanner the lower-maintenance option wherever the operator does not need to walk away from the host, which covers most tills, packing benches and receiving desks. The trade is mobility: if the job involves walking the aisles, a cordless model is the right family.

Durability

The Xenon XP 1950g is rated IP52, sealed against dust and dripping water, and is engineered to withstand 50 drops to concrete from 1.8 metres plus 2,000 tumbles at 0.5 metres. Those are the figures Honeywell publishes for this generation, and they matter because listings for these part numbers frequently carry IP41, which belongs to the older Xenon 1900 line rather than to this one. Operating range is 0 to 50 degrees Celsius at 0 to 95 percent non-condensing humidity. At 147 grams the scanner is light enough that a full shift of handheld use does not build up the wrist fatigue that heavier industrial models cause.

Host Integration

Host connection is decided by the cable rather than the scanner: USB, Keyboard Wedge, RS-232 and IBM 46xx over RS485 are all supported, which keeps this family usable with legacy point-of-sale hardware that newer scanners have dropped. Most deployments run USB in keyboard-wedge mode, where scanned data arrives at the host as though typed and nothing has to be written or configured. Honeywell's EZConfig utility handles setup and clones a configuration across a fleet from one master scanner.

Ordering Notes

Part number 1950GSR-2USB-N is the black, Standard Range focus corded scanner with a USB cable and no stand, in the North America only, TAA compliant configuration assembled in Mexico. On this family the focus code sets the optics, the first numeric segment sets housing colour, the presence of USB means a cable is included and a second numeric segment means a ratchet stand is included. None of that is visible from the model name, so confirm the exact part number before ordering.

For retail, warehouse, manufacturing and back-office operations that need a durable corded scanner with no battery to manage, the Honeywell Xenon XP 1950g 1950GSR-2USB-N is a well-proven choice backed by a five-year factory warranty. Contact us to learn more or secure this solution for your business today.
