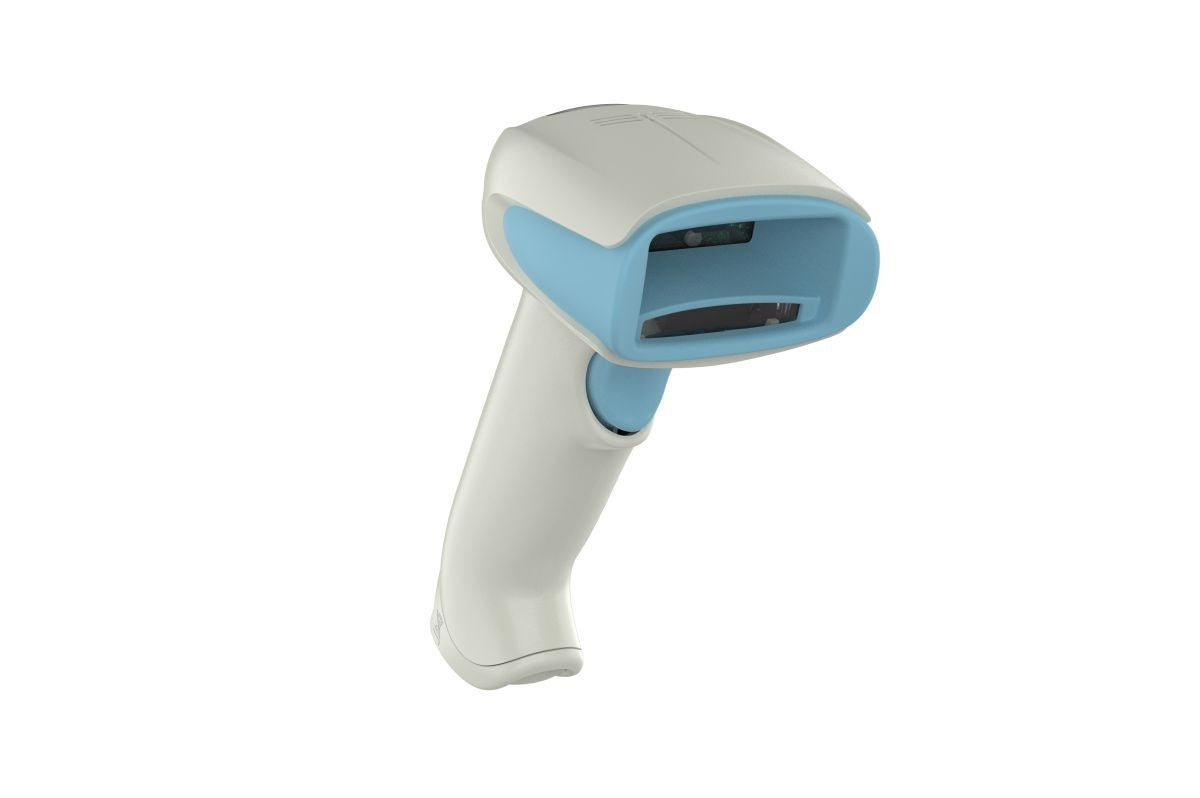

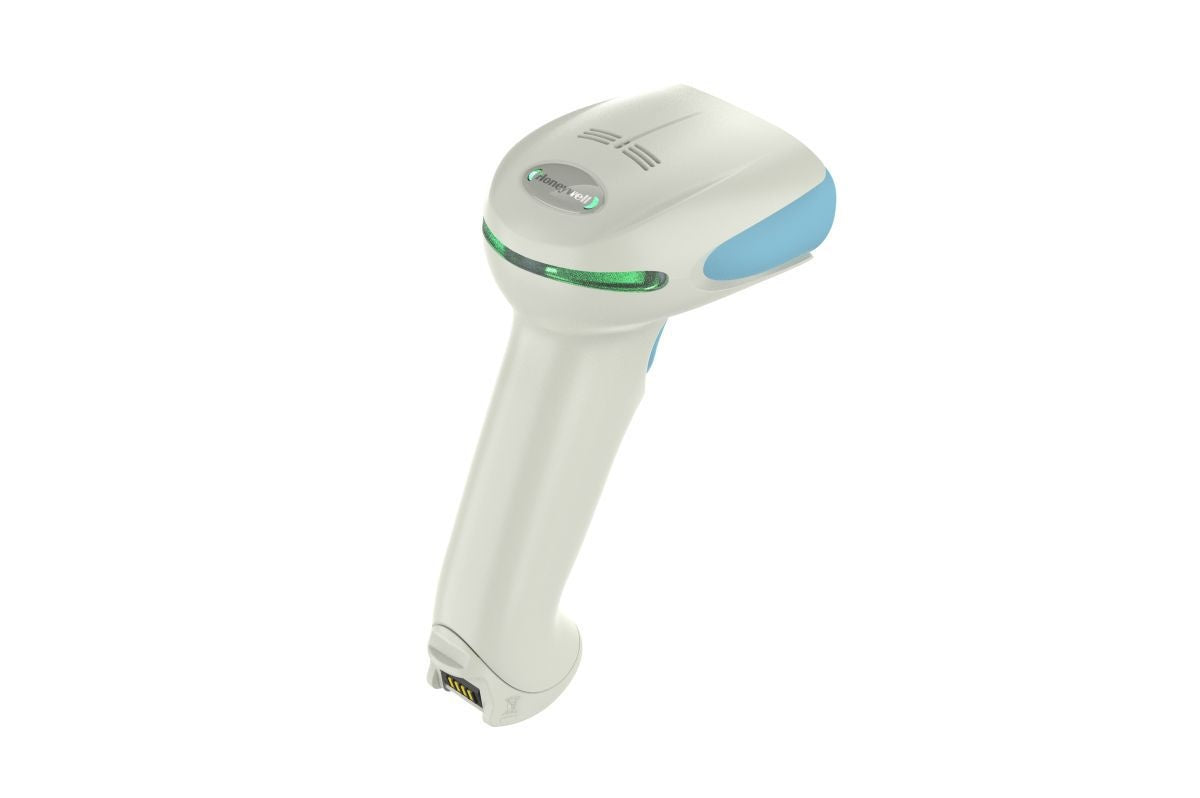

Xenon XP 1952h Healthcare Scanner

The Xenon™: XP 1952 series healthcare scanners deliver premium performance and class-leading durability for increased clinician productivity and maximum uptime –: improving patient outcomes and lowering TCO.

• Superior 1D and 2D scanning performance, even on damaged and poor-quality barcodes, eliminates wasted seconds from any scan.
• The Honeywell Scanner Management Utility (SMU) creates a holistic solution that automates how you deploy and update the scanners in your environment.
• Honeywell Operational Intelligence software delivers on-demand scan insights, enabling higher healthcare worker productivity and throughput.
• Multiple patient comfort modes are available to ensure patient comfort while maintaining clinician productivity: Patient Do-Not- Disturb, Vibration, and Scan Lamp.
• The disinfectant-ready plastic housing protects your investment with a durable construction engineered to resist the harmful effects of harsh chemicals.

The most successful and discerning healthcare providers choose Xenon™: scanners to ensure they are delivering more meaningful patient interactions and clinical outcomes. The new Xenon Extreme Performance (XP) 1952 series builds on the strong foundation of earlier Xenon healthcare scanners, continuing the tradition of industry-leading performance and reliability. The Xenon XP 1952 series healthcare scanners ensure that healthcare professionals remain focused on the patient, making the process of patient ID verification quick and easy. Incorporating Honeywell's renowned imaging technology and a high-resolution imager, the Xenon XP 1952h scanner offers superior scan performance, easily capturing even the most difficult-to-read or damaged codes. This helps to eliminate wasted movements and lost time, improving healthcare worker productivity and throughput. Engineered to 50 drops at 1.8 m (6 ft) and 2,000 tumbles at 0.5 m (1.6 ft), and with an IP52 ingress rating for water and dust, the Xenon XP 1952h scanner delivers class-leading reliability. This significantly reduces scanner downtime and service costs, leading to a longer lifecycle and a lower total cost of ownership. Further prolonging its useful life and reducing TCO, the Xenon XP 1952h scanner is designed to survive repeated exposure to harsh disinfectant chemicals. With dependable, disinfectant-ready plastics, the scanner will handle your wipe-down procedures to deliver maximum protection from infectious bacteria.

FEATURES

Form Factor Gun Shape Features Patient Do-Not-Disturb, Vibration, and Scan Lamp Modes Honeywell Scanner Management Utility SMU Application Healthcare

DIMENSIONS

Overall Dimensions 104.1 mm x 71.1 mm x 160 mm 4.1 in x 2.8 in x 6.3 in

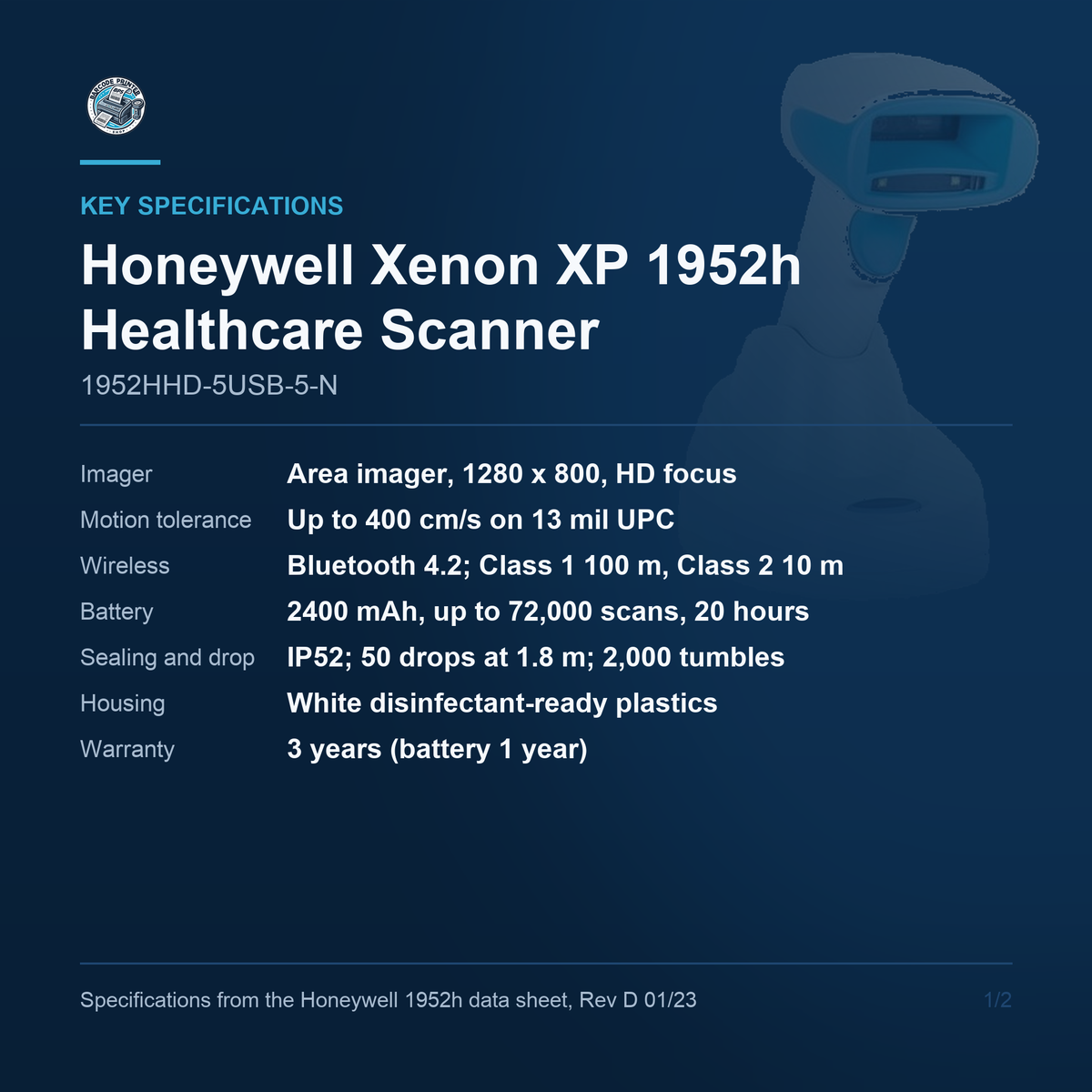

SCANNING SPECIFICATIONS

Decode Capability 1D/2D Skew 65 Pitch 45 Print Contrast 20 Number of Scans 72000 Scanning Range Standard range SR High density HD Scan Pattern Area Image Motion Tolerance Up to 400 cm/s 157 in/s for 13 mil UPC at optimal focus Depth of Field 0 - 34.2 in Brightness 0 - 100000 lux

NETWORK

Bluetooth Yes Bluetooth Specifications v4.2

HARDWARE

Host System Interface KBW RS-485 RS-232 USB Aimer Type Bar Engine Type 2D Wireless Yes

ELECTRICAL

Battery Types Super Capacitor

ENVIRONMENTAL

Operating Temperature 0 - 50 °C 32 - 122 °F Storage Temperature Range - 40 - 70 °C - 40 - 158 °F Operating Humidity 0 - 95 %

STANDARDS & APPROVALS

Protection Ratings IP52 Drop Specifications 50 1.8 m 6 ft drops to concrete Tumble Specifications 2,000 0.5 m 1.6 ft tumbles

SERVICE TERMS

Warranty Duration 3 yr

OTHERS

Power Connector Type Cordless

Additional Manufacture Specifications and Guides:
HONEYWELL 1952HHD-5USB-5-N Specifications
