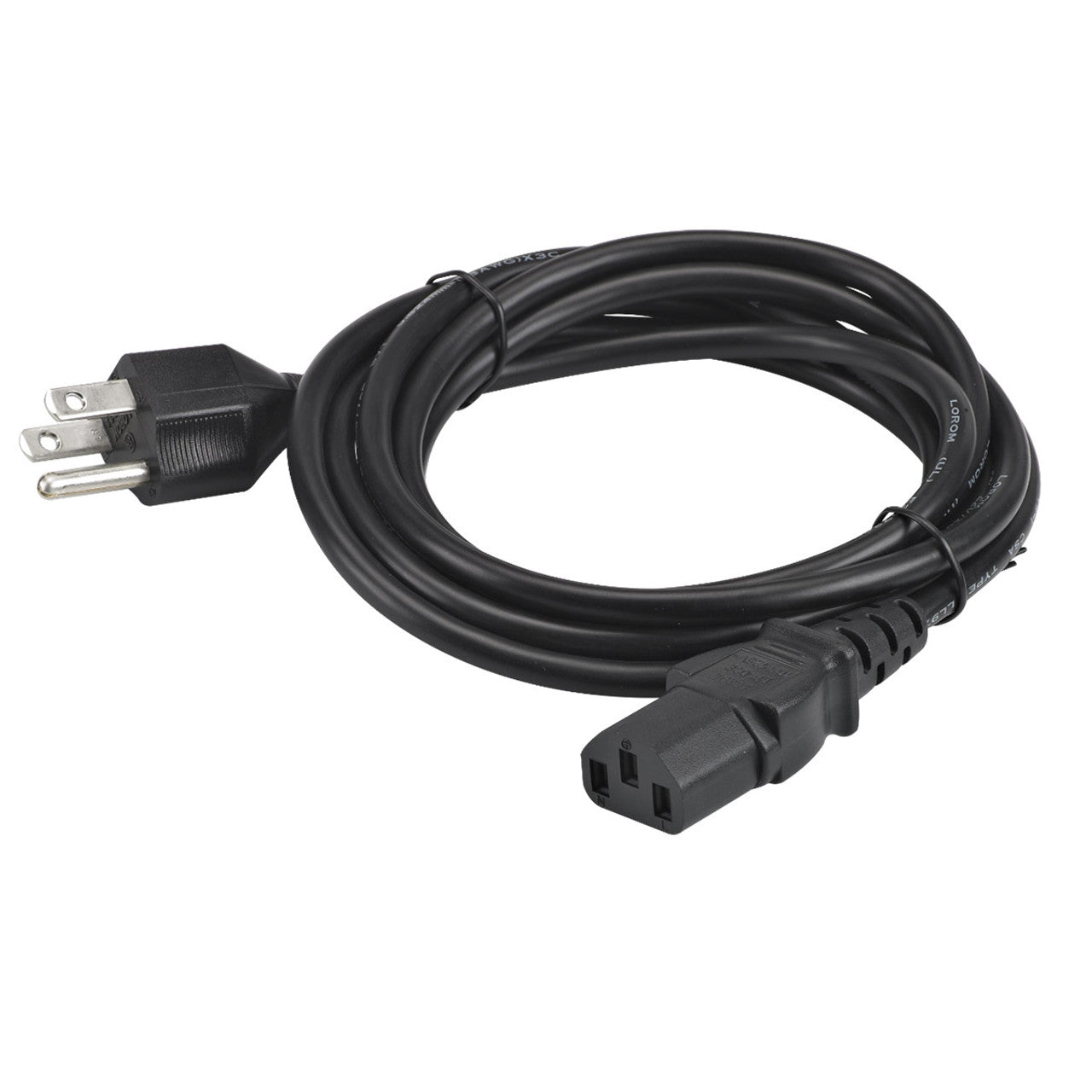

Zebra Grounded AC Line Cord 7.5 Feet 3-Prong NEMA 5-15P US Canada Mexico 23844-00-00R

Key Features

• Genuine Zebra part, carried by part number in Zebra's own accessory guides.
• Grounded 3-prong (3-wire) mains cord, 7.5 ft or 2.3 m long.
• NEMA 5-15P wall plug for US, Canada and Mexico outlets.
• IEC 60320 C13 equipment end, the standard inlet on Zebra external power supplies.
• This is the AC half of the Zebra power chain: the brick has no mains cord of its own.
• Named by Zebra as the AC line cord to order alongside the PWR-BGA12V50W0WW power supply.
• 18 AWG SVT jacket per the distributor part descriptor.

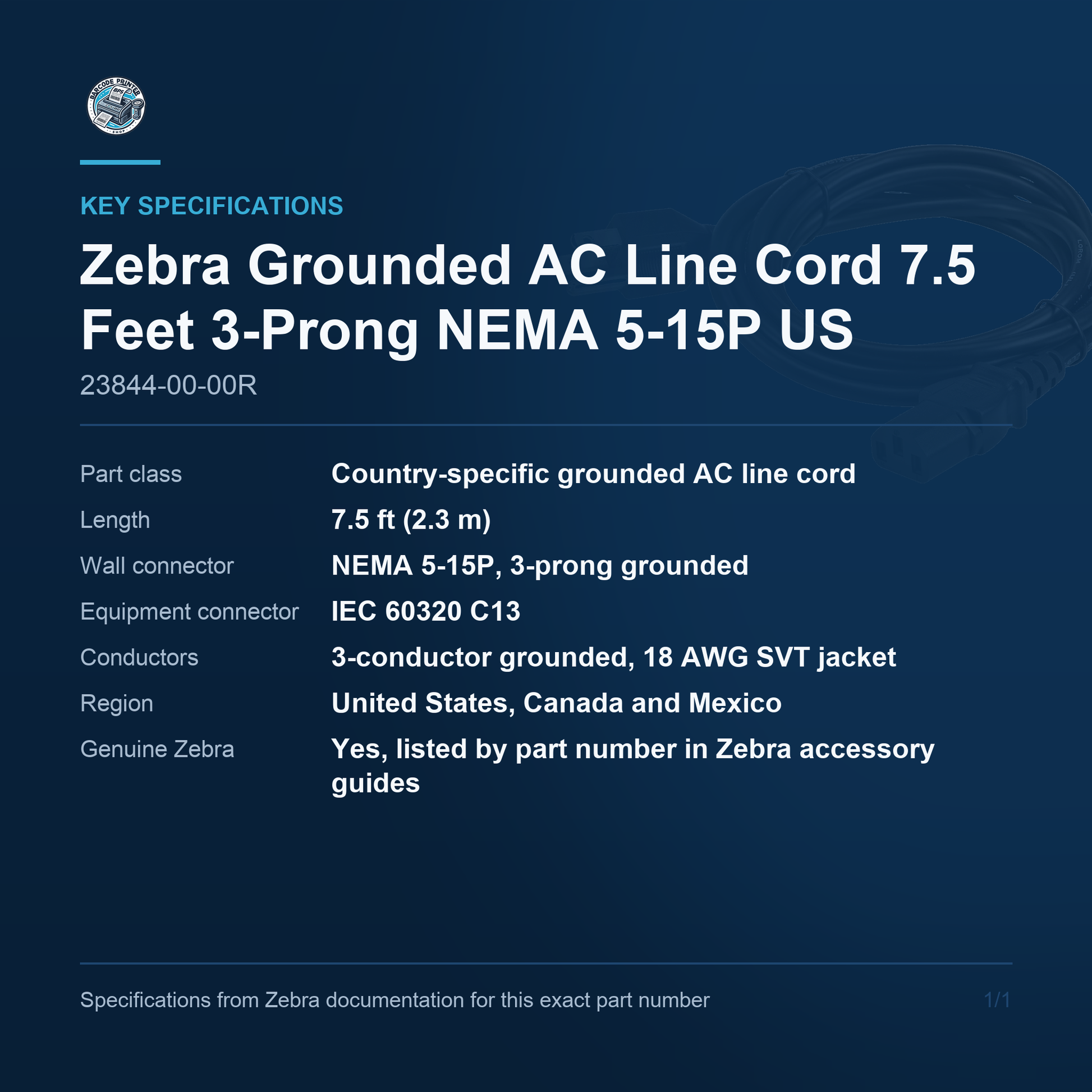

Key Specifications

• Part class: Country-specific grounded AC line cord
• Length: 7.5 ft (2.3 m)
• Wall connector: NEMA 5-15P, 3-prong grounded
• Equipment connector: IEC 60320 C13
• Conductors: 3-conductor grounded, 18 AWG SVT jacket
• Region: United States, Canada and Mexico
• Genuine Zebra: Yes, listed by part number in Zebra accessory guides

What it is for

Zebra ships its external power supplies without a mains cord, and this is the cord for North America. The brick that powers a scanner cradle, a four-slot battery charger or a powered USB cable arrives with no AC line cord and no DC line cord in the box, so a working power path needs three part numbers rather than one. This is the first of them. It is a plain grounded three-prong cord, 7.5 ft long, with a NEMA 5-15P plug at the wall and an IEC 60320 C13 connector at the equipment end, which is the same inlet found on most computer power supplies. Zebra names it explicitly in its own accessory guides as the cord to order with the PWR-BGA12V50W0WW.

The full chain

If this cord is being bought to power a Zebra scanner cradle or a powered USB cable, it is one of three parts. The power supply is the Zebra PWR-BGA12V50W0WW 12 V 50 W power supply, a 12 V 50 W brick, and we stock it. The third part is a DC line cord that runs from the brick to the device, and its part number varies by what is being powered: CBL-DC-375A1-01 for scanner cradles and powered cables, CBL-DC-388A1-01 for single-slot cradles and ET51 or ET56 docks. Getting the DC cord right matters more than getting this one right, because this cord is common to all of them and the DC cord is not.

Region and fit

The plug on this cord is NEMA 5-15P, which is the standard grounded three-pin outlet used across the United States, Canada and Mexico. Zebra's own catalogue string names those three countries. It will not fit a European, UK or Australian outlet and Zebra publishes separate part numbers for those regions, so a site shipping equipment abroad needs the local cord rather than an adapter on this one. At 7.5 ft it is long enough to reach a floor outlet from a bench, which is the usual reason a supplied cord gets replaced. Note that some third-party listings quote 6.5 ft for this part; Zebra's own string reads 7.5 feet or 2.3 metres.

Not published

There is no voltage or current rating printed against this part number in any Zebra document located, and no warranty term. The 18 AWG SVT construction comes from a distributor part descriptor rather than from Zebra, so it is reported here as what the channel says rather than as a manufacturer specification. What is confirmed from Zebra's own material is the part number, the length, the region, the grounded three-prong construction and the fact that Zebra names it as the companion cord for its 12 V power supply. Anything beyond that is inference, and a mains cord is not a component to guess about, so it is left unstated here rather than filled in.
