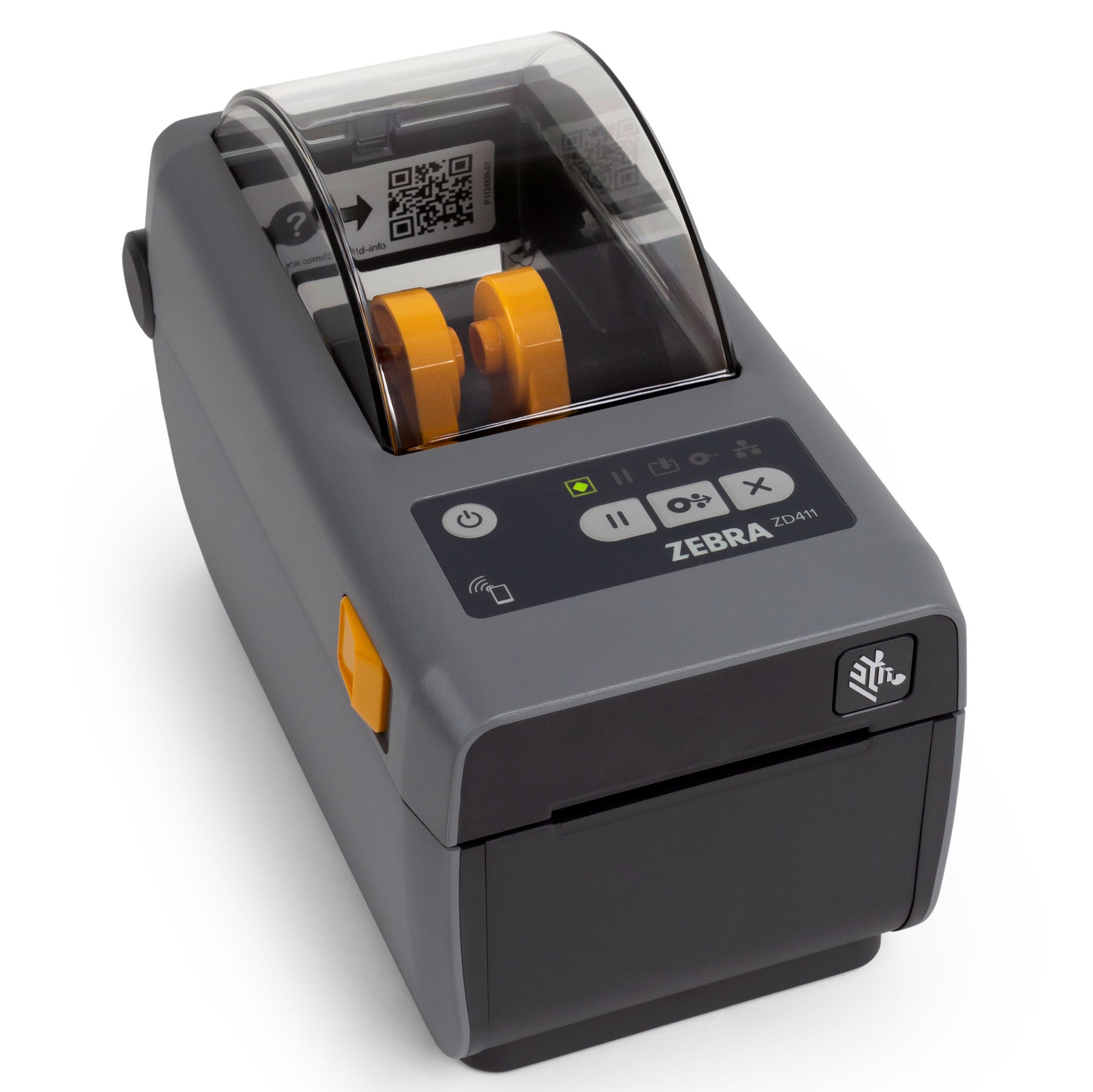

Zebra ZD411 2-Inch Desktop Direct Thermal Label Printer 203 dpi 6 ips USB Bluetooth LE No Ethernet ZD4A022-D01M00EZ

Key Features

• Prints 2.2 inches wide at up to 6 inches per second at 203 dpi.
• Direct thermal, so there is no ribbon to buy, stock or change.
• USB 2.0 and USB host only. There is NO Ethernet port on this part number.
• The modular connectivity slot ships EMPTY and takes a field-installed Ethernet or serial module later.
• Bluetooth Low Energy is standard, and drives Zebra's printer setup app for Android and iOS.
• 512 MB of Flash and 256 MB of DDR3 SDRAM in a printer that weighs 2.2 pounds.
• Just 8.6 by 4.5 by 6.0 inches, so it fits a counter or a shelf where a 4-inch printer will not.
• Energy Star certified and built to Energy Efficiency Level VI.
• Drop-in media loading: lift the lid, drop the roll in, close it, and the printer calibrates.
• Link-OS firmware, so the printer is configurable and updatable from Zebra's own tooling.
• Labels are sold separately, so stock can be matched to the job rather than bundled.
• Ships with the printer, an external power supply, a US power cord and a USB cable.

Key Specifications

• Model: Zebra ZD411, ZD400 Series 2-inch desktop
• Print method: Direct thermal, no ribbon
• Resolution: 203 dpi
• Print speed: Up to 6 ips (152 mm/s)
• Print width: Up to 2.2 in (56 mm)
• Max print length: 39.0 in (991 mm)
• Media width: 0.585 to 2.36 in
• Media roll: 5.00 in (127 mm) OD, 0.5 in and 1.0 in cores standard
• Memory: 512 MB Flash, 256 MB DDR3 SDRAM
• Connectivity: USB 2.0, USB host, Bluetooth LE. No Ethernet fitted
• Display: Five status LEDs and four buttons. No LCD
• Dimensions: 8.6 x 4.5 x 6.0 in, 2.2 lb

Which configuration this is

Read this before ordering: this part number has NO ETHERNET PORT. The modular connectivity slot ships empty. It is USB 2.0, a USB host port and Bluetooth Low Energy, and nothing else. The sibling code ZD4A022-D01E00EZ is the identical printer with a 10/100 Ethernet module fitted for roughly $80 more. If you plan to put this printer on a LAN, order that one instead, or budget for the Zebra Ethernet upgrade module, part P1112640-015, which is sold separately and installs in the field.

Speed and print size

At 203 dpi the ZD411 prints 2.2 inches wide at up to 6 inches per second, programmable down to 2 ips, with a maximum label length of 39 inches. That 6 ips figure is the 203 dpi number and does not carry to the 300 dpi ZD411, which is a different stem and tops out at 4 ips. This is a two-inch printer: it suits shelf labels, small product labels, specimen and wristband work, jewellery tags and anything where a 4-inch machine is simply bigger than the job. Media runs from 0.585 to 2.36 inches wide on a roll up to 5 inches in diameter.

Interfaces and Bluetooth

USB 2.0, a USB host port and Bluetooth Low Energy are present. Ethernet is not, and cannot be assumed. One thing worth being precise about, because listings across the trade are not: Bluetooth Low Energy is standard on every ZD411 and is therefore not a differentiator between the two part numbers. Zebra documents that BLE as the channel for its printer setup app on Android and iOS. Whether it will accept ordinary print jobs from a phone is not something Zebra states in any document we could find, and general Bluetooth printing is the job of the optional Wi-Fi and Bluetooth radio module, which is a different part number again. Do not buy this expecting to print from a phone over Bluetooth.

Media handling

Direct thermal only: no ribbon, nothing to stock, nothing to change. Media runs 0.585 to 2.36 inches wide at 2.4 to 7.5 mil thick, on a roll up to 5 inches in diameter with a half-inch or 1-inch core as standard and 1.5, 2 or 3-inch cores via adapters. Tear bar only on this part number. Zebra offers a field-installable label dispenser that peels the liner and presents the label, a general-purpose cutter, and an attached battery base with a removable battery, but none of the three is fitted here. One note on Zebra's own tech-spec sheet: it prints the media width as 0.585 to 2.36 inches and 6.4 to 60 mm, but 0.585 inches is 14.9 mm, not 6.4, so we publish the imperial range.

Display and setup

There is no screen. Five status indicator LEDs cover network, supplies, data, pause and status, alongside power, pause, feed and cancel buttons. Setup runs from Zebra's printer setup app for Android and iOS over Bluetooth Low Energy, which is genuinely the easiest way to configure one of these, or from Link-OS tooling if you are deploying several. A Zebra Keyboard Display Unit is available as an accessory if the printer needs standalone operation. At 8.6 by 4.5 by 6.0 inches and 2.2 pounds this is a small, light machine.

What is included

In the carton: the ZD411 direct thermal printer, an external AC power supply, a United States power cord, a USB cable, a Quick Start Guide and a Regulatory Guide. Labels and media are NOT included, and Zebra's own ZD411 user guide says so in as many words. That is normal for a thermal printer and it is worth planning for, because a printer with no stock is a printer that cannot be commissioned. No connectivity module of any kind is included, which is the defining fact about this part number and the reason it costs less than its Ethernet-equipped sibling. If you decide later that you need the network, the Zebra Ethernet upgrade module is part P1112640-015 and we can supply it.

Where it fits

The ZD411 is the 2-inch member of Zebra's ZD400 Series, and it earns its place wherever a 4-inch printer is more machine than the label needs: retail shelf edge, small item and jewellery tagging, laboratory specimen labels, patient wristbands, asset tags and back-office filing. It is small enough to sit beside a till or on a bench shelf and light enough to move. For 4-inch shipping labels, look at the ZD621 or ZD220t instead - a 2-inch printer will not produce a standard shipping label.

For shelf edge, specimen, wristband and small-item labelling where a 4-inch printer is more machine than the job needs, the Zebra ZD411 ZD4A022-D01M00EZ is a compact and capable choice. Contact us to learn more or secure this solution for your business today.
