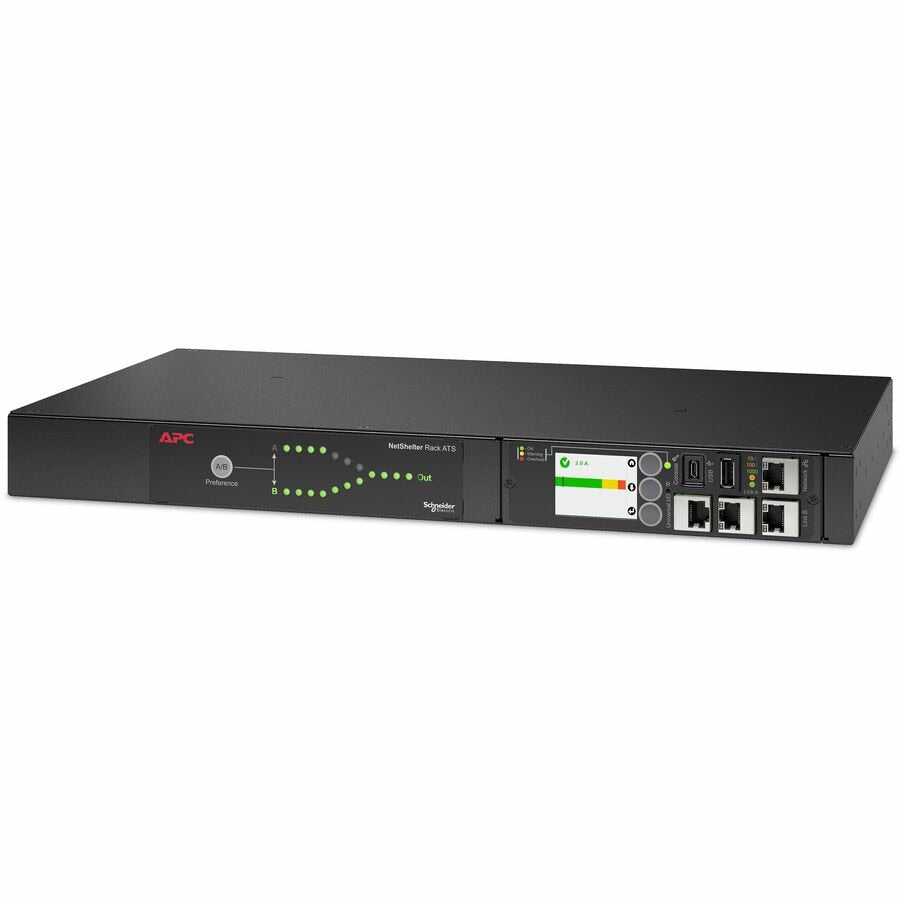

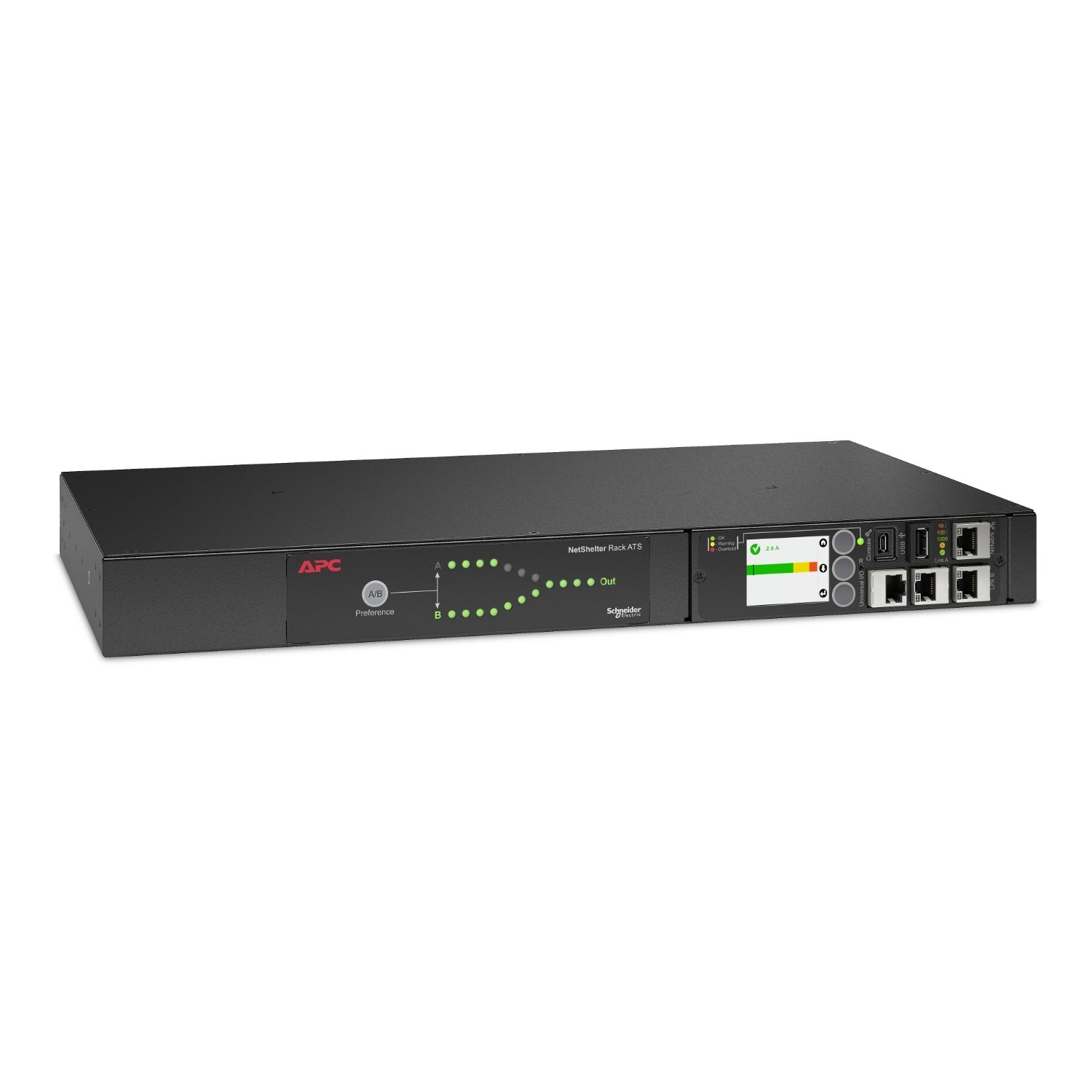

Schneider Electric NetShelter Rack ATS 1U 12A Redundant Power AP4450A

Schneider Electric NetShelter Rack ATS 1U 12A Redundant Power AP4450A

SKU: AP4450A

UPC: 0731304432517

Condition: New

Availability: Usually Ships Same Business Day

Shipping: Free UPS Ground Shipping

Warranty: 1 Year Manufacturer Warranty

Low stock: 3 left

$1,479.99 USD
$2,114.99 USD $1,479.99 USD
Sale Sold out
Shipping calculated at checkout.

Key Features

  • Automatically switches between dual power sources for uninterrupted power to rack-mounted equipment.
  • Supports input voltages of 100 V and 120 V for versatile deployment in various IT environments.
  • Provides 10 NEMA 5-15R power outlets to distribute power efficiently within a single 1U rack unit.
  • Compact 1U rack height and front mounting design optimize rack space utilization and easy installation.
  • Includes all necessary mounting hardware, rack brackets, and serial configuration cable for straightforward setup.
  • Operates reliably across a broad temperature range from -5 °C to 45 °C and humidity levels up to 95%.
  • Complies with multiple safety and electromagnetic interference standards including PSE, TÜV, VCCI class A, FCC part 15 class A, and ICES-003.
  • Designed for RoHS compliance and Schneider Electric’s sustainability initiatives supporting environmental responsibility.
  • Rated for 12 A current with input current limits up to 15 A to ensure robust power handling.
  • Supports network frequency compatibility at both 50 Hz and 60 Hz for global applicability.
  • Lightweight design at 9.7 lb (4.4 kg) simplifies handling and rack installation.
  • Features a durable black finish and compact dimensions, including 17.008 in width and 9.3 in depth for standard IT racks.

    • Key Specifications

  • Main Input Voltage: 100 V, 120 V
  • Output Voltage: 100 V, 120 V
  • Input Connection Type: NEMA 5-15P
  • Number of Rack Units: 1U
  • Number of Cables: 2
  • Cable Length: 7.97 ft (2.43 m)
  • Network Frequency: 50/60 Hz
  • Rated Current: 12 A
  • Input Current Limits: 15 A
  • Load Capacity: 1440 VA
  • Maximum Current Draw: 15 A
  • Number of Power Socket Outlets: 10 NEMA 5-15R
  • Dimensions (H x W x D): 1.7 in x 17.008 in x 9.3 in (44 mm x 432 mm x 236 mm)
  • Net Weight: 9.7 lb (4.4 kg)
  • Mounting Location: Front
  • Mounting Mode: Rack-mounted
  • Product Certifications: PSE, TÜV-C, TÜV-NURTL, VCCI Class A
  • Standards Compliance: FCC Part 15 Class A, ICES-003
  • Operating Temperature Range: 23…113 °F (-5…45 °C)
  • Operating Humidity Range: 0…95%
  • Operating Altitude: 0…10,000 ft
  • Storage Temperature Range: -13…149 °F (-25…65 °C)
  • Storage Humidity Range: 0…95%
  • Storage Altitude: 0…50,000 ft (0…15,240 m)
  • Warranty Period: 24 months

    • Product Functionality

    The Schneider Electric NetShelter Rack ATS AP4450A is engineered to deliver seamless power transfer for single-corded IT equipment housed within standard 1U server racks. This automatic transfer switch ensures continuous availability by switching between two independent power sources promptly upon failure detection, minimizing downtime in critical infrastructure.

    Intended Uses

    This device is ideal for data center operators and IT professionals requiring reliable redundancy for network equipment, servers, and other rack-mount devices reliant on uninterrupted power supply. Its design supports both edge and cloud environments to enhance operational continuity.

    Operational Benefits

    By incorporating this AP4450A switch, organizations receive enhanced uptime assurance through rapid (10 ms) switch timing and dual input power support. The unit’s rack-mounted form factor conserves valuable space while providing sufficient outlet density for flexible power distribution.

    Integration Capabilities

    The AP4450A integrates with Schneider Electric’s management frameworks enabling secure remote monitoring and configuration through Web UI, CLI, SNMP, or EcoStruxure IT software. The embedded APC NMC3 module enhances cybersecurity and allows network-based management.

    Efficiency and Compliance

    Designed with energy efficiency and environmental responsibility, this model adheres to RoHS and other environmental directives. Its operation across a broad range of ambient temperatures and humidity levels supports deployment in diverse geographic and operational conditions.

    Installation and Maintenance

    The product comes with comprehensive mounting accessories and an easy-to-use serial configuration cable facilitating straightforward installation in standard racks. Its front-mount preference allows accessibility within rack environments without rear clearance requirements.

    Environmental and Safety Standards

    The AP4450A complies with rigorous safety certifications such as PSE, TÜV, and VCCI class A, as well as electromagnetic emissions standards FCC Part 15 and ICES-003, ensuring conformity with international regulatory expectations for IT equipment.

    The Schneider Electric NetShelter Rack ATS AP4450A is a robust, compact, and compliant solution that guarantees high availability and efficient power management for critical IT loads in demanding data center environments. Contact us to learn more or secure this solution for your business today.
