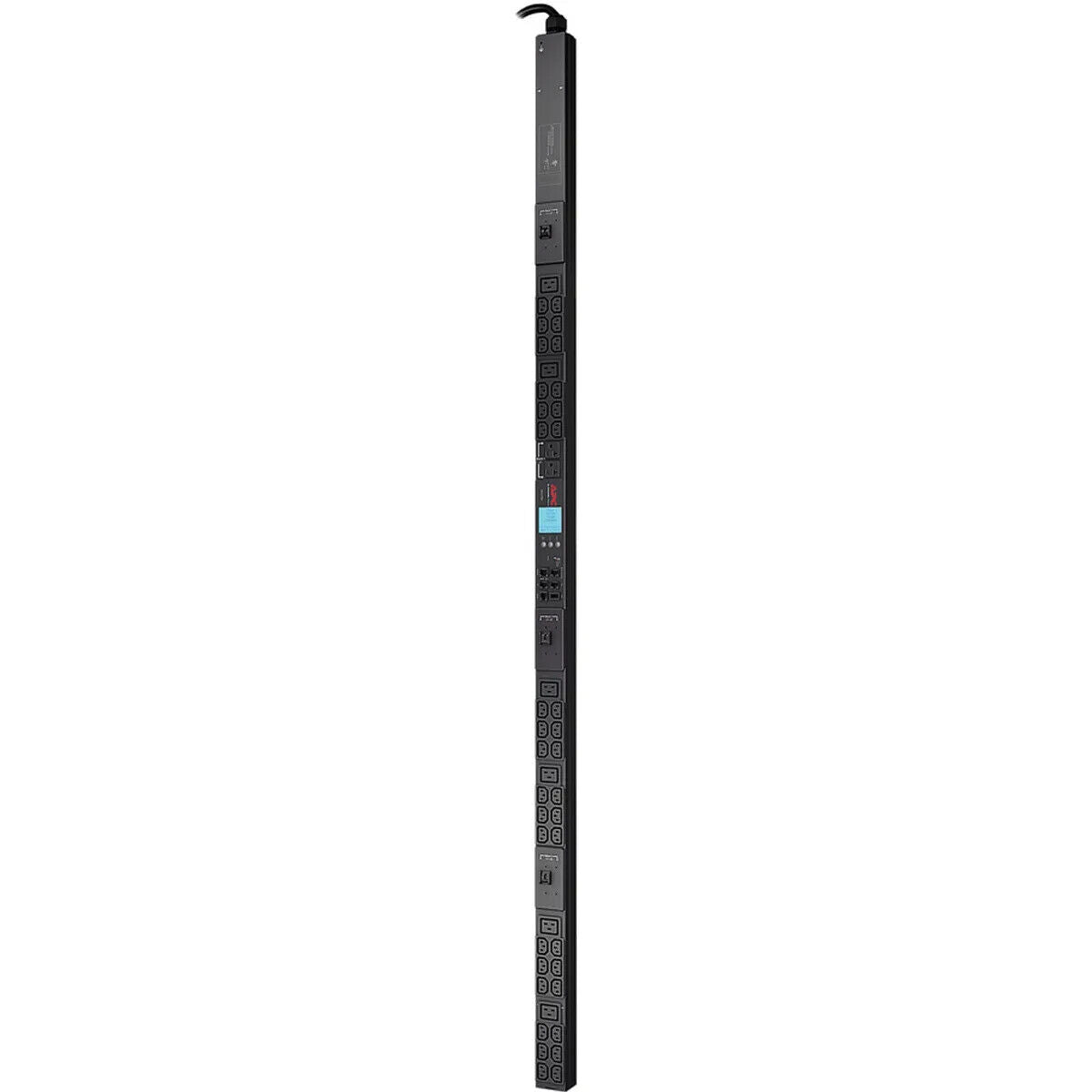

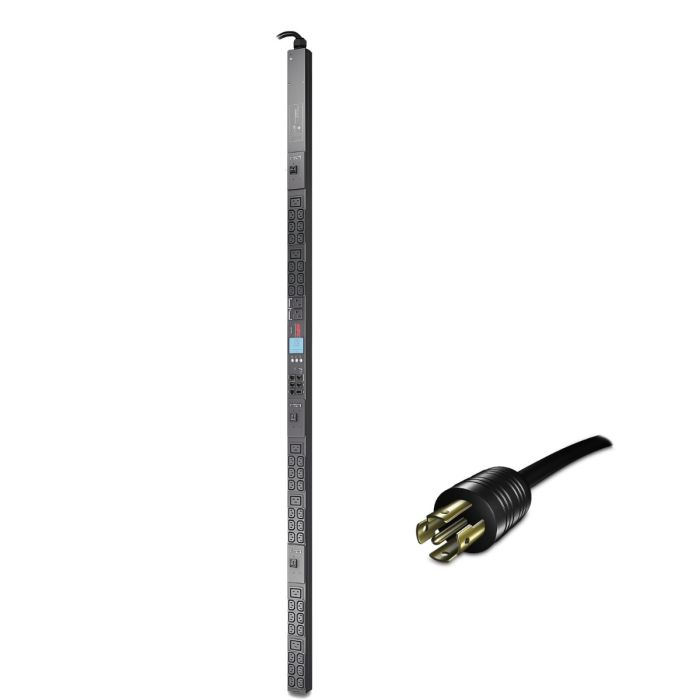

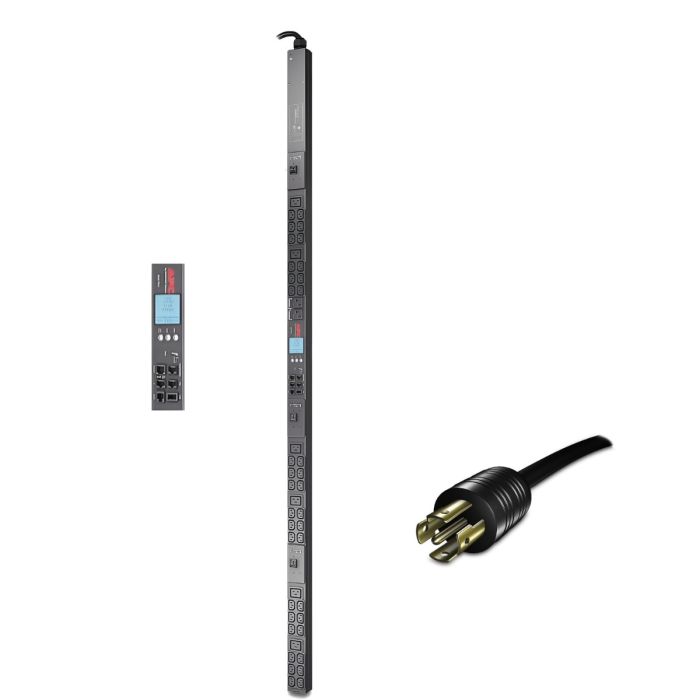

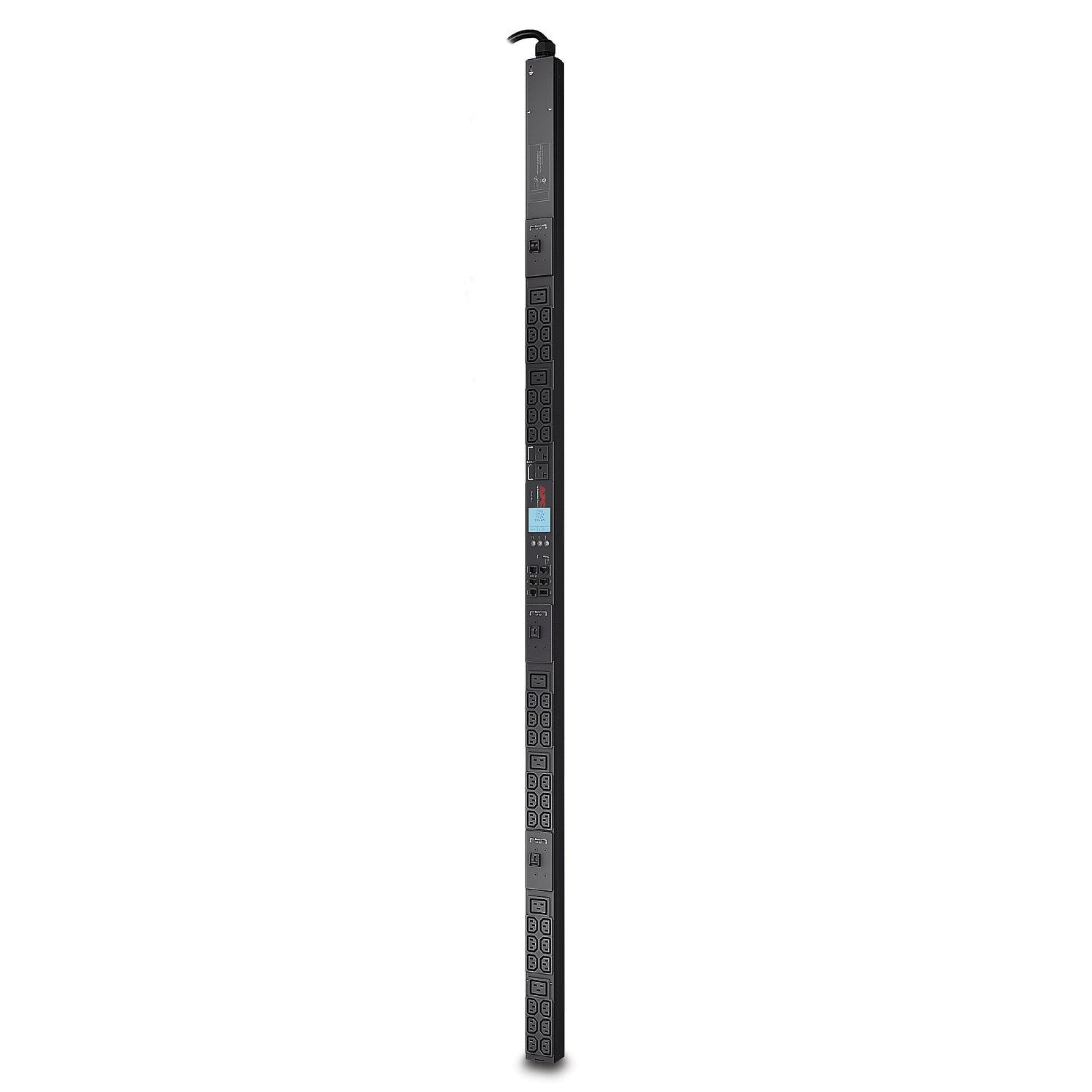

APC Metered Rack PDU 0U 30A 208V 36 C13 & 6 C19 AP8865

Key Features

• Efficient power distribution from a single input with multiple outputs for streamlined management.

• Real-time remote monitoring aids in preventing circuit overloads and power failures.

• User-configurable alarms enhance management of electrical loads for critical equipment.

• Remote access available through Web, SNMP, and CLI for effective network management.

• Secured power connections via locking IEC receptacles reduce risk of unintentional disconnections.

• Local display offers quick visibility of current, power, and voltage metrics.

• Embedded log memory maintains historical metrics for performance analysis.

• Dedicated environmental monitoring port accommodates optional temperature/humidity sensors.

• Designed for vertical 0U mounting, allowing tool-less installation within APC NetShelter racks.

• Ultra-low profile breakers support rapid recovery from overload conditions.

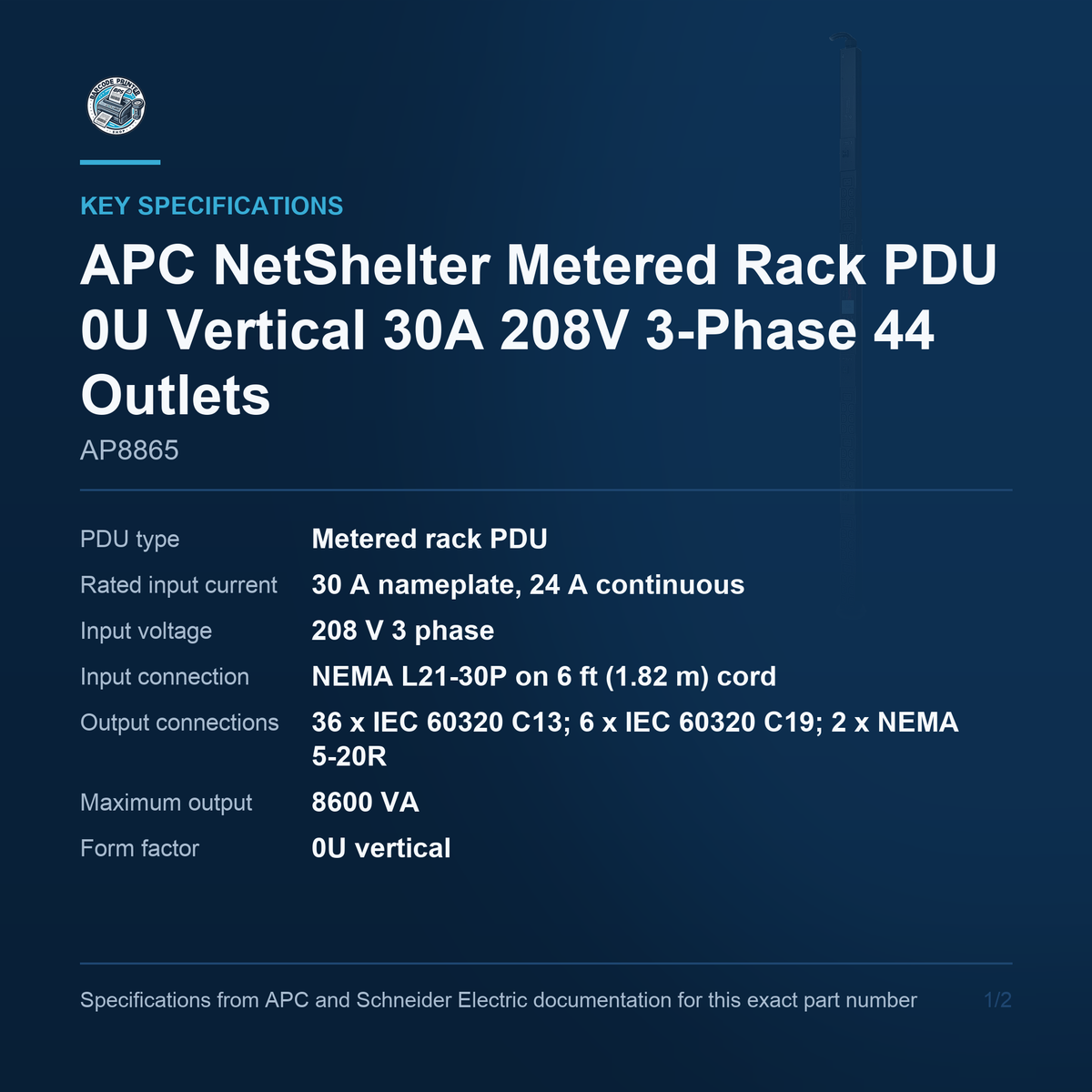

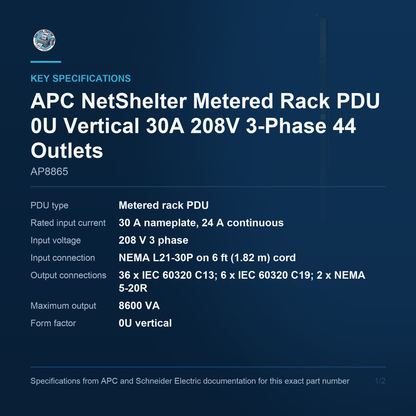

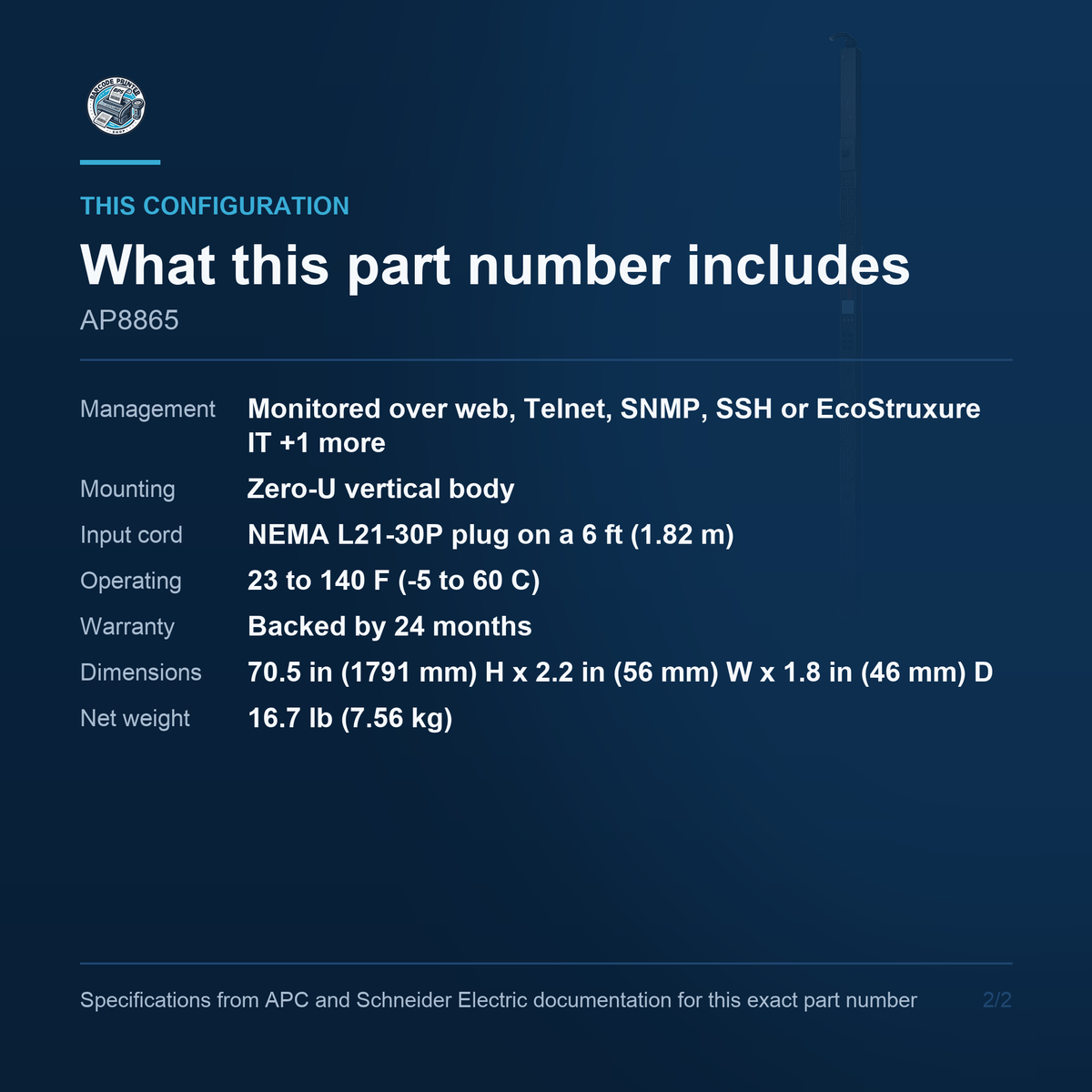

Key Specifications

• Model: AP8865

• Rack Height: 0U

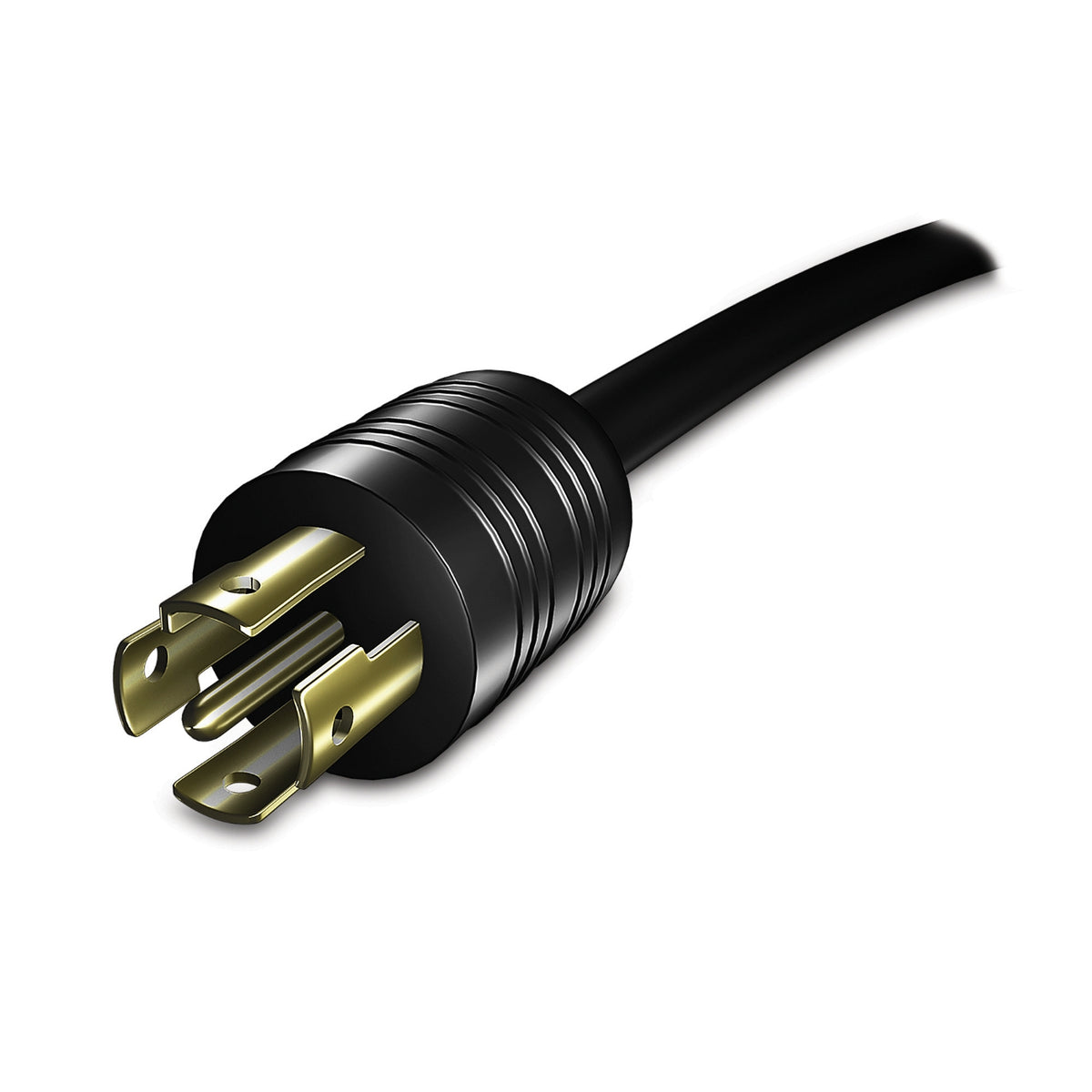

• Input: 208V, NEMA L21-30P, 30A

• Output: (36) IEC 60320 C13 (6) IEC 60320 C19 (2) NEMA 5-20R

• Output Voltage: 120V, 208V

• Cord Length: 6 ft (1.8 m)

• Input Frequency: 50/60 Hz

• Load Capacity: 8600VA

• Maximum Total Current: 30A

• Overload Protection: Yes

• Dimensions: 70.51 x 2.2 x 1.81 in (1791 x 56 x 46 mm)

• Net Weight: 16.67 lbs (7.56 kg)

• Operating Temp: 23 - 113 °F (-5 - 45 °C)

Product Overview

The APC AP8865 Metered Rack PDU is specifically engineered for data centers, providing high-capacity and monitored power distribution. Its innovative design allows for constant monitoring, ensuring power management efficiency, while user-defined alarms prevent disruptions from overloads.

Efficient Energy Management

Equipped with comprehensive monitoring tools, the APC AP8865 enables IT teams to understand their energy consumption patterns in real-time. This increased visibility is vital for making informed decisions that optimize resource use while safeguarding against potential outages.

Streamlined Installation

This PDU's tool-less installation process simplifies mounting within APC NetShelter enclosures. Its vertical configuration maximizes valuable rack space, ensuring better organization of the IT setup. Additionally, ultra-low profile breakers allow for swift recovery procedures after any interruptions.

Consistent Operational Performance

The robust features including locking IEC receptacles help to maintain stable power connections, significantly reducing the risk of disconnection. The AP8865's embedded logging capabilities allow for ongoing monitoring, facilitating proactive management of energy use.

Adaptability to Environment

Featuring an environmental monitoring port, this PDU is compatible with optional temperature and humidity sensors that preserve the integrity of equipment in varied operating environments. This flexibility makes it an ideal choice for sensitive IT systems.

For operations leaders seeking a secure and versatile solution for power management, the APC AP8865 is the answer. Contact us to discover how this PDU can enhance your infrastructure today.
