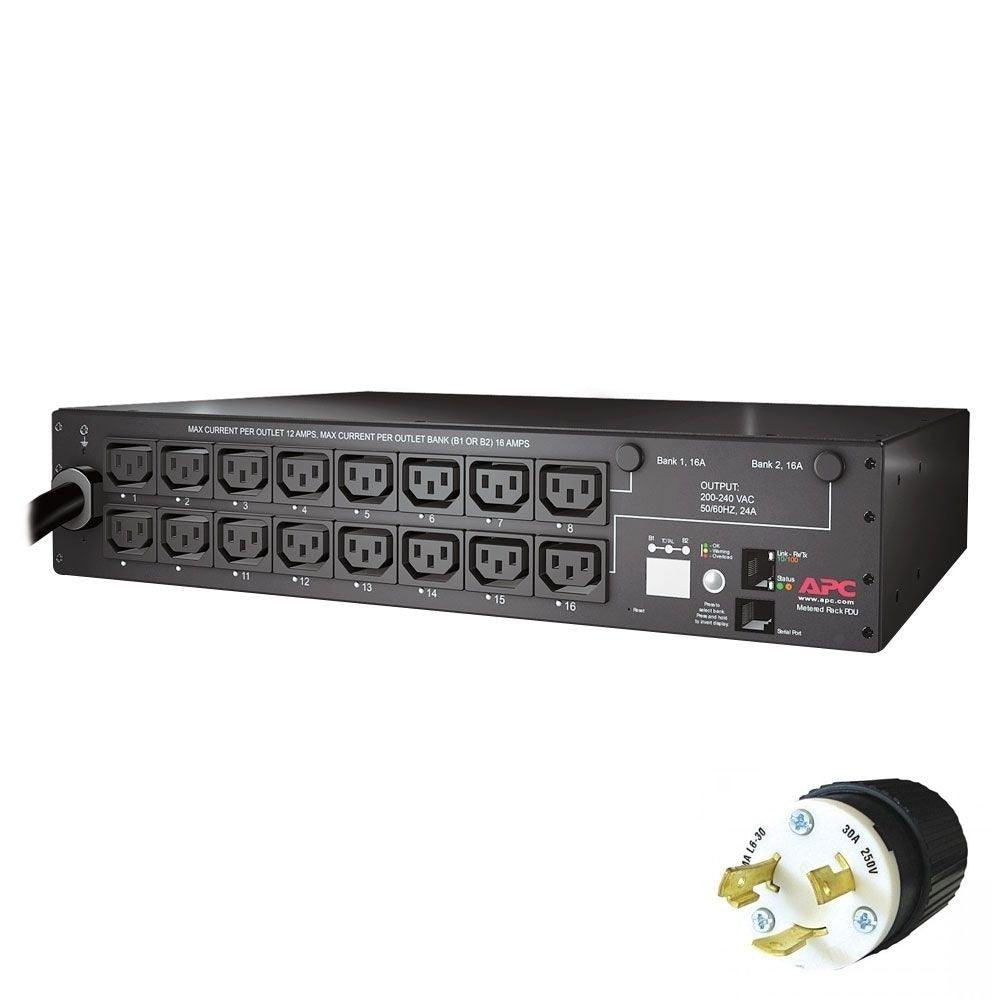

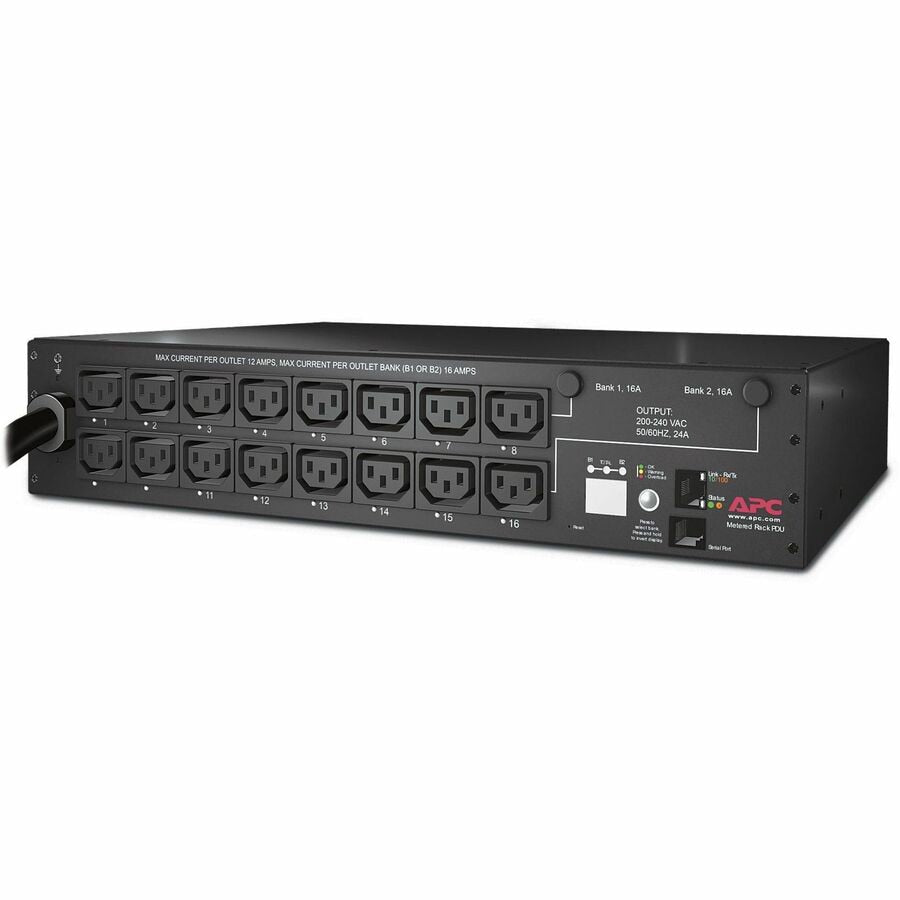

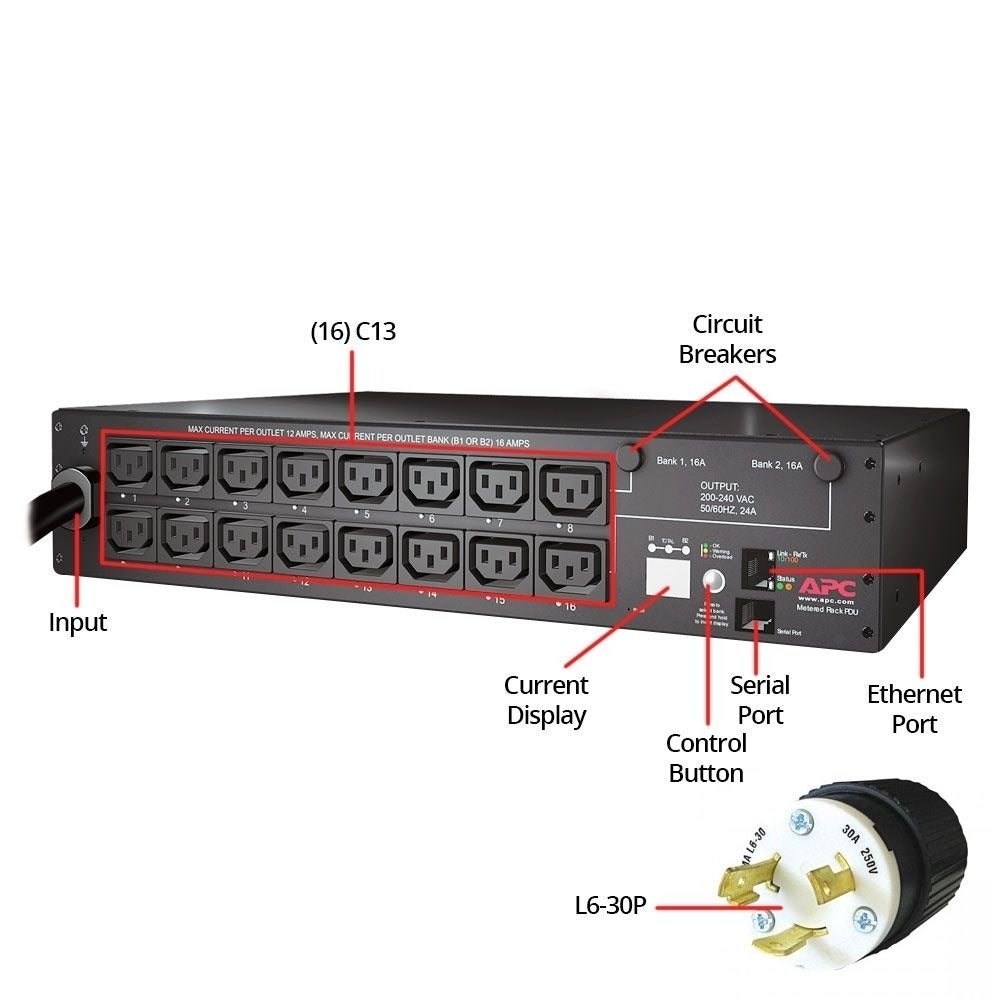

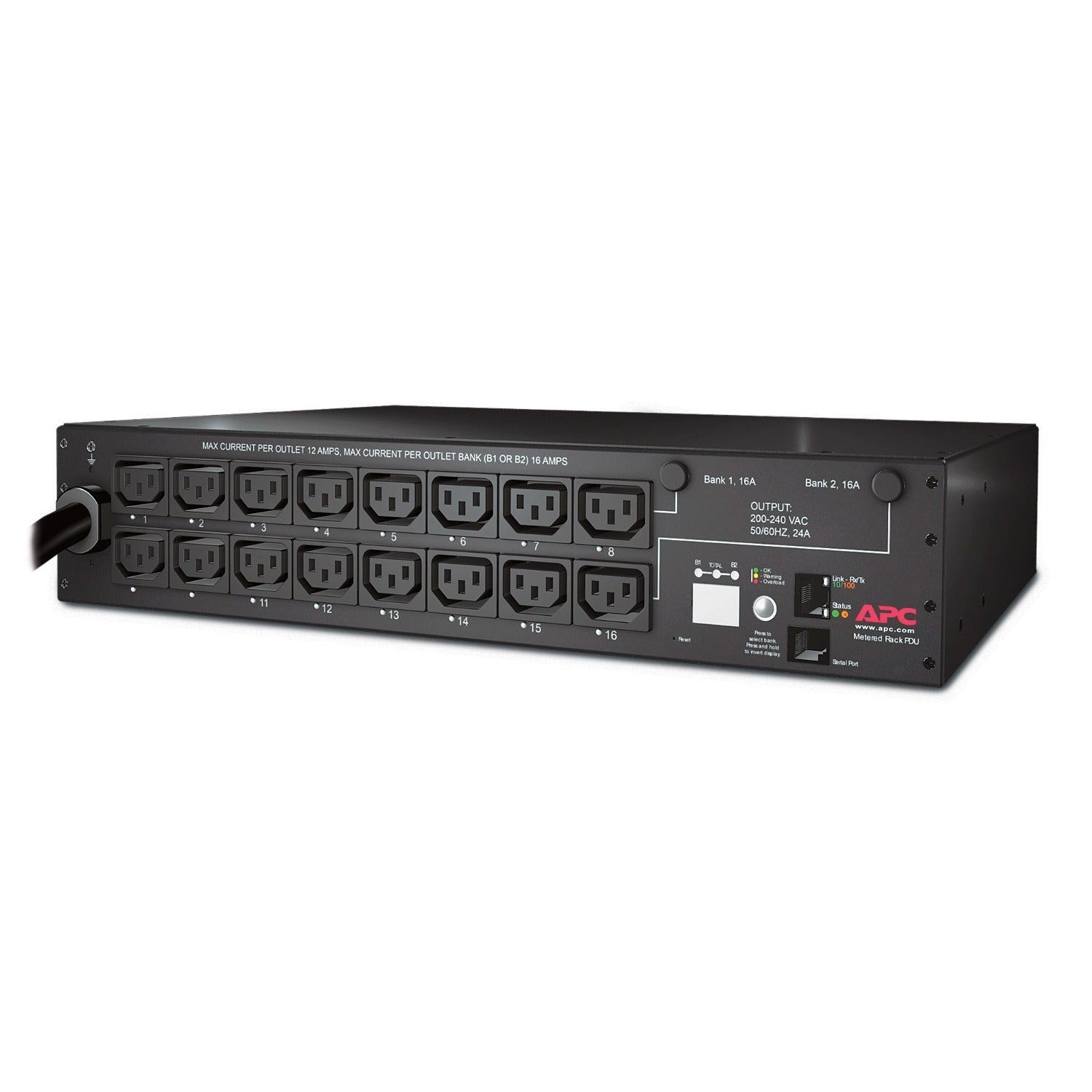

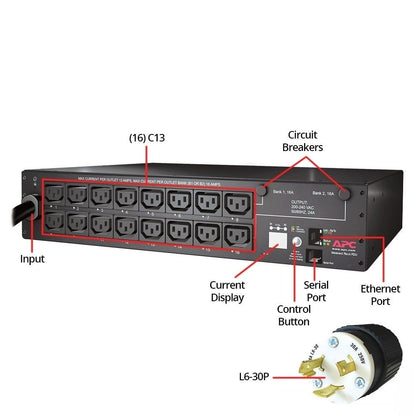

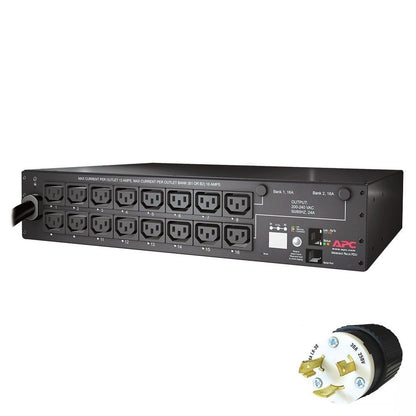

APC Switched 2U Rack PDU 30A 208V with 16 C13 Outlets AP7911B

APC Switched 2U Rack PDU 30A 208V with 16 C13 Outlets AP7911B

SKU: AP7911B

UPC: 0731304331605

Condition: Brand New, Factory Sealed

Authentic: Guaranteed 100% Genuine APC Product

Fulfillment: Ships Same Business Day (Cutoff 3PM ET)

Warehouse: Ships from U.S. Warehouse

Shipping: Free UPS Ground Shipping

Returns: 30-Day Hassle-Free Returns

Support: U.S. Based Pre & Post-Sales Support

Sales Tax: Charged on Pennsylvania orders only — No tax for most out-of-state customers

35 in stock

$1,869.99 USD
$2,244.99 USD $1,869.99 USD
Sale Sold out
Shipping calculated at checkout.

Key Features

  • Remote outlet-level switching allows precise control of power to connected devices, enhancing operational efficiency.
  • Supports 16 IEC 60320 C13 outlets arranged in two banks with up to 16A current per bank for balanced power distribution.
  • Robust 30A input current limiting and 24A rated current provide capability for demanding enterprise applications.
  • Network-enabled remote management facilitates monitoring and control without physical rack access, improving response times.
  • Compact 2U horizontal rack-mount form factor saves valuable data center space while maintaining full power capacity.
  • Equipped with a 12-foot NEMA L6-30P input cord for flexible power source placement within standard rack environments.
  • Compliance with global safety and emission standards including UL, CSA, cUL, Industry Canada, and FCC ensures secure operation.
  • Built-in password protection and four levels of user privileges enhance security for remote power management operations.
  • Supports operation within a wide temperature and humidity range to suit diverse data center conditions.
  • Includes all necessary installation hardware and documentation, enabling straightforward deployment in rack setups.
  • Energy efficient design compliant with RoHS and WEEE promotes sustainability and reduces environmental impact.
  • Covered by a 2-year manufacturer repair or replace warranty providing confidence in long-term dependability.

    • Key Specifications

  • PDU Type: Switched power distribution unit with outlet-level switching.
  • Form Factor: 2U horizontal rack-mount design compatible with standard cabinets.
  • Current Capacity: 30A input limit, 24A rated continuous current.
  • Input Voltage: Supports 200–240V range, nominal 208V output.
  • Cord Length: 12 ft (3.65 m) cable with NEMA L6-30P plug.
  • Output Outlets: 16 x IEC 60320 C13, split into two banks.
  • Mounting Location: Can be installed facing front or rear of the rack.
  • Operating Environment: Temperature 0–45°C, humidity 0–95% non-condensing.
  • Dimensions: 3.5" H x 17.5" W x 10" D (89 x 445 x 254 mm).
  • Net Weight: 13.93 lbs (6.32 kg) for stable rack installation.
  • Certifications: UL, cUL, CSA, Industry Canada, PSE with FCC Part 15 and ICES-003 compliance.
  • Load Capacity: Approximately 4992 VA supporting enterprise IT loads.

    • Remote Power Control

    The APC NetShelter AP7911B is engineered for enterprise data centers needing granular power control and monitoring. Its switched outlets enable administrators to remotely toggle power to each connected device, supporting operational tasks such as rebooting servers and managing power loads without physical intervention. This functionality streamlines troubleshooting and maximizes uptime for critical equipment.

    Enterprise Integration

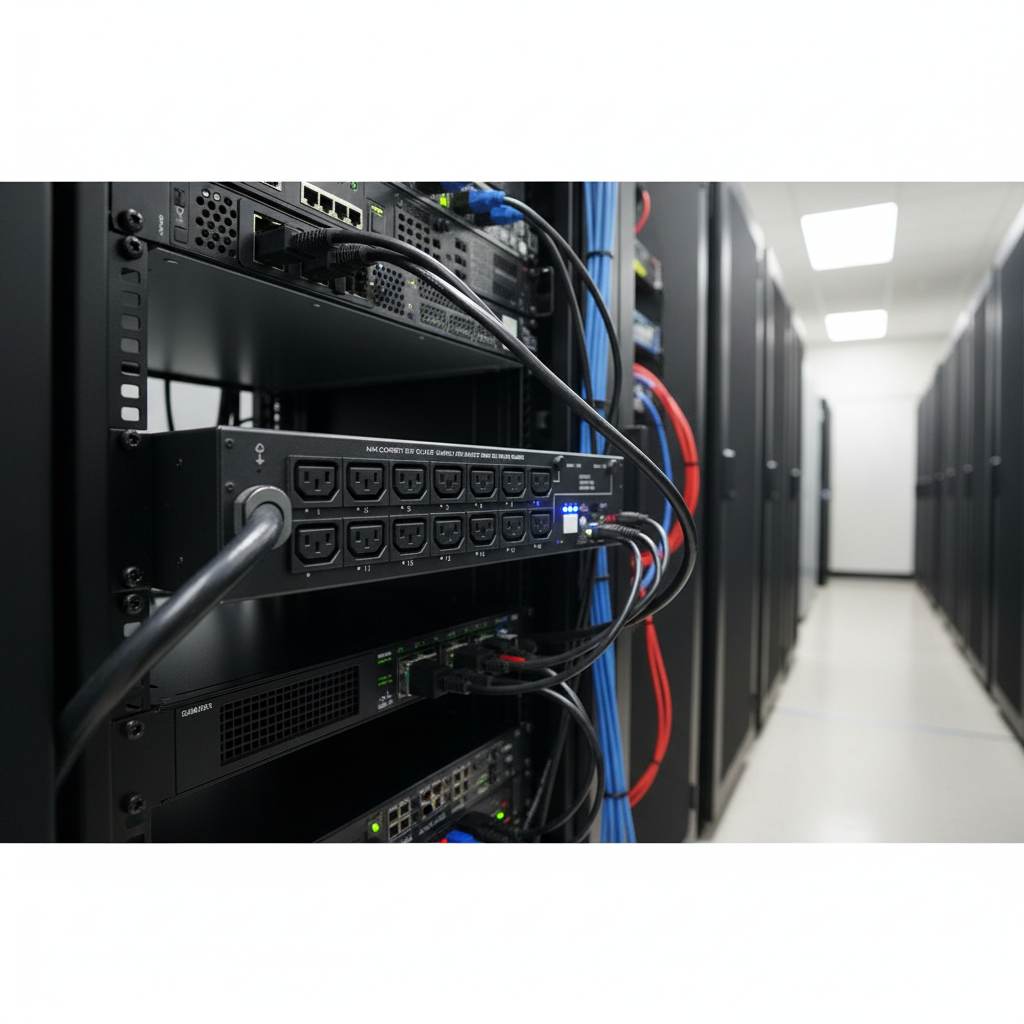

    This PDU integrates seamlessly with rack environments, mounting horizontally in two rack units and positioned near IT equipment for optimal power delivery. The device supports standard IEC C13 outputs compatible with a broad range of server, networking, and storage hardware. Network connectivity and password-protected access allow secure management within existing enterprise infrastructure.

    Power Distribution Architecture

    Divided into two separate power banks, each supporting up to 16 amps, the unit balances power distribution to connected loads. Each outlet supports up to 12 amps, enabling safe and efficient delivery specifically tailored to heterogeneous data center equipment requirements. This architecture helps prevent overloads and facilitates load balancing monitoring at the outlet level.

    Environmental and Safety Standards

    The AP7911B complies with strict safety certifications such as UL, CSA, and industry emission standards including FCC Part 15 and ICES-003. Its operational temperature and humidity range ensure reliable performance across variable data center conditions. The product adheres to RoHS and WEEE environmental directives and contributes to Schneider Electric’s global sustainability goals by participating in a take-back and recycling program.

    Installation and Maintenance

    The PDU comes with comprehensive documentation, including installation guides and rack mounting brackets for quick and secure deployment. Its 12-foot NEMA L6-30P input cord offers flexible power connection options. The device’s compact 2U height conserves rack space while supporting high-density power requirements, simplifying maintenance and future upgrades.

    Energy Efficiency and Sustainability

    Designed to exceed market average energy efficiency by at least 10%, this PDU reduces power losses within data center environments. It maintains a calculated lifecycle carbon footprint of approximately 2,005 kg CO2 equivalent, reflecting a commitment to environmentally responsible manufacturing and operation without compromising performance or safety.

    Summary and Call to Action

    The APC AP7911B switched rack PDU delivers precise, secure, and energy-efficient power distribution tailored for demanding enterprise and data center environments. Its remote outlet control, robust current capacity, and comprehensive safety compliance make it an essential solution for businesses seeking enhanced power management and operational flexibility. Contact us to learn more or secure this solution for your business today.
