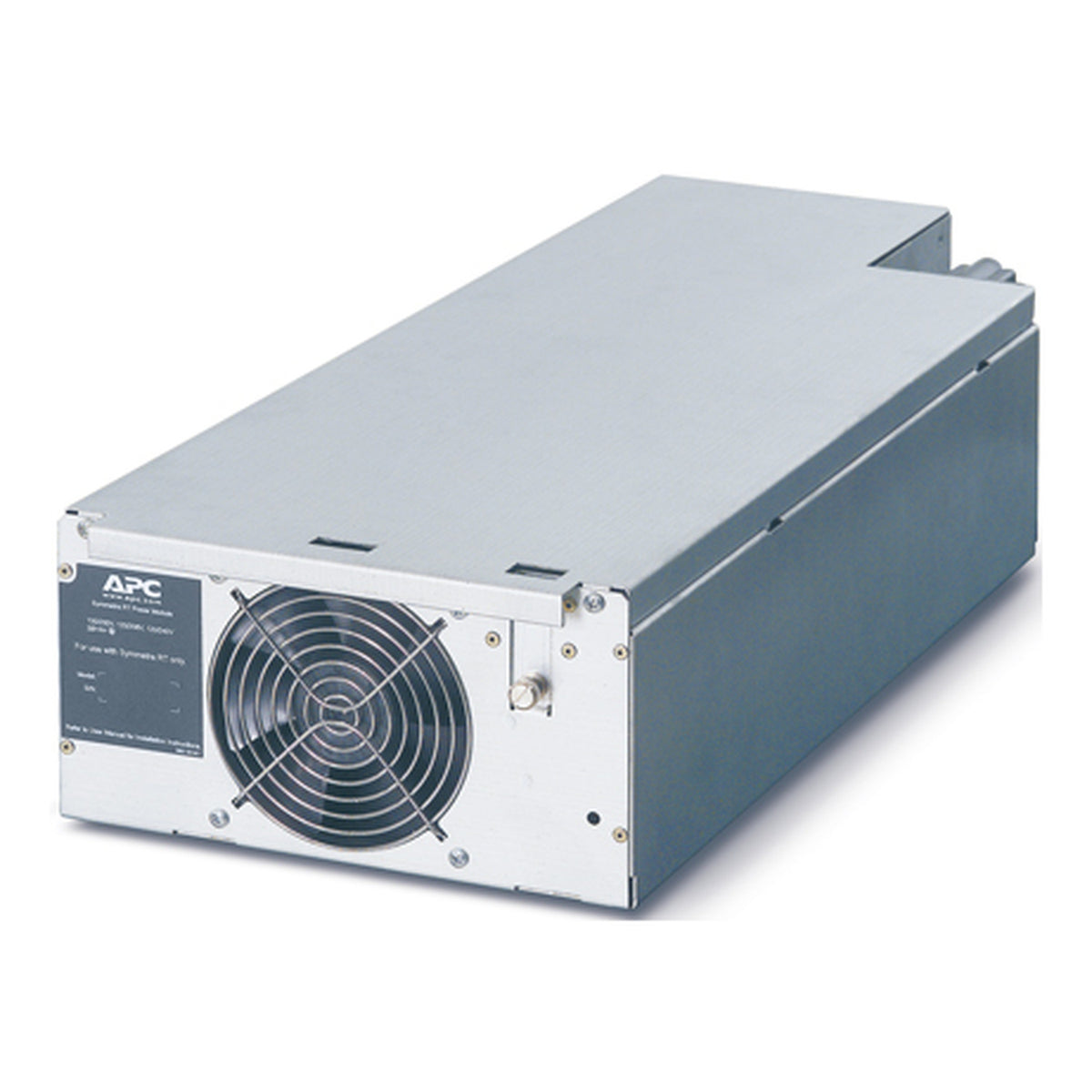

APC Symmetra LX 4 kVA Power Module 200V Modular UPS Power Stage SYPM4KP

Key Features

• Genuine APC Symmetra LX power module, part number SYPM4KP, for adding or restoring a power stage in a modular Symmetra frame.
• Rated 3200 W (rated power in VA: 4000 VA).
• Voltages as printed on APC's data sheet: Main input voltage: 200 V, 208 V. Output voltage: 100 V, 120 V, 200 V, 208 V.
• Measures 5.9 x 9.8 x 22.2 in (150 x 250 x 565 mm) and weighs 33.1 lb (15 kg).
• Backed by 24 months.
• APC's data sheet names the family but no specific frame models, so we confirm the fit against your Symmetra frame rather than publishing a list.
• We do not repeat the hot-swap claim that circulates on dealer listings for these modules; APC's data sheet does not state it, so neither do we.

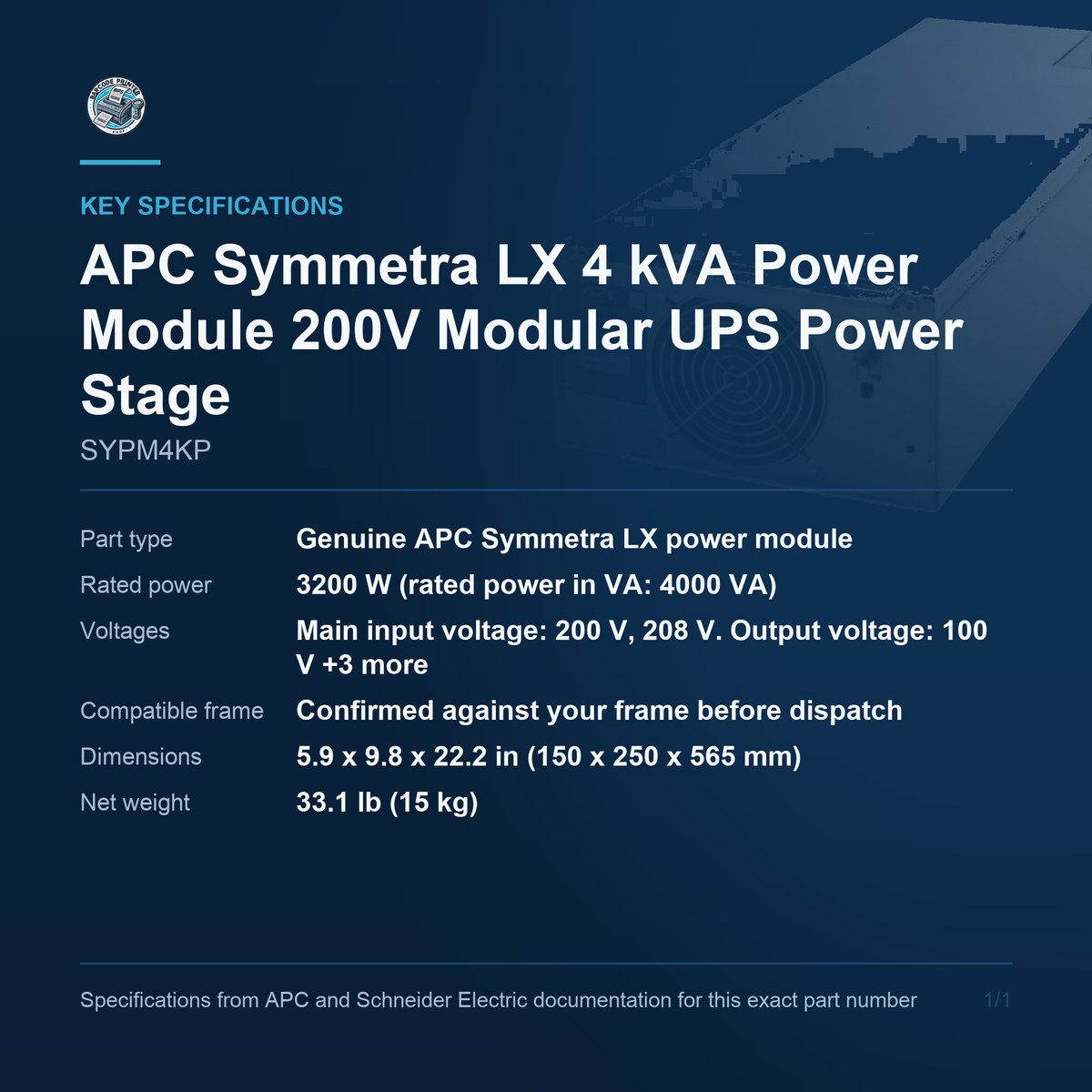

Key Specifications

• Part type: Genuine APC Symmetra LX power module
• Rated power: 3200 W (rated power in VA: 4000 VA)
• Voltages: Main input voltage: 200 V, 208 V. Output voltage: 100 V, 120 V, 200 V, 208 V
• Dimensions: 5.9 x 9.8 x 22.2 in (150 x 250 x 565 mm)
• Net weight: 33.1 lb (15 kg)
• Compatible frame: Confirmed against your frame before dispatch - APC names no specific models
• Supplied with: Installation guide
• Warranty: 24 months

What this module is

The SYPM4KP is a Symmetra LX power module: one of the modular power stages that slot into a Symmetra frame to make up the system's capacity. A modular UPS is built differently from a monolithic one. Rather than a single fixed inverter, capacity is assembled from power modules in a frame, so the system can be sized to the load today and grown later by adding modules rather than replacing the whole unit. It also changes what a failure looks like. A failed module in a populated frame takes out its own share of capacity rather than the system, and it is replaced as a part rather than as an outage.

Rating and voltages

Rated power on APC's data sheet is 3200 W (rated power in VA: 4000 VA). Voltages are printed as Main input voltage: 200 V, 208 V. Output voltage: 100 V, 120 V, 200 V, 208 V. APC prints no phase declaration for this module. The only related line on the sheet is a hard-wire output connector descriptor, which is not the same thing, so we leave phase unstated rather than infer it. Read the VA and watt figures together rather than picking whichever is larger. On a modular system the frame's total capacity is the sum of the installed modules, and the load has to sit inside both totals with enough headroom left that losing one module does not take the system over its limit.

Fitment before ordering

Order this module against your Symmetra frame, not against its rating alone. APC's data sheet identifies only the family for this module and names no specific frame models, so there is no manufacturer list for us to quote. Symmetra frames differ in voltage, in phase and in the module type they accept, and a module that is physically similar is not necessarily the right one. Getting this wrong means a module that will not commission in a frame that is already in production.

Size and contents

The module measures 5.9 x 9.8 x 22.2 in (150 x 250 x 565 mm) and weighs 33.1 lb (15 kg). APC lists installation guide with it. Warranty is 24 months. Nothing else is itemised on the sheet, so assume no rails, no cables and no documentation beyond the installation guide. The module is dense for its size and lands in a frame at height, so plan the lift and the approach before the delivery rather than after it. Commissioning a module into a live frame is work for somebody who has done it before. The frame has to recognise the new module and rebalance around it, and the sequence for that differs between Symmetra generations, so follow the guide for your frame rather than a procedure remembered from a different one.

If a Symmetra frame in your rack needs a power stage added or replaced, the APC SYPM4KP is the genuine module for it. Send us the frame model and we will confirm the fit. Contact us to learn more or secure this solution for your business today.
