Canon imageFORMULA DR-M160II Duplex Document Scanner Bundled with Kofax Tungsten VRS Elite 60 ppm 120 ipm Letter at 200 dpi Portrait Feed 0114T279

End of life. Canon U.S.A. has discontinued the imageFORMULA DR-M160II, and its own product page for the model reads Discontinued and no longer available. Canon has named no successor for it, and Barcode Printer Shop does not currently stock a current Canon imageFORMULA scanner in its place. Remaining 0114T279 stock is sold for fleet matching, replacement units and validated capture workflows where requalifying a new scanner is not practical.

Key Features

• This part number is the DR-M160II supplied with the Kofax Tungsten VRS Elite licence, not the bare scanner.
• Canon rates it at up to 60 ppm simplex and up to 120 ipm duplex on letter-size documents in portrait feed at up to 200 dpi.
• Black and white, greyscale and 24-bit colour are all rated at the same speed, so colour costs nothing in throughput here.
• Feeder capacity is up to 75 sheets of 80 g/m² A4 stock.
• Duplex scanning, with ultrasonic and length-based double-feed detection per Canon's regional specification page.
• 600 dpi optical resolution from a one-line contact image sensor with an RGB LED light source.
• Long-document mode reaches 118.11 inches, and media runs from 7 to 68 lb bond with embossed plastic cards supported.
• Hi-Speed USB 2.0 is the only interface. There is no Ethernet port and no wireless on this model.
• ISIS and TWAIN drivers on Windows; macOS gets the TWAIN driver plus CaptureOnTouch, with no ISIS driver.
• CapturePerfect is not in this bundle. Canon ships Readiris PDF and Nuance eCopy PDF Pro Office with this model instead.
• Canon publishes no passport thickness for the DR-M160II, so a passport workflow belongs on the DR-C240 or the DR-M260.
• One-year advanced-exchange limited warranty, extendable through Canon eCarePAK.

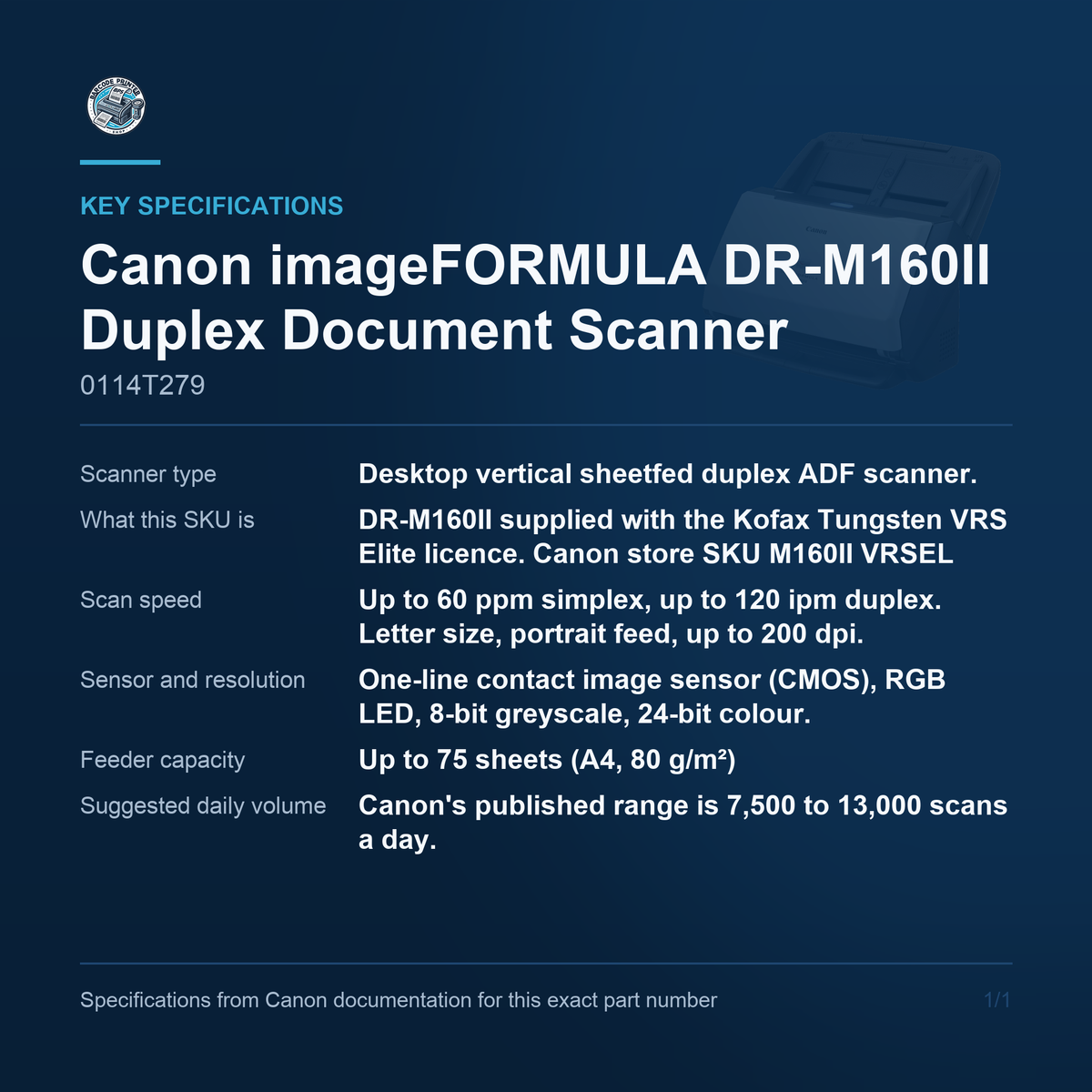

Key Specifications

• Scanner type: Desktop vertical sheetfed duplex ADF scanner. Canon type designation: Office Document Scanner
• What this SKU is: DR-M160II supplied with the Kofax Tungsten VRS Elite licence. Canon store SKU M160II VRSEL
• Scan speed: Up to 60 ppm simplex, up to 120 ipm duplex. Letter size, portrait feed, up to 200 dpi. Identical in black and white, greyscale and colour
• Sensor and resolution: One-line contact image sensor (CMOS), RGB LED, 8-bit greyscale, 24-bit colour. Up to 600 dpi optical; output 150/200/240/300/400/600 dpi, with Canon's specification sheet also listing 100 dpi
• Feeder capacity: Up to 75 sheets (A4, 80 g/m²)
• Suggested daily volume: Canon's published range is 7,500 to 13,000 scans a day. The US spec sheet says up to 13,000; the US product page says approximately 7,000

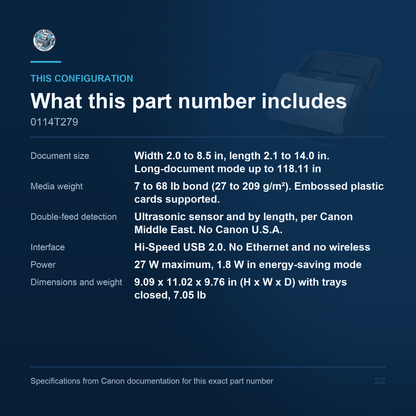

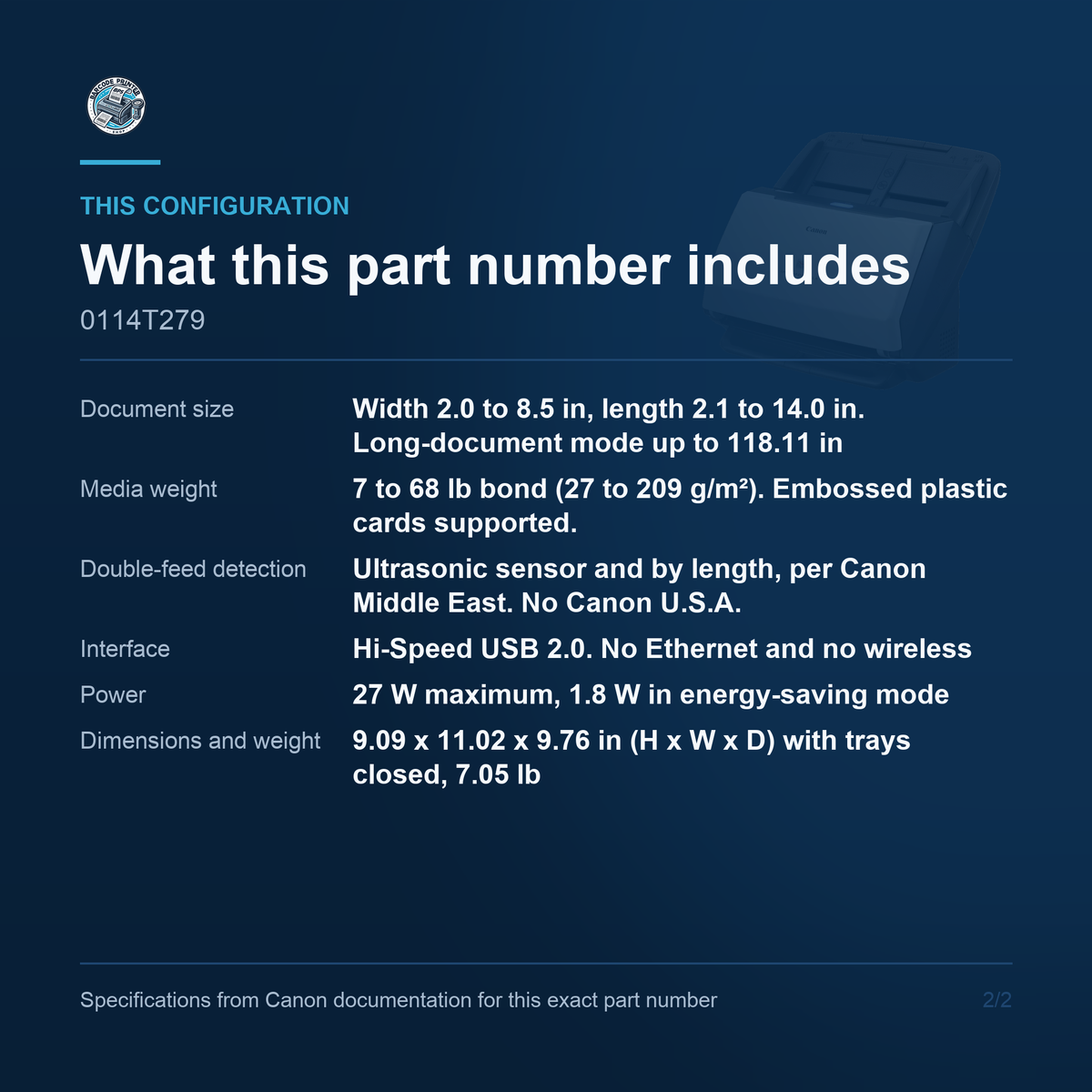

• Document size: Width 2.0 to 8.5 in, length 2.1 to 14.0 in. Long-document mode up to 118.11 in
• Media weight: 7 to 68 lb bond (27 to 209 g/m²). Embossed plastic cards supported. No passport figure published for this model
• Double-feed detection: Ultrasonic sensor and by length, per Canon Middle East. No Canon U.S.A. document carries the row
• Interface: Hi-Speed USB 2.0. No Ethernet and no wireless
• Power: 27 W maximum, 1.8 W in energy-saving mode
• Dimensions and weight: 9.09 x 11.02 x 9.76 in (H x W x D) with trays closed, 7.05 lb

The VRS Elite licence

This part number is not the bare DR-M160II. Canon U.S.A.'s store SKU on this page reads M160II VRSEL, the bundled-software line on Canon's own specification sheet ends Tungsten VRS Elite, and the description string Canon supplies to distributors reads bundled with Kofax VRS Elite. What is being bought is the scanner together with the Virtual ReScan Elite licence, the paid tier of Kofax image enhancement rather than the basic version that ships with the DR-C240. Tungsten Automation is the renamed Kofax, which is why Canon's newer documents say Tungsten where the older ones say Kofax; it is the same software under both names. Anyone comparing this against a quote for a plain DR-M160II is not comparing like with like.

Speed and its condition

Canon rates this scanner at up to 60 ppm simplex and up to 120 ipm duplex, and the footnote on Canon's specification sheet gives the condition in full: typical settings, letter-size documents, portrait-feeding direction, up to 200 dpi. That condition is part of the claim. Canon's US product page prints the same numbers with no condition at all, which is why a bare 60 ppm figure lifted from a product page is not a safe basis for a throughput calculation. All three modes are rated identically here, so black and white, greyscale and 24-bit colour each reach 60 ppm. Note that the DR-M260 carries the same 60 ppm headline measured in landscape feed, which is the easier condition of the two.

Duty cycle

Canon publishes two different suggested daily volumes for this scanner and they do not agree. The Canon U.S.A. specification sheet says up to 13,000 scans; the Canon U.S.A. product page says approximately 7,000 scans. Canon Europe and Canon Middle East both print a band, from 7,500 to 13,000 scans a day, which reads as the reconciliation: the two US figures are points inside one range rather than rival ratings. This listing publishes the range with both endpoints attributed rather than either single number, because the spec-sheet ceiling on its own would place this scanner above the DR-M260 on paper, which is not the positioning Canon's own range supports. Size a workload against the bottom of the band.

Software bundle

The bundle on this model is not the bundle on the others in the range, so it is worth reading rather than assuming. Canon lists ISIS and TWAIN drivers, CaptureOnTouch, Readiris PDF, Nuance eCopy PDF Pro Office and Tungsten VRS Elite for Windows. CapturePerfect is absent, which matters because it ships with the DR-M140, the DR-M260 and the DR-C240, so a site standardised on it will not find it here. The macOS side is thinner: Canon gives the Mac a TWAIN driver plus CaptureOnTouch and nothing else. The specification sheet's parenthesis suggesting ISIS for Mac is contradicted by Canon's own product page and by Canon Middle East, so ISIS should be treated as Windows only.

Interface and drivers

Hi-Speed USB 2.0 is the only interface on this scanner. There is no Ethernet port, no wireless and no network stack, so it attaches to one host and is shared, if at all, through that host. Canon's support page for the model carries manuals for the NA10 and WA10 network adapters, which suggests the optional adapters fit, but no Canon specification row confirms it and it is not stated as fact here. On operating systems the two Canon documents differ: the newer specification sheet lists Windows 10, Windows 11, Windows Server 2016 through 2022 and macOS 12, 13 and 14, while the older product page stops at macOS 10.15. Both agree that Windows 11 is supported.

Media handling

Documents run from 2.0 to 8.5 inches wide and from 2.1 to 14.0 inches long, with a long-document mode reaching 118.11 inches for continuous stock. Paper weight is 7 to 68 lb bond, which is 27 to 209 g/m² in Canon's metric original, and embossed plastic cards are supported. Canon publishes no passport thickness for this model at all: Canon Middle East's specification page has no passport row for it and neither US source mentions passports, so a passport workflow should be specified on the DR-C240 or the DR-M260, where Canon prints 4 mm and 6 mm respectively. Double-feed detection is ultrasonic and by length per Canon Middle East, though no Canon U.S.A. document carries that row.

Consumables

Canon publishes the consumable for this scanner by name but not by number. The part is the Exchange Roller Kit, a feed roller plus a retard roller, and Canon U.S.A. currently sells one kit covering this family under the name Exchange Roller Kit SF/C/M/R Series with a store item code rather than a trade part number. The trade numbers circulating in the channel, 5595C001 and the earlier 0697C003, come from distributors and not from Canon against this model, so confirm the number with Canon before raising a purchase order on it. Canon publishes no replacement interval for the DR-M160II either; the 200,000-page figure in Canon's DR-M260 manual belongs to that model and must not be read across.

The second generation

Canon publishes no change list between the DR-M160 and the DR-M160II, and no first-generation Canon specification page could be obtained to build a comparison from, so this listing does not assert what the II changed. What can be said is what Canon's current documents state for this model: a 75-sheet feeder and a suggested daily volume band of 7,500 to 13,000 scans. A Canon Latin America brochure carrying DR-M160II branding prints a 60-sheet feeder and about 7,000 scans a day alongside first-generation item numbers, which points at a feeder and duty-cycle revision, but it is a mixed-content document rather than a Canon change statement and is treated here as unconfirmed.

Barcode Printer Shop supplies document scanners to US businesses with the measurement condition behind every speed figure, the driver position and the discontinued status stated on the page rather than discovered after delivery. Contact us to learn more or secure this solution for your business today.
