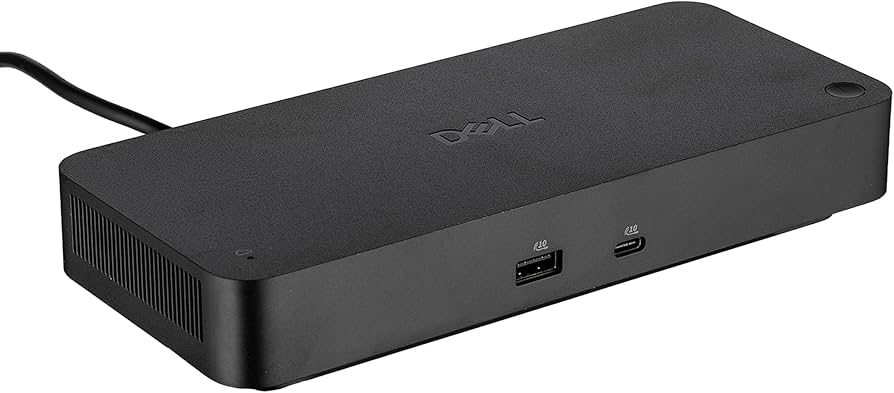

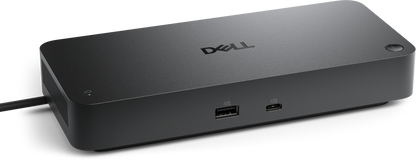

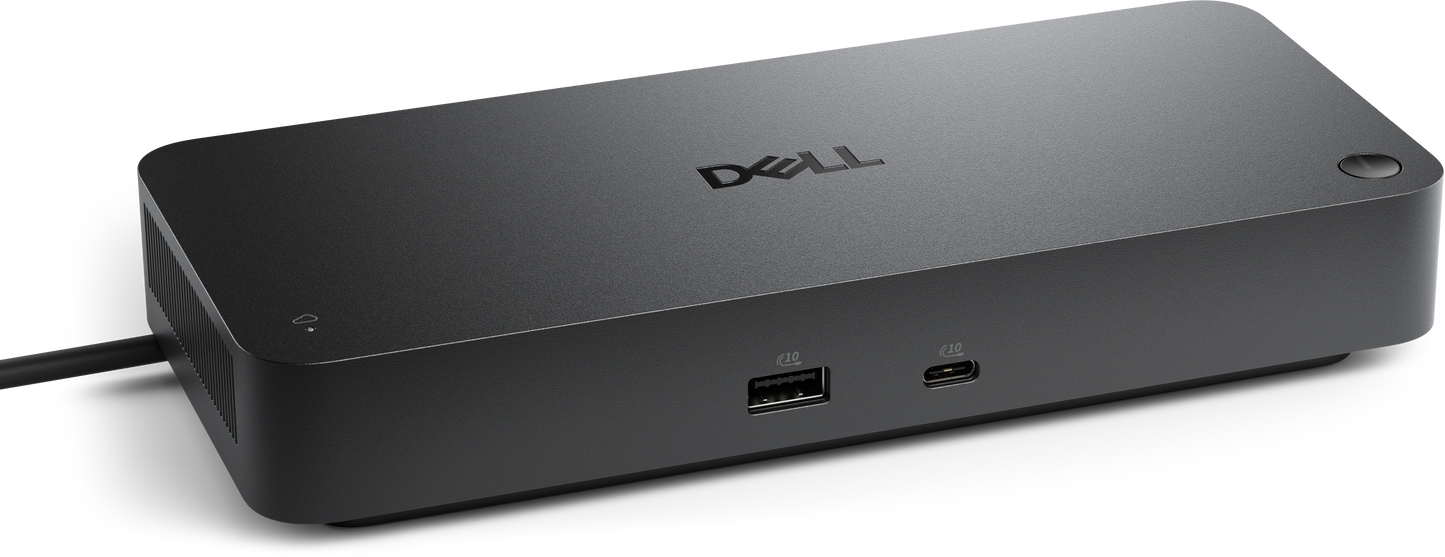

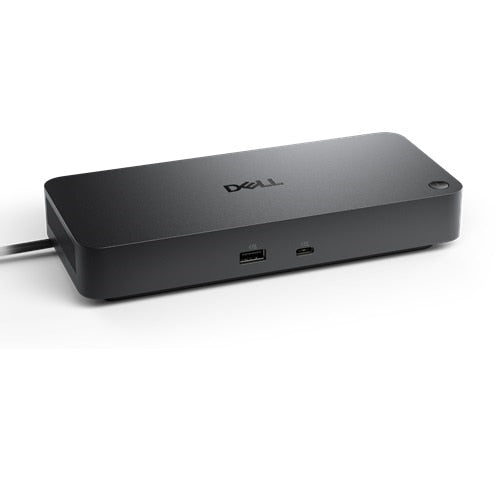

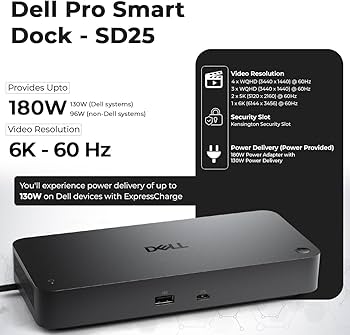

Dell Pro Smart Dock SD25 130W USB-C Multi-Display DEll-SD25

Key Features

• Efficiently delivers up to 130W power to compatible Dell systems, ensuring rapid charging and sustained performance for critical tasks.
• Maximize visual workspace by supporting up to four high-resolution displays, including WQHD and single 6K setups, for enhanced productivity.
• Connect diverse monitor setups with extensive video output options, including DisplayPort 1.4, HDMI 2.1, and USB-C DisplayPort Alt Mode.
• Access a wide array of peripherals with four USB-A 3.2 Gen 2 and two USB-C 3.2 Gen 2 ports, enabling rapid data transfer.
• Secure your operations with enterprise-grade features, including WPA-3 encryption, hardware-based security, and advanced port disablement.
• Ensure stable, high-speed network connectivity with the integrated 2.5 Gigabit Ethernet port, optimizing data transfer and remote access.
• Achieve broad system compatibility across Windows, Linux, and ChromeOS, integrating seamlessly into diverse IT environments.
• Facilitate flexible workstation arrangements with the integrated 0.9-meter USB-C cable, reducing clutter and optimizing setup.
• Enhance remote manageability with Wake-on-LAN and MAC Address Pass-Through, simplifying network deployments and maintenance.
• Maintain system integrity and deploy updates effortlessly with remote IT management and firmware update capabilities.
• Monitor operational status at a glance with clear LED indicators for power, management activities, and network connectivity.

Key Specifications

• Power Delivery: 130W for Dell systems; 96W for non-Dell USB-C or Thunderbolt systems.
• Power Adapter: External 180W maximum power supply, ensuring stable and robust power delivery.

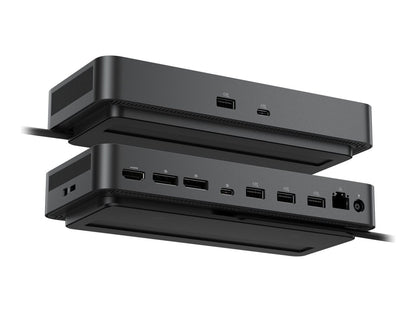

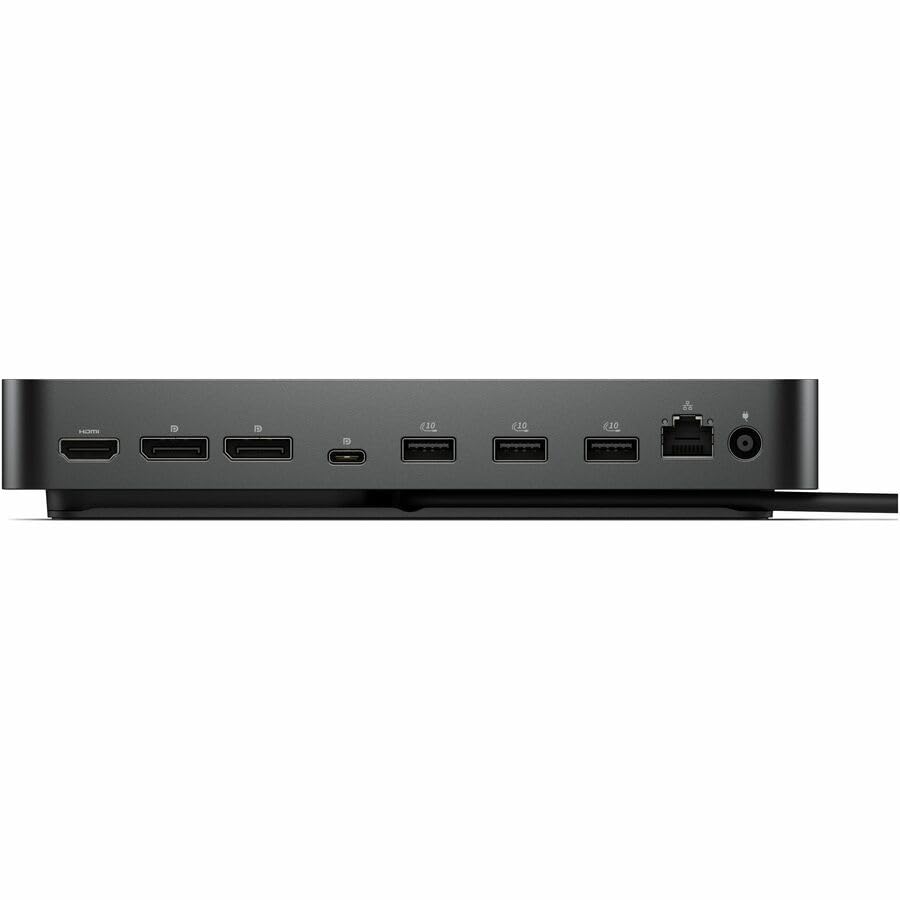

• Video Outputs: 2 x DisplayPort 1.4, 1 x HDMI 2.1, 1 x USB-C 3.2 Gen 2 with DisplayPort 1.4 Alt Mode.
• USB Ports: 4 x USB-A 3.2 Gen 2 (10Gbps), 2 x USB-C 3.2 Gen 2 (10Gbps, one with DP Alt Mode).
• Ethernet: RJ45 port supporting 2.5 Gigabit Ethernet (2.5GbE) for high-speed network access.
• Supported Displays: Up to 4x WQHD (3440x1440 @ 60Hz), 2x 5K (5120x2160 @ 60Hz), or 1x 6K (6144x3456 @ 60Hz).
• OS Support: Windows 10/11, Ubuntu 24.04, Red Hat Enterprise Linux 9.6+, ChromeOS 137.
• Security: Noble Wedge security slot, WPA-3 192-bit Wi-Fi encryption, hardware-based protection.
• Docking Cable: Integrated 0.9-meter (90 cm) USB-C ambidextrous cable for flexible host connection.
• Dimensions (HxWxD): 8.07 inches x 3.54 inches x 1.39 inches (20.5 cm x 9.0 cm x 3.5 cm).
• Weight: Approximately 1.24 lbs (0.56 kg), a compact and robust form factor.

Overview and Core Purpose

The Dell Pro Smart Dock SD25 is engineered as a high-performance docking station designed to significantly enhance workstation productivity and streamline complex setup configurations. This advanced solution caters specifically to power users and IT-managed environments requiring robust connectivity, extensive high-resolution display support, and secure data handling. It delivers substantial power output, versatile video and data connections, and integrates advanced security features, positioning it as a premium, professional-grade docking solution. Its comprehensive capabilities are tailored to maximize operational efficiency and maintain a high standard of data integrity within demanding business and enterprise settings. The SD25 simplifies workstation management while providing the necessary infrastructure for multitasking across multiple high-definition displays, making it an indispensable asset for modern professional workflows.

Connectivity and Display Expansion

This docking station is meticulously equipped for professional multitasking, enabling the connection of up to four high-resolution monitors simultaneously. Users can configure environments supporting up to two 5K displays at 60Hz or a single immersive 6K display at 60Hz, alongside various WQHD configurations. The Dell Pro Smart Dock SD25 offers extensive video output flexibility through two DisplayPort 1.4 ports, one HDMI 2.1 port, and an additional USB-C 3.2 Gen 2 port with DisplayPort 1.4 Alt Mode, accommodating a broad spectrum of display technologies and setups. Furthermore, it provides robust peripheral connectivity with four USB-A 3.2 Gen 2 ports and two USB-C 3.2 Gen 2 ports, all supporting 10 Gbps data transfer rates, ensuring seamless integration of essential devices and high-speed data exchange.

Power Delivery and Network Integration

The Dell Pro Smart Dock SD25 provides critical power delivery capabilities, supplying up to 130W to compatible Dell systems and a robust 96W to non-Dell USB-C or Thunderbolt-enabled systems, ensuring continuous power to host laptops and connected devices. This reliable power output is facilitated by an external 180W power adapter, guaranteeing stable operation even under heavy load. For network integration, the dock incorporates an RJ45 Ethernet port supporting 2.5 Gigabit Ethernet (2.5GbE), significantly enhancing network throughput compared to standard Gigabit connections. This high-speed networking capability is essential for operations requiring rapid data transfer, access to large files, or stable video conferencing, optimizing overall system efficiency and responsiveness in data-intensive environments.

Enterprise-Grade Security

Security is a paramount consideration in the design of the Dell Pro Smart Dock SD25, which integrates enterprise-grade protections to safeguard sensitive data and hardware. It features a Noble Wedge security slot for physical deterrents against theft. Beyond physical security, the dock employs advanced WPA-3 192-bit Wi-Fi encryption, ensuring secure wireless communications for management and data transfer. Hardware-based security mechanisms and tamper resistance further enhance the integrity of the device. Additionally, the ability to implement port disablement via a management console provides IT administrators with granular control over connected peripherals, mitigating potential unauthorized access points and fortifying the workstation against evolving cyber threats.

Advanced Management and IT Deployment

Optimized for IT-managed environments, the Dell Pro Smart Dock SD25 incorporates a suite of advanced management features that simplify deployment, monitoring, and maintenance. These capabilities include MAC address pass-through, PXE Boot support, Kernel DMA protection, and Dock Power Button Sync, enabling seamless integration into corporate network infrastructures. Remote management functionalities allow IT teams to deploy firmware updates and manage device settings over Wi-Fi, minimizing on-site intervention and ensuring all docks are running the latest, most secure software. Its broad compatibility with Windows 10 and 11, Ubuntu 24.04, Red Hat Enterprise Linux 9.6+, and ChromeOS 137 ensures flexible deployment across diverse operating system landscapes, making it a versatile tool for enterprise IT.

Design and Sustainability

The Dell Pro Smart Dock SD25 is designed with user convenience and environmental responsibility in mind. It features an integrated 0.9-meter (90 cm) ambidextrous USB-C cable, which allows for flexible placement and helps in maintaining an organized workspace by reducing cable clutter. This robust and durable USB-C connector ensures reliable, long-term connectivity. Furthermore, Dell's commitment to sustainability is evident in the dock's construction, utilizing at least 65% post-consumer recycled plastic, and its packaging, which is made from 100% recycled or renewable materials. LED indicators for power and management status provide clear visual cues for operational readiness and troubleshooting, enhancing overall user experience and minimizing operational downtime. Each unit includes the dock, power adapter, cord, and documentation, backed by a 3-year limited hardware warranty with optional extensions.

For businesses and operations managers seeking to elevate workstation performance, enhance data security, and streamline IT management across diverse operating environments, the Dell Pro Smart Dock SD25 represents a strategic investment. Its robust power delivery, extensive display support, and advanced remote management capabilities make it an indispensable asset for maximizing productivity and ensuring operational resilience. Contact us to learn more or secure this solution for your business today.
