Dell

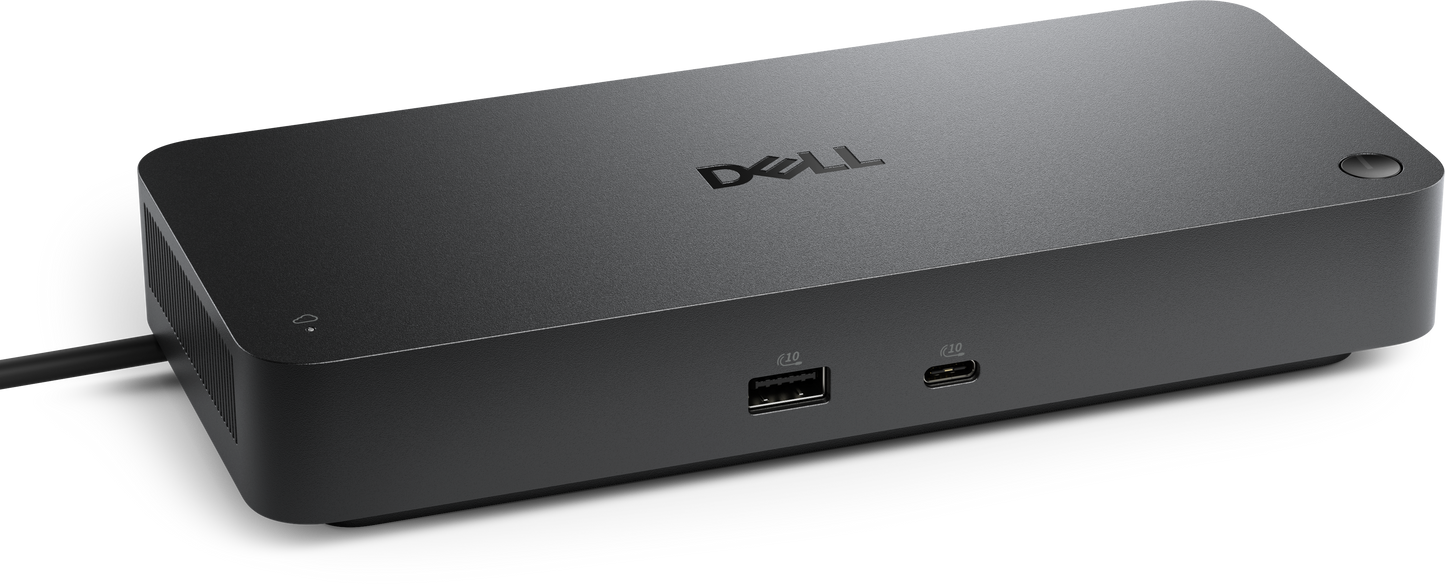

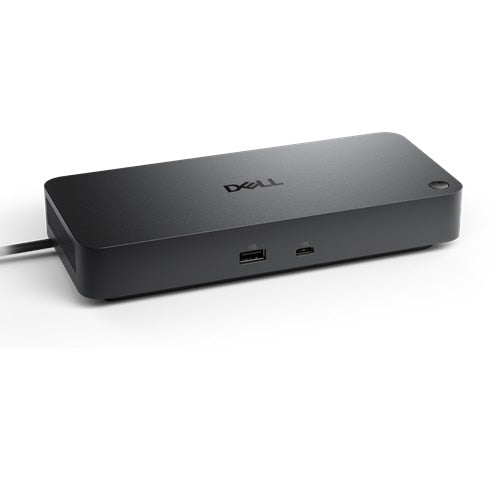

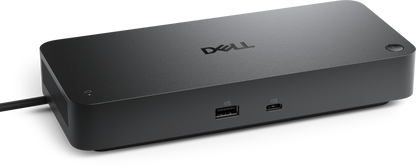

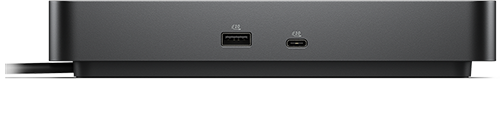

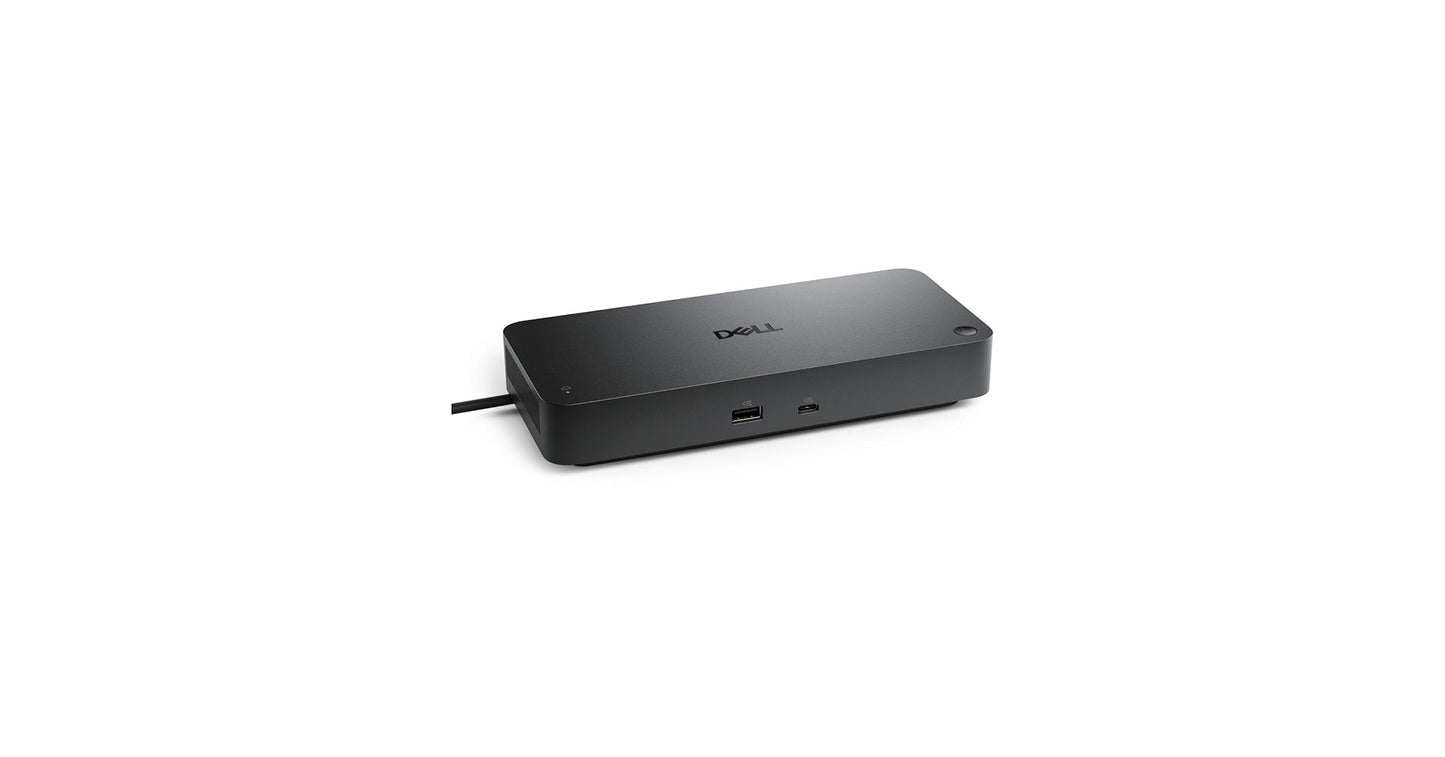

Dell Pro Thunderbolt 4 Smart Dock with 130W Power Delivery DELL-SD25TB4

Dell Pro Thunderbolt 4 Smart Dock with 130W Power Delivery DELL-SD25TB4

SKU: DELL-SD25TB4

UPC: 754063783799

Condition: New

Availability: Usually Ships Same Business Day

Shipping: Calculated at Checkout

Warranty: 1 Year Manufacturer Warranty

60 in stock

Regular price $329.99 USD
Regular price $449.99 USD Sale price $329.99 USD
Sale Sold out
Shipping calculated at checkout.

Key Features

  • Supports up to four 4K displays or one 8K display with Display Stream Compression for enhanced visual clarity.
  • Delivers up to 130W power delivery for Dell systems and 96W for non-Dell devices to maintain device uptime.
  • Equipped with multiple high-speed Thunderbolt 4, USB-A 3.2 Gen 2, and USB-C 3.2 Gen 2 ports for versatile connectivity.
  • Includes dual DisplayPort 1.4 and a single HDMI 2.1 port supporting diverse multi-display configurations.
  • Enables remote device management with features such as remote firmware updates and wake on LAN for streamlined IT operations.
  • Business-grade security with kernel Direct Memory Access (DMA) protection helps safeguard against unauthorized access.
  • Incorporates a built-in 0.83-meter Thunderbolt 4 cable for simplified setup and reduced cable clutter.
  • Provides 2.5GbE Ethernet connectivity to support high-speed network access for professional workloads.
  • Compact design using at least 65% recycled plastic and sustainable packaging contributes to environmental responsibility.
  • Compatible with Windows 10/11, macOS, Linux distributions like Ubuntu and Red Hat Enterprise Linux, and ChromeOS.
  • Includes comprehensive accessories such as power adapter, cords, quick start guide, and regulatory information for straightforward deployment.
  • Key Specifications

  • Power Delivery: 130W for Dell systems, 96W for non-Dell devices ensures device charging and operation.
  • Video Resolution: Supports up to four 4K displays @ 60Hz, or 1x 8K @ 60Hz with Display Stream Compression.
  • Video Interfaces: 2 x DisplayPort 1.4, 1 x HDMI 2.1, 1 x USB-C 3.2 Gen 2 with Multi-function DisplayPort 1.4.
  • Thunderbolt Ports: 2 x Thunderbolt 4 ports for high-speed data transfer and device connectivity.
  • USB Ports: 4 x USB-A 3.2 Gen 2, 1 x USB-C 3.2 Gen 2 providing extensive peripheral connectivity.
  • Network Support: RJ45 Ethernet port with 2.5GbE capability for enhanced networking speeds.
  • Physical Dimensions: Height 8.07 in, Width 3.54 in, Depth 1.39 in, Weight approx. 1.28 lbs ensuring desktop space efficiency.
  • Power Supply: Maximum 180W power adapter for high wattage needs.
  • Operating Systems: Compatible with Windows 10/11, macOS, Ubuntu, Red Hat Enterprise Linux, and ChromeOS.
  • Warranty: 3-year limited hardware warranty with options for extended coverage.
  • Functionality Overview

    The Dell Pro Thunderbolt 4 Smart Dock SD25TB4 utilizes the latest Thunderbolt 4 technology to provide seamless docking capabilities for modern professional setups. It integrates high-power delivery with multi-display support and broad peripheral connectivity to streamline workstation performance. The device is engineered to maintain stable, fast connections while enabling simplified workstation expansion for demanding operational environments. Its compact form factor supports eco-friendly initiatives without compromising on performance.

    Display Capabilities

    This dock supports up to four simultaneous 4K displays running at 60Hz or a single 8K display with Display Stream Compression, enabling sharp, detailed visuals suited for design, data processing, and multimedia workflows. The combination of DisplayPort 1.4 and HDMI 2.1 ports ensures compatibility with current monitor technologies while retaining future-proof scalability for evolving display requirements in high-resolution environments.

    Connectivity and Power

    Offering a range of connectivity options including dual Thunderbolt 4 ports, multiple USB-A and USB-C ports, and a 2.5GbE Ethernet port, the dock provides extensive device interface opportunities critical for multi-device setups. Power delivery is optimized at 130W for Dell devices and 96W for third-party systems to maintain operational continuity and reduce downtime across diverse hardware ecosystems.

    Management and Security

    The dock incorporates advanced IT management capabilities such as remote firmware updates, wake on LAN, and secure kernel DMA protection. These features enable IT administrators to remotely manage device firmware and security, ensuring compliance and reducing the burden of on-site technical support. Such business-grade security measures provide a robust defense against unauthorized device access and data breaches.

    Operating System Compatibility

    Fully compatible with major operating systems including Windows 10 and 11, Ubuntu, Red Hat Enterprise Linux, ChromeOS, and macOS, the dock supports heterogeneous device environments often found in professional and enterprise settings. This cross-platform compatibility enables smooth integration into existing IT infrastructure and workflows without requiring additional drivers or complex setups.

    Design and Sustainability

    Constructed with at least 65% recycled plastic and packed in sustainable materials, the dock reflects Dell’s commitment to environmental responsibility. Its compact dimensions allow for efficient workstation placement without encumbering workspace real estate. The integrated 0.83-meter Thunderbolt 4 cable simplifies installation by minimizing cable clutter and improving workstation ergonomics.

    Deployment and Support

    The product package includes the dock itself alongside a power adapter, necessary cords, a quick start guide, and documentation covering safety and regulatory compliance. Backed by a three-year limited hardware warranty with optional extended coverage, Dell provides ongoing support to ensure business continuity and investment protection for operational deployments.

    The Dell Pro Thunderbolt 4 Smart Dock SD25TB4 is a comprehensive solution for businesses aiming to enhance workstation flexibility, connectivity, and management capabilities with high power delivery and multi-display support. Contact us to learn more or secure this solution for your business today.
