Dell

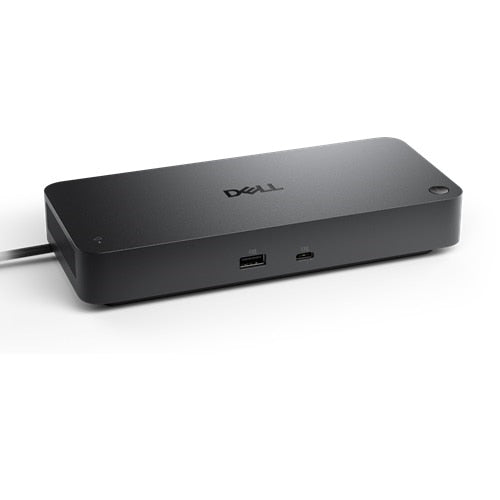

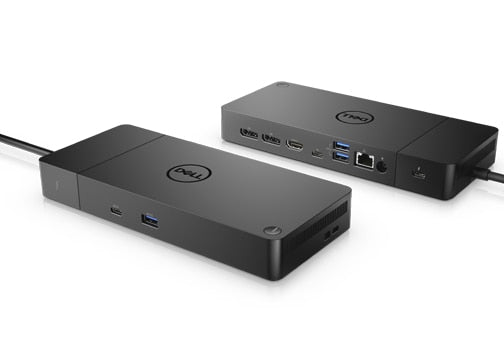

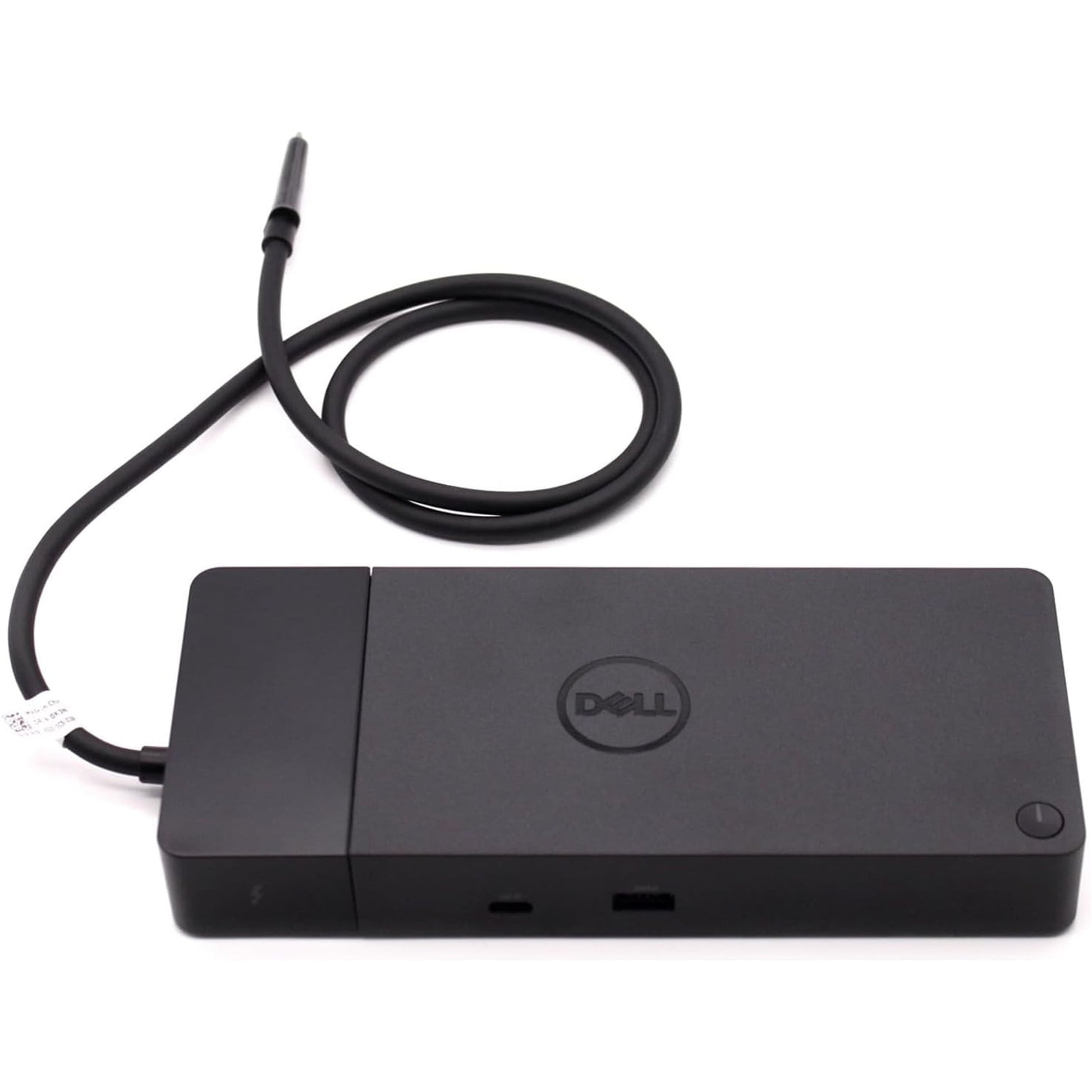

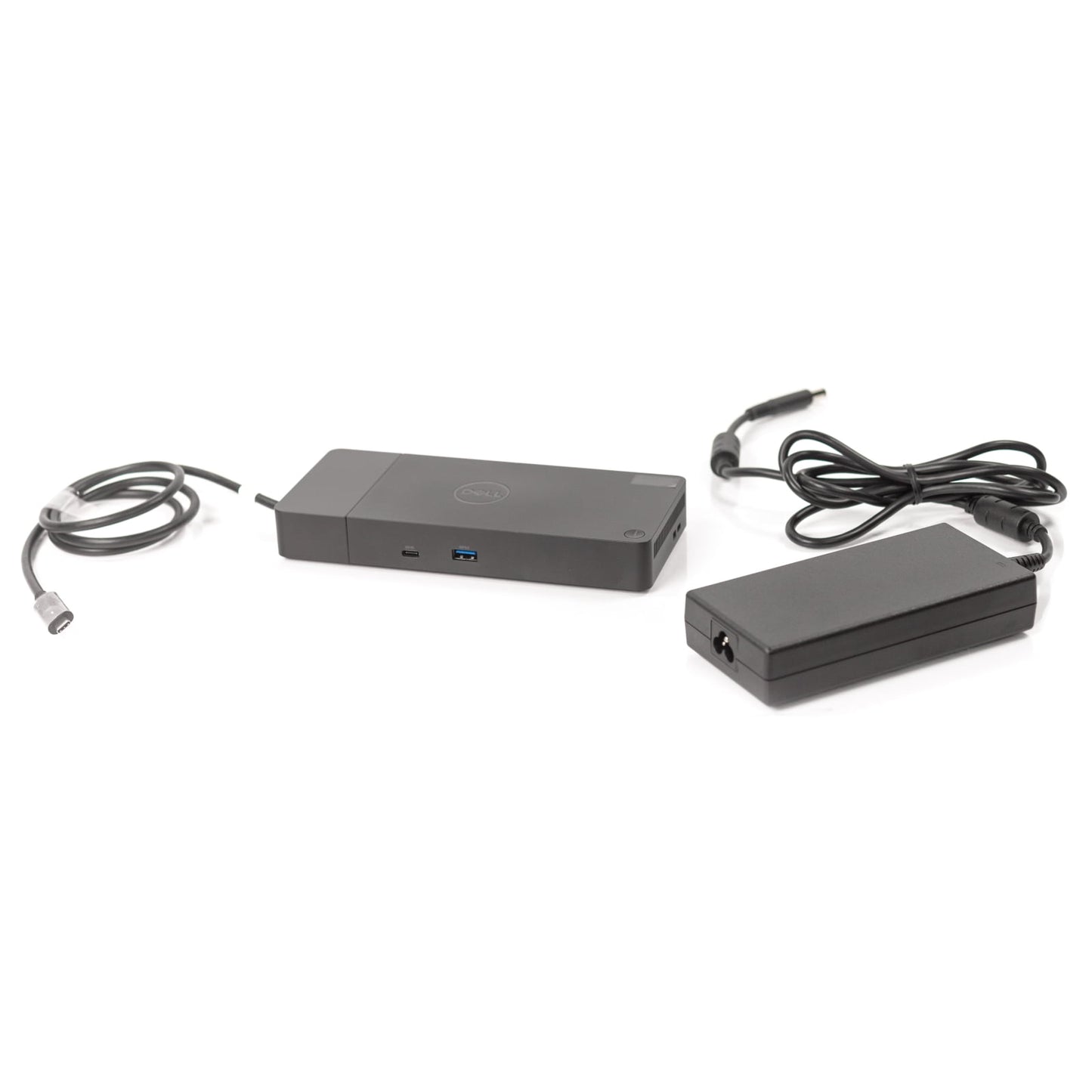

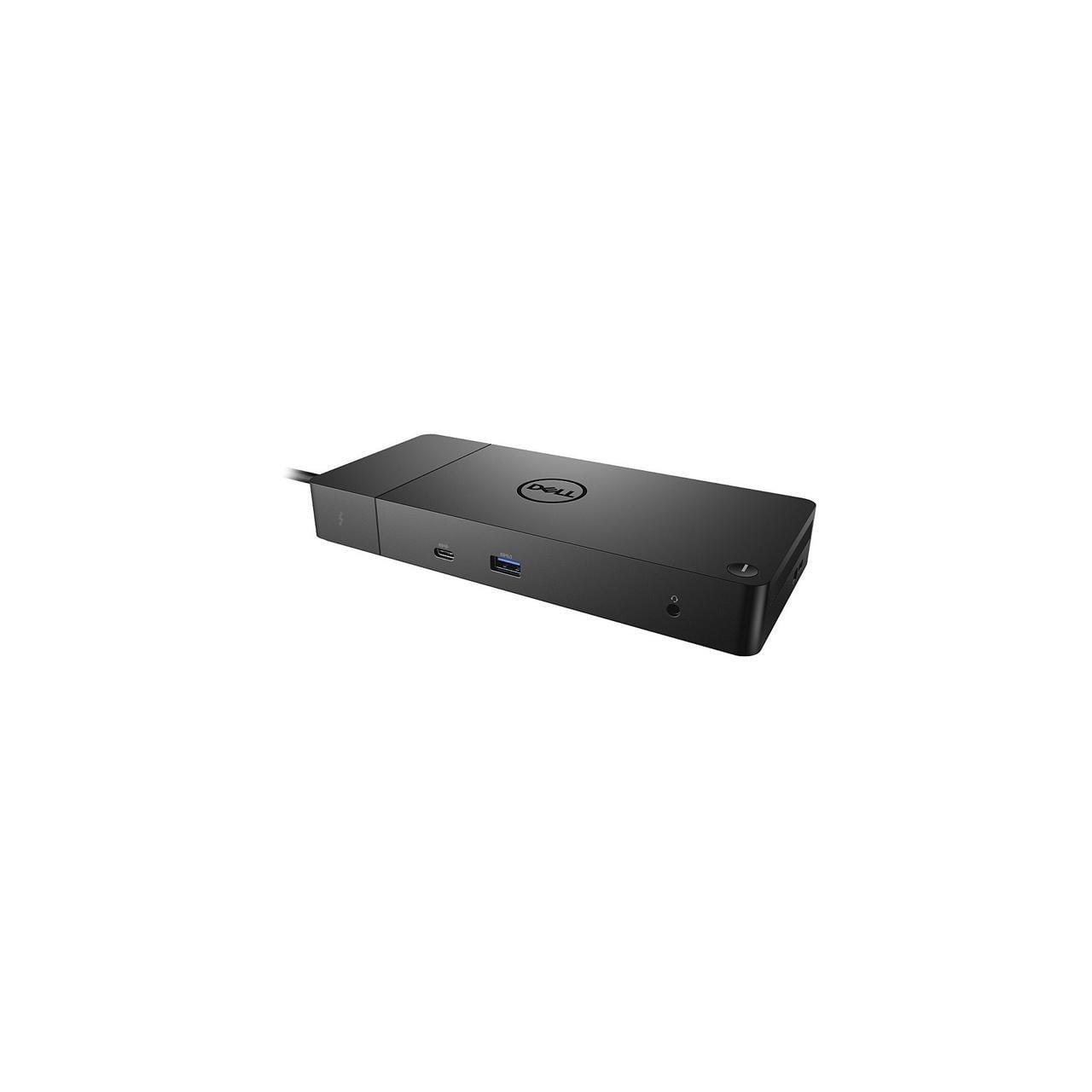

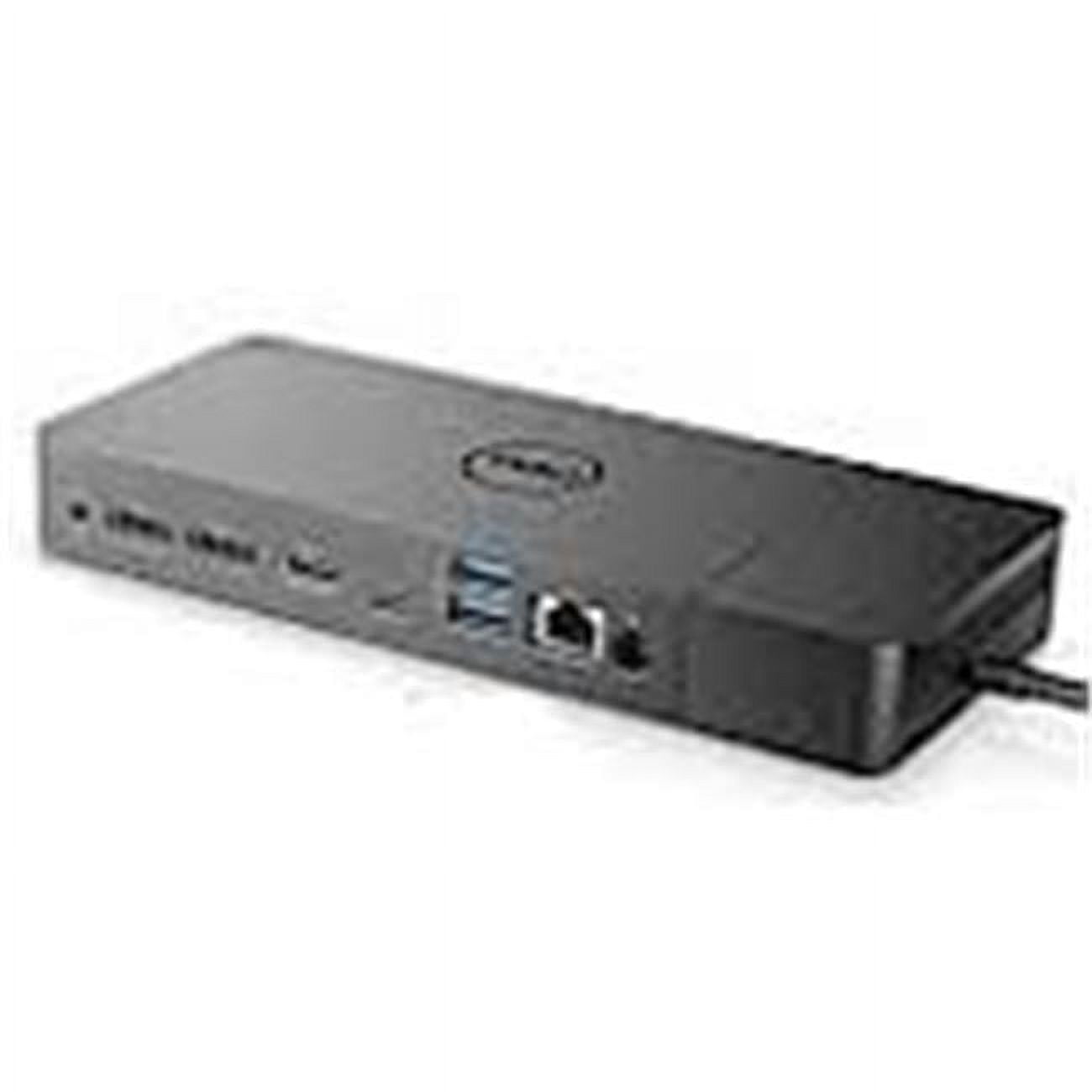

Dell WD19TBS Thunderbolt Dock 130W Power Delivery 210-AZBI

Dell WD19TBS Thunderbolt Dock 130W Power Delivery 210-AZBI

SKU: 210-AZBI

UPC: 754063784062

Condition: New

Availability: Usually Ships Same Business Day

Shipping: Calculated at Checkout

Warranty: 1 Year Manufacturer Warranty

35 in stock

$299.99 USD
$369.99 USD $299.99 USD
Sale Sold out
Shipping calculated at checkout.

Key Features

  • Thunderbolt 3 connectivity delivers power, data, audio, and video via a single cable.
  • Supports up to three external monitors: one 5K display or two 4K displays for enhanced productivity.
  • Multiple USB 3.2 Gen1 and Gen2 ports support diverse peripheral connections and fast data transfer.
  • Gigabit Ethernet port provides reliable wired network access with Wake-on-LAN and MAC address pass-through features.
  • Power delivery up to 130W for Dell systems and 90W for others ensures consistent device charging.
  • Sleep, Wakeup, and Power button enables convenient dock management without disconnecting devices.
  • VESA mounting compatibility allows flexible, space-saving installation options for clutter-free workspaces.
  • Advanced IT manageability with remote port disablement, PXE Boot support, and firmware updates requiring no system reboot.
  • USB Type-C cable included with 0.8-meter length for versatile setup arrangements.
  • Compatible with Dell Commercial laptops and select HP and Lenovo notebooks supporting Thunderbolt standards.
  • Compact form factor with dimensions 205 mm x 90 mm x 29 mm and light weight of 620 grams for desktop convenience.
  • Operational operating temperature range of 0–35°C and humidity support ensure stable performance in office environments.

    • Key Specifications

  • Connectivity: Thunderbolt 3 (Type-C) interface for data, video, and power transfer.
  • Display Support: Up to 3 monitors including one 5K or two 4K displays.

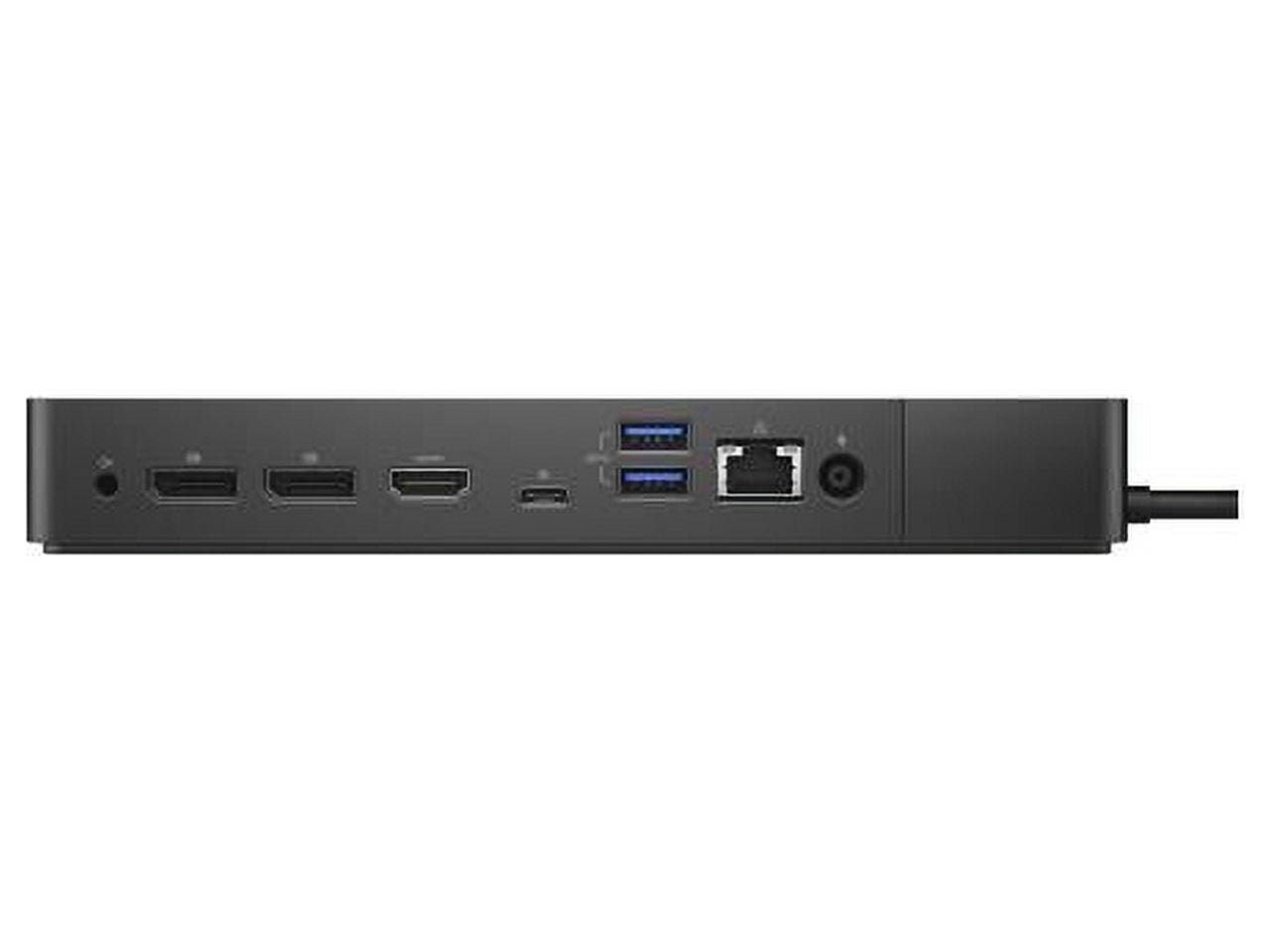

  • Video Ports: USB 3.2 Gen2 Type-C with DisplayPort 1.4 or HDMI 2.0 x1, DisplayPort++ 1.4 x2, rear Thunderbolt 3 (Type-C).
  • Network Port: Gigabit Ethernet (RJ-45) with Wake On LAN and MAC Address Pass-Through.
  • USB Ports: Front USB 3.2 Gen1 (PowerShare BC1.2), Front USB 3.2 Gen2 Type-C, Rear USB 3.2 Gen1 x2, Rear USB 3.2 Gen2 Type-C, Rear Thunderbolt Type-C Port.
  • Power Delivery: Up to 130W for Dell laptops, 90W for non-Dell with 180W AC adapter support.
  • Dimensions: 205 mm x 90 mm x 29 mm (approx. 2.5 x 11.4 x 12 inches).
  • Weight: Approximately 620 grams (3.47 lbs).
  • Operating Temperature: 0–35°C for stable workplace conditions.
  • Storage Temperature: -20°C to 60°C for device safety during downtime.
  • Humidity Range: 10–80% operational, 5–90% storage humidity tolerance.
  • Cable Length: 0.8 meters USB Type-C included for convenient connection.

    • Product Functions

    The Dell WD19TBS Thunderbolt Dock functions as a comprehensive desktop hub, enabling connection to multiple peripherals and displays through a singular Thunderbolt 3 interface. It consolidates power, video, audio, and data connectivity, facilitating workspace optimization for commercial laptops. The dock is designed to support business-grade laptops, promoting integration into structured IT environments while maintaining high performance and reliability standards.

    Usage and Benefits

    This docking station is intended to extend laptop capabilities by enabling support for up to three high-resolution monitors — including a 5K display — significantly enhancing multitasking and operational efficiency. It aggregates multiple USB ports in convenient locations, gigabit Ethernet networking, and power delivery, reducing clutter and cable complexity at workstations. These features improve productivity and workspace organization, key for commercial and enterprise settings.

    Compatibility and Integration

    Compatible with Dell Commercial laptops and select HP and Lenovo models that meet Thunderbolt industry standards, this dock integrates seamlessly into heterogeneous IT environments. It supports flexible deployment involving multiple device types and operating systems, ensuring broad usability without compromising technical standards or security protocols required in enterprise deployments.

    Management and Security

    The WD19TBS enhances IT management through advanced features such as remote port disablement, PXE Boot for network booting, Wake-on-LAN, and MAC Address pass-through. These capabilities allow IT administrators to maintain security policies and remotely control dock access, minimizing downtime and administrative overhead in corporate environments.

    Power and Performance

    With power delivery specifications delivering up to 130W for Dell laptops and 90W for others, the dock efficiently charges connected devices while simultaneously transmitting data and video signals. This maintains device uptime and supports extended work periods without external chargers, contributing to workflow continuity and device longevity.

    Mounting and Physical Design

    The dock supports VESA mounting standards, facilitating flexible installation options such as rear monitor mounting or under-desk fitting. Its compact dimensions and moderate weight make it suitable for various office layouts while conserving desktop space, essential for modern workspace efficiency.

    The Dell WD19TBS Thunderbolt Dock 210-AZBI is an optimal solution for businesses seeking to enhance laptop connectivity, support multi-monitor setups, and implement efficient IT management features in the workplace. Contact us to learn more or secure this solution for your business today.
