Dell

Dell WD22TB4 Thunderbolt 4 Dock with Modular Design DFV65

Dell WD22TB4 Thunderbolt 4 Dock with Modular Design DFV65

SKU: DFV65

UPC: 0884116420064

Condition: New

Availability: Usually Ships Same Business Day

Shipping: Calculated at Checkout

Warranty: 1 Year Manufacturer Warranty

62 in stock

$389.99 USD
$484.99 USD $389.99 USD
Sale Sold out
Shipping calculated at checkout.

Key Features

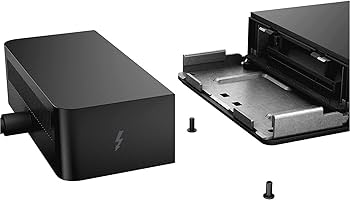

  • Modular design allows swappable connectivity and power modules for flexible and future-proof upgrades.
  • Supports up to four external 4K displays simultaneously for enhanced multi-monitor productivity.
  • Provides fast charging with ExpressCharge, replenishing up to 80% battery in one hour on Dell systems.
  • Thunderbolt 4 interface delivers data transfer speeds up to 40 Gb/s for high-performance peripherals.
  • Comprehensive port selection including USB-C, USB-A, DisplayPort, HDMI 2.0, and Gigabit Ethernet.
  • Integrated security and manageability features such as MAC Address pass-through, PXE Boot, and remote port disablement.
  • Firmware updates can be deployed without requiring system reboots, minimizing downtime.
  • Compatible with a broad range of operating systems including Windows 10/11, Ubuntu 20.04+, and Chrome OS M107+.
  • Supports Wake-on-LAN and Wireless vPro enhancing remote management capabilities.
  • Kernel DMA protection safeguards against direct memory access attacks, enhancing system security.
  • 180 W AC adapter supplies power delivery up to 130 W for Dell devices and up to 90 W for non-Dell devices.
  • Compact and lightweight design (205 mm x 90 mm x 29 mm; 650 g) suitable for desk environments.

    • Key Specifications

  • Host Interface: Thunderbolt 4

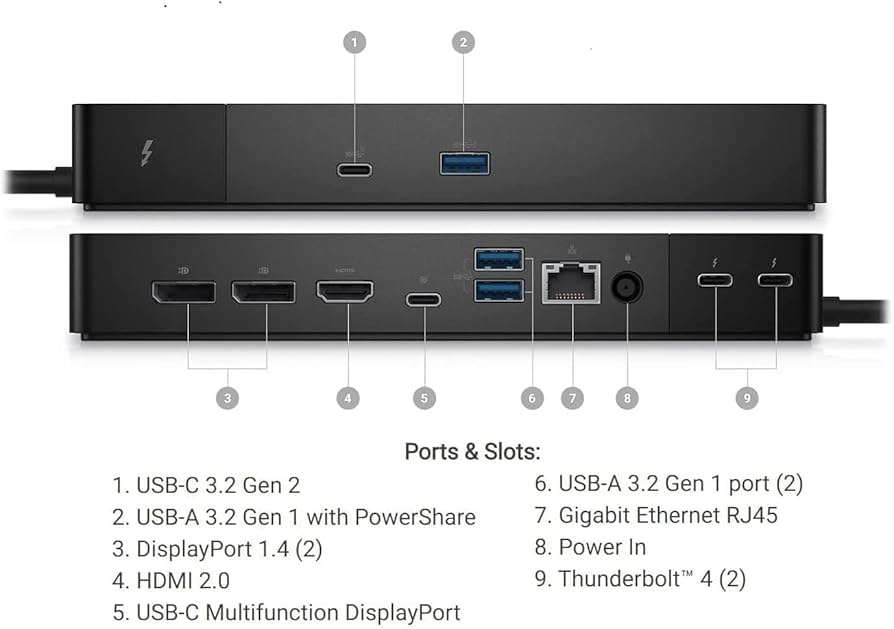

  • Video Outputs: 1 x USB-C (DP 1.4 Alt Mode), 2 x DisplayPort 1.4, 1 x HDMI 2.0, 2 x Thunderbolt 4 ports
  • USB Ports: 2 x USB 3.2 Gen1 Type-A (1 PowerShare), 1 x USB 3.2 Gen2 Type-C, 2 x Thunderbolt 4 Type-C
  • Ethernet: Gigabit Ethernet with Wake On LAN and MAC Address Pass-Through
  • Power Delivery: Up to 130 W (Dell devices), up to 90 W (non-Dell devices) with 180 W adapter
  • Firmware Updates: Completed in 5-7 minutes without requiring reboot
  • Dimensions: 205 mm x 90 mm x 29 mm
  • Weight: Approximately 650 grams
  • Cable Length: 0.8 meters DC-in cable included
  • Operating System Compatibility: Windows 10/11, Ubuntu 20.04+, Chrome OS M107+

    • Product Overview

    The Dell WD22TB4 Thunderbolt 4 Dock is engineered to expand connectivity options tailored for Dell and compatible USB-C Thunderbolt systems. Featuring a modular architecture, the dock facilitates easy upgrade and maintenance by allowing users to swap connectivity and power modules in the field. This capability helps future-proof and reduces total cost of ownership over time.

    Connectivity and Display

    This dock supports multiple video output formats, including USB-C with DisplayPort Alt Mode, dual DisplayPort 1.4, HDMI 2.0, and additional Thunderbolt 4 ports. Designed to accommodate up to four external 4K displays simultaneously, it enhances users’ workspace multi-monitor setups to boost operational productivity and visualization capabilities.

    Power and Charging

    Equipped with Power Delivery up to 130 W for Dell devices and up to 90 W for non-Dell devices, it enables rapid device charging via the ExpressCharge feature. Users can expect to reach an 80% charge in approximately one hour on supported Dell systems, streamlining workflows by minimizing downtime related to battery charging.

    Data Transfer and Performance

    Utilizing Thunderbolt 4 technology, the dock supports data transfer rates up to 40 Gb/s. This ensures high-speed connectivity for bandwidth-intensive peripherals such as external storage, displays, and networking devices. Multiple USB 3.2 Gen1 and Gen2 ports complement this with flexible peripheral connections.

    Security and Manageability

    The WD22TB4 includes advanced security features including MAC Address pass-through, PXE Boot support, Kernel DMA protection, and remote port-disablement functionality. These capabilities enable IT departments to securely manage devices and maintain system integrity in enterprise environments. Firmware updates are optimized to complete in five to seven minutes without requiring system restarts, reducing operational disruptions.

    Compatibility and Design

    Designed for compatibility across Dell and other USB-C Thunderbolt-enabled devices, the dock supports leading operating systems such as Windows 10 and 11, Ubuntu 20.04 and later, and Chrome OS M107 or later. Its compact form factor (205 mm by 90 mm by 29 mm) and moderate weight (650 g) make it suitable for professional desk setups without imposing significant space constraints.

    The Dell WD22TB4 Thunderbolt 4 Dock integrates modular versatility, extensive connectivity, and robust security management into a single device. These attributes make it a practical solution for businesses seeking to streamline workspace setups and improve device charging and data transfer efficiencies. Contact us to learn more or secure this solution for your business today.
