Dell Pro Dock WD25 Triple Display 130W Power Delivery DELL-WD25

Key Features

Key Specifications

Performance and Connectivity

The Dell Pro Dock WD25 offers robust connectivity options tailored for professional environments. It supports up to four external monitors with high resolutions including 4K, 5K, and 6K, leveraging multiple video outputs such as DisplayPort 1.4 and HDMI 2.1 for crisp, multi-display setups. This versatility ensures optimal workspace organization and maximizes productivity by supporting complex workstation configurations.

Power and Charging

Equipped with a 130W power adapter, the docking station provides up to 100W power delivery for Dell systems and 96W for compatible non-Dell devices. This capability facilitates efficient charging of laptops and connected peripherals, minimizing downtime and removing the need for multiple chargers, which is essential for dynamic business environments demanding reliability and continuous device readiness.

Data Transfer and Network Management

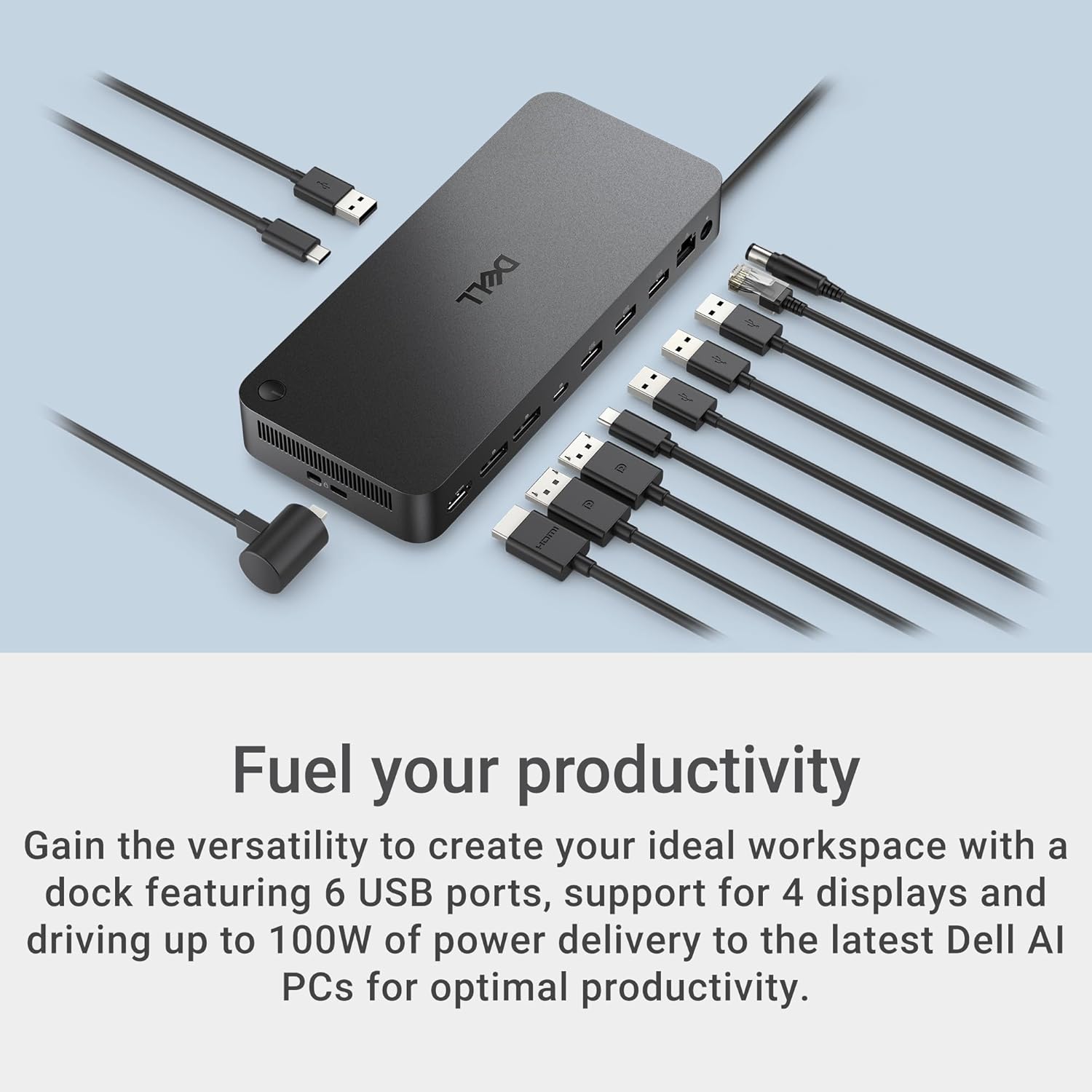

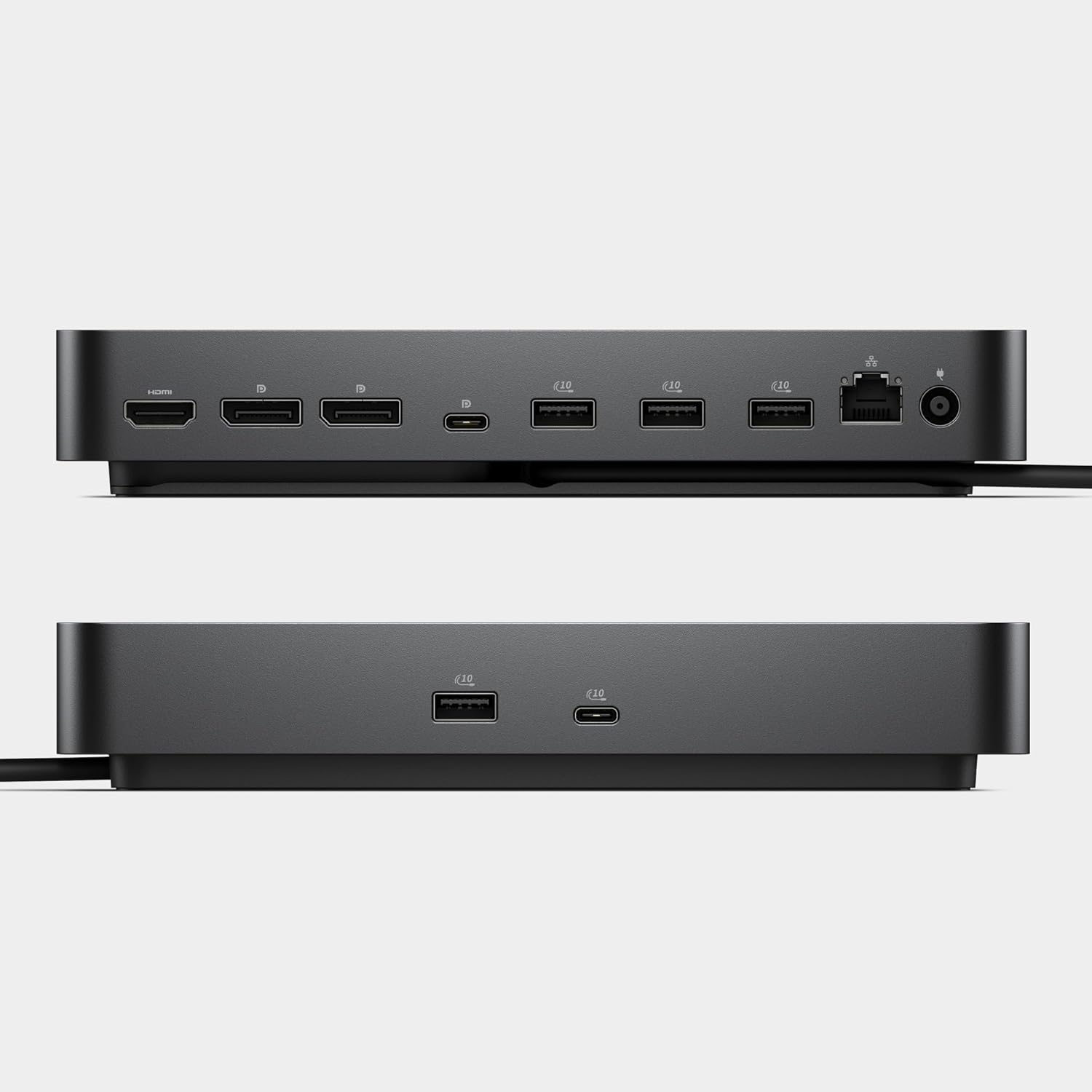

The WD25 features high-speed USB 3.2 Gen 2 ports, including four USB-A and two USB-C interfaces, supporting data transfer rates up to 10 Gbps. Its RJ45 Ethernet port supports 2.5GbE speeds with Wake-on-LAN and MAC address pass-through functionalities, enabling secure and efficient network management ideal for enterprise networking environments requiring high throughput and remote accessibility.

Security and Management Features

This docking station incorporates advanced security and management functionalities such as PXE Boot, Kernel DMA protection, and MAC Address Pass-Through, enhancing data security and administrative control. The inclusion of a Kensington Security Slot adds physical security, complementing its role in professional and corporate settings where equipment protection and IT management are critical.

Compatibility and Integration

Compatible with devices supporting USB Type-C, Thunderbolt, or DisplayPort Alt Mode, the WD25 seamlessly integrates with a broad range of operating systems including Windows 10/11, Ubuntu 24.04 64-bit, Red Hat Enterprise Linux 9.6+, and ChromeOS. This cross-platform compatibility expands its application scope across different enterprise environments, providing seamless integration without compromising functionality.

Design and Usability

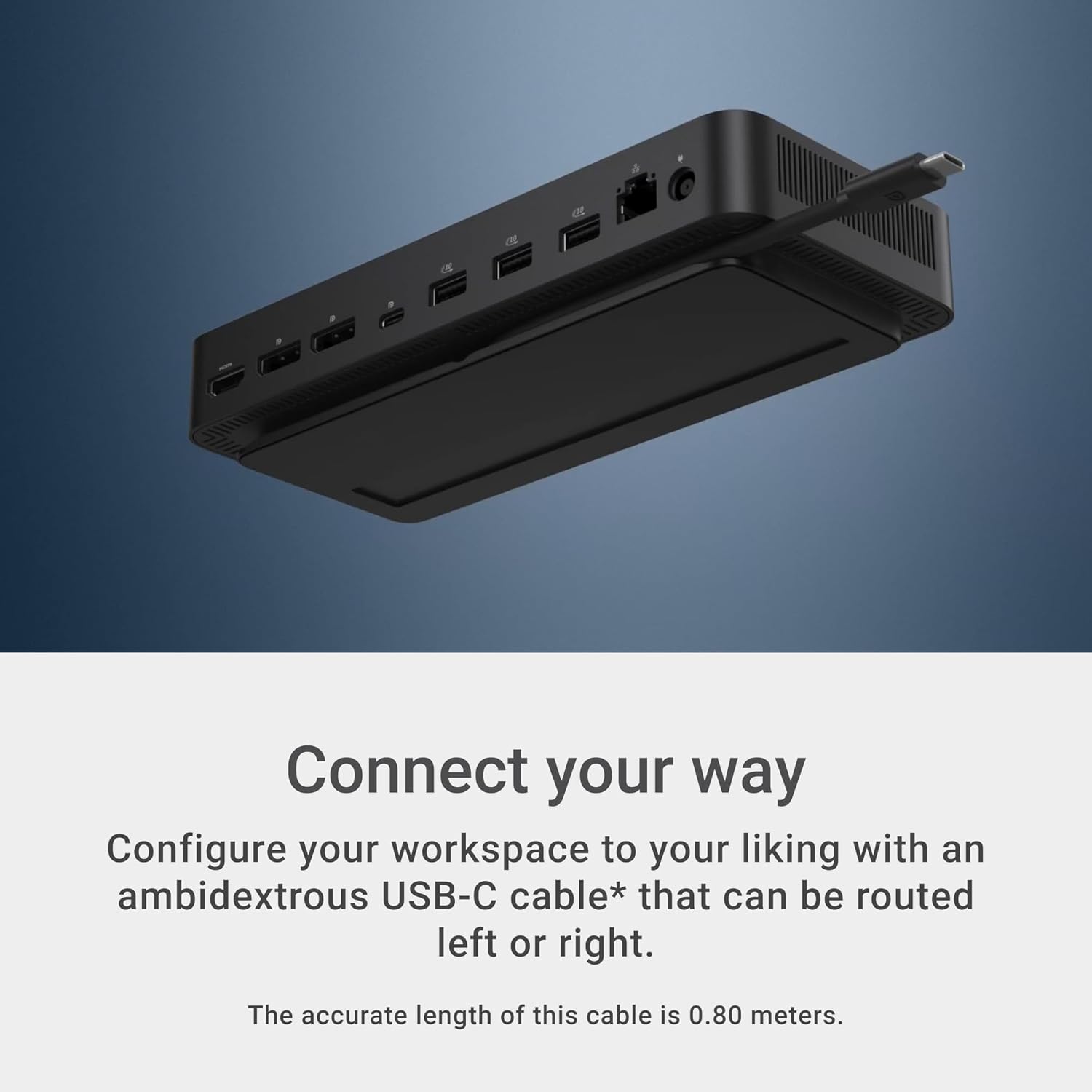

Measuring 8.07 inches in height, 3.54 inches in width, and 1.39 inches in depth while weighing 1.21 lbs, the dock balances compactness with full functionality. The integrated 0.9-meter USB-C cable and LED status indicators simplify setup, monitoring, and maintenance. These features contribute to a clean, organized desk environment and minimize installation complexity for IT staff and users alike.

The Dell Pro Dock WD25 is a comprehensive docking solution delivering expansive multi-display support, versatile port connectivity, reliable power delivery, and advanced security features. It is well-suited for business and operations managers seeking to enhance their workstations with a robust, professional-grade docking station. Contact us to learn more or secure this solution for your business today.
