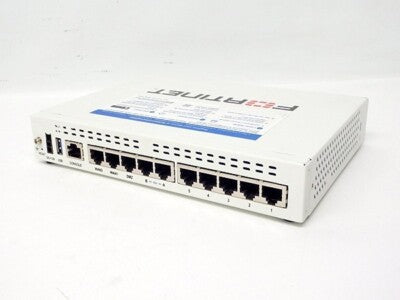

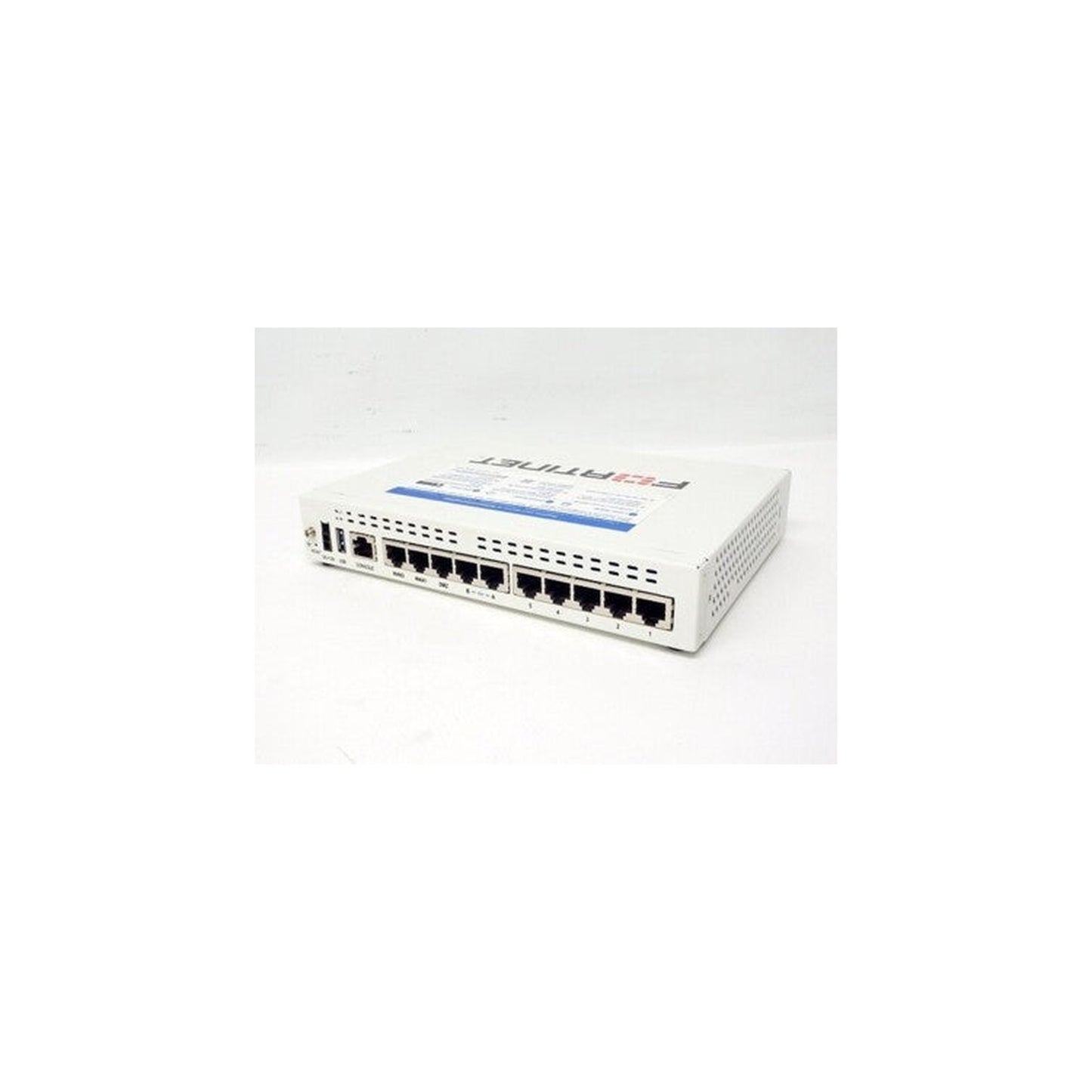

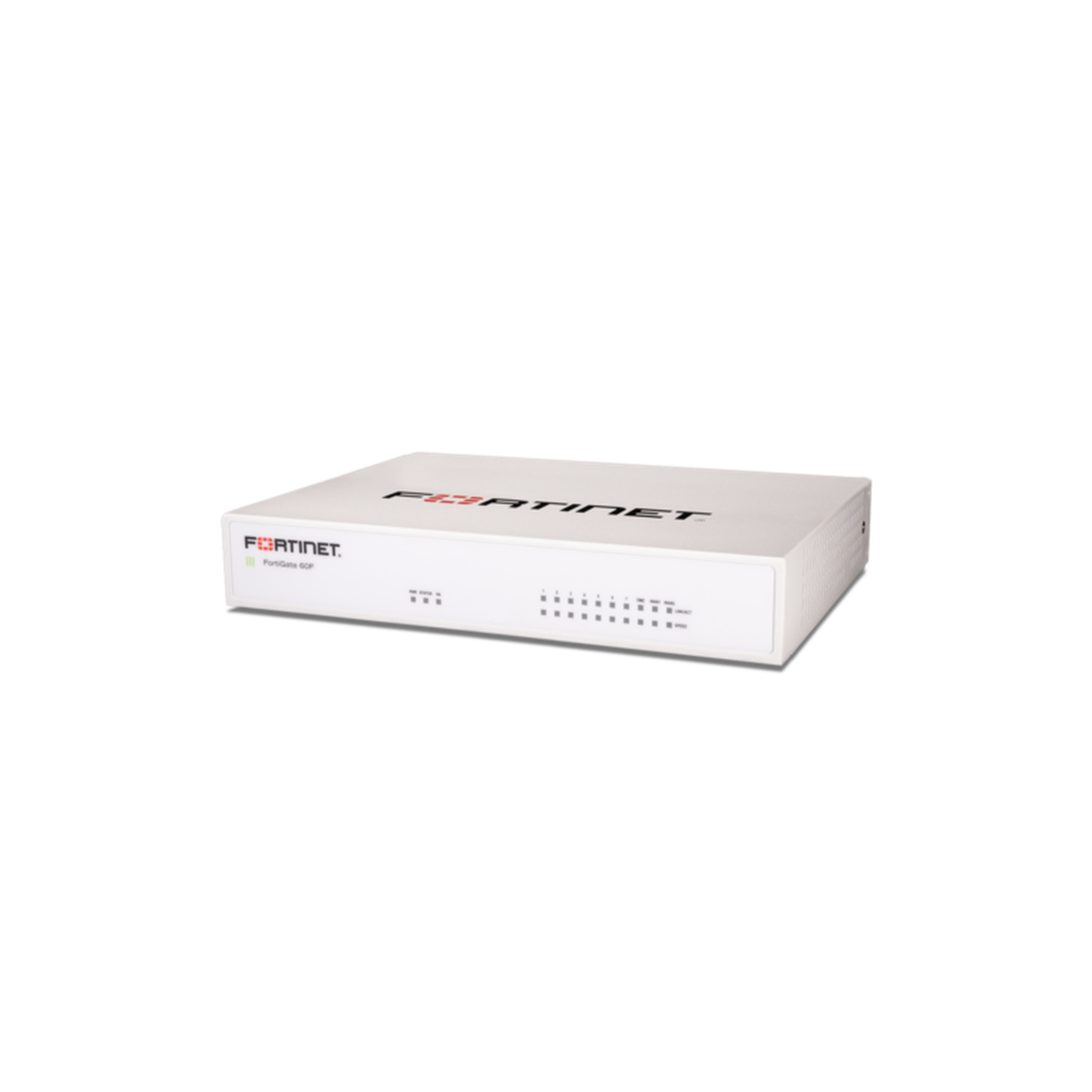

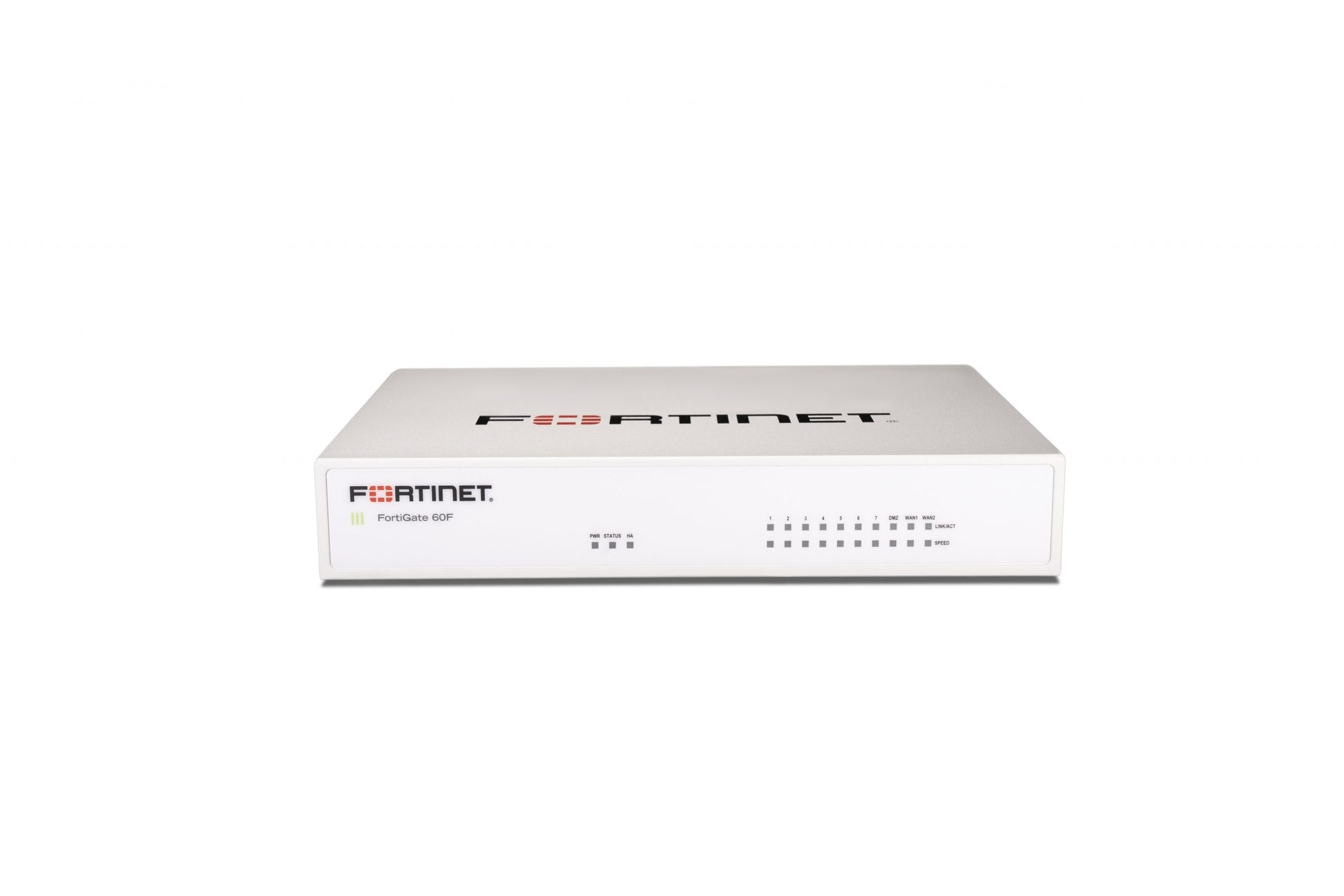

Fortinet FortiGate 60F Secure SD-WAN Firewall FG-60F

Key Features

• High Firewall Performance: Achieves up to 10 Gbps throughput, ideal for secure small business environments.
• Integrated Secure SD-WAN: Provides hardware-accelerated routing and application optimization for better bandwidth usage.
• Robust Threat Protection: Offers advanced threat protection services like IPS and antivirus, enhancing network security.
• High-Performance VPN: Supports IPSec VPN with throughput of approximately 6.5 Gbps, ensuring secure remote access.
• Fanless Operation: Compact and silent design is perfect for noise-sensitive office environments.
• Flexible Connectivity: Multiple GE RJ-45 ports enable various deployment scenarios including firewall and gateway.
• Unified Management: Easily configurable via FortiOS GUI, CLI, FortiManager, or FortiCloud, allowing scalable control.
• Low Energy Consumption: Designed for efficiency, reducing both operational costs and environmental impact.

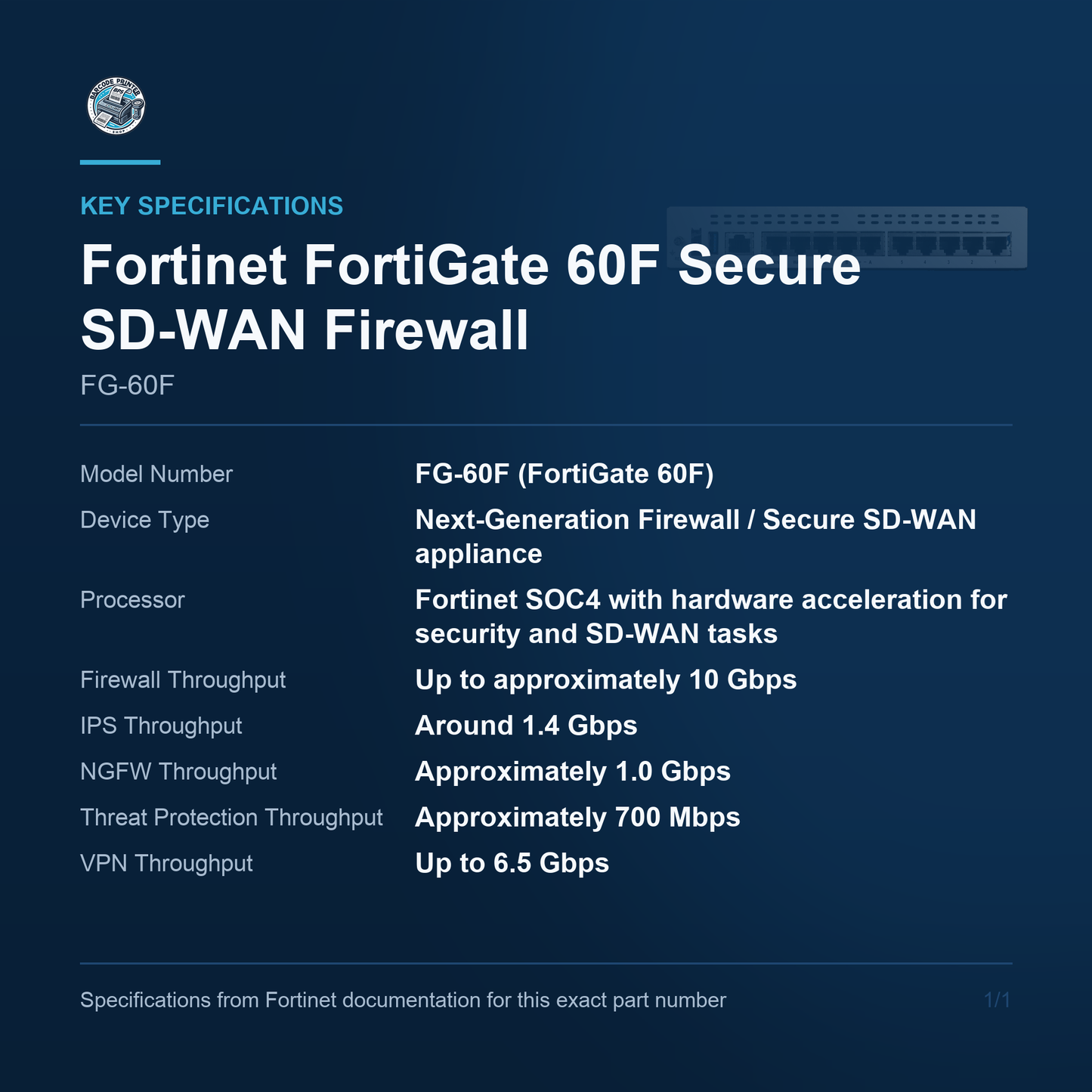

Key Specifications

• Model Number: FG-60F (FortiGate 60F)
• Device Type: Next-Generation Firewall / Secure SD-WAN appliance
• Processor: Fortinet SOC4 with hardware acceleration for security and SD-WAN tasks
• Firewall Throughput: Up to approximately 10 Gbps
• IPS Throughput: Around 1.4 Gbps
• NGFW Throughput: Approximately 1.0 Gbps
• Threat Protection Throughput: Approximately 700 Mbps
• VPN Throughput: Up to 6.5 Gbps
• Concurrent Sessions: Supports hundreds of thousands of simultaneous sessions

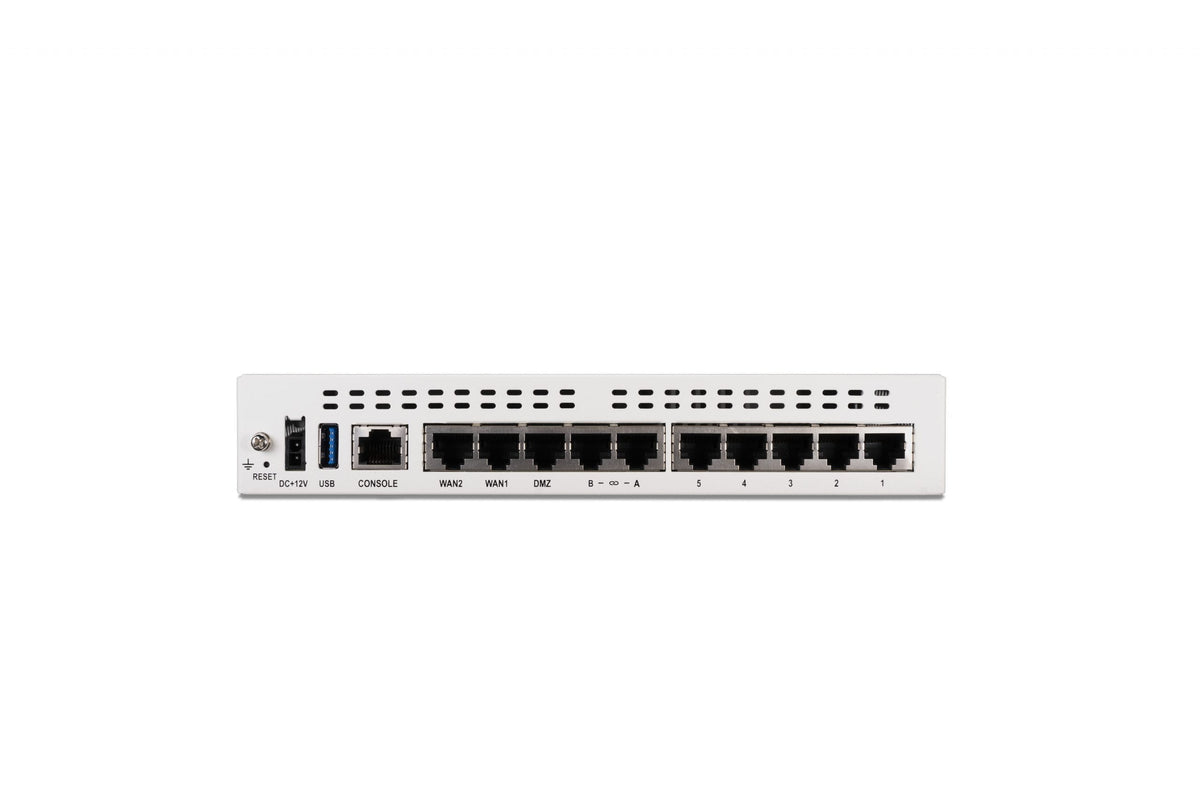

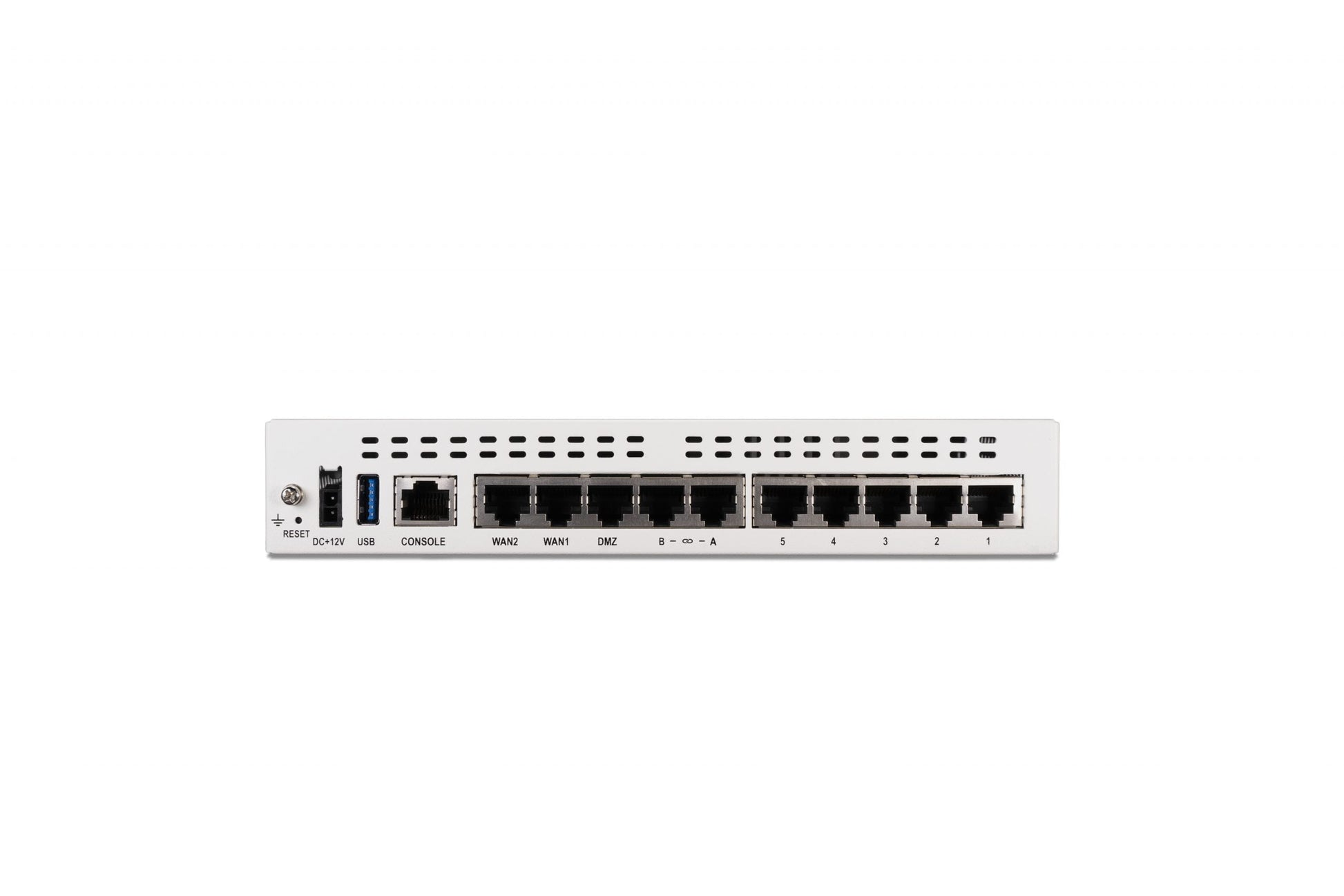

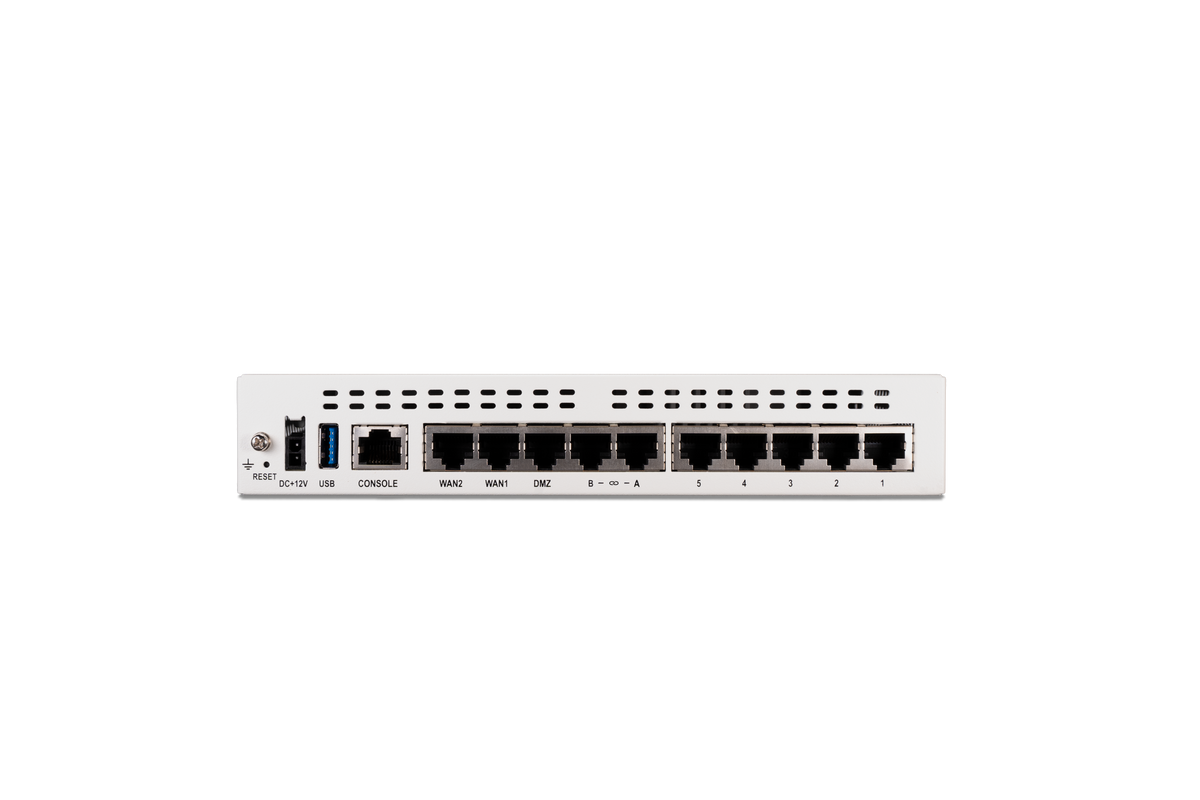

• Network Interfaces: Multiple GE RJ-45 for WAN, LAN, DMZ; console and USB ports
• Dimensions: 6.3 inches depth, 1.5 inches height
• Operating System: FortiOS, enabling full threat management and SD-WAN capabilities

Advanced Security Integration

The Fortinet FortiGate 60F (FG-60F) integrates advanced firewall and SD-WAN functionalities in one compact device, making it suitable for small to mid-sized enterprises. With an extensive support for features like intrusion prevention, the device effectively reduces potential cyber threats faced by these businesses. By utilizing the FortiOS, users can benefit from consolidated security management, efficiently handling tasks through a unified interface that promotes ease of use and predictable performance.

Performance Metrics

The performance capabilities of the FortiGate 60F are impressive, supporting a maximum firewall throughput of up to 10 Gbps. This level of throughput effectively meets the needs of organizations migrating to cloud services or integrating multiple remote locations. Its IPSec VPN capabilities, reaching 6.5 Gbps, further bolster its performance for secure remote connections, making it well-suited for firms with a mobile workforce.

Design and Deployment Flexibility

The fanless desktop design of the FG-60F allows for seamless integration into various environments without producing operational noise. This compact form factor is perfect for installation in limited spaces such as small offices, conference rooms, or IT closets. Coupled with multiple Gigabit Ethernet ports, the FG-60F facilitates diverse deployment scenarios, such as setting it up as a gateway or as a secure access layer controller.

Comprehensive Threat Protection

When combined with FortiGuard services, the FG-60F offers extensive threat protection capabilities. From antivirus and web filtering to application control, it caters to advanced security needs in an accessible platform. This enables organizations to maintain robust network defenses without complexity, ensuring that threat detection and response are efficiently managed.

Cost-Effective and Efficient

The FortiGate 60F is not only designed for performance but also for efficiency, ensuring low power consumption, which translates to reduced operational costs. Its energy-efficient architecture makes it suitable for small branch locations and distributed enterprises looking to balance performance with practicality.

In Summary

The Fortinet FortiGate 60F is a powerful and compact next-generation firewall solution that provides essential security services for small to medium-sized businesses. It brings together robust threat management, high throughput, and reliable SD-WAN functionalities in one device, making it an excellent investment for operations seeking to enhance their network security. Contact us to learn more or secure this solution for your business today.
