Honeywell Voyager 1202g Cordless Bluetooth 1D Laser Barcode Scanner USB Kit with Base TAA Compliant 1202G-2USB-5-N

Key Features

• In the box: Scanner with battery, the CCB00-010BT-01N charge and communication base, the CBL-500-300-S00 USB Type A straight cable at 3 m, documentation. No power supply.
• Single-line 1D laser engine reading standard 1D and GS1 DataBar symbologies. It cannot read QR, Data Matrix or PDF417, and no configuration setting adds them.
• Cordless Bluetooth v2.1 scanner, Class 2, rated at 10 m (33 ft) line of sight to its base.
• Scans at 100 scan lines per second on a single scan line through a 30 degree horizontal scan angle.
• Reads a 13 mil code from contact out to 311 mm (12.2 in) and a 20 mil Code 39 out to 367 mm (14.4 in).
• Lithium-ion battery of 1800 mAh minimum, rated at up to 45,000 scans per charge with a four-hour charge time.
• The CCB00-010BT-01N base in this kit carries the host connection and charges the scanner when it is seated.
• Tolerates 60 degrees of pitch and 60 degrees of skew; decodes down to 10% minimum reflectance difference.
• Scanner rated for 30 drops to concrete from 1.5 m (5 ft), base for 30 drops from 1 m (3.3 ft).
• Three-year factory warranty on the scanner, one year on the battery.
• TAA-compliant build, assembled in Mexico, which is what federal, GSA, state and other public-sector contracts require.

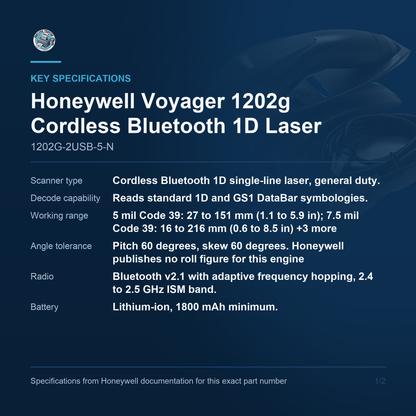

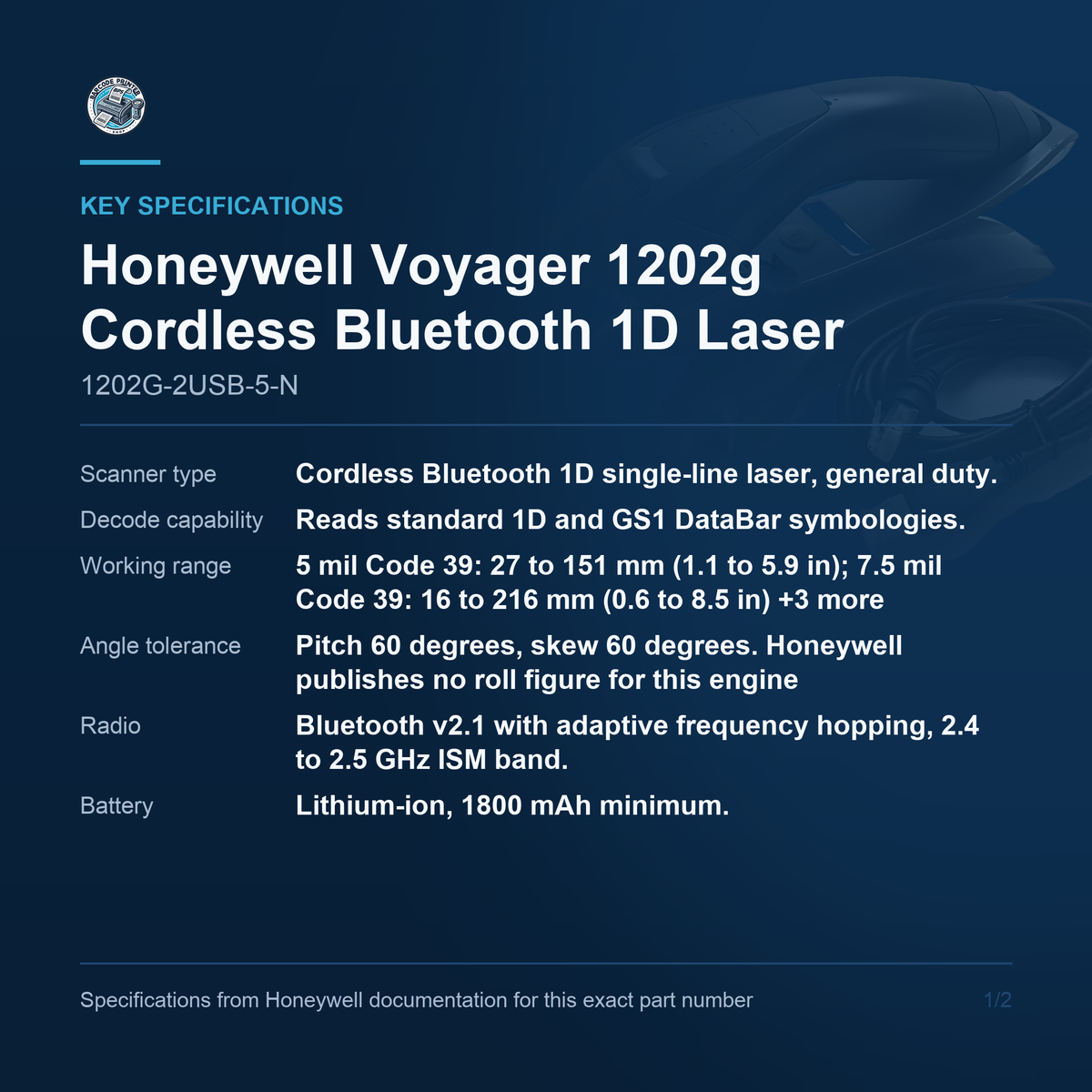

Key Specifications

• In the box: Scanner with battery, the CCB00-010BT-01N charge and communication base, the CBL-500-300-S00 USB Type A straight cable at 3 m, documentation. No power supply.
• Scanner type: Cordless Bluetooth 1D single-line laser, general duty. 100 scan lines per second, 30 degree horizontal scan angle
• Decode capability: Reads standard 1D and GS1 DataBar symbologies. Honeywell publishes no itemised symbology list for this model. Print contrast 10% minimum reflectance difference; light levels 0 to 70,000 lux (6,500 foot-candles)
• Working range: 5 mil Code 39: 27 to 151 mm (1.1 to 5.9 in); 7.5 mil Code 39: 16 to 216 mm (0.6 to 8.5 in); 10.4 mil Code 39: 0 to 277 mm (0 to 10.9 in); 13 mil UPC-A: 0 to 311 mm (0 to 12.2 in); 20 mil Code 39: 0 to 367 mm (0 to 14.4 in)
• Angle tolerance: Pitch 60 degrees, skew 60 degrees. Honeywell publishes no roll figure for this engine
• Radio: Bluetooth v2.1 with adaptive frequency hopping, 2.4 to 2.5 GHz ISM band. Class 2, 10 m (33 ft) line of sight; Honeywell's product page adds up to 30 m (100 ft) with clear line of sight. Data rate up to 3 Mbps
• Battery: Lithium-ion, 1800 mAh minimum. Four-hour expected charge time, up to 45,000 scans per charge. No batch-mode storage capacity is published
• Base and host interfaces: CCB00-010BT-01N charge and communication base: USB, keyboard wedge, RS232, IBM 46xx over RS485. Runs at 2.5 W on USB power (0.5 A at 5 V) or 5 W with the optional PS-05-1000W-X supply (1 A at 5 V)
• Environment: IP42 per the data sheet; Honeywell's product page states IP41. Scanner 30 drops from 1.5 m (5 ft), base 30 drops from 1 m (3.3 ft). Operating 5 to 40 C (41 to 104 F), storage -5 to 35 C, humidity 0% to 95% non-condensing
• Dimensions and weight: Scanner 180 x 66 x 92 mm (7.1 x 2.6 x 3.6 in), 180 g (6.3 oz) with battery. Base 200 x 67 x 97 mm (7.9 x 2.6 x 3.8 in), 185 g (6.5 oz)
• Warranty: Three-year factory warranty. Battery warranty one year
• Compliance: TAA compliant, assembled in Mexico

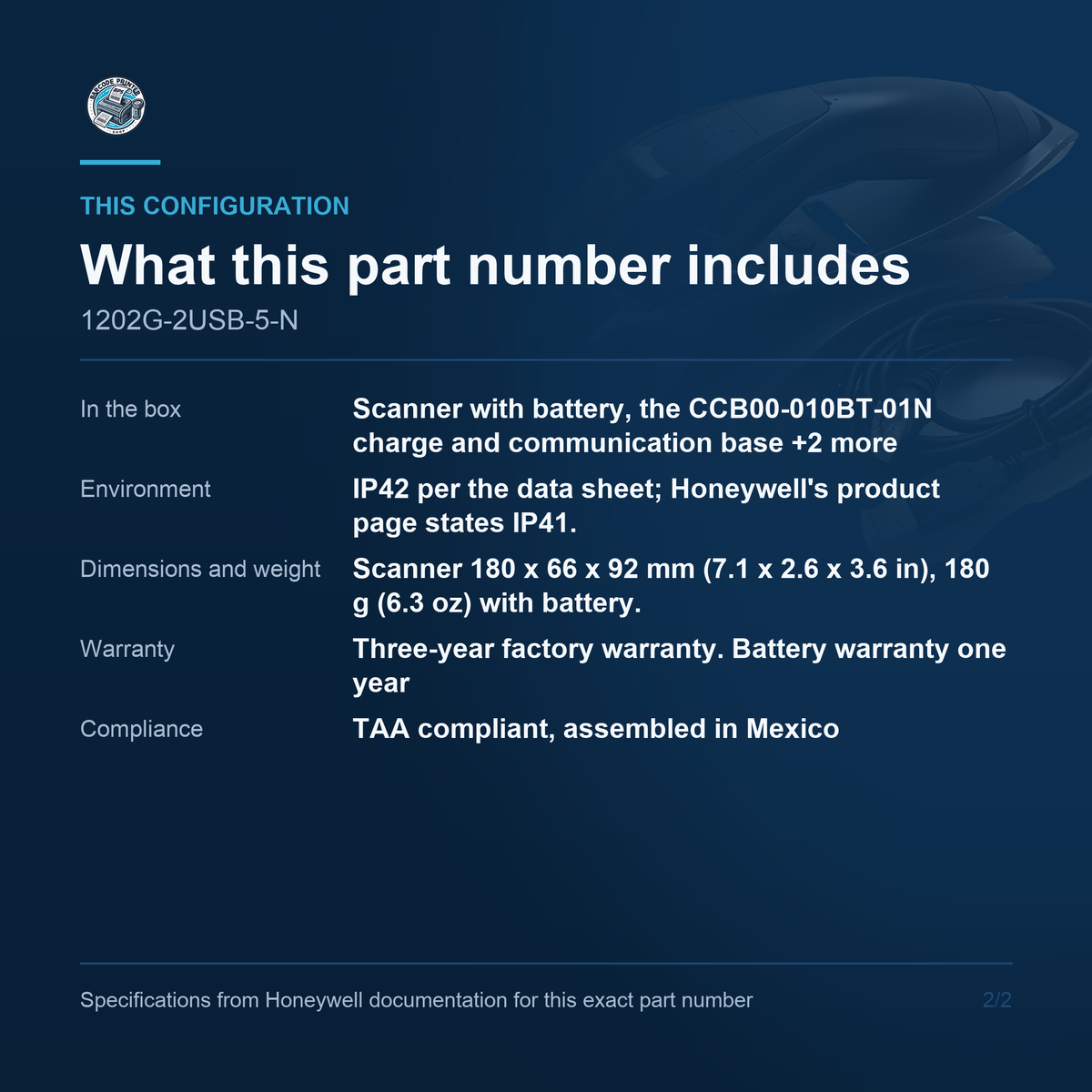

Kit contents

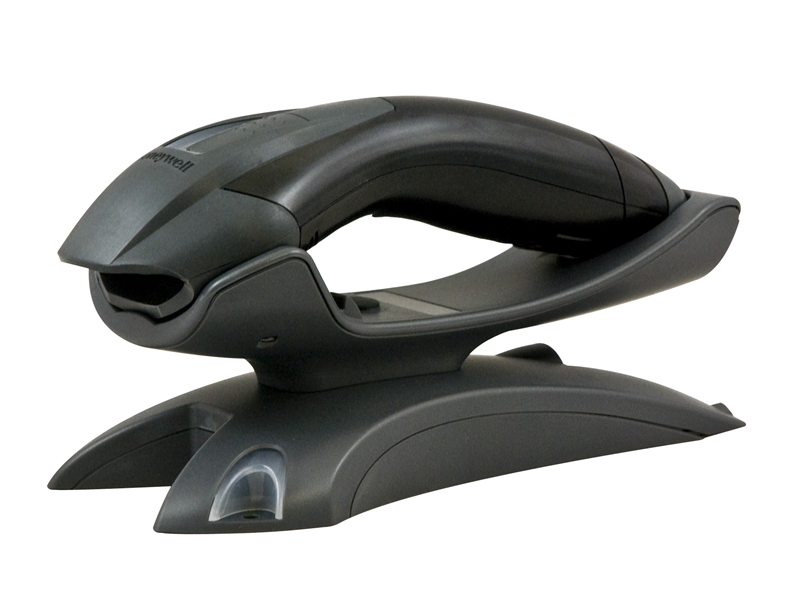

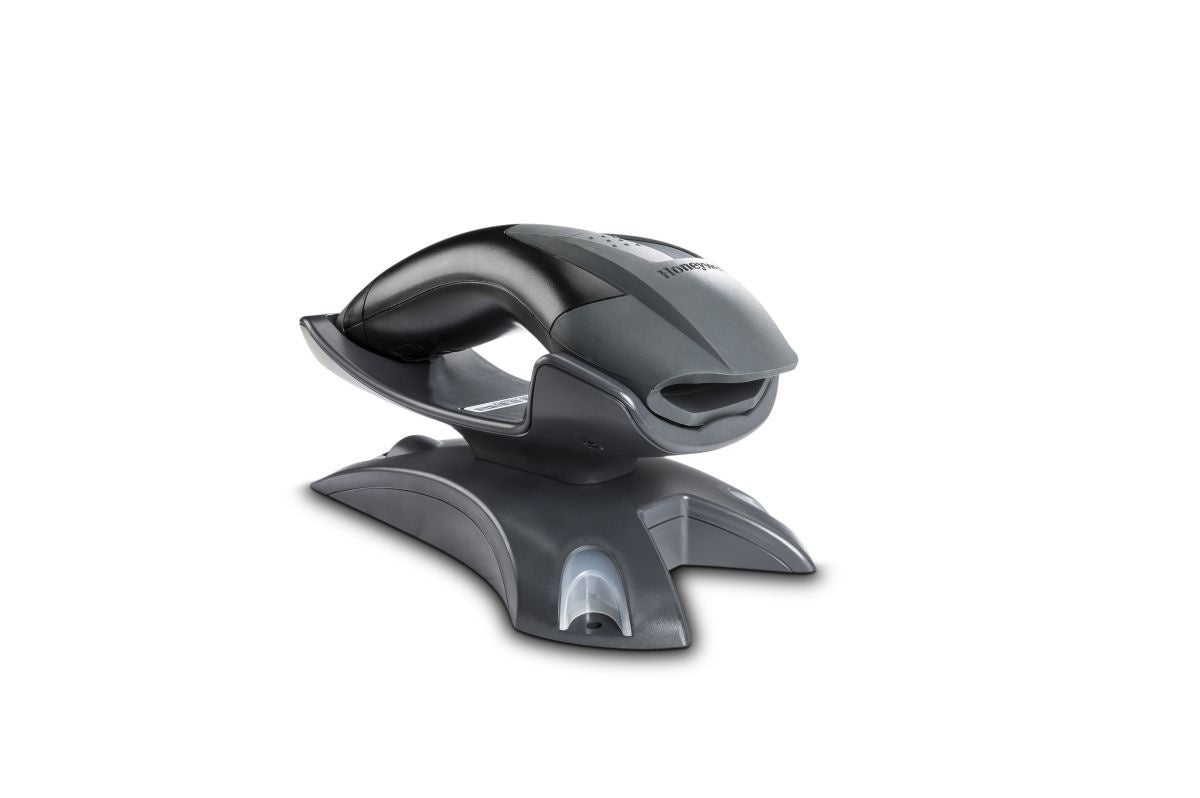

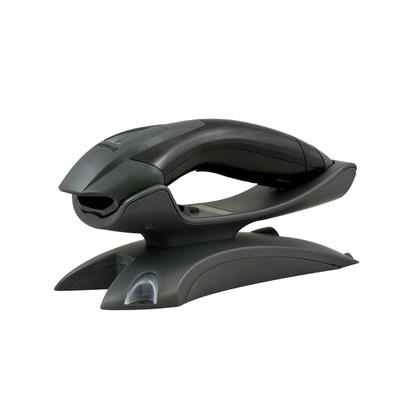

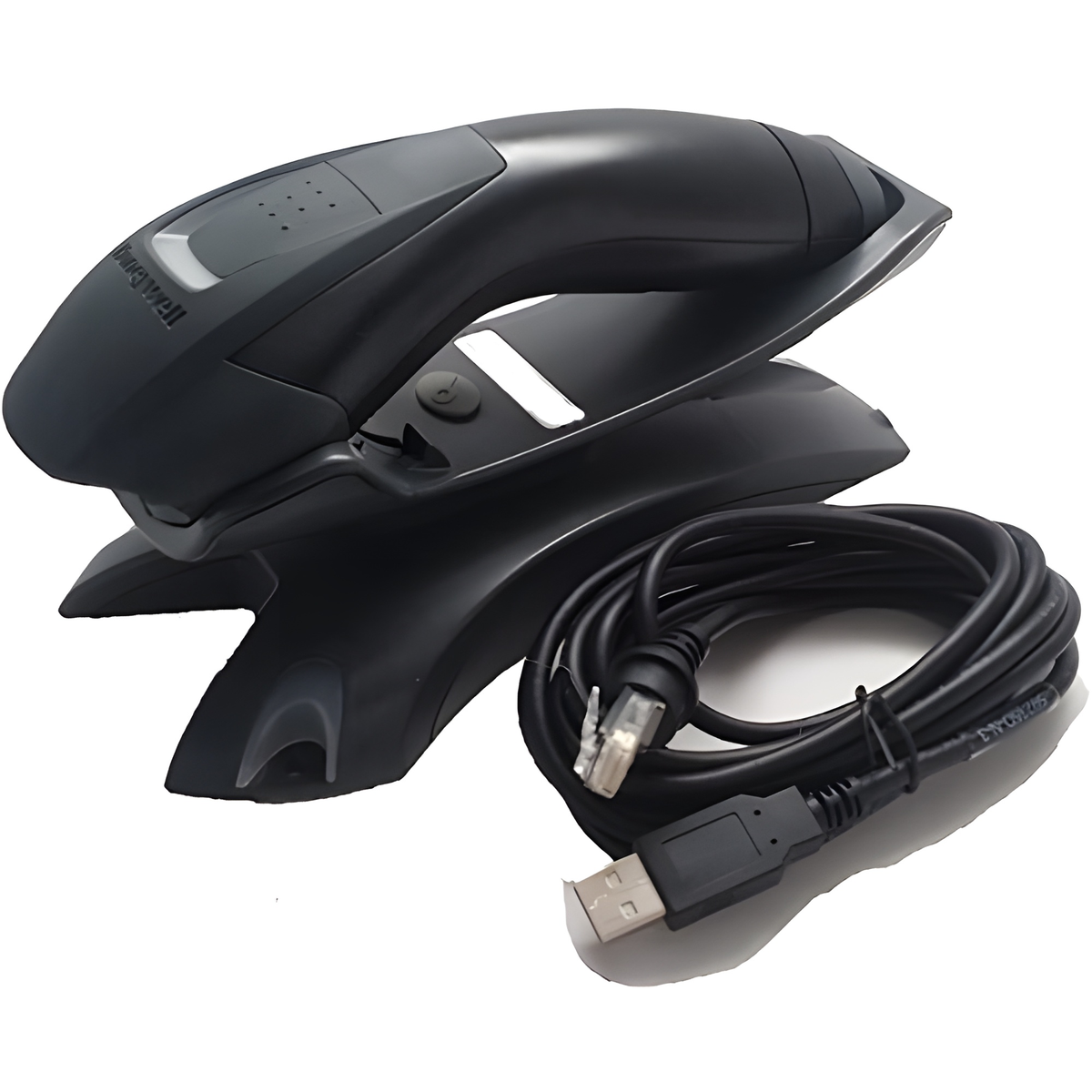

This is the cordless 1202g kit and it holds three things: the black Bluetooth scanner with its battery, the CCB00-010BT-01N charge and communication base, and a CBL-500-300-S00 USB Type A cable 3 m long, straight rather than coiled. The base carries the host connection, so on a cordless scanner it is not an accessory but the other half of the product. What is not in the box is the power supply. Honeywell offers the PS-05-1000W-X separately, and the base will run on USB power alone at 2.5 W, charging more slowly than the 5 W the optional supply provides. Note also that this kit ships a STRAIGHT cable where the corded 1200g and 1250g kits ship a coiled one. The commercial, non-TAA version of this identical kit is 1202G-2USB-5.

Laser engine

The Voyager 1200g reads with a single-line laser, not with an area imager, and that decides whether this scanner suits the work at all. The laser sweeps one line across the code at 100 scan lines per second through a 30 degree horizontal scan angle, so the operator lays the line across the bars and it reads. What it cannot do is decode a two-dimensional symbol. Honeywell states the decode capability as standard 1D and GS1 DataBar symbologies, and no configuration barcode adds QR, Data Matrix or PDF417 to that list. If any part of the workflow touches a mobile coupon, a 2D shipping label or a driving licence, this is the wrong scanner and an area imager is the right one. Honeywell publishes no itemised symbology list for this model, so none is invented here.

Working range

Honeywell publishes working range per symbology rather than as one headline number, and on the 1200g the table runs from contact out to 367 mm. A 20 mil Code 39 reads from 0 to 367 mm (0 to 14.4 in), which is the figure to plan a carton or rack label around. A 13 mil UPC-A reads from 0 to 311 mm (0 to 12.2 in), so a retail counter sits comfortably inside it. Tight codes come in closer: 5 mil Code 39 wants 27 to 151 mm and 7.5 mil wants 16 to 216 mm. Print contrast is 10% minimum reflectance difference, the more forgiving of the two figures in this range, and light tolerance runs from darkness to 70,000 lux. The sibling 1250g reads further at 13 mil but starts further out, so the two are not interchangeable on close work.

Cordless operation

The 1202g is the cordless member of this range and it is a Bluetooth scanner rather than a Wi-Fi or proprietary-radio one. The radio is Bluetooth v2.1 with adaptive frequency hopping in the 2.4 to 2.5 GHz ISM band, Class 2, rated at 10 m (33 ft) line of sight to the base, with a data rate up to 3 Mbps. Honeywell's product page adds a figure of up to 30 m (100 ft) with a clear line of sight; treat that as a ceiling under ideal conditions rather than a working distance, because racking, stock and steel all cost range. The battery is a lithium-ion pack of 1800 mAh minimum, rated at up to 45,000 scans per charge with a four-hour expected charge time. Honeywell publishes no batch-mode storage capacity for this model, so no figure for stored scans is quoted here.

Base and power

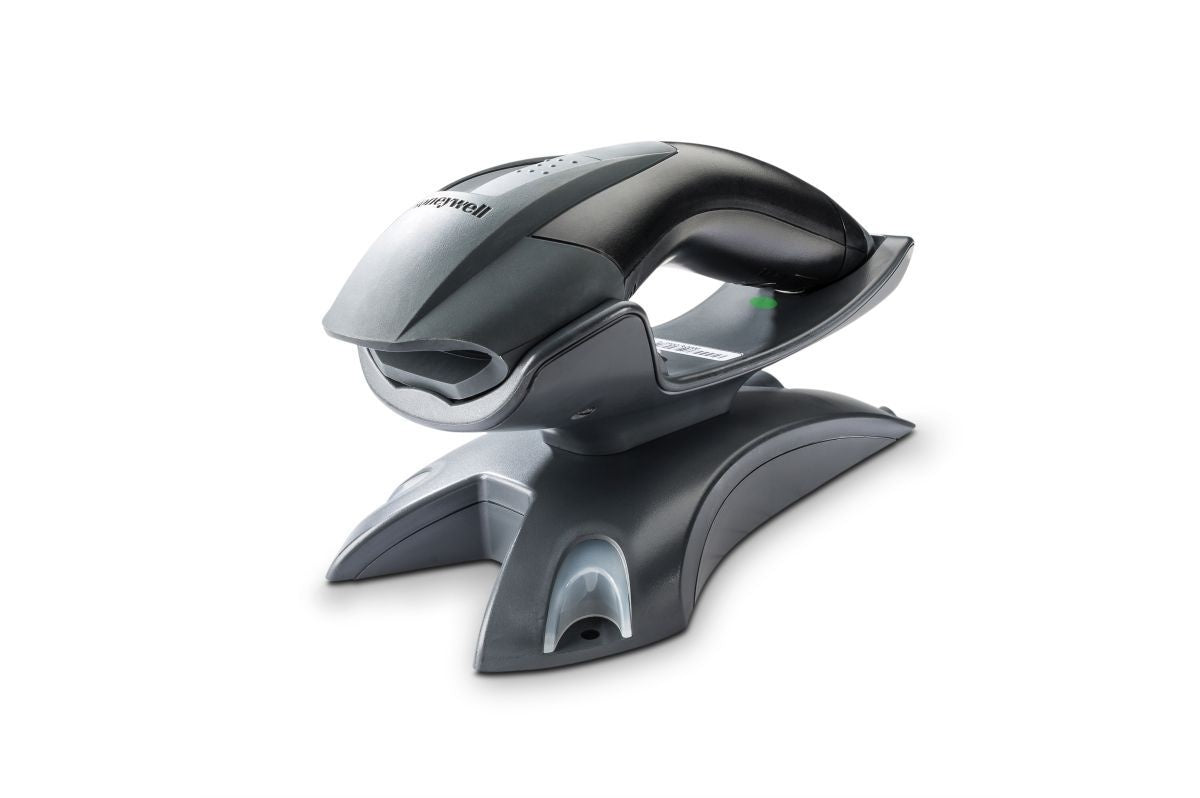

The CCB00-010BT-01N in this kit is a charge and communication base: it carries the host connection and it charges the scanner when the handset is seated. What is not in the kit is the power supply. Honeywell offers the PS-05-1000W-X separately, and its Quick Start Guide refers to the power supply assembly as included only if ordered. The base will run on USB power alone at 2.5 W, which is 0.5 A at 5 V; with the optional supply it takes 5 W at 1 A and charges faster. Settle that before the order goes in. A single scanner on a quiet counter is fine on USB power, while a unit that has to be back in service inside the same shift wants the supply. Host interfaces are delivered by the base: USB, keyboard wedge, RS232, IBM 46xx over RS485.

Build and warranty

Honeywell rates the 1202g scanner for 30 drops to concrete from 1.5 m (5 ft) and the base for 30 drops from 1 m (3.3 ft), which is the lower figure of the two and the one to plan a counter around. No tumble specification is published for either. Sealing needs a caveat: the data sheet prints IP42 and Honeywell's own product page prints IP41, and both were confirmed on repeated reads, so the data sheet value is used here and the conflict is stated rather than hidden. If sealing is written into a contract, have Honeywell confirm it. The battery also narrows the temperature envelope against the corded siblings: operating 5 to 40 C and storage -5 to 35 C, where the corded 1200g runs to 50 C and stores to 60 C. Warranty is three years, with one year on the battery.

TAA compliance

The trailing -N on this part number is the TAA-compliant build, assembled in Mexico, and it is a procurement fact rather than a cosmetic one. Federal agencies, GSA schedule holders, many state and local governments, plus prime contractors flowing Trade Agreements Act clauses down to their suppliers, are required to buy compliant hardware, and a part number without the -N does not satisfy that requirement even though it is the same scanner. Honeywell's own description string for an -N part is character for character identical to the standard build with the words assembled in Mexico, TAA Compliant appended, so the carton contents are unchanged and nothing about the hardware differs. If the buyer is commercial the non-N part is the equivalent; if the buyer is public sector, this is the part number that goes on the contract.

Where it fits

The 1202g suits work where the code cannot come to the counter: a shop floor where stock is scanned on the shelf, a stockroom, a small warehouse, a service counter where the operator turns away from the till to read a carton. Within 10 m of its base it removes the cable without changing the workflow. Against the corded 1250g and 1200g it costs more, carries a shorter warranty at three years rather than five, has a narrower temperature envelope because of the battery, and adds a battery to manage. Against a 2D imager it has the same hard limit as the rest of this range: it reads 1D symbologies only, and nothing configures that away.
