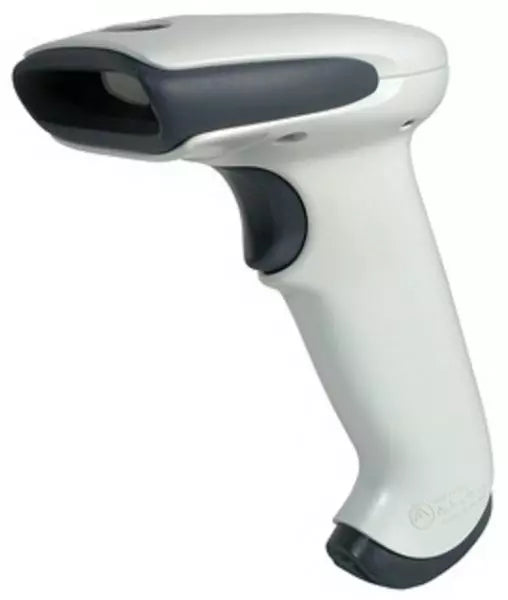

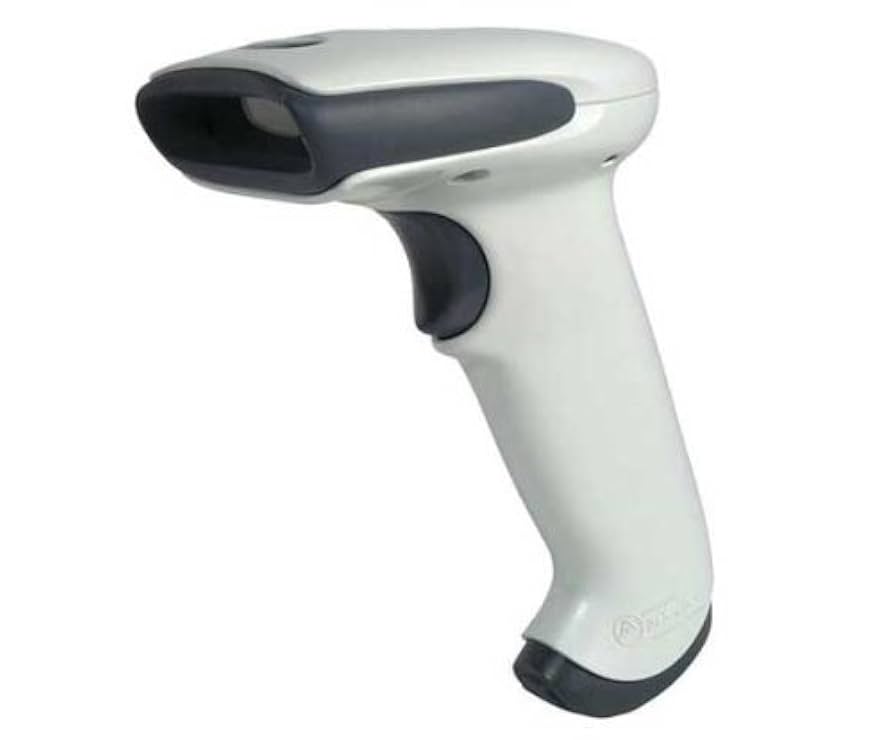

Honeywell Hyperion 1300g Corded 1D Linear Imaging Barcode Scanner Ivory USB Kit with Cable 1300G-1USB

End of life. Honeywell has discontinued the Hyperion 1300g in September 2025, with end of service in December 2028. The replacement is the Honeywell Voyager XP 1470g corded 1D/2D scanner USB kit. Remaining Hyperion 1300g stock is sold for fleet matching, replacement units and validated workflows where requalifying a new model is not practical.

Key Features

• 1D linear imaging scanner built for light-industrial duty rather than counter use.
• Reads up to 270 scans per second with a 3.0 mil minimum element width.
• Reads standard 1D and GS1 DataBar. As a linear imager it does not read 2D codes.
• Works in ambient light up to 70,000 lux, which includes direct sunlight through a dock door.
• Reads a 20 mil code out to 660 mm (26 in), so a pallet placard does not need reaching for.
• Engineered for 50 drops onto concrete from 1.5 m, not a single survival drop.
• Host powered over the cable, so there is no battery to charge and no power supply to site.
• Multi-interface body: RS-232, Keyboard Wedge and USB, with the cable deciding which is active.
• Supports Honeywell Remote MasterMind for configuration and management across a fleet.
• Light at 160 g, so a full shift of handheld scanning does not build up wrist fatigue.
• Ships with a 3 m USB Type A straight cable.
• Backed by a five-year Honeywell factory warranty.

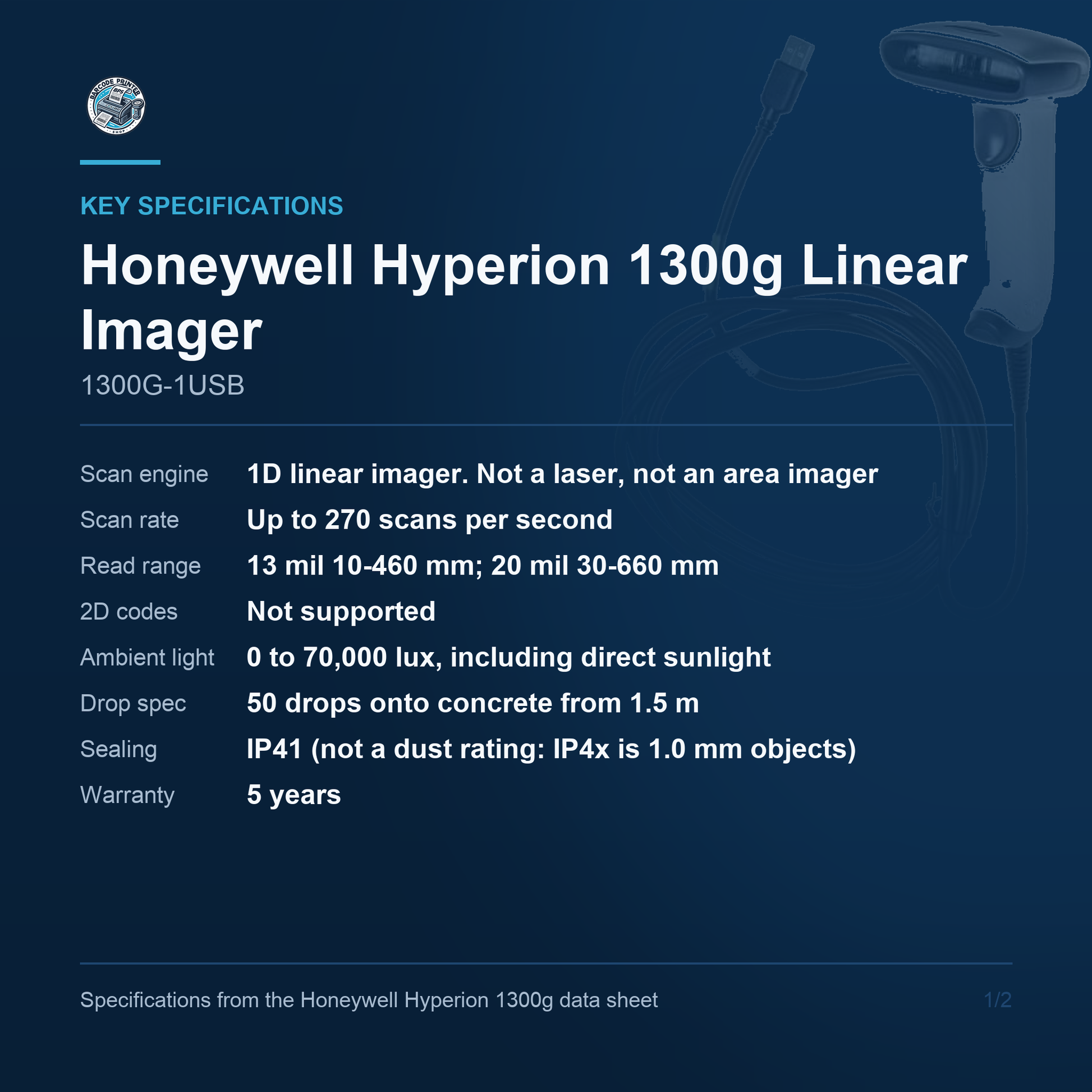

Key Specifications

• Scan Engine: 1D linear imager. Not a laser and not an area imager; it does not read 2D codes
• Scan Rate: Up to 270 scans per second
• Resolution: 3.0 mil minimum element width; 20 percent minimum reflectance difference
• Read Range: 13 mil: 10 to 460 mm; 20 mil: 30 to 660 mm; 5 mil: 50 to 200 mm
• Motion Tolerance: 20 in (51 cm) per second
• Ambient Light: 0 to 70,000 lux, including direct sunlight
• Host Interfaces: RS-232 TTL, Keyboard Wedge and USB; RS-232C and IBM RS-485 via adapter cable
• Power: 5 V DC host powered; 1000 mW operating, 625 mW standby
• Environmental: IP41; 50 drops onto concrete at 1.5 m; 0 to 50 degrees C
• Colour: Ivory
• In the Box: Ivory scanner and a 3 m USB Type A straight cable
• Warranty: Five-year factory warranty

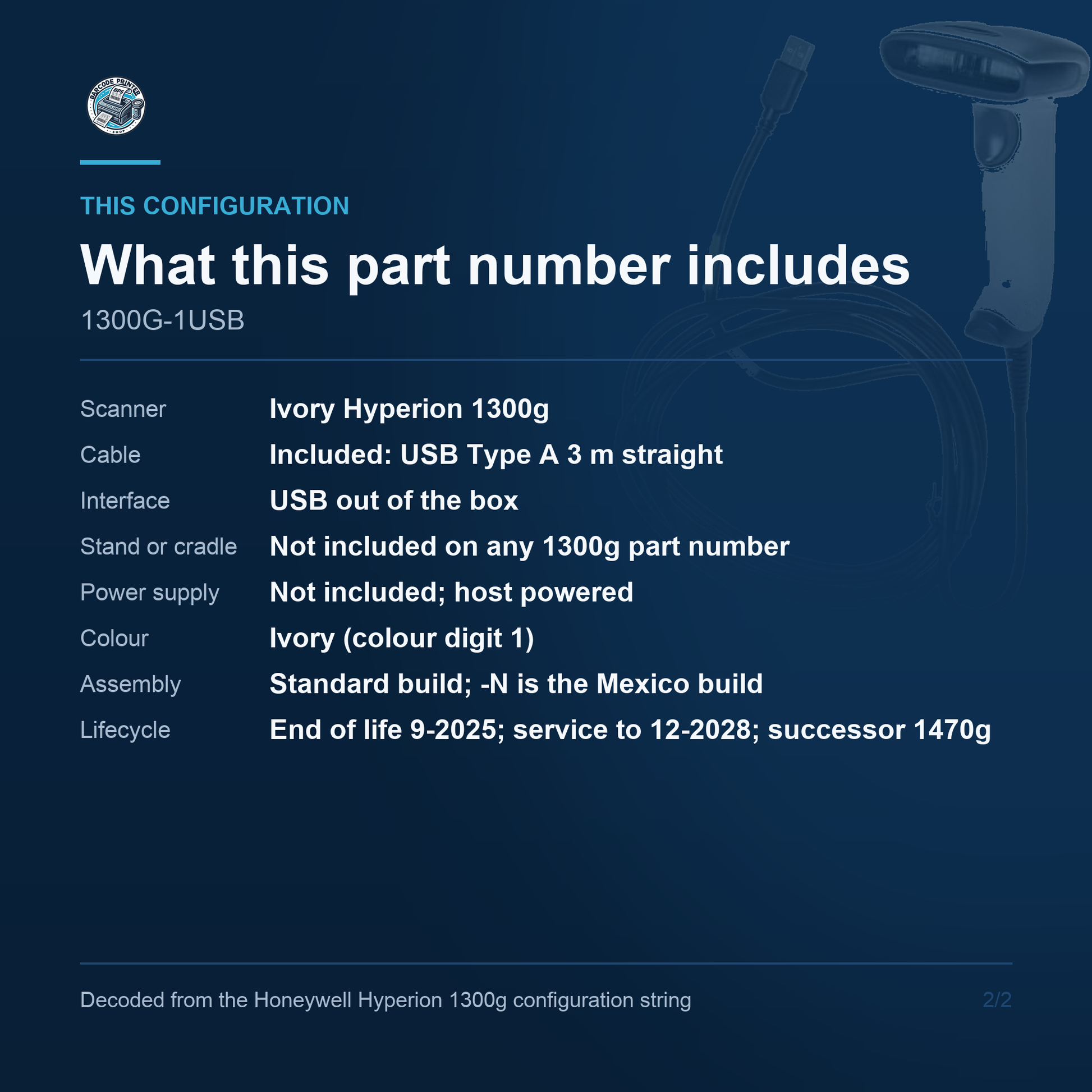

What Is Included

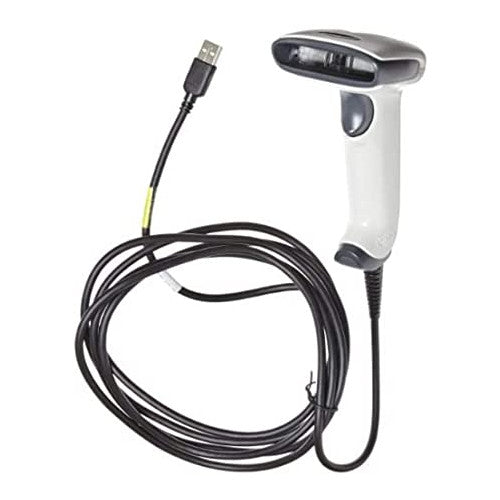

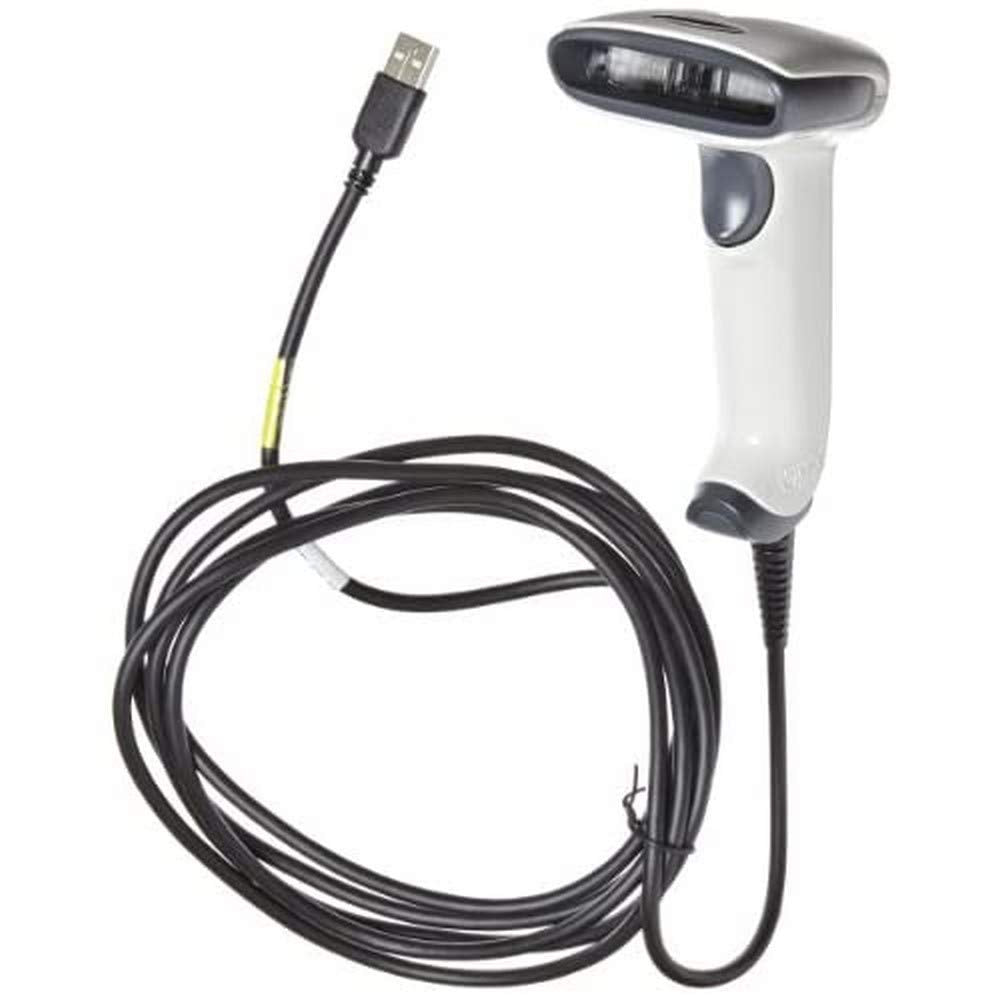

1300G-1USB ships as a USB kit: the ivory Hyperion 1300g scanner and a 3 metre USB Type A straight cable. That is a working USB scanner out of the box, host powered, with nothing else to order and nothing to configure for the common case, because in USB keyboard-wedge mode scanned data arrives at the host as though it had been typed. Three metres is generous enough to reach a host under a bench or on a shelf above it. There is no stand in the box: the 1300g is a handheld and Honeywell does not bundle one with any part number in this family. There is no power supply in either case and none is needed on USB or Keyboard Wedge, because the scanner draws its power from the host.

Linear Imaging

The Hyperion 1300g is a linear imager, which puts it between a laser and an area imager. Like a laser it reads only 1D barcodes and GS1 DataBar, so no QR codes, no Data Matrix and nothing off a phone screen. Unlike a laser it has no moving mirror, which is why Honeywell rates it for 50 drops onto concrete from 1.5 metres rather than a single survival drop, and why it tolerates ambient light up to 70,000 lux including direct sunlight. Those two figures are what make it a light-industrial scanner rather than a counter one.

Read Range

Depth of field runs from 50 to 200 mm on a 5 mil code, 10 to 460 mm on 13 mil, and 30 to 660 mm on 20 mil, so the working envelope is roughly a centimetre out to about two feet depending on how big the code is. In practice that means a warehouse operator can read a large pallet placard without walking up to it, while still reading a small dense label held close. Motion tolerance is 20 inches per second, so codes can be swept rather than lined up. Note the maximum is 660 mm, not the metre some listings claim.

Lifecycle and Replacement

Honeywell has placed the Hyperion 1300g on its discontinued products list, with an end-of-build date of September 2025, a last renewal date of December 2025 and end of service in December 2028. The named replacement is the Voyager XP 1470g. It is worth knowing that the 1470g is an area imager rather than a linear one, so it is an upgrade rather than a like-for-like swap: it reads everything the 1300g reads plus 2D codes and codes on screens. Remaining 1300g stock suits fleet matching and spares where an existing configuration is working and should not be disturbed.

Ordering Notes

Part number 1300G-1USB is the ivory housing with a USB cable included. The equivalent part number ending -N is the Mexico-assembled build, which is the TAA-relevant one for US federal, state and GSA business. On this family the first numeric segment sets housing colour, 1 for ivory and 2 for black, and the presence of USB in the code is what tells you a cable is included. Neither is visible from the model name, so confirm the exact part number against the requirement before ordering.

For warehouse, manufacturing, receiving and light-industrial operations that scan 1D barcodes in tough conditions, the Honeywell Hyperion 1300g 1300G-1USB remains a durable and well-supported choice while stock lasts. Contact us to learn more or secure this solution for your business today.
