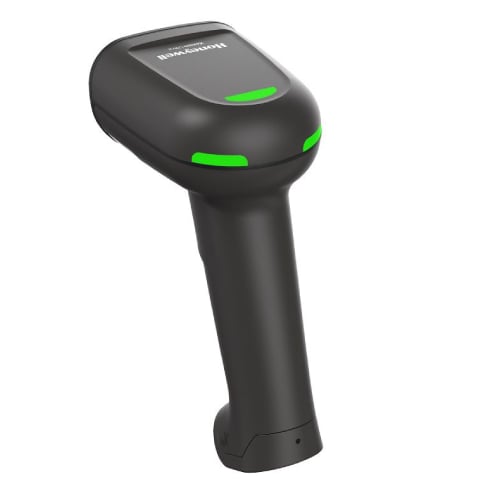

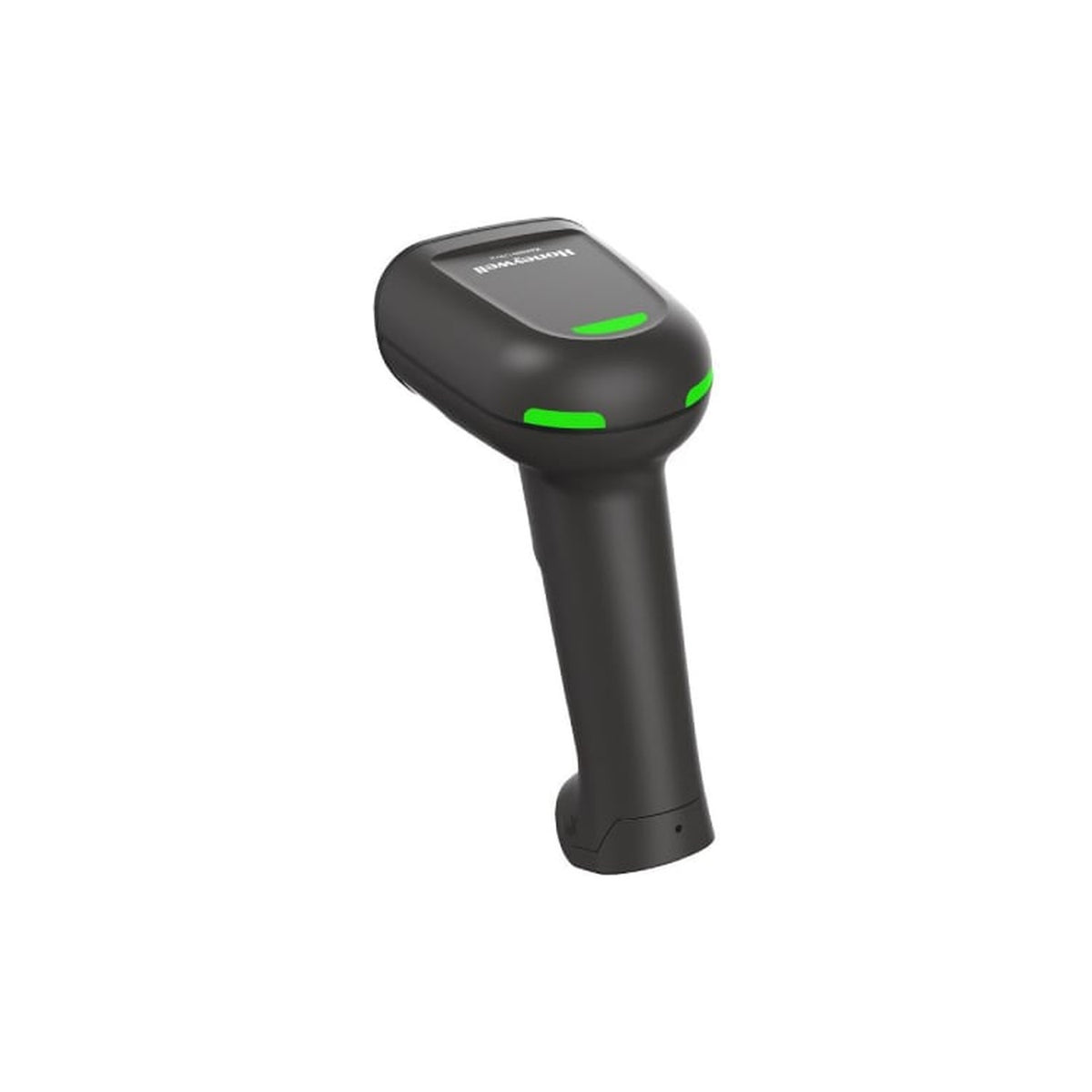

Honeywell Xenon Ultra 1960g Corded 2D Area Imager Barcode Scanner Standard Range Disinfectant Ready Housing Scanner Only TAA Compliant 1960GSR-2-N

Key Features

• In the box: Scanner only, in the Disinfectant Ready Housing. No cable, no stand.
• Corded 2D area imager with standard range optics and a 1280 by 1080 pixel array, the highest resolution sensor in this family.
• Reads a 20 mil Code 39 out to 1115 mm (43.9 in) and a 13 mil UPC to 654 mm (25.75 in), the longest reach in this family.
• Cannot read 5 mil Data Matrix at all. Honeywell prints not readable against that row for standard range optics.
• Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code and OCR symbologies at print contrast as low as 15%.
• Motion tolerance of 4 m per second, so an operator can sweep items past the window rather than present them.
• Tolerates 360 degrees of roll, 65 degrees of pitch and 65 degrees of skew, so the code does not need lining up.
• Corded scanner. There is no battery and no radio on this part number, so nothing charges and nothing pairs.
• Mil Spec rated for a 3.0 m (10 ft) drop, plus 1.8 m multiple drops and 2,000 tumbles at 0.5 m. Sealed to IP52.
• Five-year factory warranty on the corded 1960g, two years longer than the cordless Xenon XP 1952g.
• Supplied in Honeywell's Disinfectant Ready Housing, which the two 1960g USB kits do not carry.
• TAA-compliant build, assembled in Mexico, which is what federal, GSA, state and other public-sector contracts require.

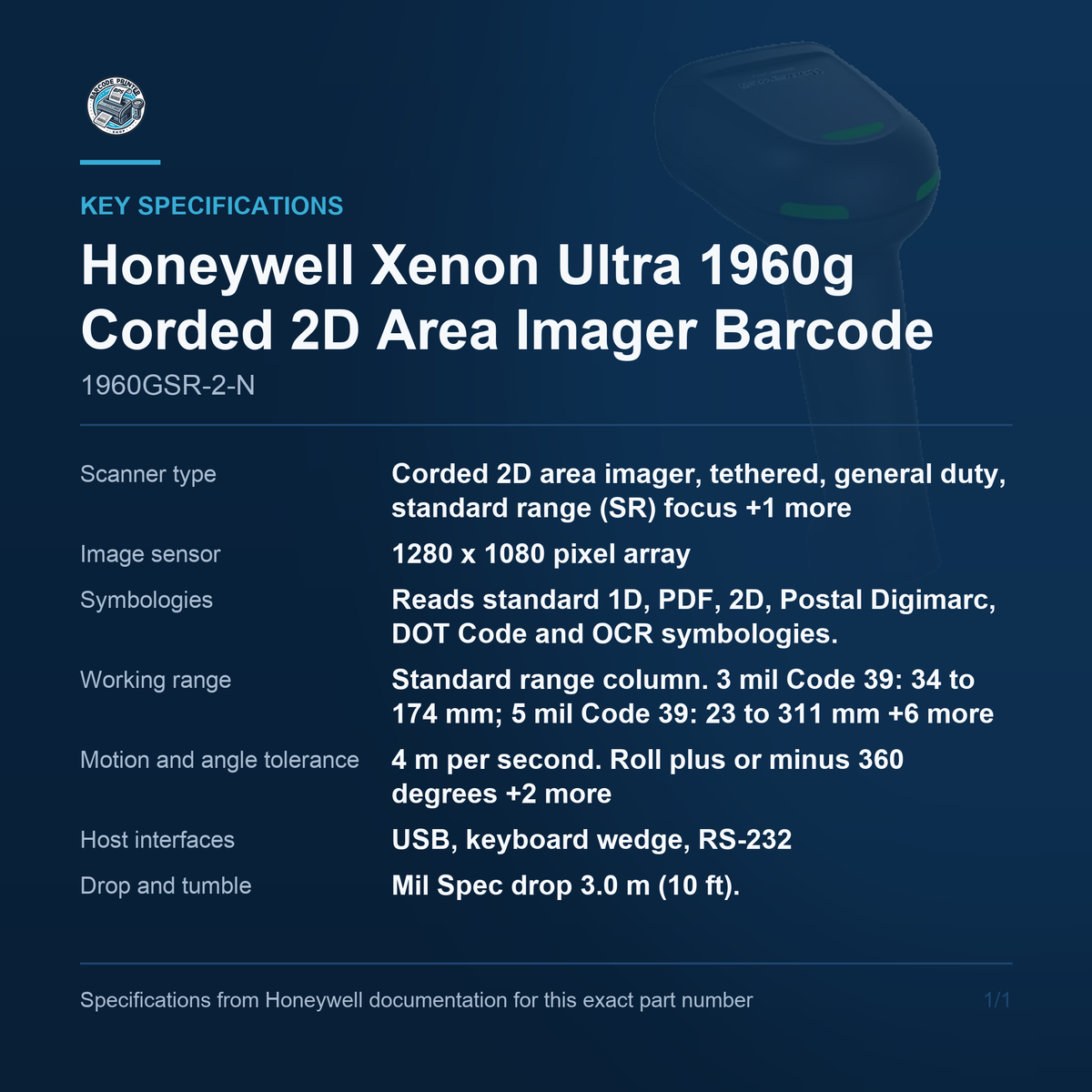

Key Specifications

• In the box: Scanner only, in the Disinfectant Ready Housing. No cable, no stand.
• Scanner type: Corded 2D area imager, tethered, general duty, standard range (SR) focus, Black Disinfectant Ready Housing
• Image sensor: 1280 x 1080 pixel array
• Symbologies: Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code and OCR symbologies. Print contrast as low as 15%; light levels 0 to 100,000 lux
• Working range: Standard range column. 3 mil Code 39: 34 to 174 mm; 5 mil Code 39: 23 to 311 mm; 13 mil UPC: 0 to 654 mm (25.75 in); 20 mil Code 39: 4 to 1115 mm (43.9 in); 6.7 mil PDF417: 22 to 229 mm; 5 mil Data Matrix: not readable; 7.5 mil Data Matrix: 34 to 188 mm; 20 mil QR: 0 to 495 mm
• Motion and angle tolerance: 4 m per second. Roll plus or minus 360 degrees, pitch plus or minus 65 degrees, skew plus or minus 65 degrees
• Host interfaces: USB, keyboard wedge, RS-232
• Drop and tumble: Mil Spec drop 3.0 m (10 ft). Multiple drops 1.8 m (6 ft) to concrete across the operating temperature range. 2,000 tumbles at 0.5 m (1.6 ft)
• Sealing and temperature: IP52 (scanner). Operating 0 to 50 C (32 to 122 F), storage -40 to 70 C (-40 to 158 F)
• Dimensions and weight: 108.2 x 70.4 x 160.2 mm (4.3 x 2.8 x 6.3 in), 147.2 g (5.2 oz)
• Warranty: Five-year factory warranty (corded 1960g)
• Compliance: TAA compliant, assembled in Mexico; Honeywell renders the region as NA/MX Only

Kit contents

This part number is the scanner on its own, with no cable and no stand, and Honeywell's string describes it as scanner-only, tethered. The 1960g is corded, so it cannot reach a host until a cable is ordered, and the interface is then set by the cable, since the scanner supports USB, keyboard wedge plus RS-232. The other half of this part number matters more than the cabling. Honeywell's string reads black DRH, meaning Disinfectant Ready Housing, and neither of the two 1960g USB kits carries it. If the requirement is a scanner that gets wiped down between patients or between shifts, this is the part number in this range Honeywell describes that way. 1960GSR-2USB-N is the cabled kit, but note it is NOT simply this part plus a cable: the kit is supplied in the plain black housing, not the Disinfectant Ready Housing this part number carries.

Imaging engine

The Xenon Ultra 1960g is an area imager with a 1280 by 1080 pixel array, the highest resolution sensor of the four imagers in this family and a step up from the 1280 by 800 in the cordless Xenon XP 1952g. It reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code and OCR symbologies at print contrast as low as 15%, from darkness up to 100,000 lux. Motion tolerance is 4 m per second and angle tolerance is 360 degrees of roll with 65 degrees of pitch and skew, which together mean the operator drags the item past the window at whatever angle it arrives at. Honeywell publishes no minimum barcode resolution figure for this model, expressing capability through the depth-of-field table instead, so no minimum mil figure is claimed here.

Optics and range

Standard range optics give the Xenon Ultra its reach, and the reach is the headline on this model. A 20 mil Code 39 reads out to 1115 mm (43.9 in) and a 13 mil UPC to 654 mm (25.75 in), so an operator can read a pallet label from the aisle or a carton across a receiving bench without moving. It still handles 3 mil Code 39 from 34 mm. What it cannot do is read 5 mil Data Matrix: Honeywell's standard range column prints not readable against that row, so this is a capability the scanner lacks rather than a range it struggles with. If the site marks electronics, circuit boards or pharmaceutical packaging with 5 mil Data Matrix, the high density build is the part number to order instead.

Build and sealing

The 1960g is the most rugged unit in this family by a clear margin. Honeywell publishes a Mil Spec drop rating of 3.0 m (10 ft) alongside the usual multiple-drop figure of 1.8 m (6 ft) to concrete across the operating temperature range, plus 2,000 tumbles at 0.5 m. For comparison the Xenon XP 1952g is rated to 50 drops at 1.8 m with no Mil Spec figure, and the Voyager XP 1470g to 30 drops at 1.8 m. Sealing is IP52 on the scanner. Operating temperature is 0 to 50 C with storage from -40 to 70 C. The unit measures 108.2 by 70.4 by 160.2 mm and weighs 147.2 g (5.2 oz). The corded 1960g carries a five-year factory warranty.

Host connections

Honeywell publishes three host interfaces for the Xenon Ultra 1960g: USB, keyboard wedge and RS-232. Note what is not on that list. The Xenon XP 1952g and the Voyager XP 1470g both add IBM 46xx over RS485 for legacy point-of-sale lanes, and Honeywell's 1960g data sheet does not, so a site with IBM till lanes should confirm the requirement with Honeywell before standardising on this model. The interface is set by the cable rather than by the part number, which is why the bare 1960GSR-2-N exists at all: it lets a site hold one scanner and cable it for whichever host it meets. The two USB kits arrive already cabled for USB Type A on a 3 m straight lead.

TAA compliance

The trailing -N on this part number is the TAA-compliant build, assembled in Mexico, and it is a procurement fact rather than a cosmetic one. Federal agencies, GSA schedule holders, many state and local governments, plus prime contractors flowing Trade Agreements Act clauses down to their suppliers, are required to buy compliant hardware, and a part number without the -N does not satisfy that requirement even though it is the same scanner. Honeywell's own description string for an -N part is character for character identical to the standard build with the words assembled in Mexico, TAA Compliant appended, so the carton contents are unchanged and nothing about the hardware differs. Honeywell renders the region here as NA/MX Only. If the buyer is commercial the non-N part is the equivalent; if the buyer is public sector, this is the part number that goes on the contract.

Disinfectant ready housing

Honeywell's description string for this part number reads black DRH, meaning Disinfectant Ready Housing, and two independent sources carry it. That is a real differentiator for a hospital, a laboratory, a pharmacy or a food-handling site, where a scanner is wiped down between patients or between shifts and an ordinary housing is the part that fails first. Three limits on the claim, all deliberate. No approved-cleaning-agent list is published against this part number in any source here, so none is quoted and a site with a specified disinfectant should have compatibility confirmed with Honeywell. Honeywell describes the unit itself as general duty rather than as a healthcare model. And the two 1960g USB kits, 1960GSR-2USB-N and 1960GHD-2USB-N, are described as plain black housing, so the claim is not read across to them.

Where it fits

The Xenon Ultra 1960g suits work that punishes hardware and still needs a wired connection: warehouse receiving, manufacturing lines, distribution centres, busy retail lanes, and clinical settings where the disinfectant-ready housing is offered. Its case over the Voyager XP 1470g is reach, sensor resolution and the 3.0 m Mil Spec drop rating; its case over the cordless Xenon XP 1952g is a longer warranty at five years, no battery to manage, plus the lifecycle certainty of a current generation rather than a range with a reported retirement. The case against it is price, and the absence of IBM 46xx from its published host list.
