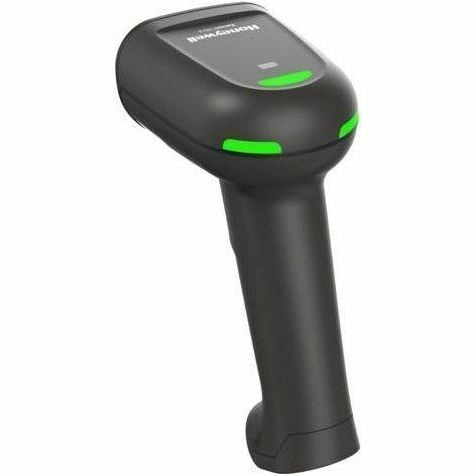

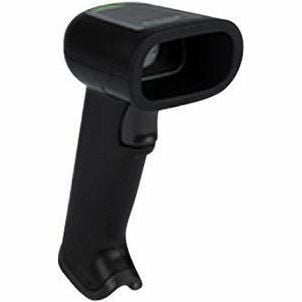

Honeywell Xenon Ultra 1962g Cordless 1D/2D Barcode Scanner Black Standard Range USB Kit with Presentation Base 1962GSR-2USB-5-N

Key Features

• Cordless 1D and 2D area imager with a 1280 x 1080 sensor and a 525 nm green-dot aimer.
• Standard Range focus optics, reaching 1,115 mm on a 20 mil Code 39.
• Motion tolerance of 4 metres per second, so codes can be swept rather than lined up.
• Reads 1D, PDF, 2D, postal, Digimarc, DotCode and OCR from one engine.
• Object Detection triggers on an approaching item and cuts false activations on the bench.
• Bluetooth 4.2 with adaptive frequency hopping, 100 m line of sight in Class 1 operation.
• IP52 scanner and IP41 base, engineered for 50 drops to concrete at 1.8 m and 2,000 tumbles.
• 3300 mAh lithium-ion battery delivers up to 80,000 scans and 22 hours between charges.
• Full charge in about 4.5 hours, so an overnight cycle covers a full shift with margin.
• Backed by a three-year Honeywell factory warranty on the scanner.

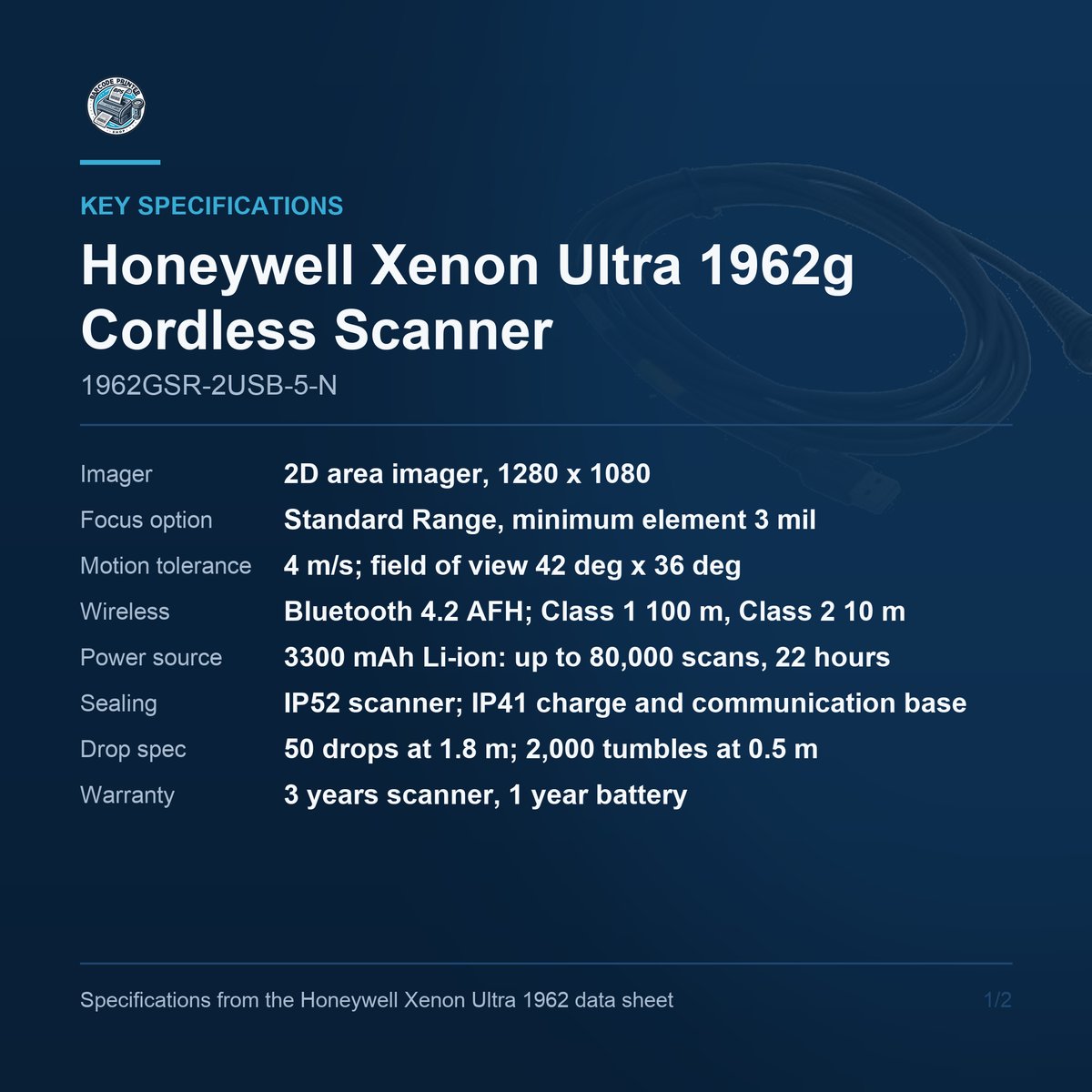

Key Specifications

• Scan Engine: 2D area imager, 1280 x 1080 pixel array
• Focus Option: Standard Range, minimum element 3 mil
• Motion Tolerance: 4 metres per second; field of view 42 degrees by 36 degrees
• Symbologies: 1D, PDF, 2D, postal, Digimarc, DotCode and OCR
• Wireless: Bluetooth 4.2 with adaptive frequency hopping; Class 1 100 m, programmable to Class 2 10 m
• Charging Method: Contact, via exposed charging contacts
• Power Source: 3300 mAh lithium-ion; up to 80,000 scans; 22 hours per charge; 4.5 hour charge time
• Host Interfaces: USB, Keyboard Wedge and RS-232, cable dependent
• Environmental: IP52 scanner, IP41 base; 50 drops at 1.8 m; 2,000 tumbles at 0.5 m; 0 to 50 degrees C
• Dimensions and Weight: Scanner 108.2 x 70.4 x 160.2 mm; 247 g

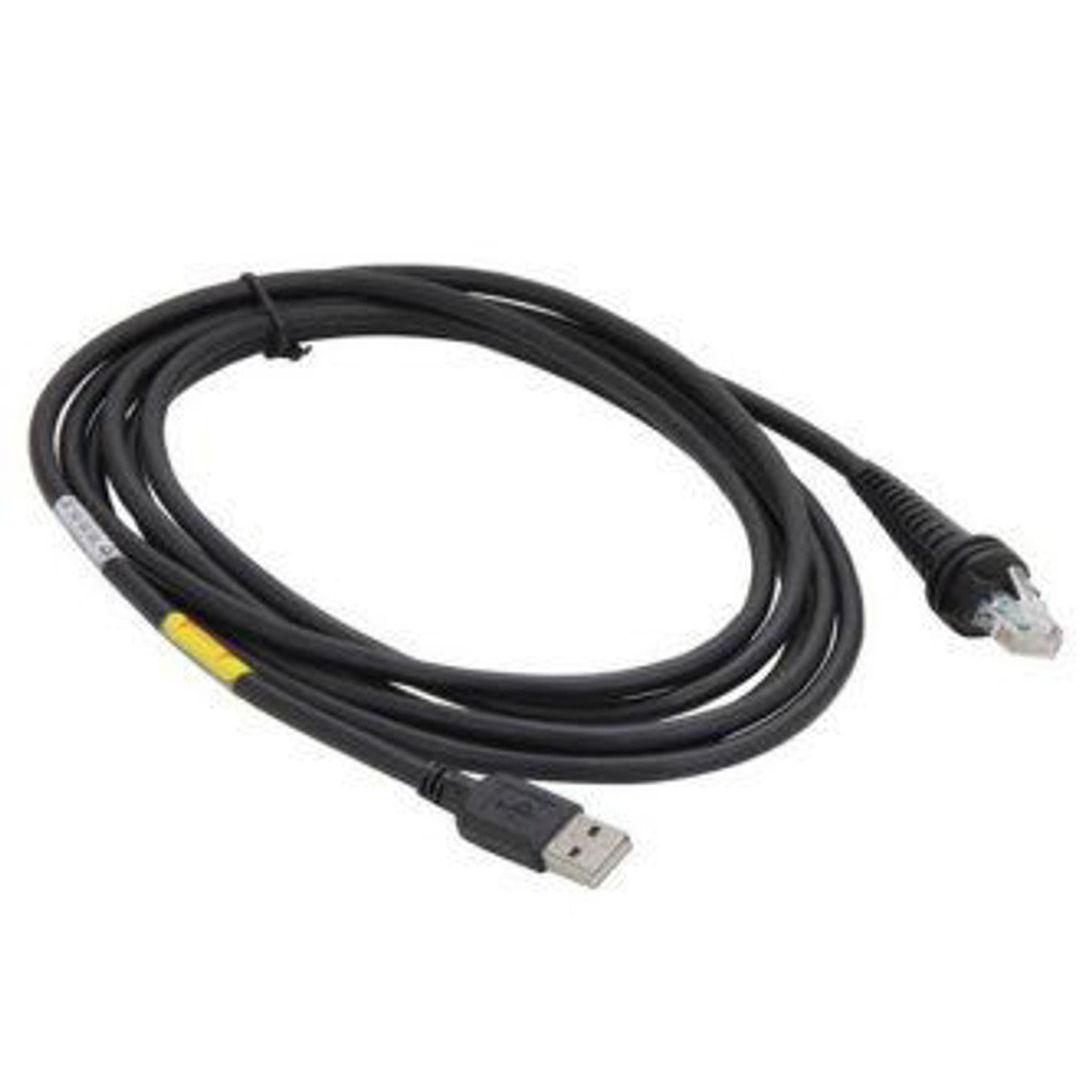

• In the Box: Xenon Ultra 1962g scanner in black housing; BAT-SCN11 lithium-ion battery; 3012-6337-001 USB Type A straight cable, 2.7 m (8.8 ft); Presentation Charge and Communication Base, CCB-U00-G body with the 1962G-BAT-CUP cup
• Warranty: Three years on the scanner; one year on the lithium-ion battery pack

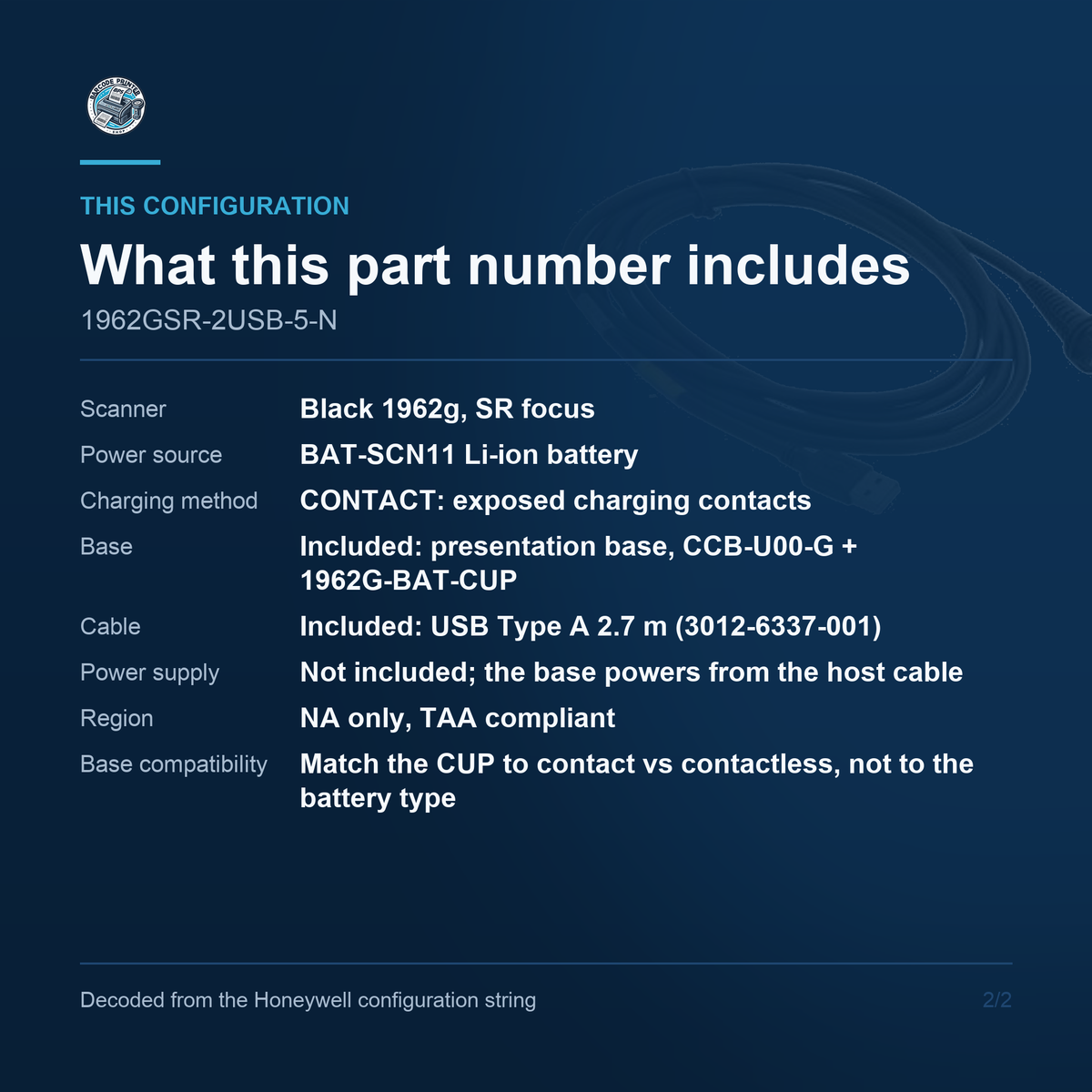

What Is Included

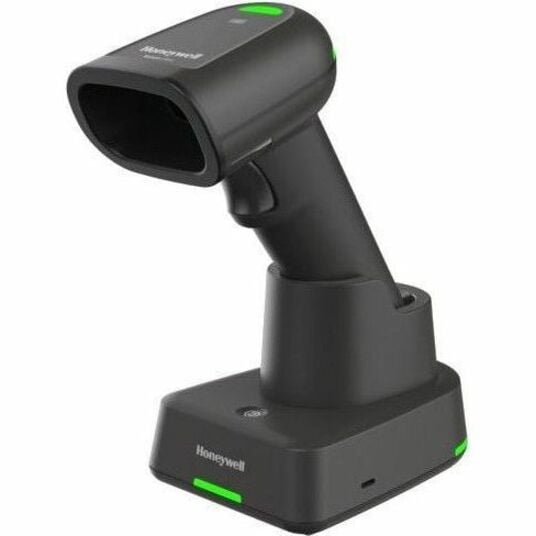

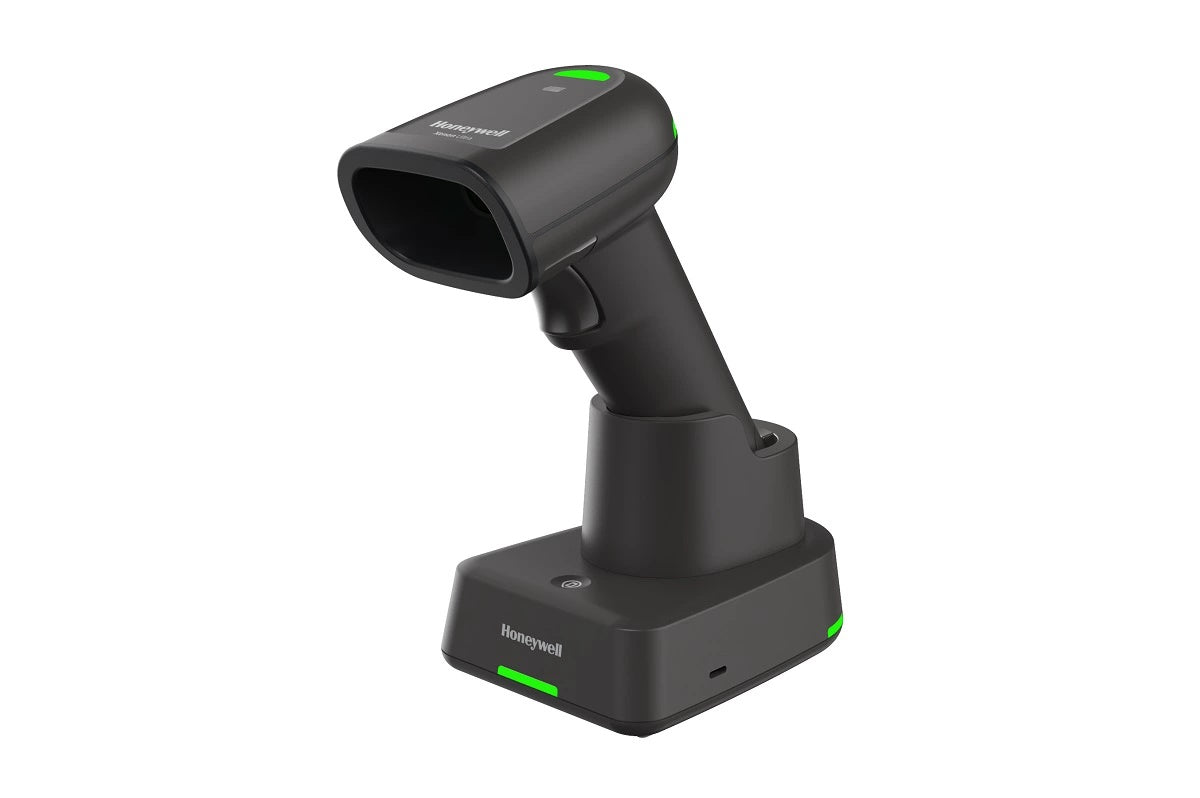

1962GSR-2USB-5-N is a complete kit rather than a bare scanner. Four things ship under this one part number: the Xenon Ultra 1962g in black housing with Standard Range focus optics, the BAT-SCN11 lithium-ion battery, the 3012-6337-001 usb type a straight cable, 2.7 m (8.8 ft), and the Presentation Charge and Communication Base, CCB-U00-G body with the 1962G-BAT-CUP cup. That is everything needed to put a working cordless scanning station on a counter or a bench. There is no separate mains power supply, because the base takes its power from the host cable in a standard installation. Ordering the kit is normally cheaper than the same parts bought individually.

Battery and Runtime

The 3300 mAh lithium-ion pack is rated for up to 80,000 scans and 22 hours of operation per charge, with a full charge taking about 4.5 hours. Twenty-two hours covers any single shift with margin, and the normal pattern is returning the scanner to its base between uses so it is topped up continuously rather than run flat. The pack carries a one-year warranty against the scanner's three, which is worth budgeting for on a unit expected to stay in service for several years. Honeywell also builds this scanner in a battery-free supercapacitor version for sites that would rather not manage battery packs at all.

Charging and Base Compatibility

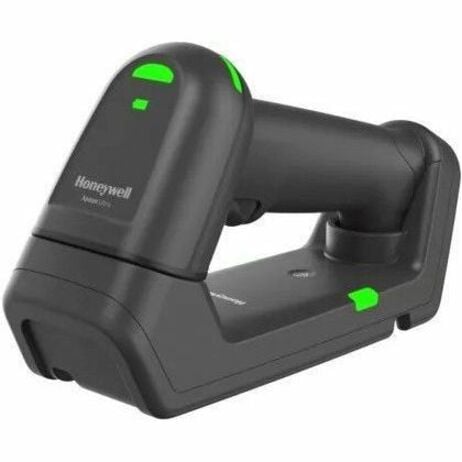

This is where Xenon Ultra part numbers most often get ordered wrong, so it is worth being precise. The base is modular: a common CCB body plus an interchangeable cup, and it is the CUP that decides whether charging is by contact or contactless. 1962GSR-2USB-5-N is a contact-charging build with exposed contacts, so it needs a standard contact cup. The axis that has to match is contact against contactless - NOT battery against battery free. A battery-free scanner uses exactly the same base as a lithium-ion one. If you are pairing this scanner with a base you already own, check the cup, not the battery.

General Purpose Build

The 1962g is the general-purpose sibling of the healthcare 1962h. The optics, imager, radio, drop and tumble ratings, dimensions, warranty and power architecture are identical; what differs is the black housing and the absence of the healthcare-specific point-of-care modes - Patient Do-Not-Disturb, vibration feedback and the intelligent Scan Lamp are healthcare features. For retail, warehouse, manufacturing and back-office work none of those matter, and the 1962g is the cheaper and more appropriate choice. Where a scanner will be disinfected on a clinical schedule, order the 1962h instead.

Scan Performance

The 1962 uses a 1280 by 1080 area imager with a 42 by 36 degree field of view and 4 metres per second motion tolerance, reading 1D, PDF, 2D, postal, Digimarc, DotCode and OCR from a single engine. It tolerates 360 degrees of roll and 65 degrees each of pitch and skew, and works in ambient light from darkness to 100,000 lux, so a sunlit doorway is no obstacle. Print contrast as low as 15 percent means faded, worn and poorly printed codes still read. Standard Range optics cover the everyday working distance and reach out to 1,115 mm on a 20 mil Code 39, which is a pallet placard across an aisle.

Ordering Notes

Part number 1962GSR-2USB-5-N is the Standard Range focus, black kit with the presentation base, North America only and TAA compliant. Xenon Ultra part numbers encode focus option, housing colour, whether a cable is included, which base ships, and whether the scanner is contact or contactless and battery or battery free - and none of that is visible from the model name on the box. Confirm the exact part number against the requirement before ordering, and match what is already installed when adding to a fleet.

For retail, warehouse, manufacturing and back-office operations that need a current-generation cordless scanner with the range and durability to last, the Honeywell Xenon Ultra 1962g 1962GSR-2USB-5-N is a strong choice backed by a three-year factory warranty. Contact us to learn more or secure this solution for your business today.
