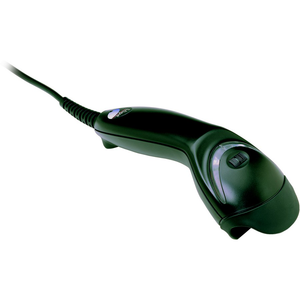

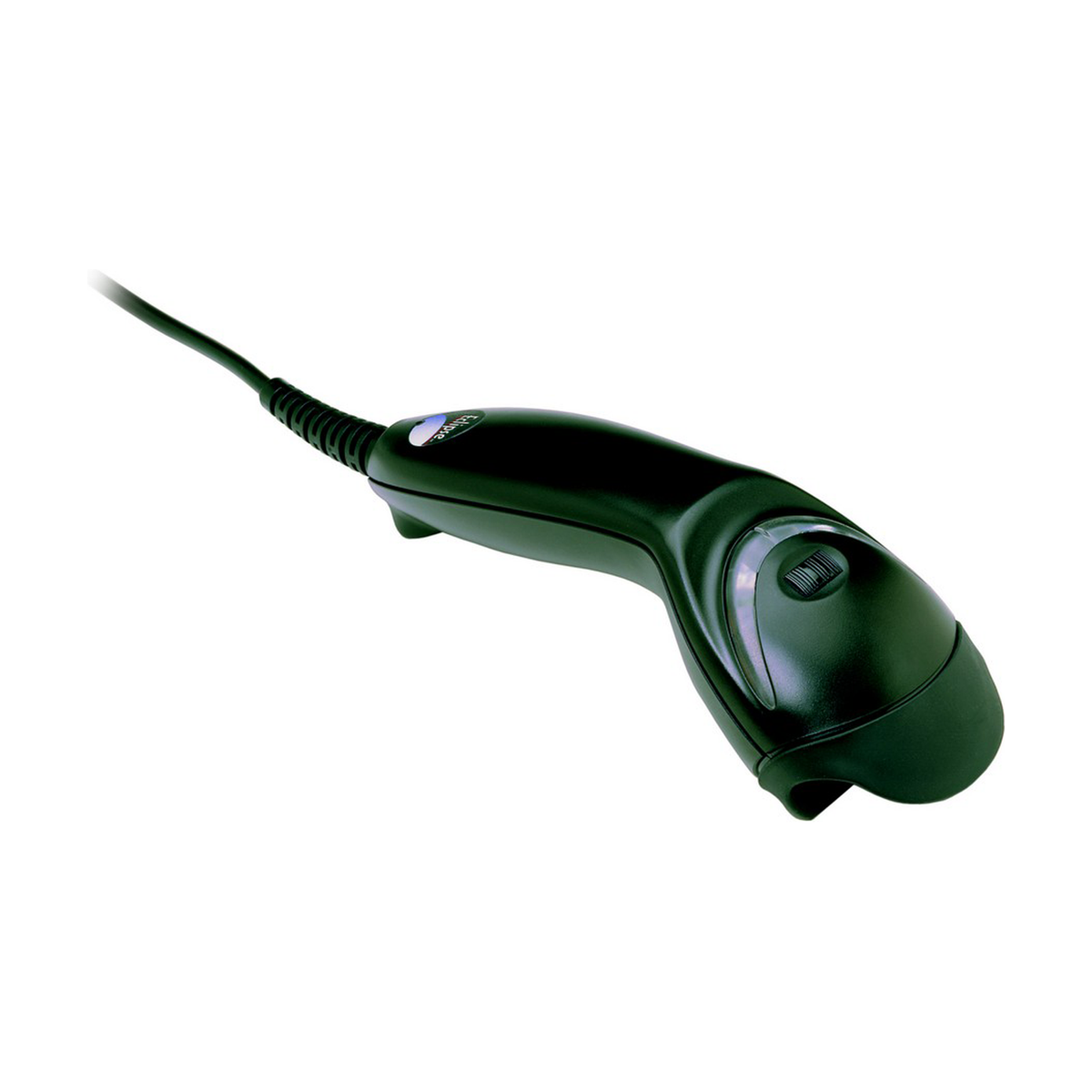

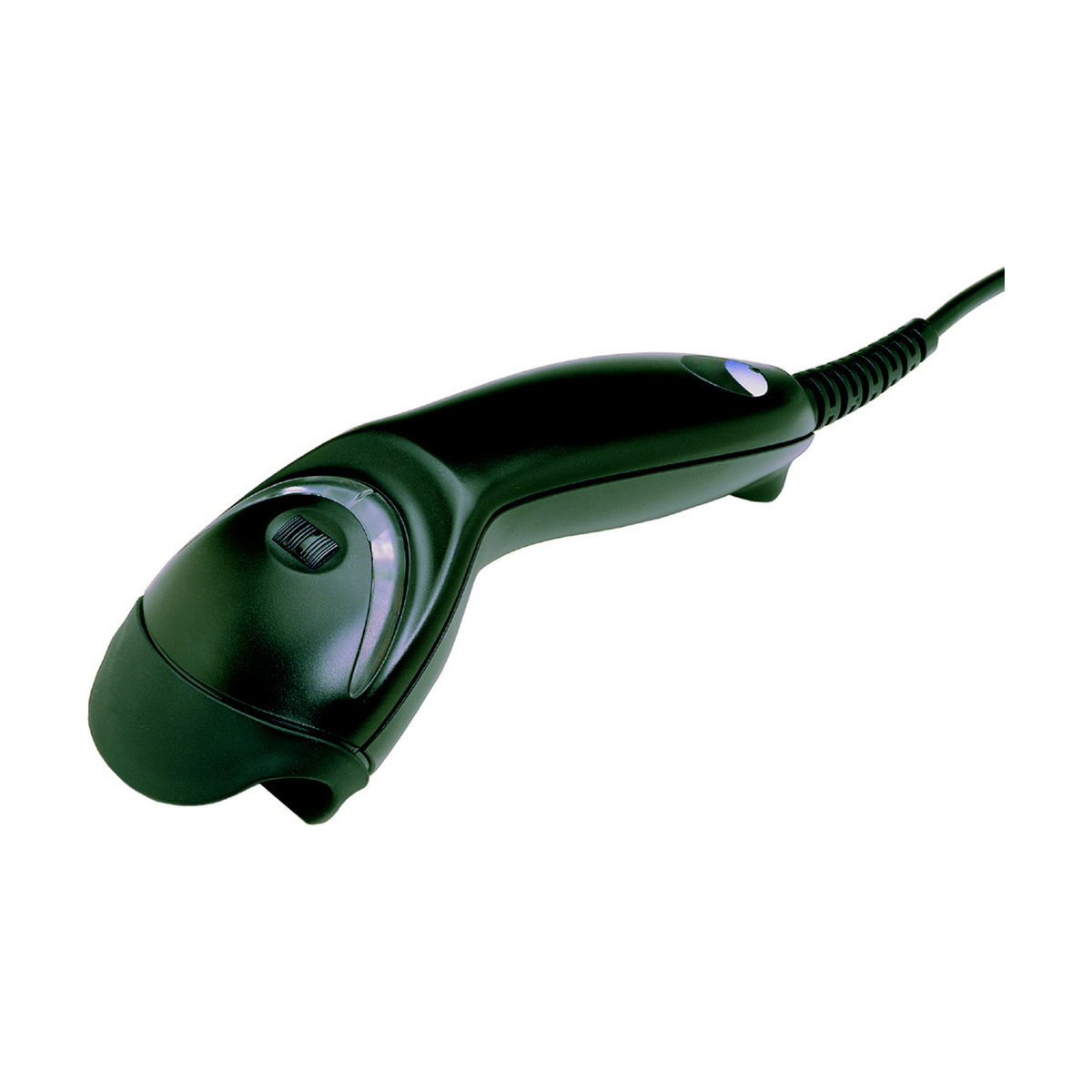

Honeywell Metrologic MS5145 Eclipse Single Line 1D Laser Barcode Scanner USB Kit Black No Stand MK5145-31A38

End of life. Honeywell has placed the MS5145 Eclipse at end of life and sells remaining stock non-cancellable and non-refundable. Honeywell's own channel text refers buyers to the Voyager 1200g corded USB kit or the Voyager 1202g cordless USB kit, and we stock the corded one: Honeywell Voyager 1200g 1D Barcode Scanner USB Cable Stand 1200G-2USB-1. Remaining MK5145-31A38 stock is sold for fleet matching, replacement units and validated workflows where requalifying a new model is not practical.

Key Features

• In the box: Black MS5145 Eclipse scanner, the 55-55235X-N-3 straight USB Type A cable 1.5 m long, the MetroSelect configuration guide and the MS5100 Eclipse user's guide. No stand.
• Single-line laser using a visible laser diode at 650 nm, Class 1 to IEC 60825-1. This is a laser, not an imager, and it reads 1D and GS1 DataBar codes only.
• 72 scan lines per second.
• CodeGate activation, so the operator aims at a code and presses to select it rather than reading whatever the beam crosses.
• Reads a 13 mil code from contact out to 5.5 in and a 26 mil code from 1.0 in to 7.0 in.
• Minimum resolution of 4 mil, or 0.102 mm.
• Pitch tolerance of 68 degrees and skew of 52 degrees.
• Host powered at 5 V DC, drawing 675 mW or 125 mA, so no power supply is required.
• Ships defaulted to the USB HID keyboard emulation interface, so it types into whatever field has focus with no driver.
• Designed to withstand 1.5 m drops, and rated IP40 on Honeywell's current product page.
• Weighs 100 g, the lightest scanner on this page by a wide margin.
• Three-year factory warranty.

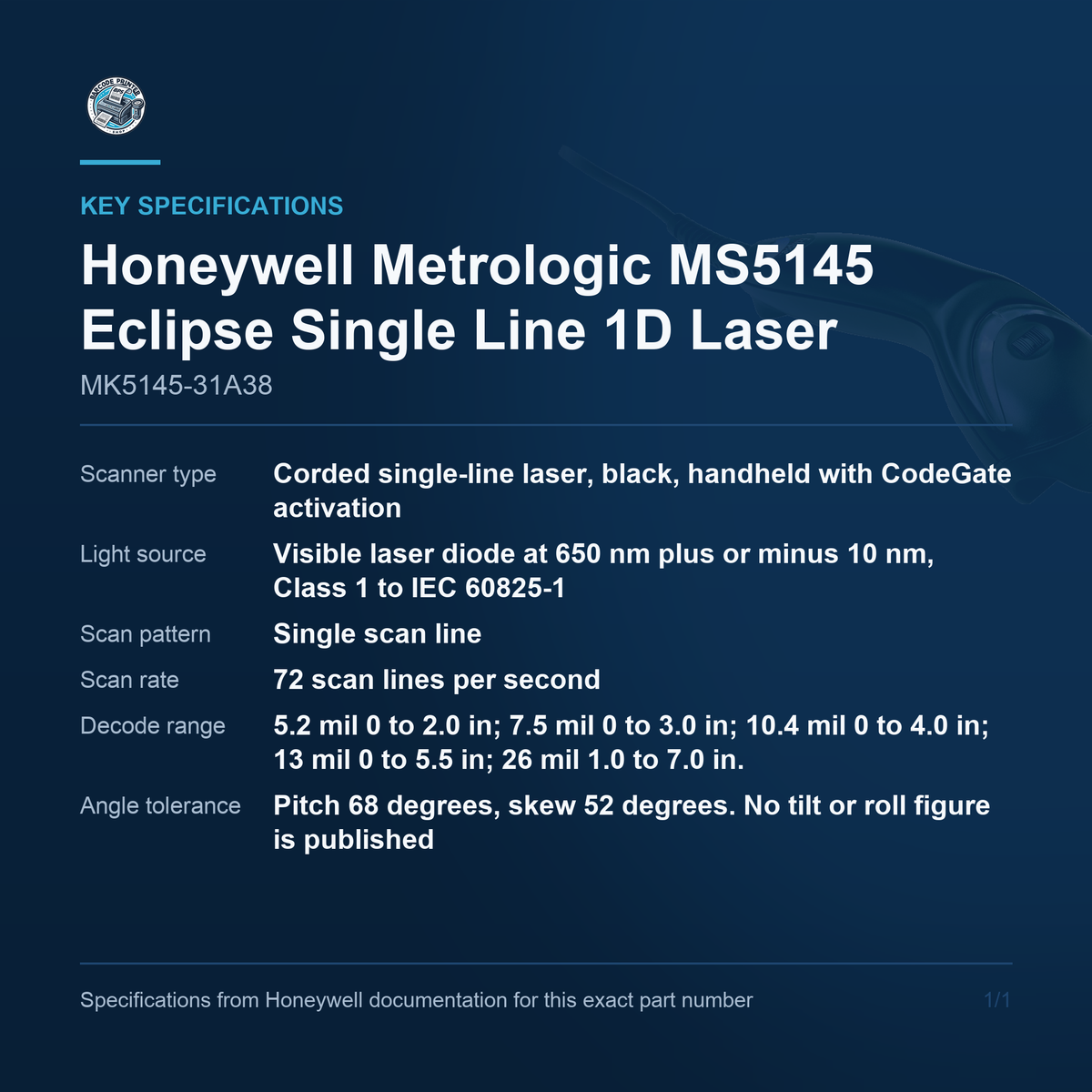

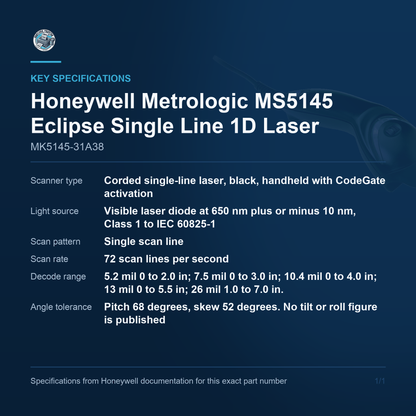

Key Specifications

• In the box: Black MS5145 Eclipse scanner, the 55-55235X-N-3 straight USB Type A cable 1.5 m long, the MetroSelect configuration guide and the MS5100 Eclipse user's guide. No stand.
• Scanner type: Corded single-line laser, black, handheld with CodeGate activation
• Light source: Visible laser diode at 650 nm plus or minus 10 nm, Class 1 to IEC 60825-1
• Scan pattern: Single scan line
• Scan rate: 72 scan lines per second
• Decode range: 5.2 mil 0 to 2.0 in; 7.5 mil 0 to 3.0 in; 10.4 mil 0 to 4.0 in; 13 mil 0 to 5.5 in; 26 mil 1.0 to 7.0 in. Minimum resolution 4 mil (0.102 mm)
• Angle tolerance: Pitch 68 degrees, skew 52 degrees. No tilt or roll figure is published
• Symbologies: Standard 1D and GS1 DataBar codes. No 2D, PDF417 or QR capability
• Host interfaces: USB, RS-232, keyboard wedge, IBM 468xx over RS-485. This kit is cabled for USB and defaults to USB HID
• Power: 5 V DC plus or minus 0.25 V; 675 mW (125 mA at 5 V). Host powered
• Durability: Designed to withstand 1.5 m (5 ft) drops; IP40 per Honeywell's current product page; ambient light 4,842 lux
• Dimensions and weight: 169 x 63 x 51 mm (6.7 x 2.5 x 2.0 in), 100 g (3.5 oz)

Kit contents

The MK prefix is Honeywell's kit code, and this kit is the black MS5145 Eclipse scanner, a straight USB Type A cable 1.5 m or 5 ft long, the MetroSelect single-line configuration guide and the MS5100 Eclipse series user's guide. There is no stand in this carton and none is available as part of this part number, so a counter that needs the scanner to stand up and present itself needs a different product. There is no power supply either, and none is needed: the scanner draws 675 mW from the host over the USB cable. The cable is part 55-55235X-N-3 and it is straight rather than coiled, which is worth checking against a till layout where a coiled lead is expected.

End of life terms

Honeywell has placed the MS5145 Eclipse at end of life and the channel sells remaining stock non-cancellable and non-refundable, which means an order cannot be cancelled once placed and the unit cannot be returned for credit. That term has to be understood before the order goes in rather than after. Honeywell publishes no end-of-life date and the product does not appear on Honeywell's own discontinued products list, so no date is stated here. What Honeywell's channel text does state is the successor: it refers buyers to the Voyager 1200G-2USB-1 corded USB kit or the Voyager 1202G-2USB-5-N cordless USB kit, and both of those are current products with full support behind them.

Single line laser

The engine is a single-line laser, not an imager: a visible laser diode at 650 nm plus or minus 10 nm, Class 1 to IEC 60825-1, projecting one scan line at 72 scan lines per second. It reads standard 1D and GS1 DataBar codes and nothing else, so QR codes, DataMatrix and PDF417 are outside its capability at any setting. The distinguishing feature is CodeGate: the operator aims the line at the code they want and presses to send it, instead of the scanner reading whichever code the beam happens to cross. On a form or a shipping label carrying four barcodes in a column that is the difference between a clean read and a wrong one.

Working range

Honeywell publishes range by narrow element width. A 5.2 mil code reads from contact out to 2.0 in, a 7.5 mil to 3.0 in, a 10.4 mil to 4.0 in and a 13 mil retail code to 5.5 in. A 26 mil code, which is the large-print format used on rack and tote labels, reads from 1.0 in to 7.0 in. Minimum resolution is 4 mil or 0.102 mm. Every one of those ranges starts at or near contact, which suits a scanner designed to be touched to the label. Pitch tolerance is 68 degrees and skew 52; no tilt or roll figure is published in any Metrologic or Honeywell data sheet and none is quoted. Ambient light immunity is 4,842 lux.

Host connections

The scanner supports USB, RS-232, keyboard wedge and IBM 468xx over RS-485, and this kit is cabled for USB with the factory default set to USB HID keyboard emulation. That default is why it works with no driver on a Windows, macOS or Linux host: the scan arrives as keystrokes in whatever field has focus. The trailing 38 in the part number is the interface code for low-speed USB with a cable, against 47 for PS/2 keyboard wedge on the MK5145-71A47. Changing to a serial or wedge host later is a cable purchase and a configuration barcode from the MetroSelect guide, not a new scanner, which is a real advantage on a slow till migration.

Build and warranty

This is a light counter scanner and the specification is honest about it. Honeywell describes it as designed to withstand 1.5 m or 5 ft drops, and rates it IP40 on the current Eclipse 5145 product page; the older Metrologic data sheet publishes no ingress figure at all, so IP40 is attributed to the product page rather than presented as a data sheet value. Operating temperature is 0 C to 40 C, storage minus 40 C to 60 C, humidity 5% to 95% non-condensing. The unit is 169 by 63 by 51 mm and weighs 100 g, which is light enough for all-day use on a busy till. The warranty is three years from the factory.

Where it fits

Retail tills, pharmacy dispensing, libraries, back-office document handling and any bench where the codes are printed 1D and will stay that way. CodeGate makes it particularly good on multi-barcode documents, and at 100 g it is easy on the wrist. The reasons not to buy it are two and both are decisive. It cannot read a 2D code, so mobile coupons and 2D licences are out; and it is end of life and sold non-cancellable and non-refundable, so a new deployment starting on it is starting on hardware with no future. Buy it to match a fleet, to replace a failed unit, or to keep a validated workflow intact, and buy the Voyager successors otherwise.
