Honeywell PM45A Direct Thermal Label Printer 203 DPI Icon Display PM45A00000000210

Key Features

• Prints at 203 dpi for sharp barcodes, small text and compliance marks on labels and tags.
• Runs at up to 14 ips (350 mm/s) at 203 dpi to keep high-volume label production moving.
• Prints a full 4.25 inches (108 mm) wide, covering standard 4-inch shipping and product label formats.
• Direct thermal printing removes ribbon from the consumable list and simplifies stocking.
• Icon interface gives operators clear status at a glance without menu navigation or training.
• Wired Ethernet, USB and serial connectivity integrate the printer into existing networks.
• All-metal chassis and a large clear media window stand up to warehouse and production floor duty.
• Tool-free printhead and platen replacement keeps routine maintenance in the hands of your own staff.
• Handles media rolls up to 213 mm (8.38 in) in diameter to reduce reload stops on long print runs.
• Honeywell command set support drops the printer into existing label workflows without rewriting them.

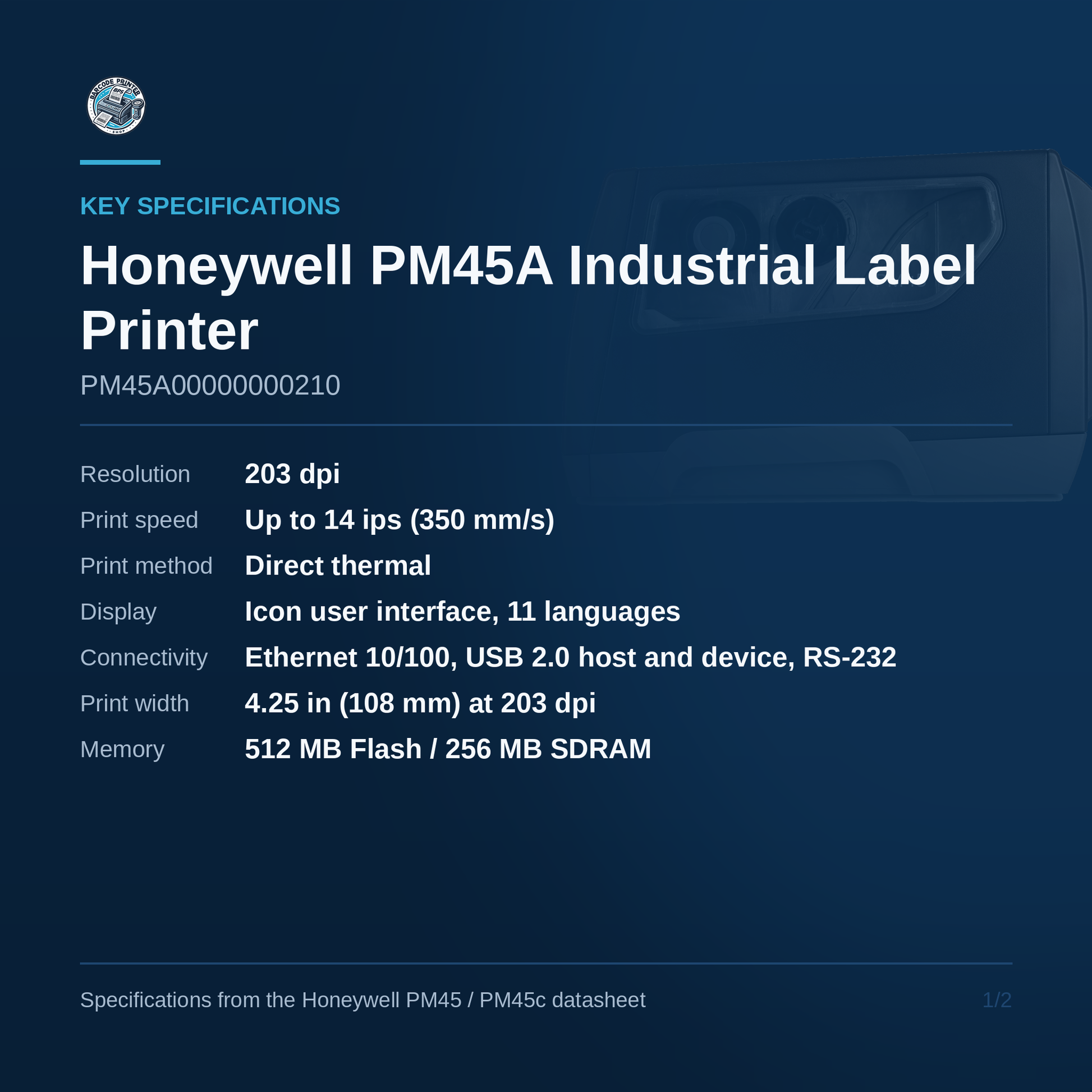

Key Specifications

• Print Resolution: 203 dpi
• Maximum Print Speed: Up to 14 ips (350 mm/s) at 203 dpi; range 2-14 ips (50-350 mm/s)
• Print Method: Direct Thermal
• Maximum Print Width: 4.25 inches (108 mm) at 203 dpi
• Display: Icon UI, 11 languages
• Connectivity: Ethernet 10/100 Mbps, USB 2.0 host, USB 2.0 device, RS-232
• Media Handling: Standard tear-off; no rewinder or label taken sensor in this configuration
• Memory: 512 MB Flash, 256 MB SDRAM, plus external USB memory (FAT16/FAT32)
• Media Types: Labels, tags and linered media; gap, notch, black mark and continuous sensing
• Maximum Media Roll: 213 mm (8.38 in) outer diameter
• Printer Languages: Fingerprint, Direct Protocol, IPL, ZSim2 (ZPL-II), DPL and XML
• Dimensions and Weight: 483 x 295 x 284 mm (19.0 x 11.6 x 11.2 in), 13.2 kg (29.1 lbs)

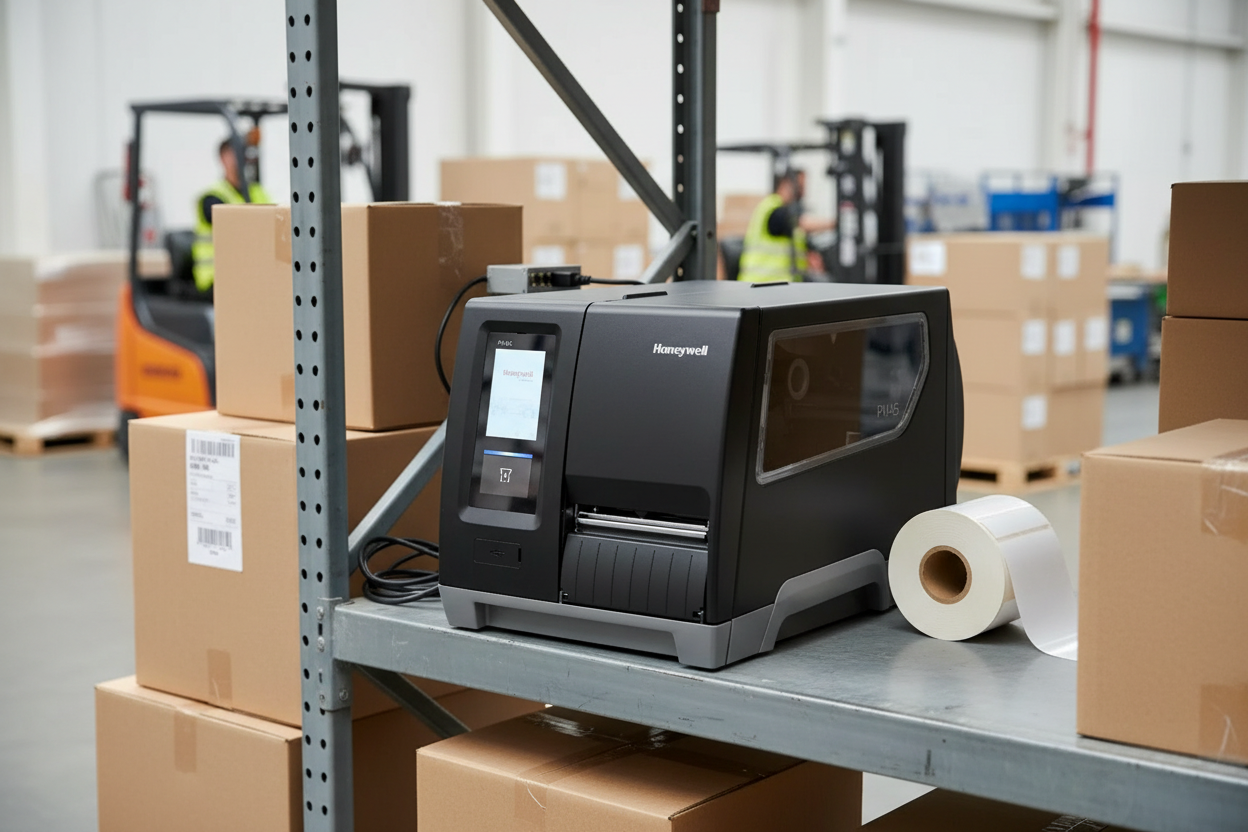

Built for Industrial Duty

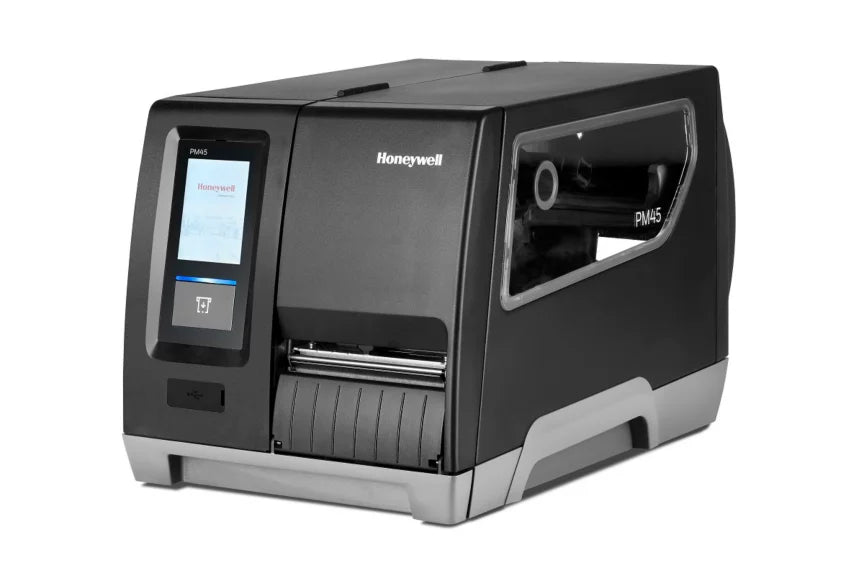

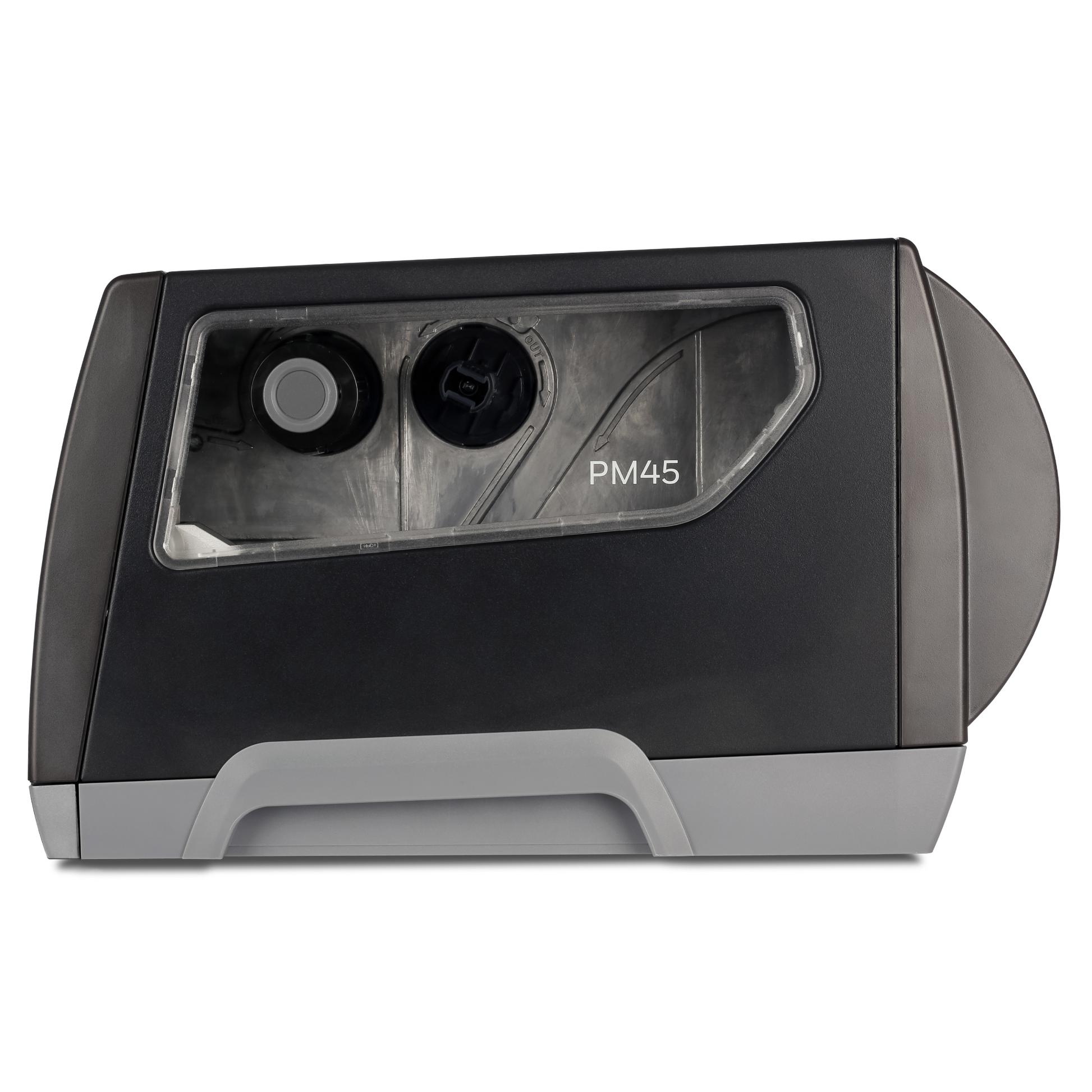

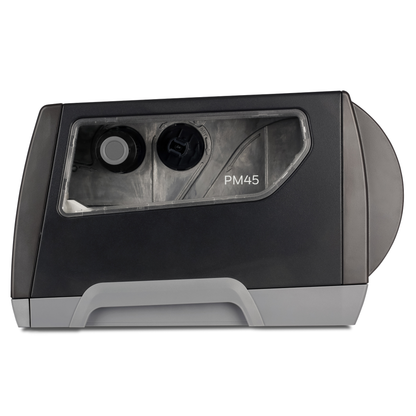

The Honeywell PM45A (PM45A00000000210) is a 4-inch industrial label printer built for continuous duty in manufacturing, warehousing, distribution and healthcare environments. Its all-metal chassis and large media window are designed for floors where dust, vibration and temperature swings are normal rather than exceptional, and the unit is rated for operation from +5 C to +40 C. Tool-free printhead and platen replacement means routine consumable and wear-part changes stay with your own maintenance staff instead of requiring a service call, which keeps a line running when a printhead reaches end of life mid-shift. The printer weighs 13.2 kg (29.1 lbs) and measures 483 x 295 x 284 mm.

Print Performance

This configuration prints at 203 dpi across a maximum width of 4.25 inches (108 mm), and runs at up to 14 ips (350 mm/s). Honeywell rates the PM45 across a 2-14 ips (50-350 mm/s) range, so throughput can be tuned against media and label complexity rather than fixed at one speed. Print registration is held to plus or minus 0.5 mm, which matters where a barcode has to fall inside a defined print zone on a pre-printed label. At 203 dpi this is the fastest configuration in the PM45 range, which suits high-volume shipping, pallet and carton labelling.

Direct Thermal Printing

The PM45A00000000210 is a direct thermal configuration. It images heat-sensitive media directly and uses no ribbon at all, which removes an entire consumable from the stocking list and takes ribbon changes out of the operator's routine. That makes it a strong fit for shipping labels, pick tickets, receiving labels and other short-life applications where the label only has to survive days or weeks rather than years. Direct thermal media is sensitive to prolonged heat, direct sunlight and abrasion, so where a label must last in an outdoor, chemical or high-temperature setting, a thermal transfer configuration of the same printer is the appropriate choice instead.

Standard Connectivity

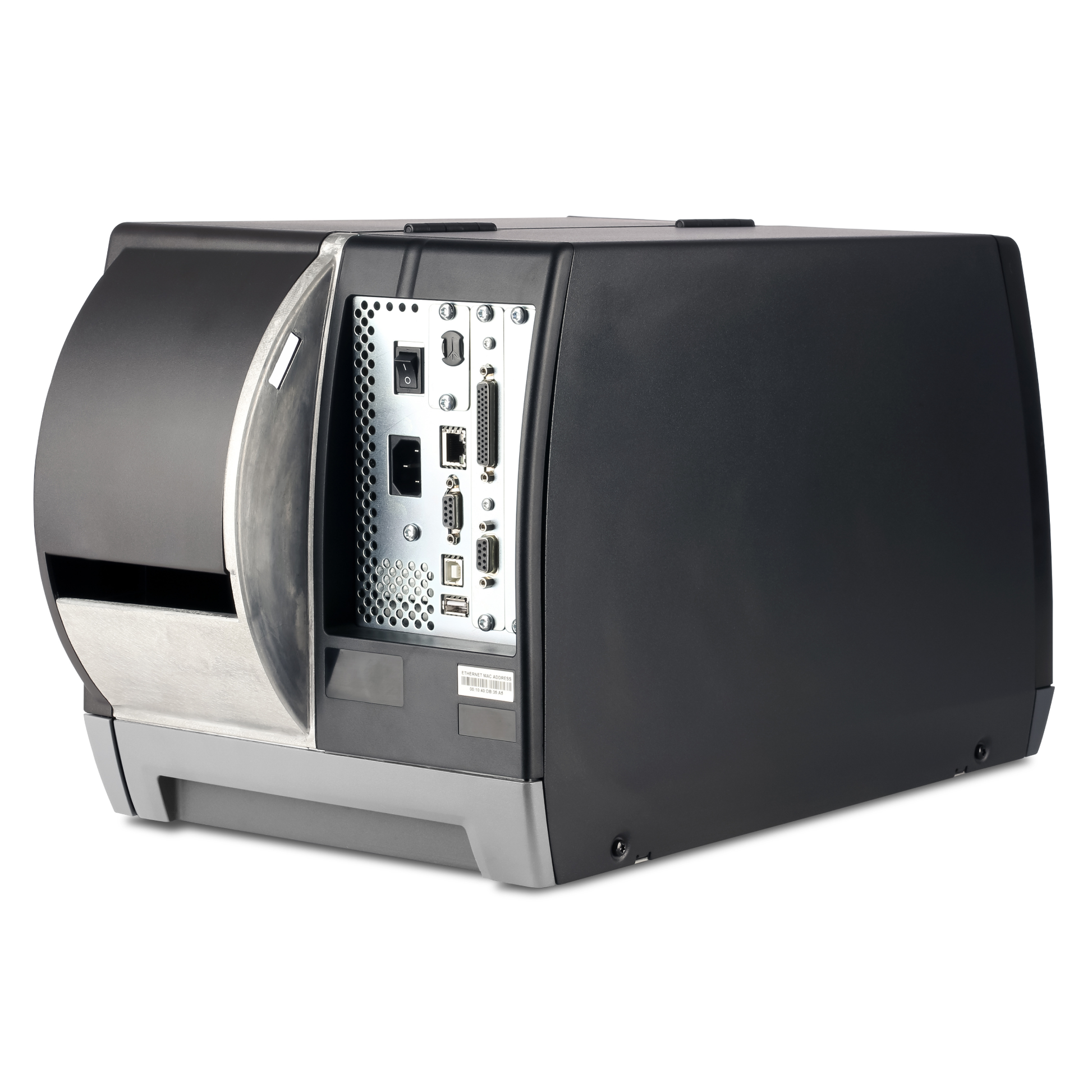

The PM45A00000000210 ships with the PM45's standard wired interface set: Ethernet 10/100 Mbps, USB 2.0 host, USB 2.0 device and RS-232 serial. This covers integration with WMS, ERP, MES and label management platforms over the network, direct host connection over USB, and legacy serial equipment still in service on older lines. The USB host port also accepts a keyboard or scanner for standalone label entry and takes firmware updates from a USB drive. Wi-Fi, Bluetooth, parallel, industrial, applicator and RFID interfaces are options on the PM45 platform but are not fitted to this part number; if you need one of them, order the configuration that includes it.

Media Handling

Media handling on this configuration is standard tear-off. The printer accepts labels, tags and linered media with gap, notch, black mark and continuous sensing, and takes rolls up to 213 mm (8.38 in) in outer diameter, which reduces reload stops on long runs. A rewinder, full batch rewinder and label taken sensor are all available on the PM45 platform as factory options, but none of them are fitted to this part number. If your workflow needs printed labels taken back up onto a roll, or needs the printer to hold the next label until the last one is removed, order the configuration that includes those options rather than adding them later.

Icon Interface

This unit carries the icon interface. Printer state is shown through clear status icons rather than a menu system, so an operator can read condition at a distance and across a noisy floor without stopping to interpret text. It is the right choice where printers are configured once by IT and then left to run a fixed job, which describes most high-volume shipping and production labelling. It is also the lower cost build in the PM45A range. Where operators need to change media types or troubleshoot on their own, the full touch configuration of the same printer is worth the difference.

Software and Integration

The PM45A supports Fingerprint, Direct Protocol, Intermec Printer Language, ZSim2 (ZPL-II), DPL and XML, so it can be dropped into an existing label environment without rewriting templates, including environments originally built around Intermec or Zebra command sets. Memory is 512 MB Flash and 256 MB SDRAM, with support for an external USB memory device formatted FAT16 or FAT32 for fonts, graphics and stored formats. Honeywell's printer management tooling handles configuration, firmware and monitoring across a fleet, which keeps the administrative overhead flat as the number of installed printers grows.

Configuration Notes

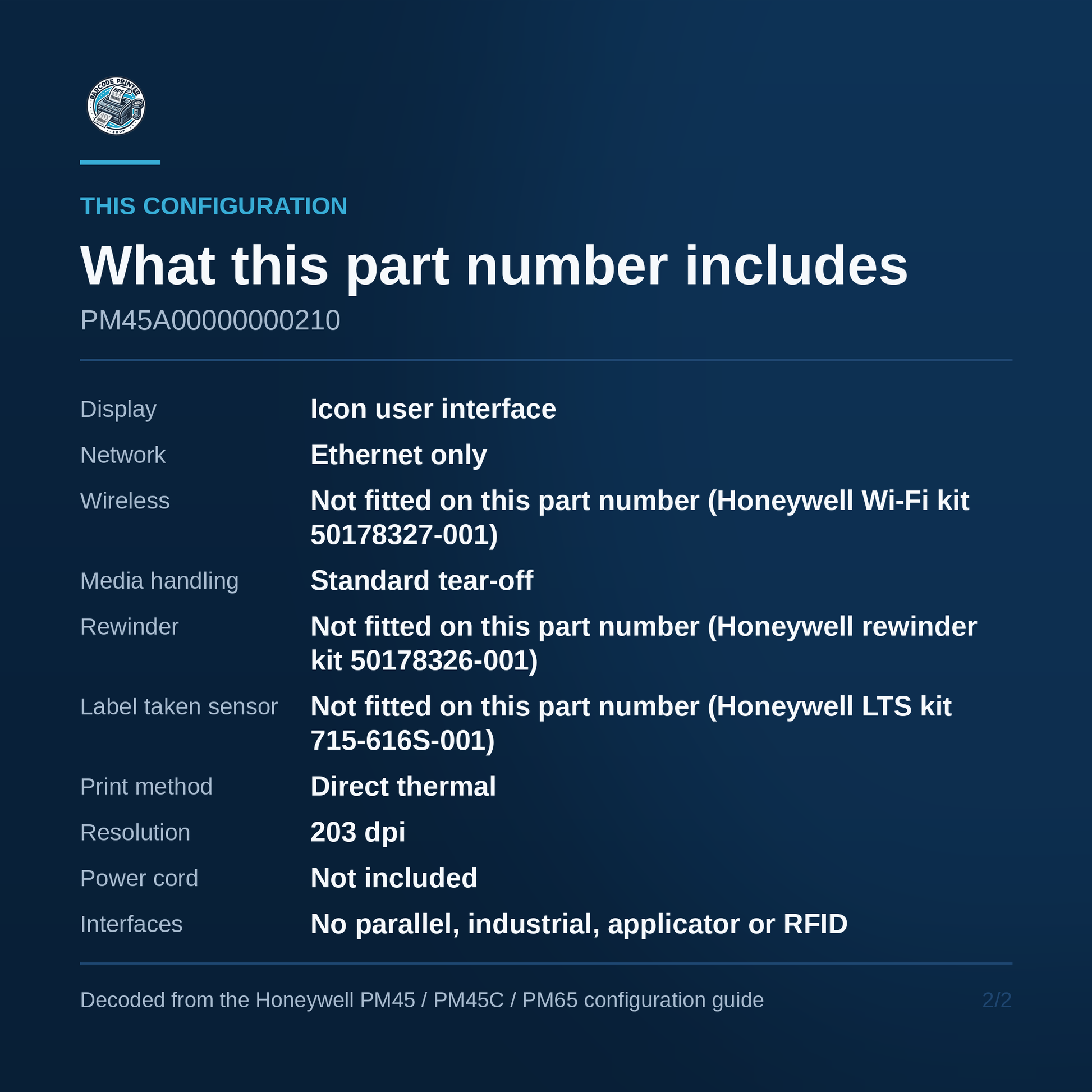

Part number PM45A00000000210 decodes to: Icon UI display; Ethernet only; no rewinder or label taken sensor; fixed hanger; Direct Thermal at 203 dpi; no power cord included. No parallel, industrial, applicator or RFID interface is fitted. PM45A part numbers differ only in these positions, and the differences carry real cost and capability, so confirm the exact part number against your requirement before ordering rather than matching on the model name alone.

For operations that need dependable 203 dpi industrial label printing with an icon interface and direct thermal output, the Honeywell PM45A PM45A00000000210 is a well-specified, serviceable choice that integrates with the systems you already run. Contact us to learn more or secure this solution for your business today.
