Honeywell PM45c Industrial Label Printer 203 DPI Thermal Transfer Ethernet PM45CA0000000200

Key Features

• Prints thermal transfer labels at up to 350 mm/s (14 ips) at 203 dpi to keep high-volume lines moving
• Fits tight workcells with a compact 432 x 181 x 253 mm chassis that frees valuable bench and cart space
• Holds print registration to +/-0.5 mm so barcodes, text and images land accurately on every label
• Withstands demanding shifts with a rugged all-metal print mechanism built for continuous industrial duty
• Connects directly to wired networks over Ethernet plus USB Host, USB Device and RS-232 serial ports
• Signals status at a glance on an LED icon panel that flags media, ribbon, printhead and error conditions
• Cuts changeover time with tool-free platen roller replacement and a long media door that encloses the roll
• Runs existing formats through ZSim2 (ZPL-II), DPL, IPL, Fingerprint, Direct Protocol and XML emulations
• Reformats incoming data into finished labels with embedded Smart Parse, leaving backend systems untouched
• Manages printer fleets remotely using the printer web page and Honeywell Operational Intelligence
• Timestamps output from a built-in real-time clock to support traceability and compliance record keeping
• Loads rolls up to 152 mm (6 in) outer diameter on a fixed hanger to extend runs between media changes

Key Specifications

• Print Method: Thermal transfer at 203 dpi (8 dots/mm)
• Print Speed: 50 to 350 mm/s (2 to 14 ips) at 203 dpi
• Print Area: Up to 108 mm (4.25 in) wide; maximum print length 4.8 m

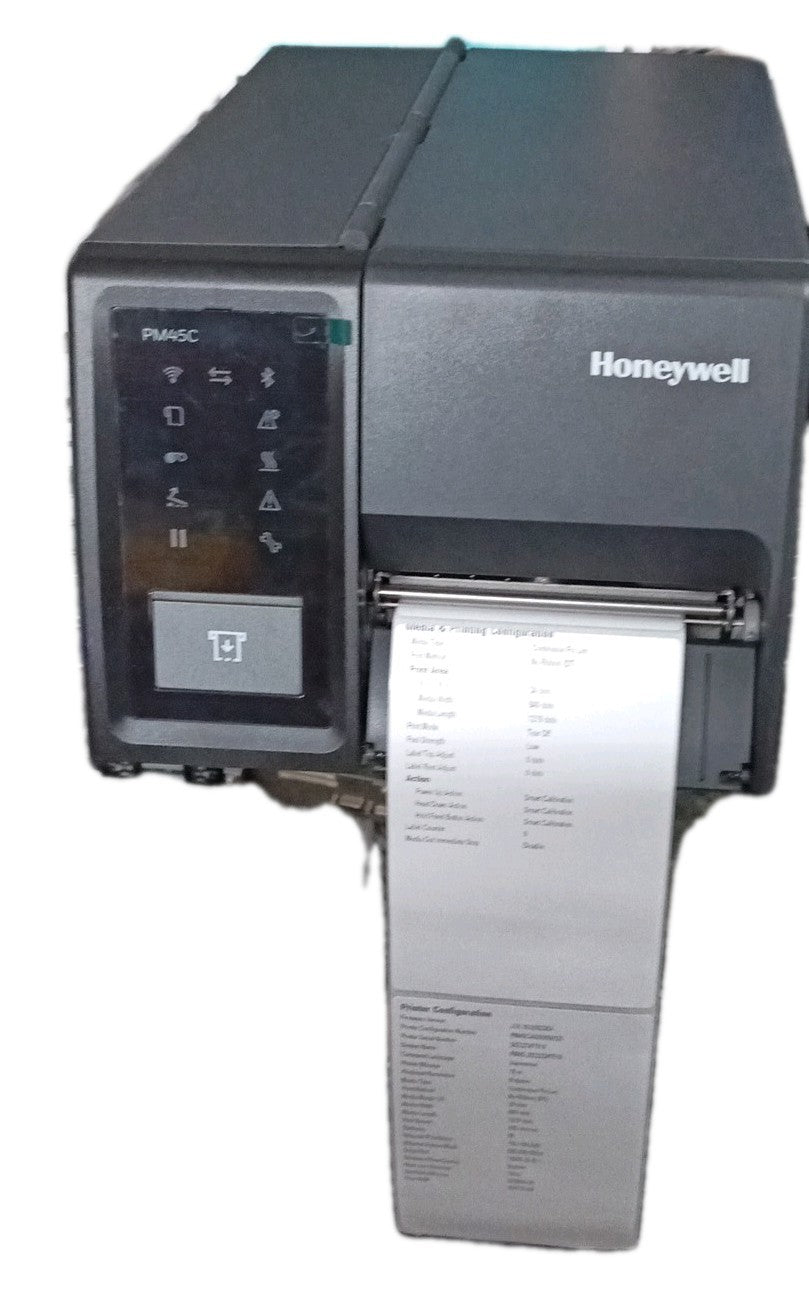

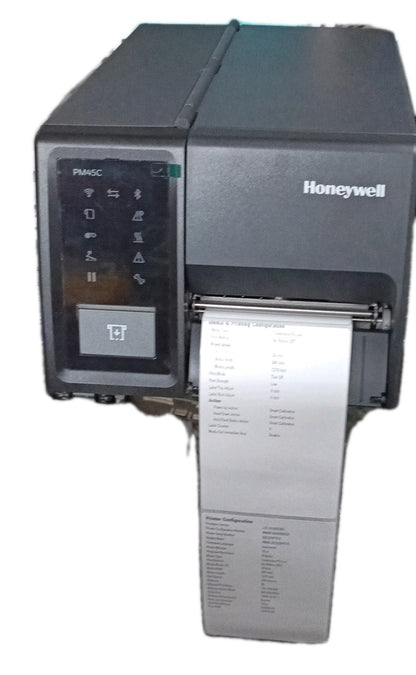

• User Interface: Icon UI LED status panel with a single Print button; no display screen
• Standard Interfaces: Ethernet 10/100 Mbps, USB 2.0 host, USB 2.0 device, RS-232 DB9F to 115.2 kB/s
• Memory: 512 MB flash with 256 MB user partition, plus 256 MB SDRAM
• Printer Languages: Fingerprint, Direct Protocol, IPL, ZSim2 (ZPL-II), DPL and XML
• Media Handling: Tear-off with fixed hanger and long door; 152 mm (6 in) maximum roll diameter
• Media Size: 19 to 114 mm (0.75 to 4.5 in) width; 38 to 76 mm (1.5 to 3 in) core ID
• Ribbon: Up to 229 m (751 ft) on a 25 mm (1 in) core; 61 mm maximum roll diameter
• Operating Environment: +5°C to +40°C operating, -20°C to +70°C storage
• Dimensions and Weight: 432 x 181 x 253 mm (17.0 x 7.1 x 10.0 in); 12.6 kg (27.7 lb)

Compact Industrial Platform

The Honeywell PM45CA0000000200 is a four-inch compact industrial label printer built on the PM45c platform for production and distribution environments where floor space is limited but duty cycles are not. Measuring 432 x 181 x 253 mm and weighing 12.6 kg, it occupies a narrow footprint on a bench, cart or packing station while retaining the metal print mechanism and media path of a full industrial printer. This particular configuration pairs thermal transfer printing at 203 dpi with the Icon UI front panel, a long media door and a fixed media hanger, producing a straightforward network-attached workhorse for teams that print continuously and value predictable, repeatable output across every shift.

In The Box

This configuration ships as the printer itself with the Icon UI front panel, a long media door and a fixed media hanger. Connectivity is wired only: an Ethernet port, USB 2.0 host and device ports and a DB9F RS-232 serial port rated to 115.2 kB/s, together with a real-time clock. An AC power cord is NOT included and must be ordered separately as Honeywell part number 130063. Wi-Fi and Bluetooth radios are not fitted, and no parallel, industrial, applicator or RFID interface board is installed. There is no rewinder, no label taken sensor and no cutter in this build; printed media is presented in tear-off mode.

Print Performance

Printing is thermal transfer at 203 dpi, or 8 dots per millimeter, across a maximum print width of 108 mm (4.25 in) and a maximum print length of 4.8 m. Throughput runs from 50 to 350 mm/s, equivalent to 2 to 14 inches per second, so batch runs of shipping labels, cartons and work-in-process tags clear quickly. Print registration is held to +/-0.5 mm, which matters when small component labels, pharmaceutical marks or dense two-dimensional codes must sit precisely inside a defined print area. Onboard resources include 512 MB of flash memory with a 256 MB user partition and 256 MB of SDRAM for fonts, graphics and stored label formats.

Smart Parse Labeling

Honeywell Smart Parse is embedded in the printer and lets incoming data streams be reformatted into finished labels without changes to the host or backend application, so a new customer requirement or regulatory mark can be accommodated without a software project. The printer also runs Fingerprint, Direct Protocol, Intermec Printer Language, ZSim2 (ZPL-II), DPL and XML, so formats written for legacy Honeywell, Intermec or competitive printers can often be redirected without being rewritten. All major one-dimensional and two-dimensional symbologies are supported, alongside a Monotype font engine and PCX, PNG, GIF and BMP graphics handling.

Built For Duty

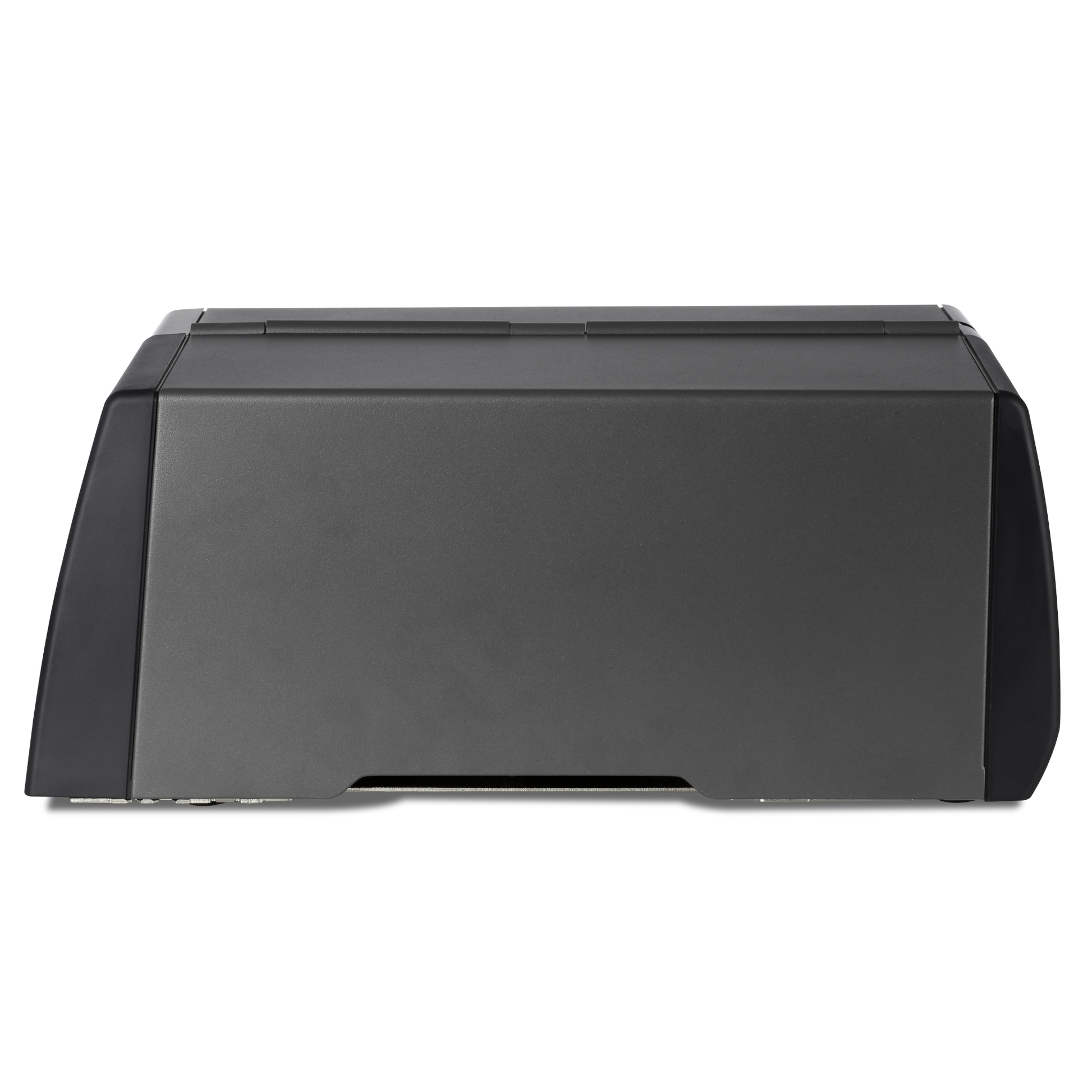

The PM45c uses a rugged all-metal print mechanism designed for sustained industrial operation, and tool-free platen roller replacement keeps routine maintenance inside a normal shift change rather than a service call. The long media door encloses rolls up to 152 mm (6 in) in outer diameter on cores of 38 to 76 mm, protecting stock from dust and handling damage. Media from 19 to 114 mm wide is supported, and ribbons up to 229 m on a 25 mm core cover wax, mid-range and resin formulations. Rated operation spans +5°C to +40°C at 20 to 85 percent relative humidity, non-condensing, with storage from -20°C to +70°C.

Deployment And Management

Deployment is straightforward on a wired network: the printer supports IPv4 and IPv6 addressing and defaults to DHCP, with static addressing available where fixed IPs are policy. Configuration and firmware are handled through the printer web page over HTTPS, through the Honeywell printer web page on a workstation, or through PrintSet MC on Android and Apple iOS devices. For larger estates, Honeywell Operational Intelligence and SOTI Connect provide remote monitoring, diagnostics and performance reporting across printer fleets. Label design work is supported by common third-party packages including BarTender, NiceLabel and Teklynx LabelView. The unit carries a one year factory warranty.

Where It Deploys

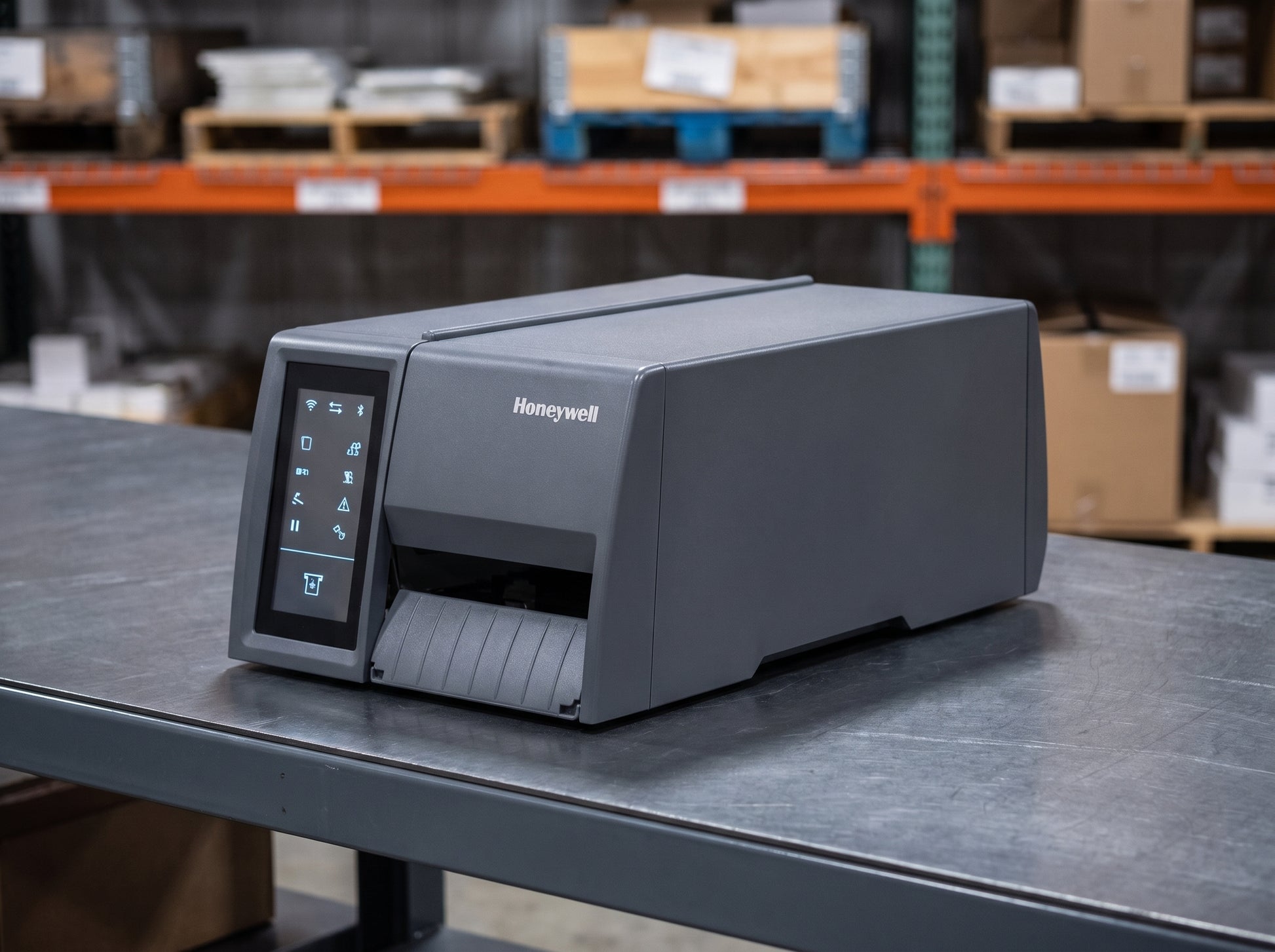

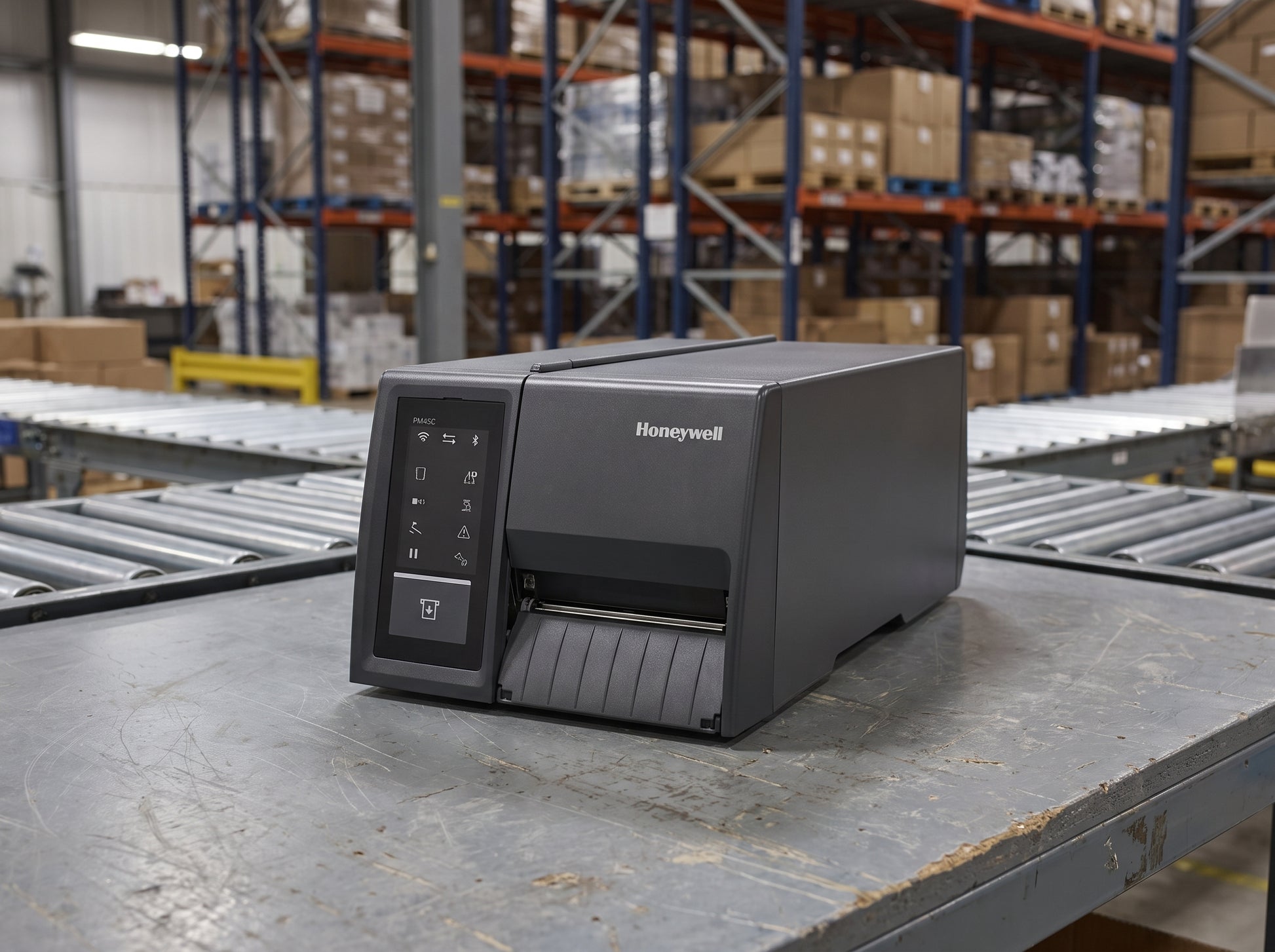

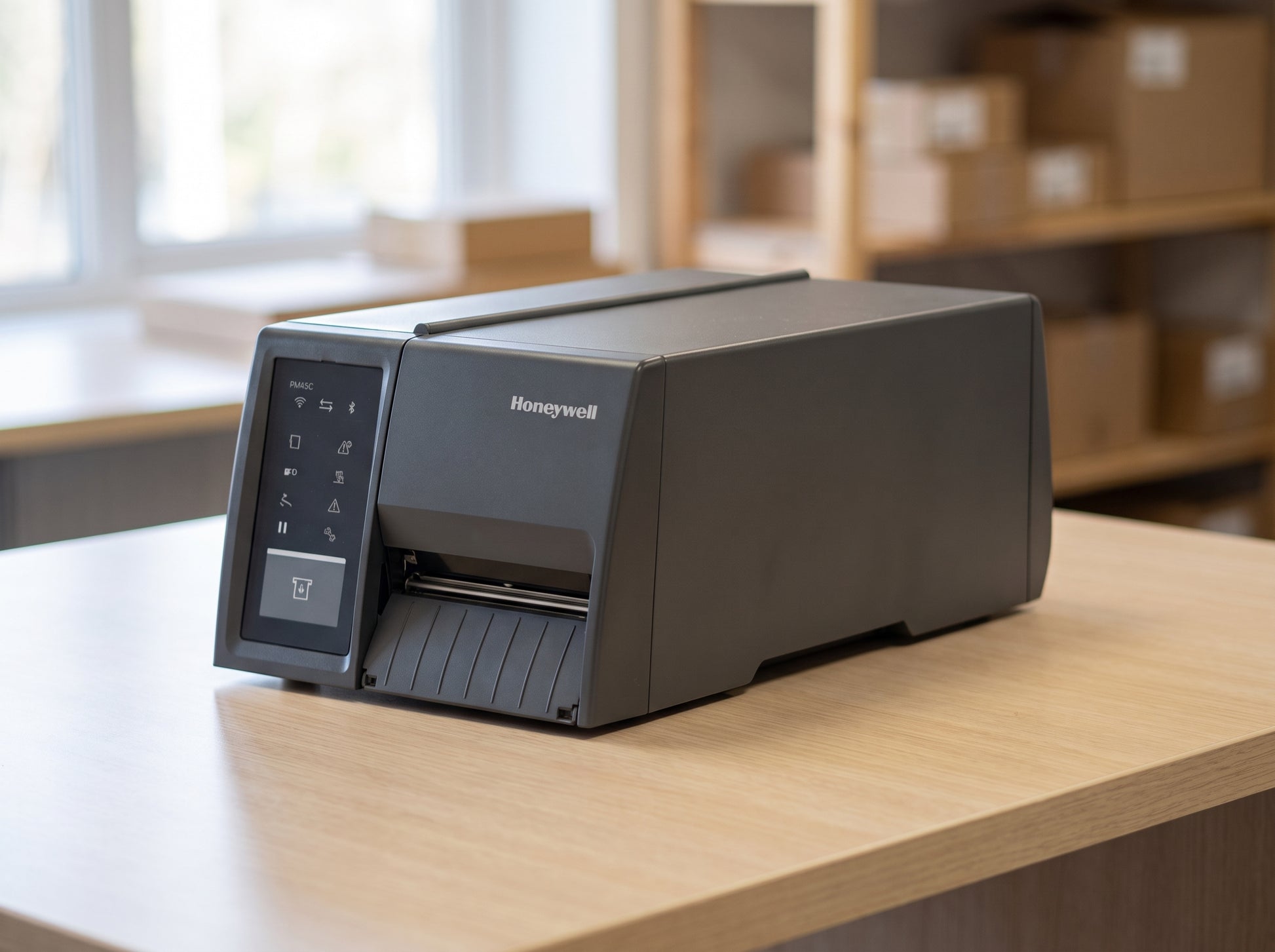

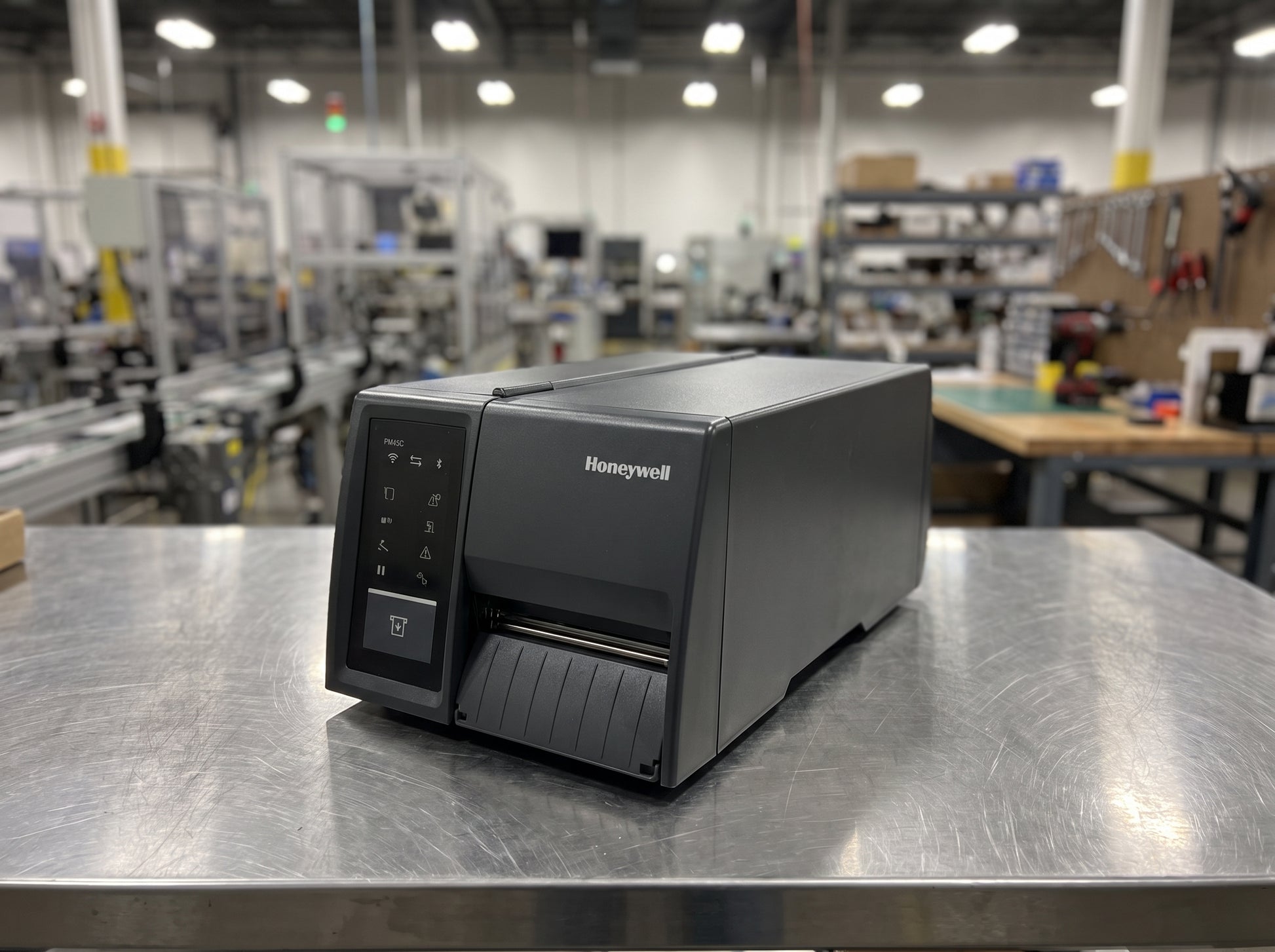

Typical deployments include manufacturing workcells, warehouse and distribution center pack stations, third-party logistics operations, food and beverage production, healthcare and laboratory labeling, and retail back-of-house replenishment. The compact footprint suits print-and-apply staging areas, quality control benches and receiving desks where a full-size industrial printer will not fit. Because this build is Ethernet-only with no radio fitted, it suits sites that standardize on wired connections for security or reliability reasons. Operations printing shipping labels, compliance marks, work-in-process tags and asset labels at volume are the natural fit for this configuration.
