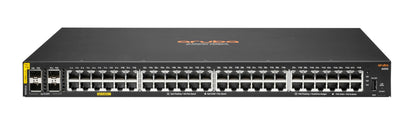

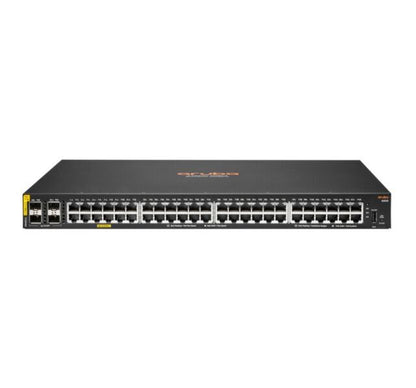

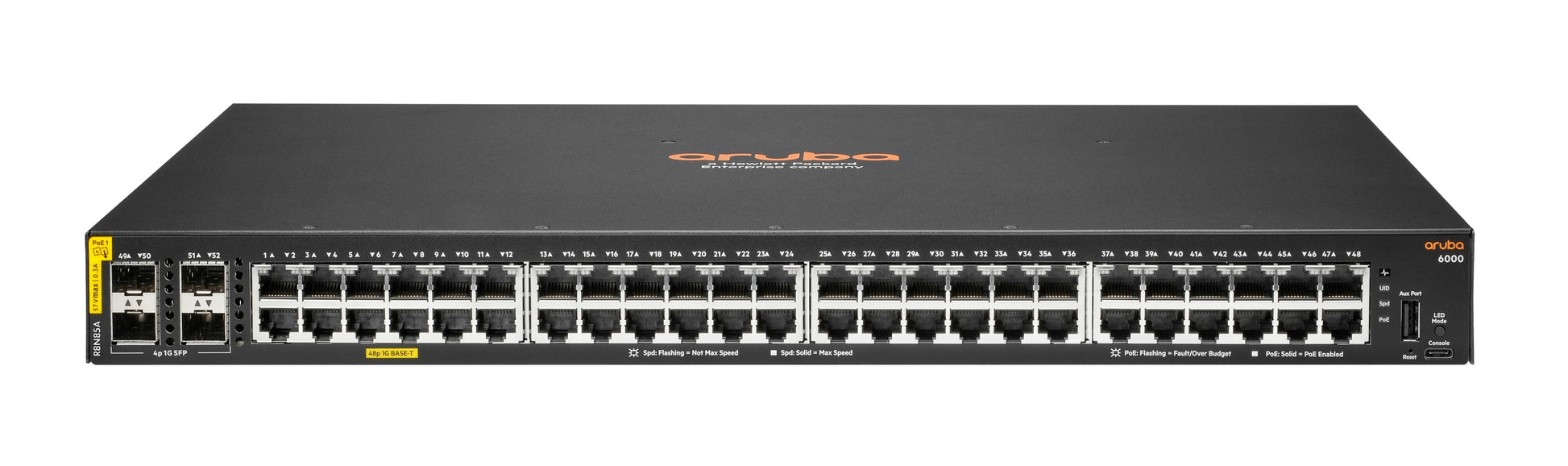

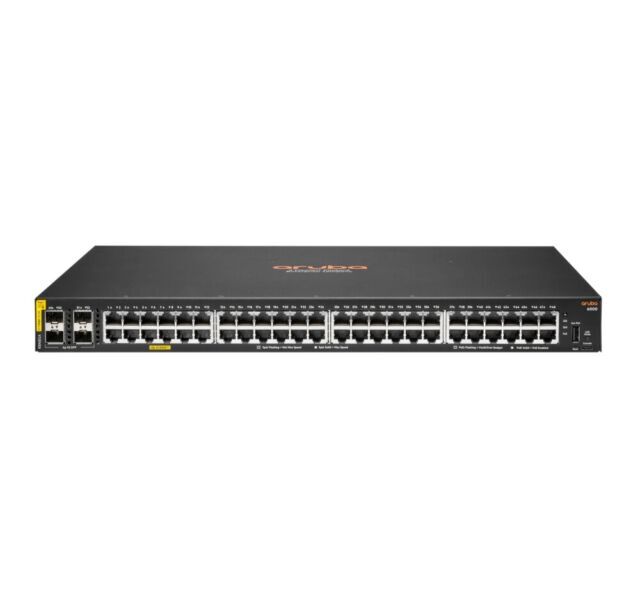

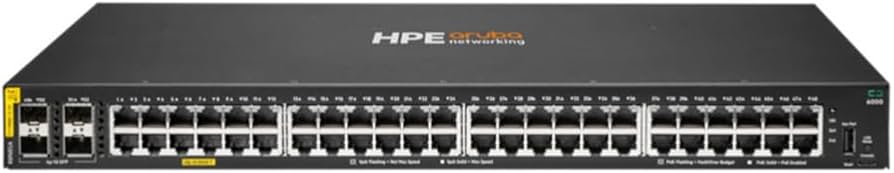

Aruba HPE 6000 48G PoE+ Access Switch 370W R8N85A#ABA

Key Features

• Full Gigabit PoE+ Access Switch: 48 Gigabit ports with Class 4 PoE support — ideal for VoIP phones, wireless access points, security cameras, and other powered devices.
• High PoE Power Budget: 370 W PoE power budget supports multiple high-power endpoints simultaneously.
• Flexible Uplink & Fiber Support: Includes 4 SFP uplink ports for fiber or uplink connections, enabling flexible network topology and uplink reach.
• Robust Performance: 104 Gbps non-blocking bandwidth and 77.3 Mpps packet forwarding ensure high throughput for data-intensive networks.
• Enterprise-Grade Switching Features: Full managed-switch capabilities — VLANs, QoS, static routing, ACLs, link aggregation (LACP), IPv6 support, and more.
• Compact, Rack-Mountable Design: 1U chassis with standard rack mounting fits neatly into server racks or network closets.
• Efficient Power & Cooling: Internal power supply and side-to-side airflow allow for quiet, organized deployment without external power bricks or bulky PSUs.
• Easy Deployment & Management: USB console port and modern software enable straightforward configuration and integration into existing network infrastructure.

Key Specifications

• Ports: 48 x 10/100/1000BASE-T, 4 x 1G SFP uplink ports.
• PoE Capability: 370W Class 4 PoE/PoE+, up to 30W per port.
• Switching Capacity: 104 Gbps non-blocking capacity for optimal data flow.
• Throughput: 77.3 Mpps packet forwarding rate enhances data handling efficiency.
• Latency: Approximately 1.9 μSec at 1 Gbps for quick response times.
• Processor: Dual Core ARM Cortex A9 @ 1016 MHz drives superior performance.
• Memory: 8 GB DDR3 RAM allows efficient operations and resource management.
• Storage: 16 GB eMMC for firmware and configuration data.
• Power Supply: Internal, 100-240 V AC input, simplifying cabling for deployment.
• Max Power Consumption: 45W without PoE load; 480W with PoE support.
• Dimensions: 1.73 x 17.4 x 12.0 inches ideal for rack-mount installations.
• Weight: 11.07 lbs, making it manageable for installations.

Managed Ethernet Switch

The HPE Aruba 6000 48G Class4 PoE 4SFP 370W Switch is engineered as an entry-level Layer 2 managed switch optimized for performance and ease of use in diverse environments. Its 48 Gigabit RJ-45 PoE+ ports and four SFP uplink ports allow seamless connections for multiple devices like IP phones and wireless access points, ensuring simplified management and maintenance of network operations.

Powerful PoE Capabilities

With a 370 W total PoE budget, the switch effectively supports numerous Power-over-Ethernet devices, making it an essential component for modern IoT deployments, primarily in branch office setups and small to medium-sized businesses. This capacity enables simultaneous operation of high-demand devices while maintaining system integrity and efficiency.

Performance and Flexibility

Designed for maximum efficiency, the switch offers a non-blocking switching capacity of 104 Gbps, complemented by a packet forwarding rate of 77.3 Mpps. These performance metrics cater to bandwidth-heavy applications and ensure that data flows without interruption, thanks to low latency rates of approximately 1.9 µs at 1 Gbps, making it ideal for dynamic environments.

Compact Design

The Aruba R8N85A#ABA also features a compact 1U rack-mountable design with a fanless form factor, contributing to a quieter operation. This design allows it to fit comfortably into server racks while maintaining proper airflow to prevent overheating during prolonged operation. Its energy-efficient design further enhances deployment in office spaces where noise and clutter management are priorities.

Advanced Networking Features

This managed switch excels with its comprehensive suite of Layer 2 capabilities encompassing static routing, Quality of Service (QoS), Access Control Lists (ACLs), and enhanced security features. These functionalities are vital for providing administrators with granular control over traffic management and network segmentation, improving overall network performance and security posture.

Summative Benefits

The Aruba R8N85A#ABA serves as a reliable and effective solution for businesses looking to enhance their network infrastructure with an emphasis on growth, scalability, and efficiency. It is particularly beneficial for environments that depend on a mix of powered devices and robust data services, making it a strategic investment for future-focused organizations. Contact us to learn more or secure this solution for your business today.
