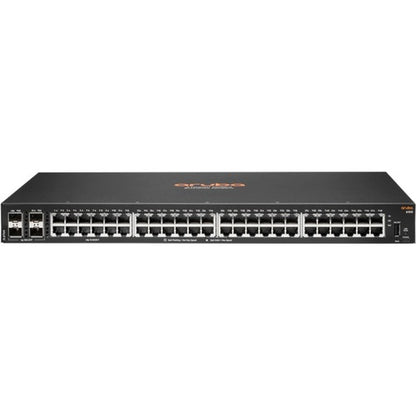

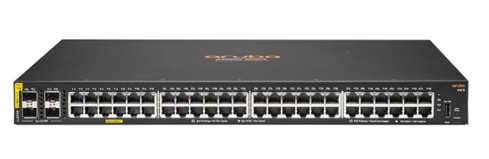

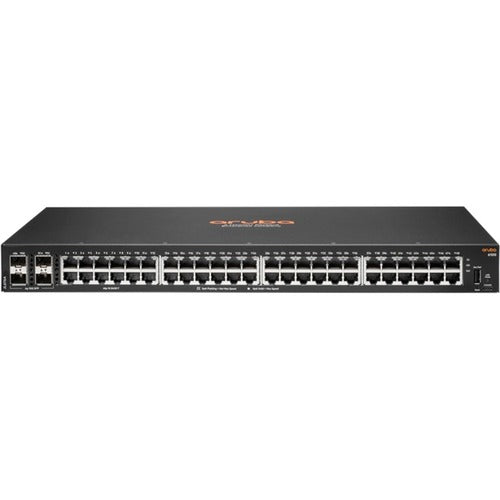

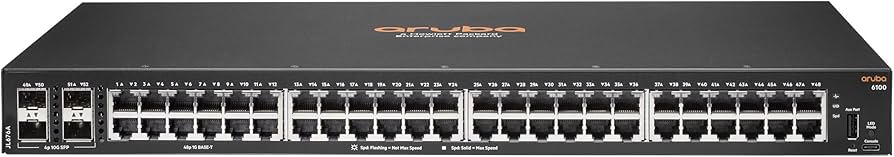

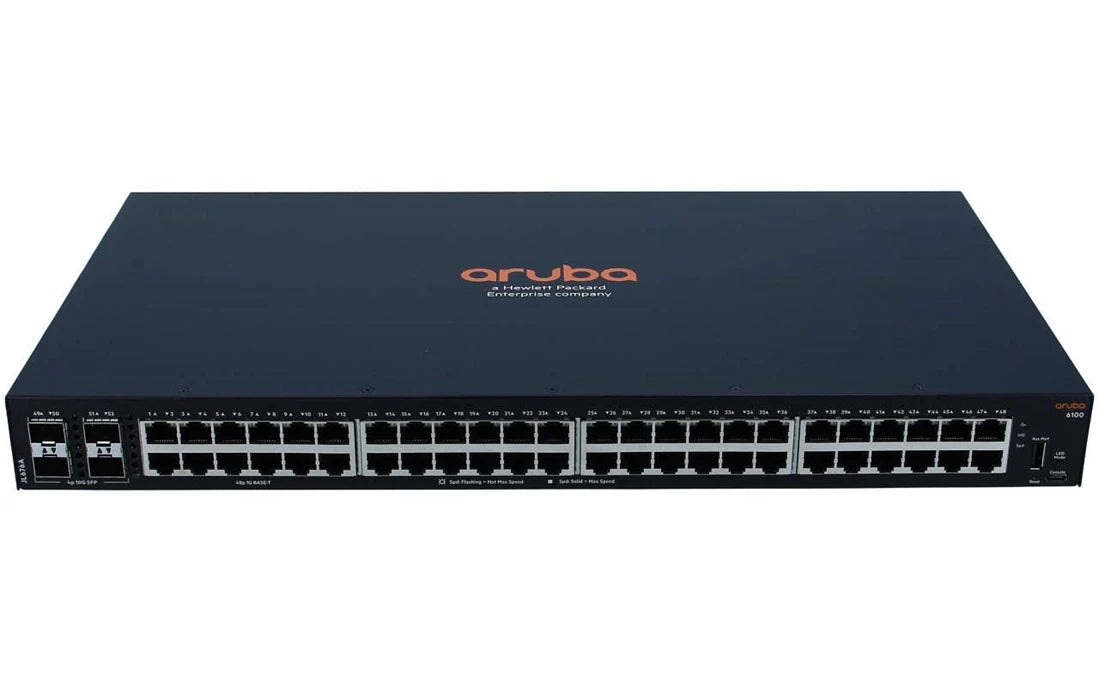

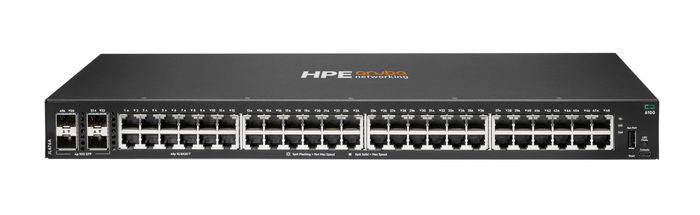

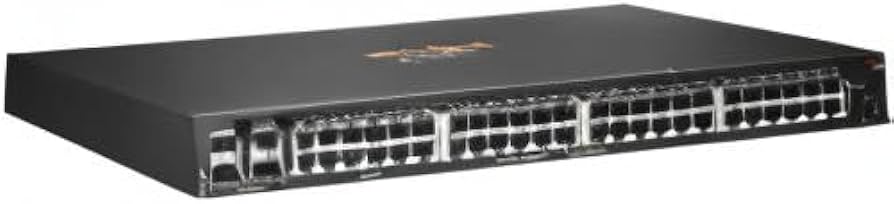

HPE Aruba 6100 48G 4 SFP+ Managed Switch JL676A#ABA

HPE Aruba 6100 48G 4 SFP+ Managed Switch JL676A#ABA

SKU: JL676A#ABA

UPC: 190017348216

Condition: Brand New, Factory Sealed

Authentic: Guaranteed 100% Genuine Aruba Product

Fulfillment: Ships Same Business Day (Cutoff 3PM ET)

Warehouse: Ships from U.S. Warehouse

Shipping: Free UPS Ground Shipping

Returns: 30-Day Hassle-Free Returns

Support: U.S. Based Pre & Post-Sales Support

Low stock: 2 left

$1,759.99 USD
$4,804.99 USD $1,759.99 USD
Sale Sold out
Shipping calculated at checkout.

Key Features

  • Managed stackable Layer 2/3 switch with 52 total ports for enhanced network scalability and control.
  • Includes 48 10/100/1000Base-T Ethernet ports and 4 1/10GbE SFP+ uplink ports for high-speed connectivity.
  • Offers robust Quality of Service (QoS), IPv6 support, and static routing to optimize network performance and flexibility.
  • Compact 1U rack-mountable design with side-to-side airflow ensures efficient cooling in data centers.
  • No additional software licensing required, reducing ongoing network management costs.
  • Supports advanced security with MAC, IPv4, and IPv6 ACL entries for granular traffic control.
  • Energy-efficient Ethernet features enable adaptive power consumption to reduce operational expenses.
  • Flexible management interfaces including Web GUI, CLI, and HPE Aruba Networking Central for versatile administration.
  • Integrated built-in ASIC reduces latency and increases packet buffering for demanding applications.
  • Compliance with multiple IEEE standards ensures interoperability and industry compatibility.
  • Supports multiple routing protocols and network management tools such as Sflow, MSTP, LACP, LLDP, DHCP Client, NAC, and SNMP.
  • Equipped with 4 GB DDR3 SDRAM and 16 GB flash memory for reliable performance and storage capacity.

    • Key Specifications

  • Device Type: Managed stackable switch with 52 ports total.
  • Ports: 48 x 10/100/1000Base-T RJ-45 and 4 x 1/10 Gbit SFP+ uplinks.
  • Switching Capacity: 176 Gbps for high throughput.
  • Throughput: 98.6 million packets per second (Mpps) for efficient data handling.
  • Latency: 1.9 μs at 1 Gbps and 1.8 μs at 10 Gbps for minimal delays.
  • Memory: 4 GB DDR3 SDRAM and 16 GB flash memory.
  • Processor: ARM A9 1.016 GHz for robust processing power.
  • Power Consumption: 20.6 watts typical with internal 65W power supply.
  • Enclosure: 1U rack-mountable with side-to-side airflow design.
  • Security: Supports MAC, IPv4, IPv6 ACLs and encryption via SSL, SSH v.2, RADIUS, TACACS+.
  • Network Capacity: 16 VLAN interfaces, 1024 ARP entries, and 512 IPv4/IPv6 unicast routes.
  • Standards Compliance: IEEE 802.3, 802.1D, 802.1Q, 802.3AB, 802.1P, 802.3X, 802.3AD, 802.1W, 802.1S, and 802.3AZ.

    • Overview

    The HPE Aruba 6100 48G 4SFP+ Managed Switch (JL676A#ABA) is engineered to deliver reliable and secure wired network access, tailored for branch offices, mid-market enterprises, and SMBs. It integrates 48 Gigabit Ethernet ports with 4 SFP+ uplinks providing high-speed connectivity essential for modern IoT, mobile, and cloud-driven environments. Designed as part of the HPE Aruba Networking CX portfolio, this switch streamlines infrastructure growth with stackability and easy integration capabilities.

    Performance & Efficiency

    This switch facilitates seamless data transfer with a switching capacity of 176 Gbps and throughput nearing 98.6 million packets per second. Low latency values at both 1 Gbps (1.9 μs) and 10 Gbps (1.8 μs) support performance-demanding applications by minimizing transmission delays. Built-in ASIC technology enhances packet buffering and dynamically adjusts power consumption, making the device energy efficient while maintaining operational effectiveness.

    Security & Management

    Comprehensive security measures include robust MAC, IPv4, and IPv6 access control lists, encrypted management sessions via SSL and SSH, plus support for RADIUS and TACACS+ authentication. Network administrators benefit from multi-modal management options such as Web GUI, CLI, and centralized control through HPE Aruba Networking Central. These features collectively simplify network upkeep and policy enforcement.

    Scalability & Network Support

    Supporting up to 16 VLANs, 1024 ARP entries, and 512 unicast IPv4/IPv6 routes, the switch accommodates complex network topologies and segmentation. Protocol support encompasses IGMPv2/v3, MSTP, LACP, LLDP, DHCP Client, and NAC, enhancing adaptability to diverse network environments. Its stackable architecture ensures smooth capacity expansion without altering existing setups.

    Hardware Design

    The JL676A#ABA incorporates an efficient side-to-side airflow within a standard 1U rack-mountable enclosure, facilitating optimal thermal performance in dense equipment racks. Powered by an ARM A9 processor clocked at 1.016 GHz and complemented by 4 GB DDR3 SDRAM plus 16 GB flash memory, it sustains high throughput and reserves ample resources for firmware and configuration storage. The internal 65W power supply supports a low typical consumption of 20.6 watts, reducing energy demands.

    Industry Compliance

    Designed to adhere to key IEEE standards including 802.3, 802.1D, 802.1Q, 802.3AB, 802.1P, 802.3X, 802.3AD (LACP), 802.1W, 802.1S, and 802.3AZ, the switch guarantees interoperability and standardized network practices. This compliance ensures consistent performance and compatibility within multi-vendor infrastructure.

    For organizations seeking a scalable, secure, and energy-conscious managed switch with robust throughput and modern protocol support, the HPE Aruba 6100 48G 4SFP+ Managed Switch (JL676A#ABA) represents a strategic investment. Contact us to learn more or secure this solution for your business today.
