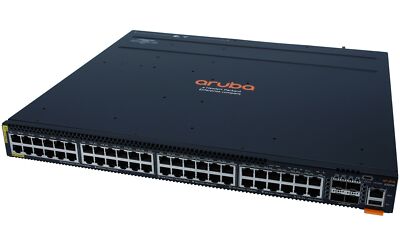

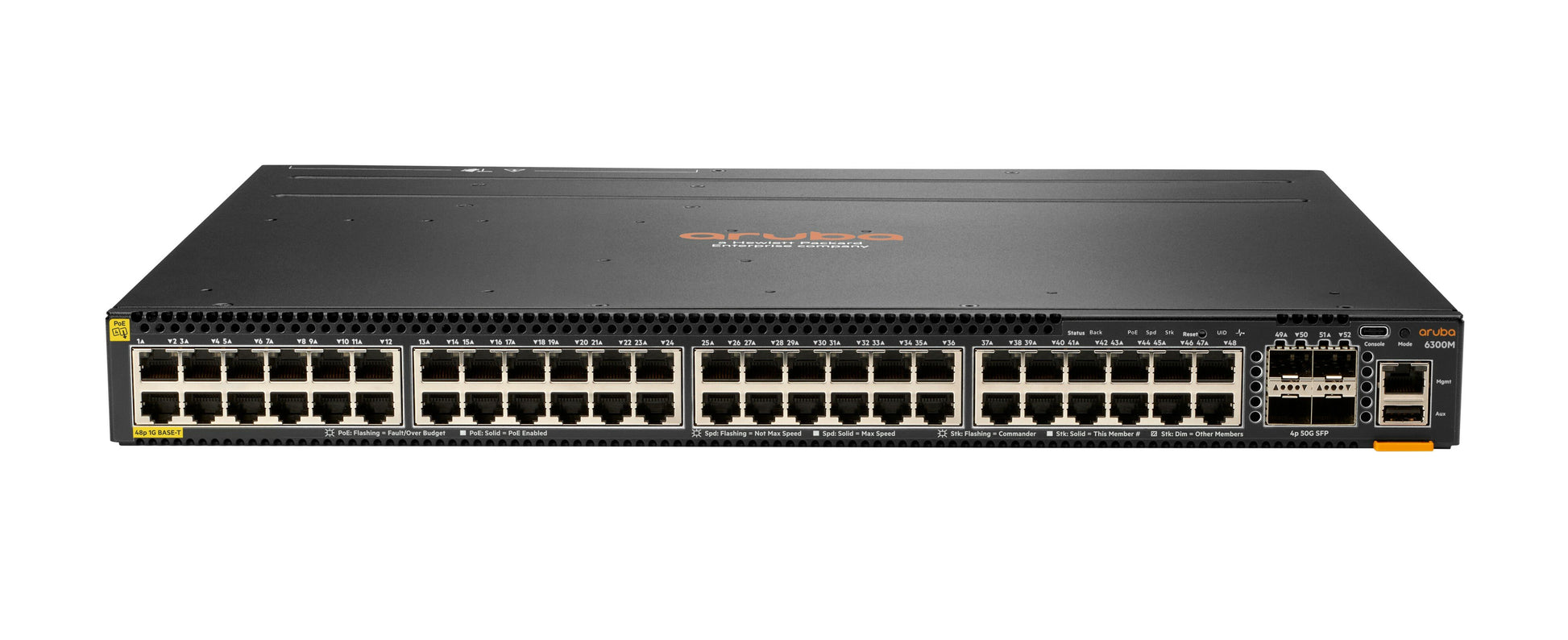

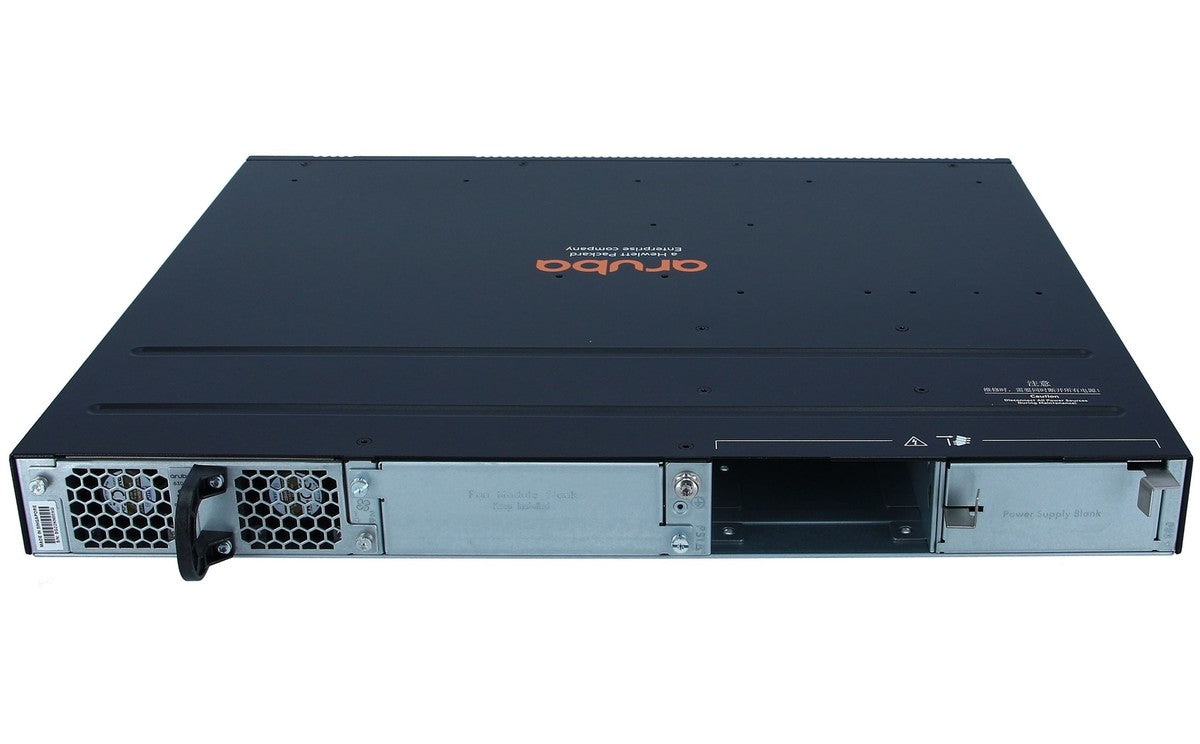

Aruba CX 6300M 48-Port 1GbE PoE+ Managed Switch JL661A

Key Features

• 48 ports of 1GbE Class 4 PoE+ providing robust connectivity for various devices.
• Four SFP56 uplink ports enable flexible stacking options and high-speed networking.
• Up to 1440W PoE budget allows for high-performance powering of devices.
• Switching capacity of 496 Gbps ensures efficient data management across your network.
• Support for VLAN, link aggregation, and spanning tree promotes advanced networking capabilities.
• Aruba Network Analytics Engine enhances monitoring and troubleshooting for improved operations.
• Cloud-centric operation supports automation and integration with existing networking setups.
• Dual power supply support and modular fans enhance redundancy and system resilience.

Key Specifications

• Ethernet Ports: 48x 1GbE Class 4 PoE+ RJ45 ports.
• Uplink Ports: 4x SFP56 (1/10/25/50GbE) for high-speed stacking.
• PoE Budget: 1440W, enabling up to 24 ports at 60W each (802.3bt).
• Switching Capacity: 496 Gbps, optimizing data throughput.
• Forwarding Rate: 369 Mpps for high-performance packet forwarding.
• MAC Address Table: Supports up to 32,768 entries, ensuring scalability.
• Rackmount Dimensions: 1.73 in x 17.4 in x 15.2 in (44 x 442 x 385 mm).
• Weight: 11.4 lbs (5.16 kg) for a manageable installation.

High-Performance Networking

The HPE Aruba CX 6300M switch, designated JL661A, is engineered for high-performance scenarios in enterprise access and aggregation. It features a robust design that supports both cloud-centric management and extensive automation capabilities aimed at optimizing network operations. This switch is ideal for demanding environments, offering high-density PoE capabilities to power access points and IoT devices directly from the network.

Advanced Functionality

This managed Layer 3 switch integrates advanced features such as dynamic segmentation and role-based access policies, enhancing security across different user segments. With the incorporation of the Aruba Network Analytics Engine, IT professionals can benefit from superior insights into network performance, making monitoring and troubleshooting more efficient. Its automation supports various formats, including CLI, Python, and REST API integration, facilitating seamless interactions with existing IT workflows.

Scalability and Flexibility

The switch supports stacking configurations of up to 10 units, which allows organizations to expand their network capability as needs grow. Stacking throughput reaches up to 200 Gbps, ensuring that bandwidth demands are met even in expanding environments. This flexibility is complemented by dual power supply slots, allowing for enhanced redundancy and uptime.

Deployment and Management

Designed for ease of deployment, the JL661A supports multiple power supply options, ensuring organizations can select suitable power solutions for their needs. Its cloud-centric programmable operating system also streamlines updates and maintenance, offering businesses the agility required for rapid digital transformation. Efficient air flows are maintained through front-to-back fan trays, enhancing thermal management in various rack configurations.

Comprehensive Compatibility

The HPE Aruba CX 6300M switch is fully compatible with a variety of HPE Aruba transceivers and accessories, ensuring organizations can deploy a tailored solution that fits their existing infrastructure. It supports integration into a broader ecosystem of Aruba devices, which helps in maintaining a unified network structure that optimizes performance and security across the board.

Conclusion

This 48-port managed switch is a paramount choice for businesses seeking reliable and scalable network solutions. Its features meet the demands of modern enterprises with capabilities such as high-speed uplinks and extensive power distributions. Contact us to learn more or secure this solution for your business today.
