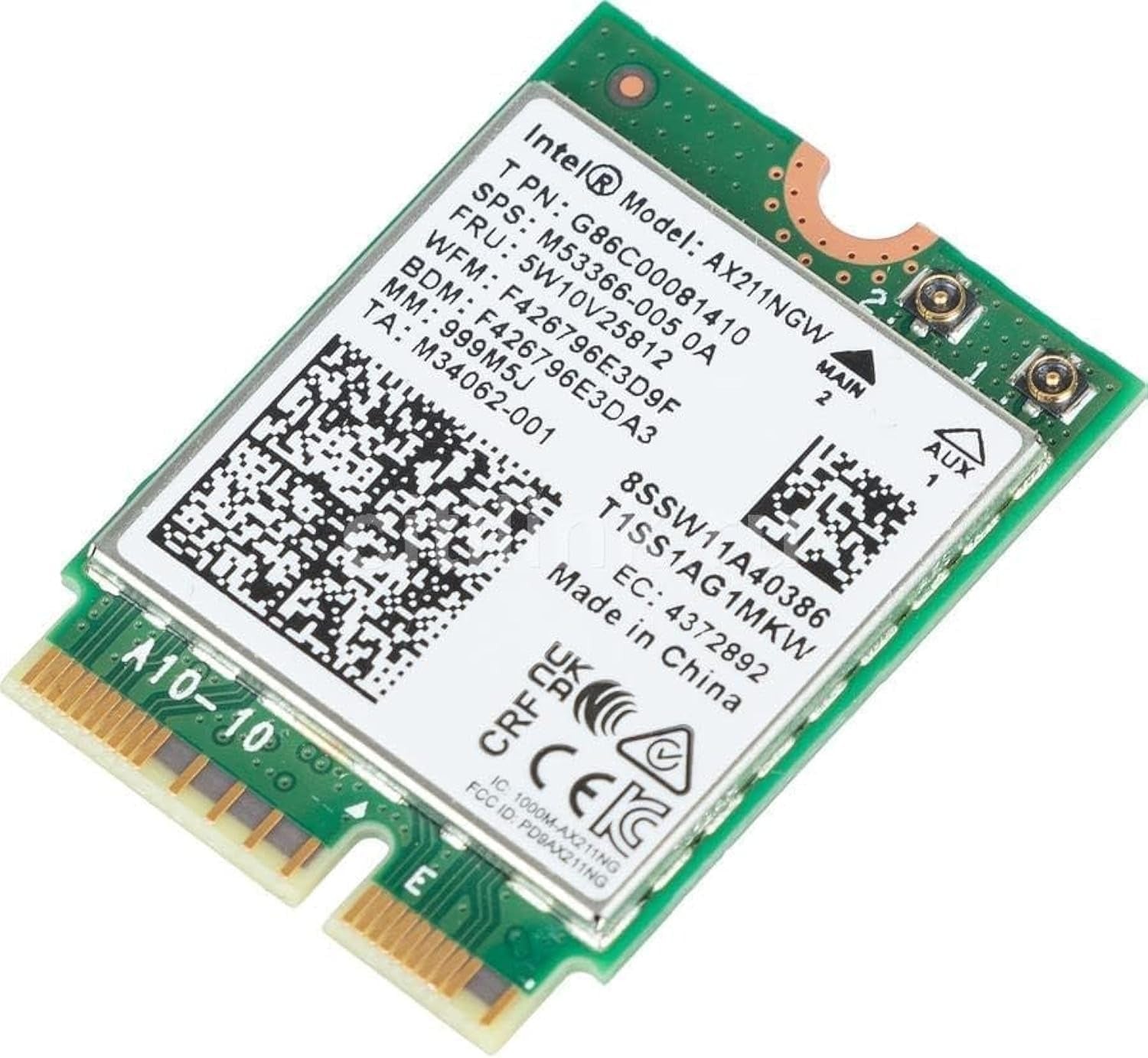

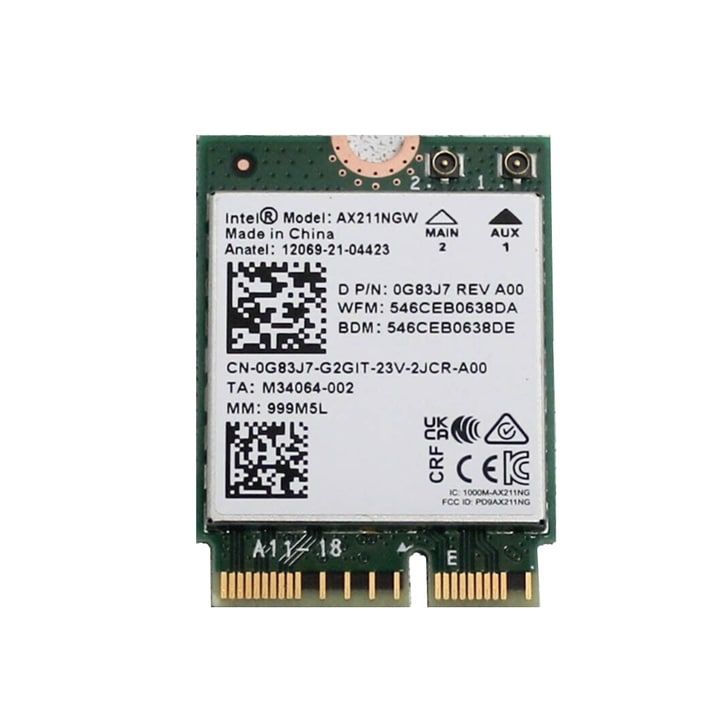

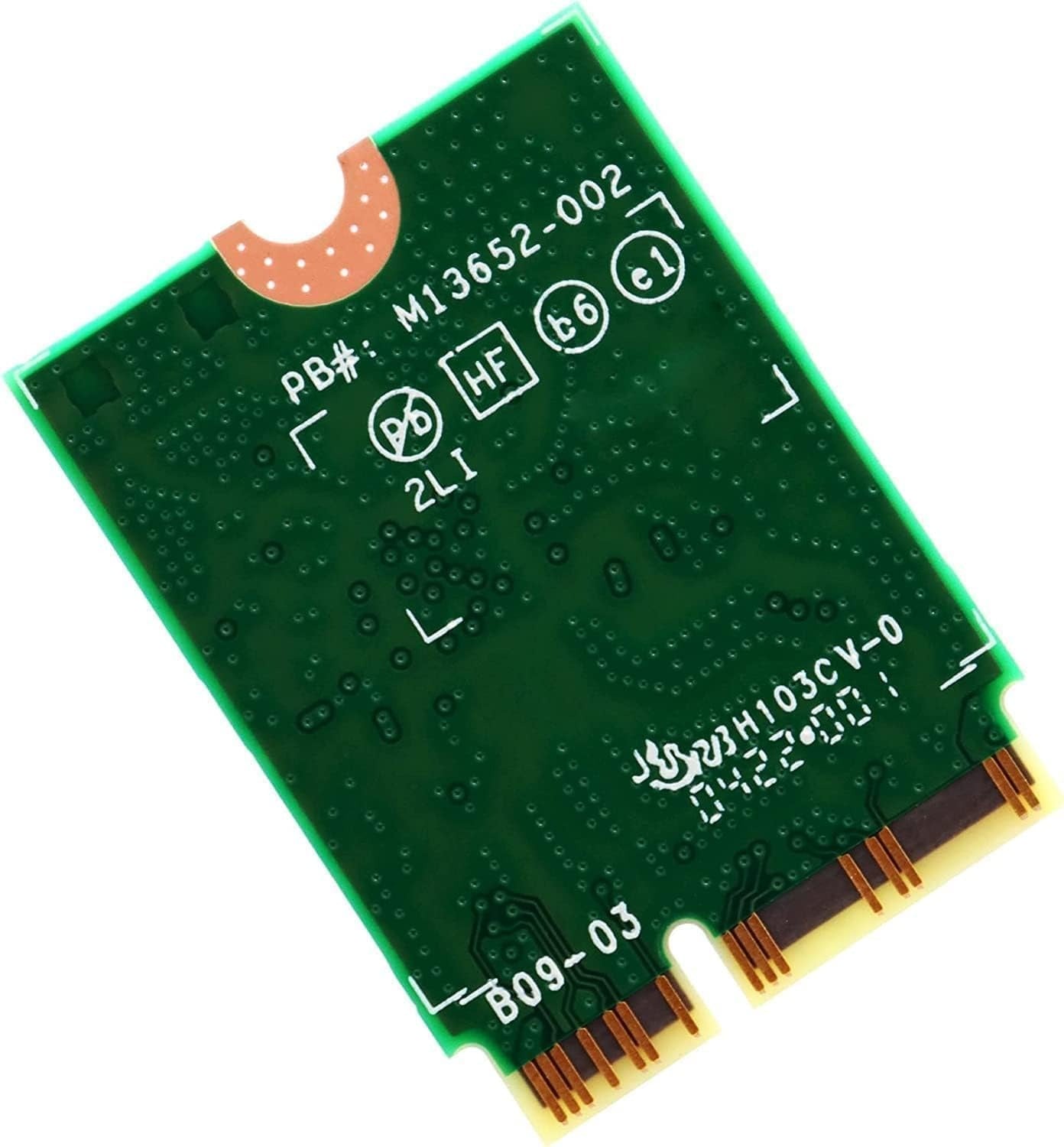

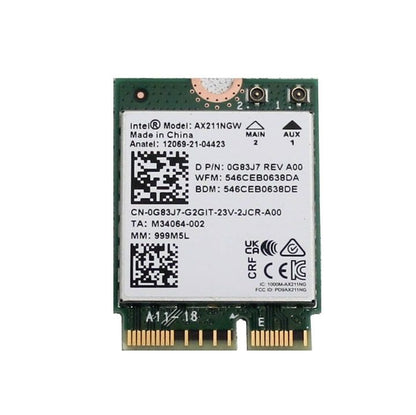

Dell Optiplex Intel AX211 Wi-Fi 6E Bluetooth 5.3 Wireless Card G83J7

Name: Dell Optiplex Intel AX211 Wi-Fi 6E Bluetooth 5.3 Wireless Card G83J7
Brand: Dell
SKU: G83J7
Price: 19.99 USD
Availability: InStock

SKU: G83J7

UPC: 754063783751

Condition: New

Availability: Usually Ships Same Business Day

Shipping: Calculated at Checkout

Warranty: 1 Year Manufacturer Warranty

20 in stock

$19.99 USD

Sale Sold out

Shipping calculated at checkout.

100% Authentic
30 Day Easy Return Process
30 Day Free Product Support

Quantity

Key Features

Tri-band Wi-Fi 6E operation across 2.4 GHz, 5 GHz, and 6 GHz frequency bands for expanded wireless spectrum.

2x2 MU-MIMO technology enables simultaneous data streams for improved network efficiency and throughput.

Supports channel widths up to 160 MHz, facilitating aggregate data rates up to 2.4 Gbps.

Integrated Bluetooth 5.3 provides enhanced device connectivity with lower power consumption.

Compact M.2 2230 A/E-key form factor suitable for slim desktops and laptops with CNVio2 interfaces.

Backward compatible with previous Wi-Fi standards (802.11a/b/g/n/ac) and Bluetooth versions for versatile device support.

Advanced security protocols including WPA3, WPA2, and 802.1X ensure robust network protection.

Operates efficiently within temperature range of 0°C to 80°C, appropriate for various environments.

Includes two MHF4 antenna connectors for reliable external antenna attachment to optimize signal strength.

Compatible with Windows 10/11 64-bit, Linux, and Chrome OS, enhancing cross-platform usability.

FIPS and FISMA compliance supports use in regulated enterprise settings requiring established security standards.

Low-power design improves battery life in portable applications while maintaining high wireless performance.

Key Specifications

Model: Intel Wi-Fi 6E AX211 (AX211NGW)

Form Factor: M.2 2230 (22 x 30 mm), A/E-key

Interface: Intel CNVio2 requiring compatible Intel platforms

Wireless Standards: IEEE 802.11ax (Wi-Fi 6/6E), 802.11ac/n/a/b/g

Frequency Bands: 2.4 GHz, 5 GHz, 6 GHz (region dependent)

Spatial Streams: 2x2 MU-MIMO

Channel Width: Up to 160 MHz

Maximum PHY Rate: Up to 2.4 Gbps

Bluetooth Version: 5.3

Antenna Connections: 2 x MHF4 jacks (MAIN/AUX)

Operating Systems: Windows 10/11 64-bit, Linux with Intel AX2xx drivers, Chrome OS

Operating Temperature: 0°C to 80°C

Functionality Overview

The Dell Optiplex Intel AX211 wireless card provides cutting-edge wireless connectivity with Wi-Fi 6E technology, delivering tri-band operation on 2.4 GHz, 5 GHz, and 6 GHz bands to increase throughput and reduce congestion. Designed specifically for systems equipped with Intel CNVio2 interfaces, it supports simultaneous dual spatial streams via 2x2 MU-MIMO, enhancing data transmission efficiency in dense network environments.

Intended Use Cases

This module targets modern desktop and laptop upgrades demanding high-speed wireless networking for applications such as enterprise conferencing, large file transfers, video streaming, and cloud computing. Its broad compatibility with Intel 11th-generation and newer platforms along with select Dell Optiplex models ensures seamless integration into business infrastructure.

Performance Benefits

Equipped with a 160 MHz wide channel and a maximum data rate of 2.4 Gbps, the AX211 supports low-latency, high-throughput communication ideal for demanding office networks. Integrated Bluetooth 5.3 further enables efficient peripheral connectivity requiring minimal power consumption, improving system responsiveness and user experience.

System Integration

The wireless card uses a compact M.2 2230 form factor with Intel CNVio2 interface, enabling straightforward installation in compatible motherboards. Dual MHF4 antenna connectors accommodate external antennas to maintain optimized signal reception and transmission in various deployment scenarios.

Security and Compliance

Advanced security features including WPA3 encryption protocols, WPA2 fallback, and 802.1X authentication offer robust protection aligned with enterprise standards. The module also meets FIPS and FISMA compliance requirements, supporting deployment in regulated environments demanding strong security postures.

Compatibility Summary

Compatible exclusively with Intel platforms supporting CNVio2 interface, including recent Dell Optiplex desktops, Latitude and Precision laptops, and select HP, Lenovo, and Asus systems. Incompatibility with PCIe-only or CNVio1 wireless slots is a key consideration for prospective buyers.

Operational Reliability

Designed to function reliably within a temperature range of 0°C to 80°C, this wireless card is suitable for typical office or home environments without special cooling requirements. Its low power consumption supports energy-efficient system operation.

The Dell Optiplex Intel AX211 Wi-Fi 6E Bluetooth 5.3 Wireless Card (SKU: G83J7) offers a compelling upgrade for businesses focused on future-proofing their networking capabilities with tri-band wireless performance and integrated Bluetooth connectivity. Its compatibility with modern Intel platforms makes it well-suited for IT managers seeking enhanced network speed and security. Contact us to learn more or secure this solution for your business today.
