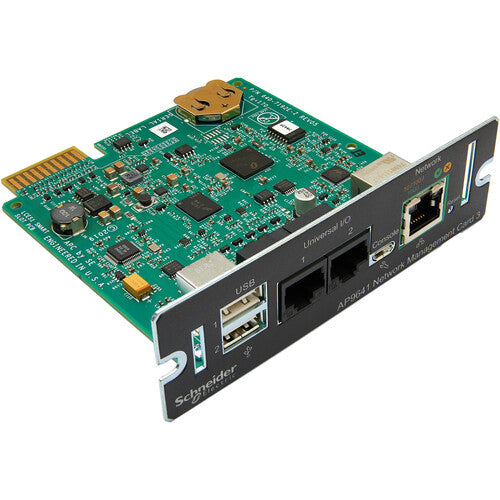

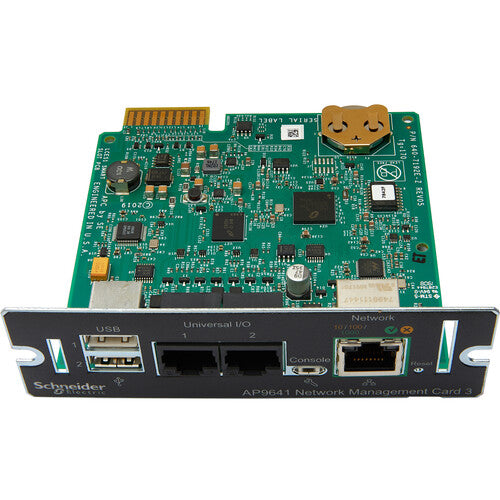

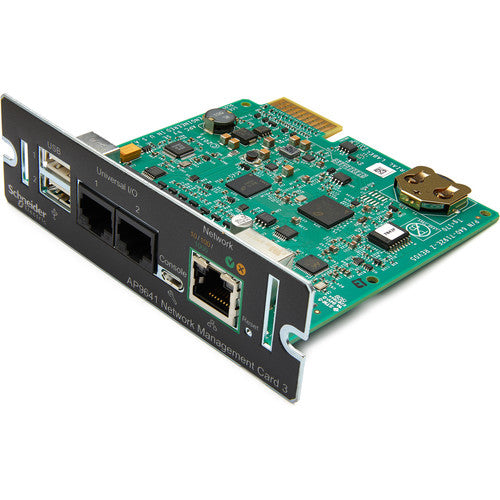

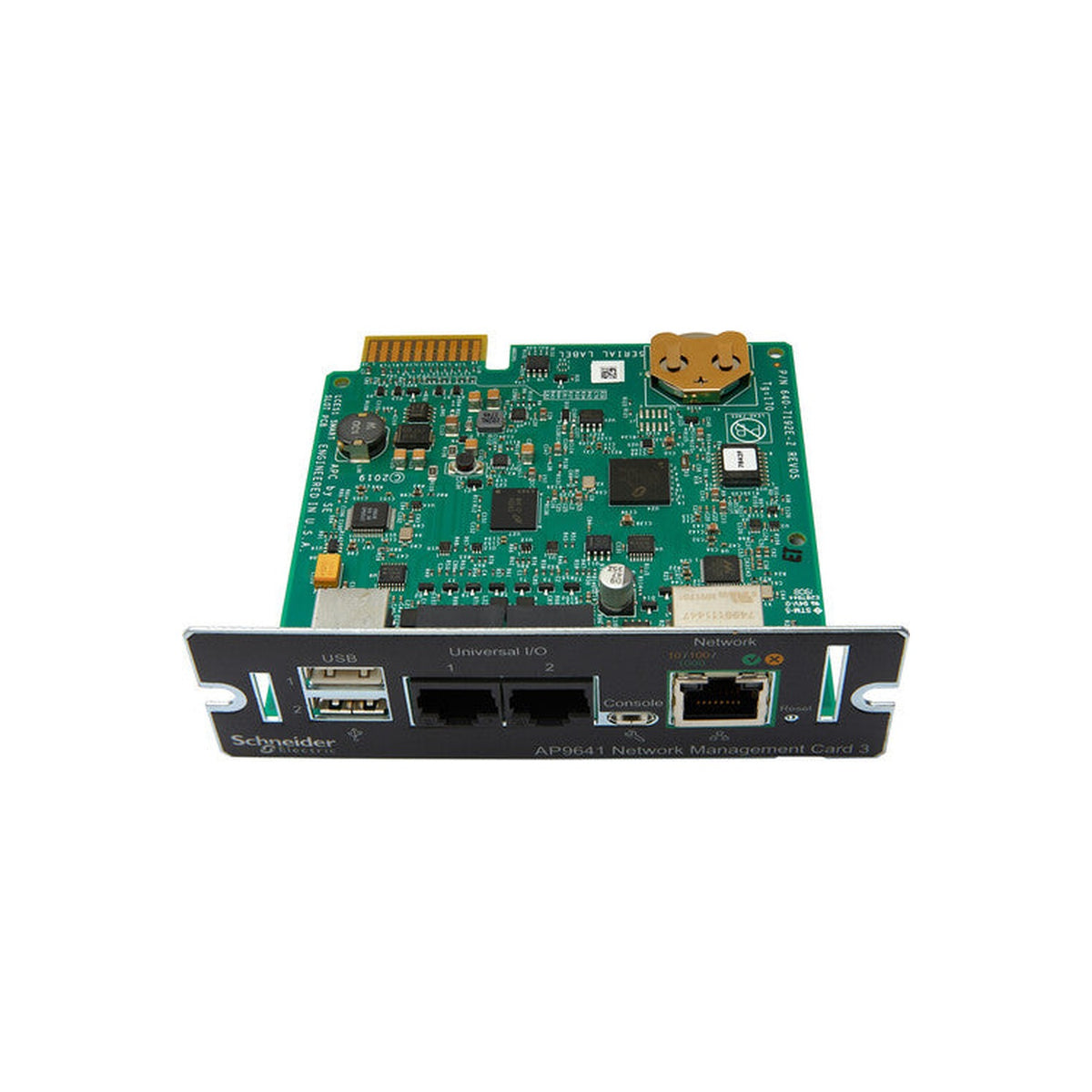

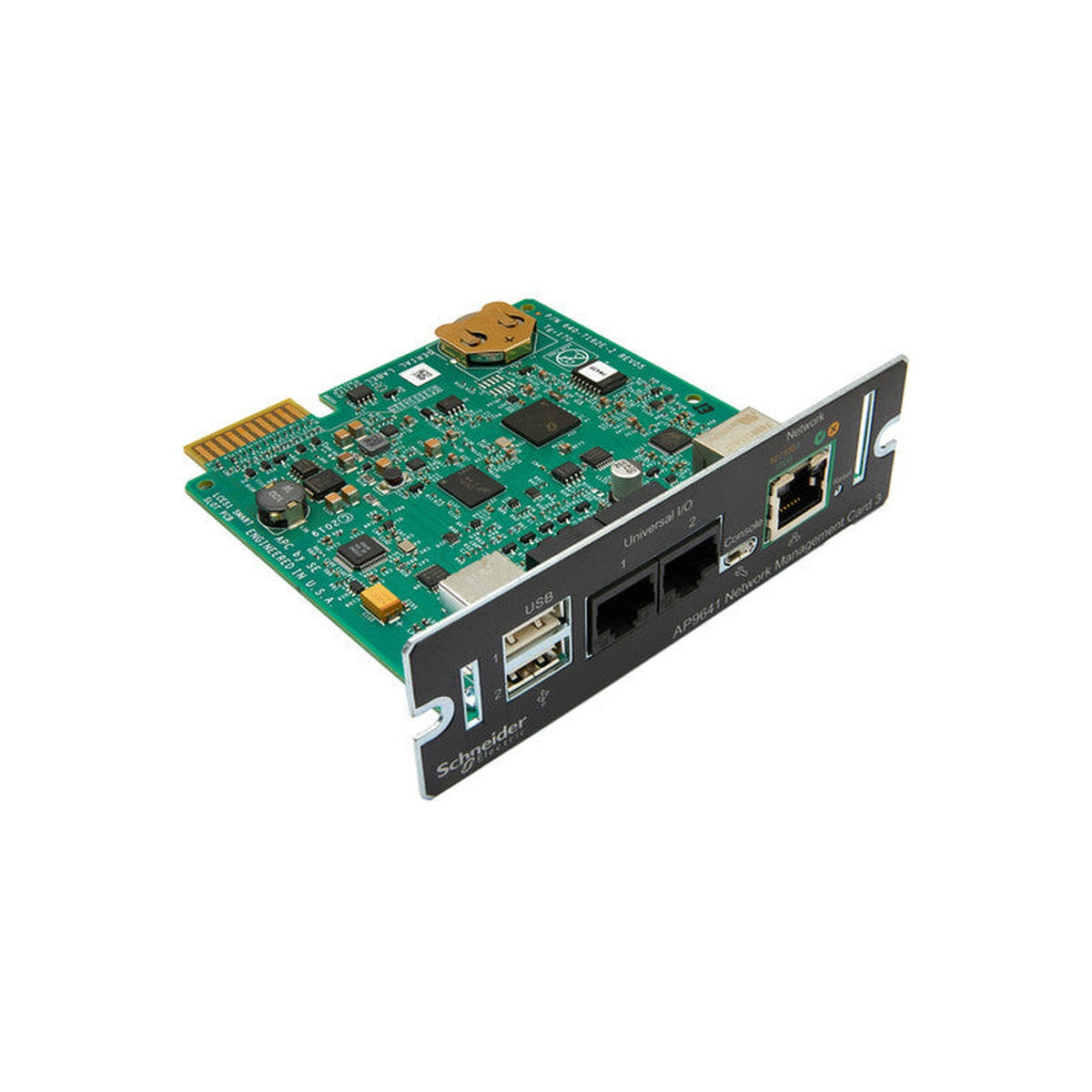

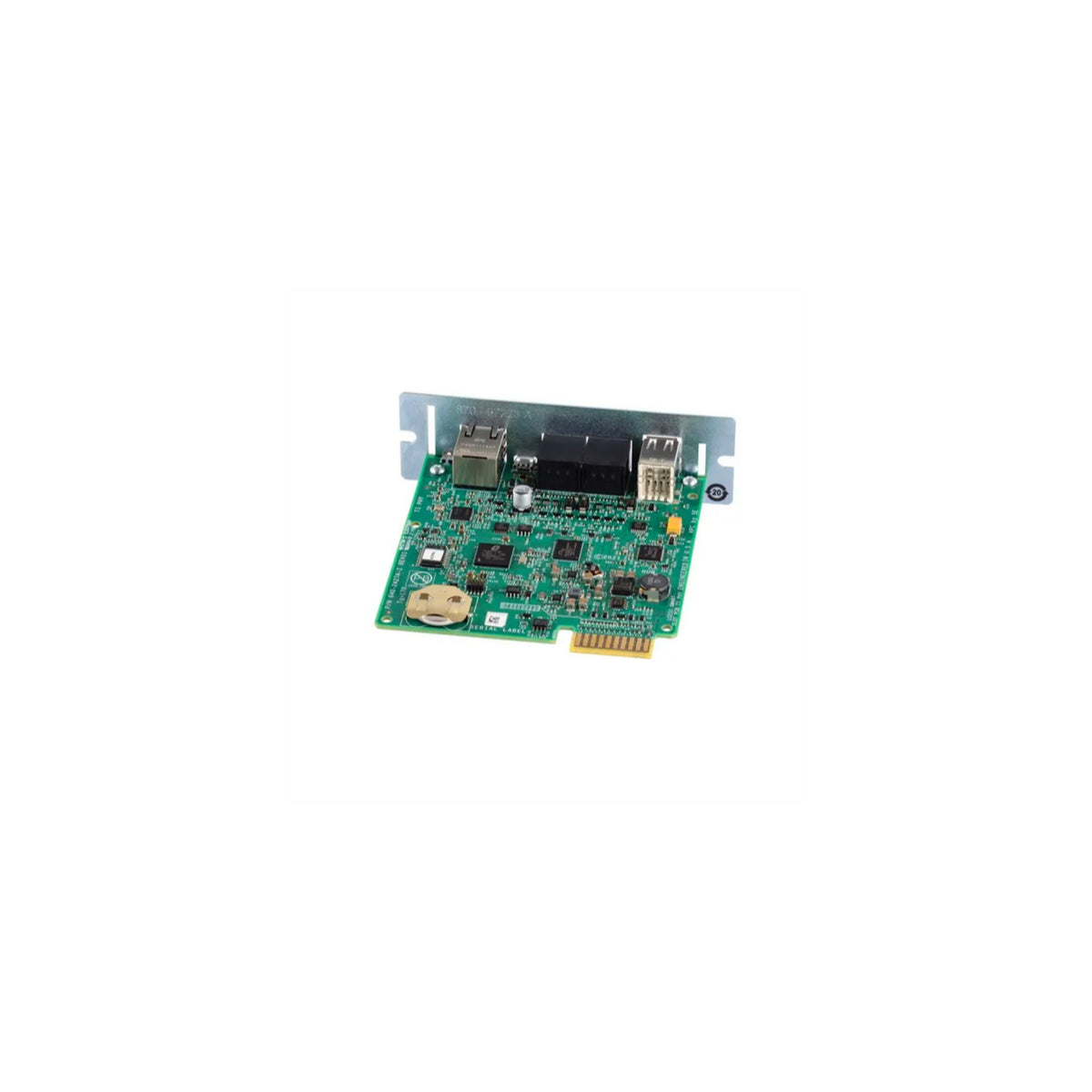

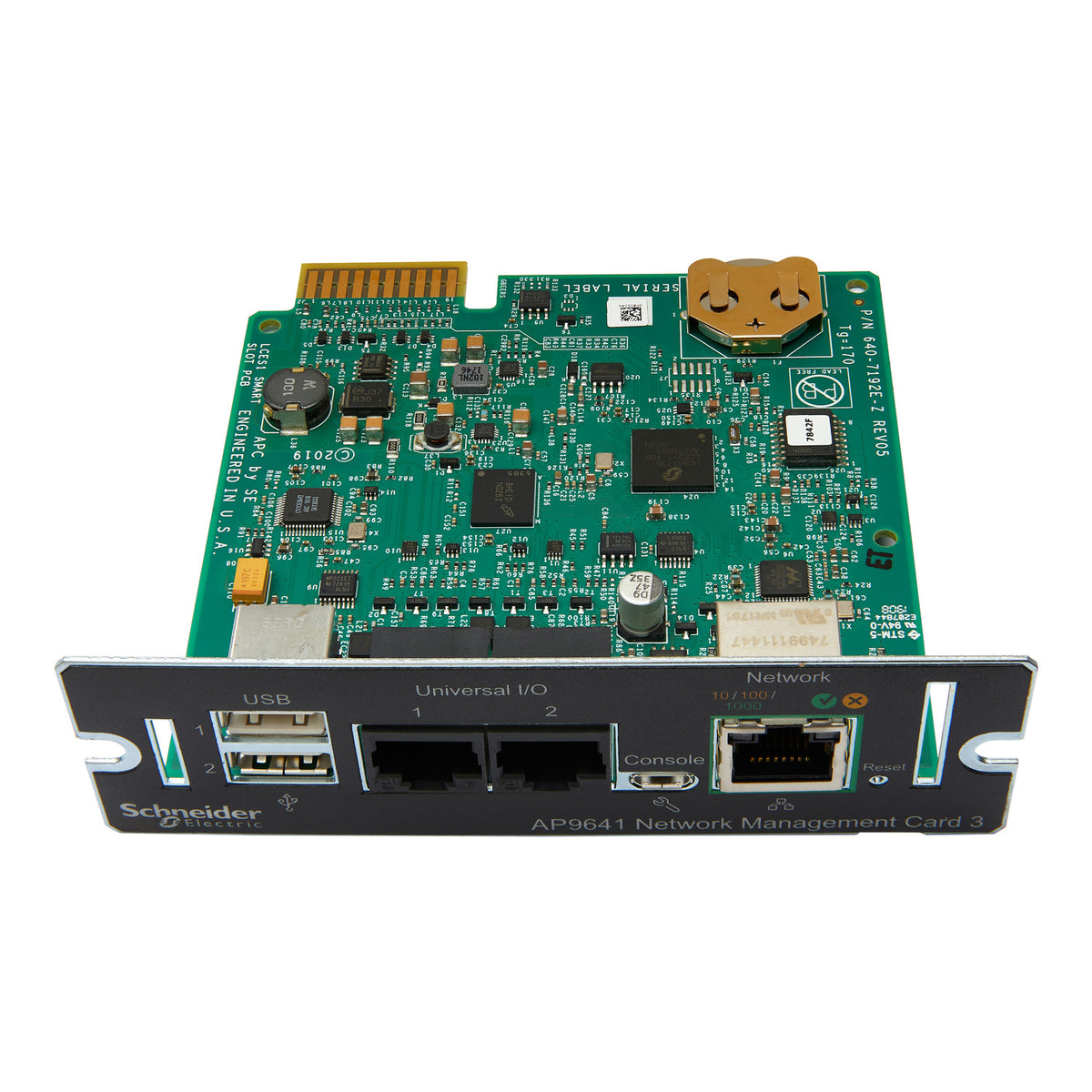

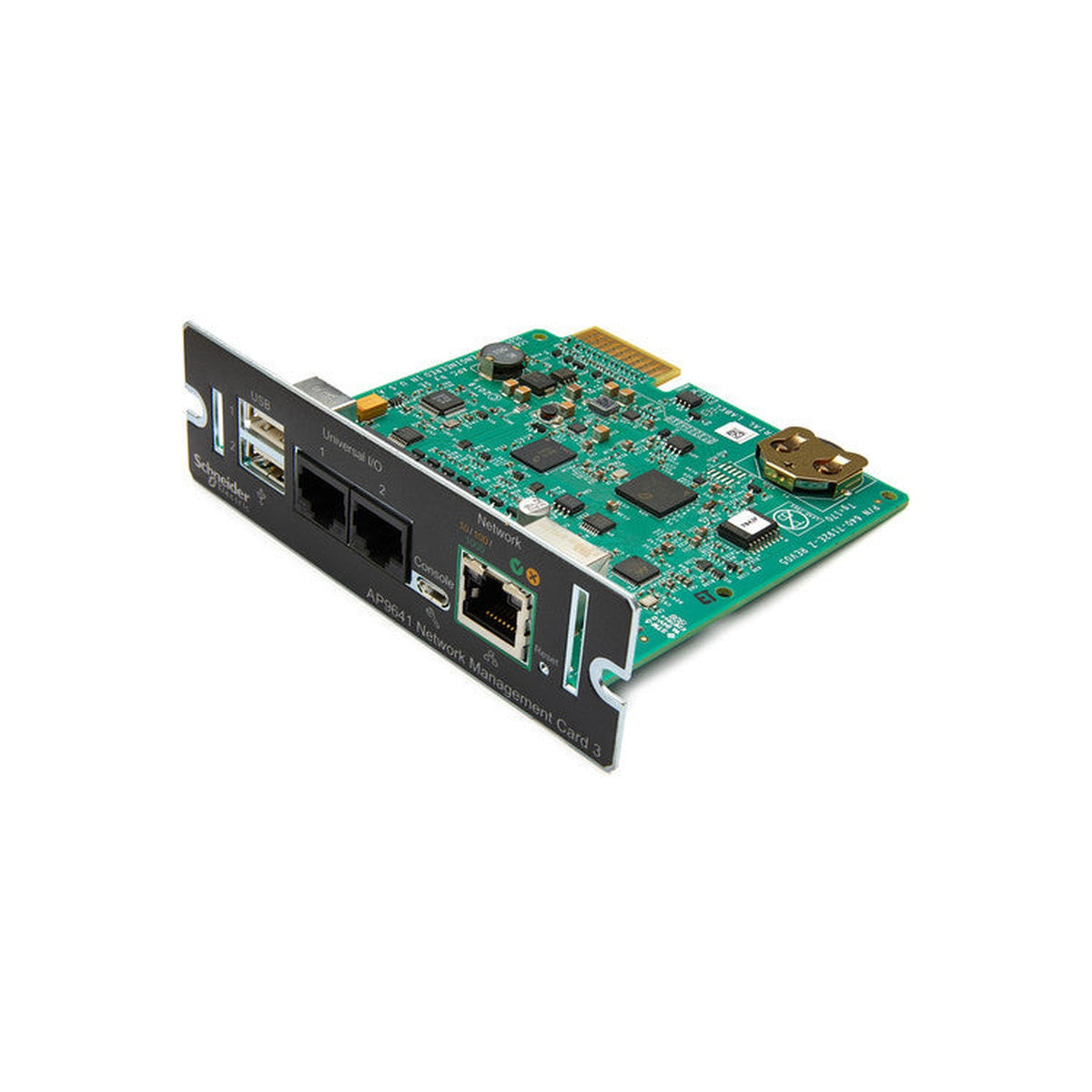

APC Network Management Card AP9641 with Environmental Monitoring

Key Features

• Remote Monitoring: Enables secure, remote uninterruptible power supply and environmental sensor monitoring via gigabit Ethernet.
• Extended Sensor Interface: UIO port supports temperature/humidity or dry-contact devices for infrastructure telemetry.
• Secure Access Protocols: Supports SNMP, SSH, HTTPS, and web-based interfaces for flexible IT integration.
• Redundancy Support: Allows dual-sensor configuration and relay signaling for automated alerts or switch-over actions.
• Modular Installation: Designed for tool-free field replacement with SmartSlot-compatible power supply systems.
• Compliance Certified: IEC 62443 security compliance and embedded firmware ensure system integrity.
• Efficient Form Factor: Slim and lightweight with minimal rack footprint and integrated LED status indicators.

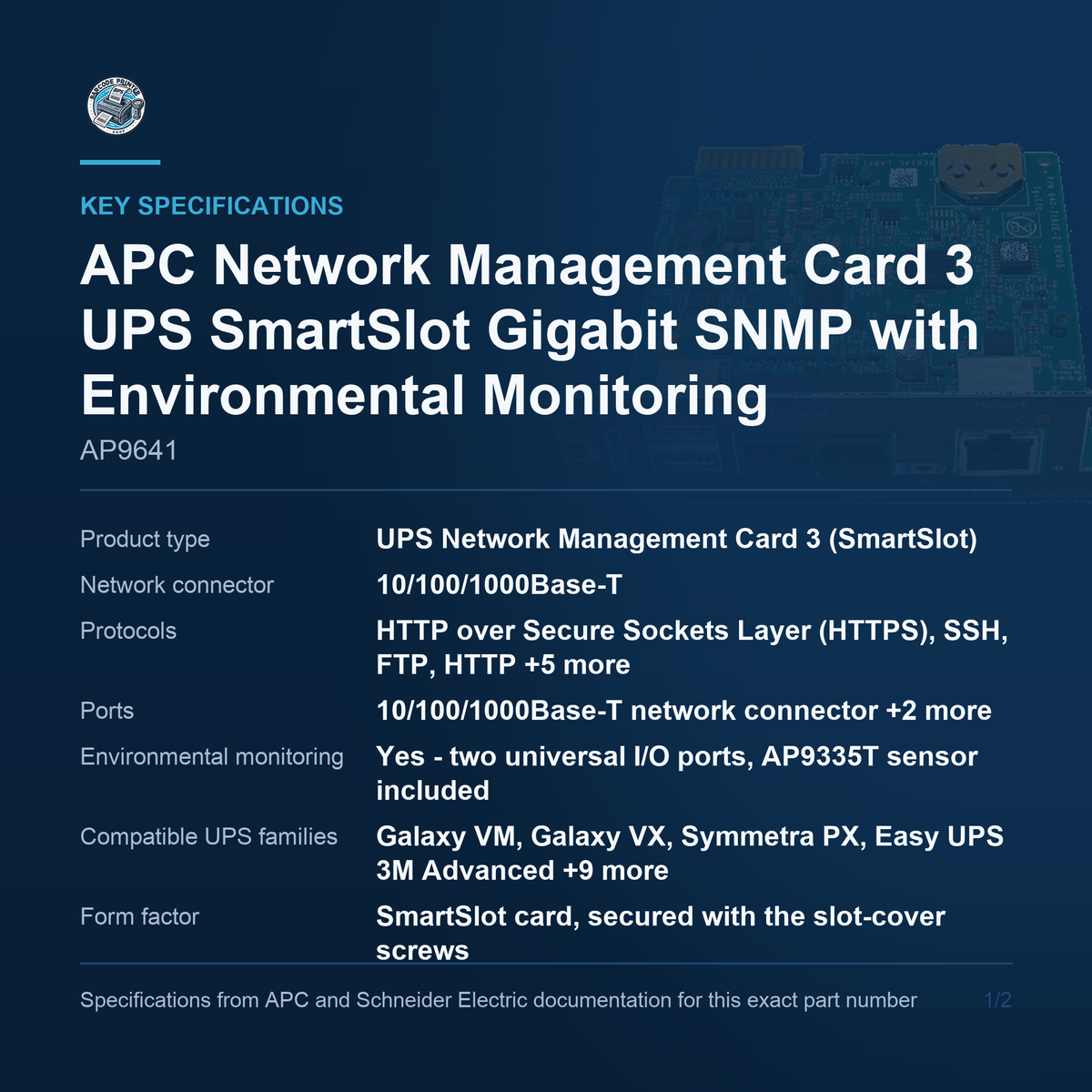

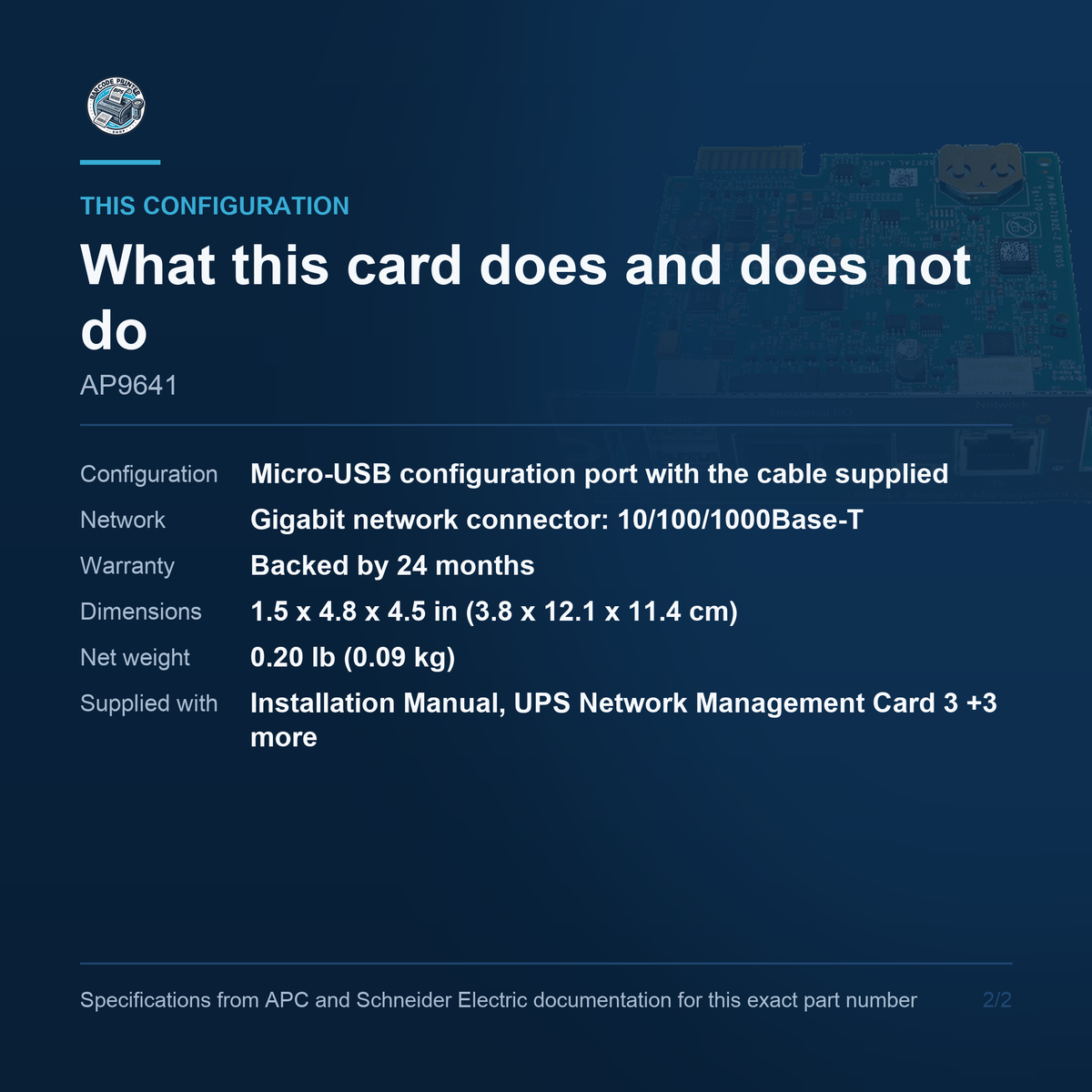

Key Specifications

• Model Number: AP9641 (Network Management Card 3)
• Cord Length: Includes RJ‑45 cable approximately 3.9 m (12.8 ft) for sensor or network connections.
• Form Factor & Weight: Module size ~121 × 116 × 38 mm, weight approx. 90.7 g.
• Ethernet Connectivity: 10/100/1000 Mbps RJ-45 port for network integration and remote management.
• I/O Support: Universal I/O (UIO) interface supports up to two dry-contact sensors and one relay output.
• Management Interfaces: Web UI, SNMP v1/v2c/v3, SSH (CLI), HTTPS, HTTP, Telnet, and optional PowerChute integration.
• Security Certifications: Compliant with IEC 62443‑4‑2 standards; supports secure access protocols.
• Operating Conditions: Supports 0 °C to 45 °C environment; relative humidity 0–95% non‑condensing.

Product Overview

The APC Network Management Card 3 (Model AP9641) is a compact, high-performance management module designed for enterprise-level remote infrastructure control. Fitted for SmartSlot-compatible APC power supply units, this card offers gigabit Ethernet connectivity and a robust suite of management interfaces—supporting secure HTTPS access, SNMP v3 reporting, SSH CLI, and optional integration with PowerChute for central visibility and automated shutdown workflows.

Security Focus

This card is equipped with robust security protocols, including HTTPS/SSL and SNMPv3, to protect your power management from unauthorized access. It features advanced authentication processes and multi-tiered user access managed through both web-based and command-line interfaces. Firmware can be easily upgraded independently via USB or network upload, ensuring that systems are always patched without requiring full power supply replacement.

Environmental Insights

The AP9641 incorporates significant environmental monitoring capabilities, allowing users to receive alerts about changes in temperature and humidity. Such monitoring is crucial for preventing equipment failures and maintaining optimal performance in sensitive server environments, thereby enhancing the overall reliability of connected systems.

Operational Integration

This device seamlessly integrates with management solutions like EcoStruxure IT and PowerChute Network Shutdown. Such compatibility permits automated responses to power events, supporting business continuity and streamlined operations during unexpected outages.

Compact Design

Measuring just 121 × 116 × 38 mm and weighing approximately 90.7 g, the AP9641's lightweight design ensures it fits neatly into any rack-mounted power supply setup. Its SmartSlot modular design facilitates quick replacements, reducing downtime during maintenance, while integrated LED indicators offer quick and clear status checks.

For technical teams and operations managers seeking efficient, secure, and compact power management solutions, the AP9641 delivers flexibility and continuity. Contact us to learn more or secure this solution for your business today.
