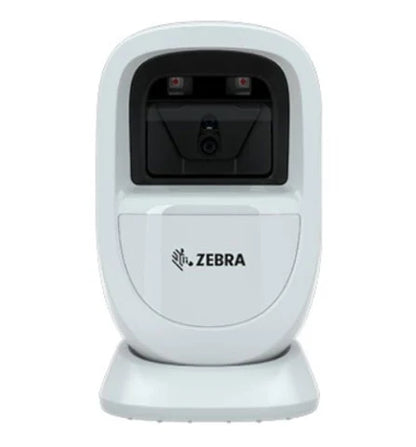

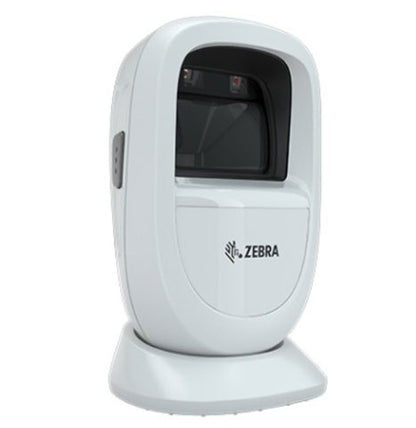

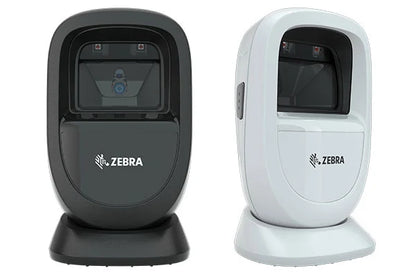

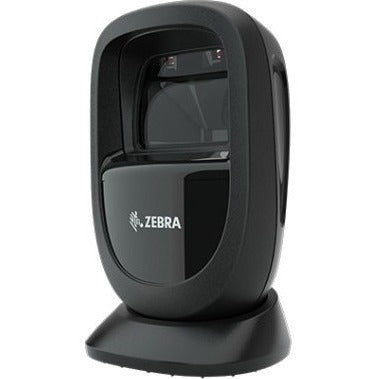

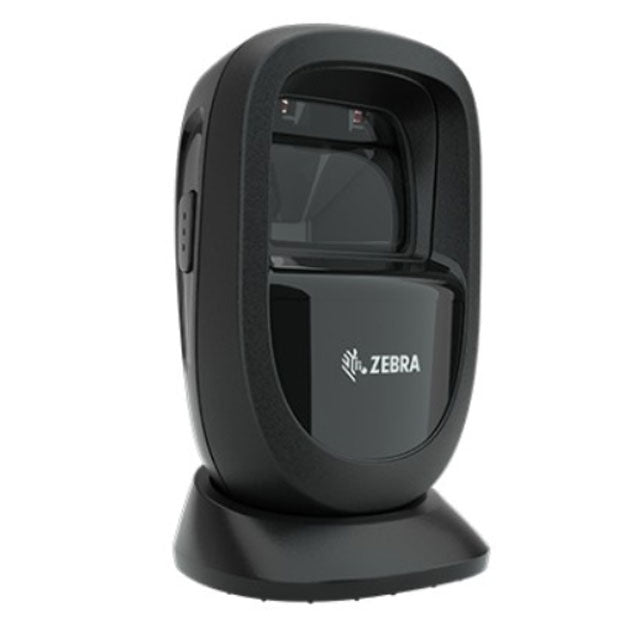

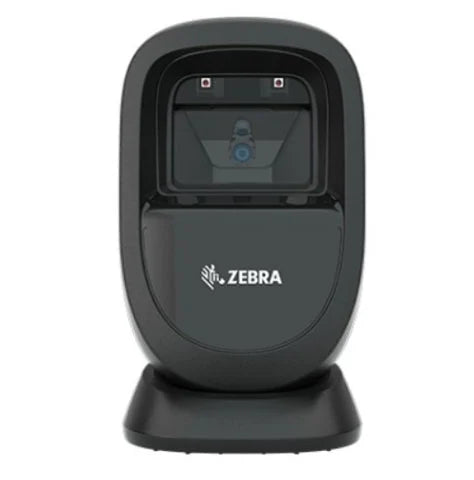

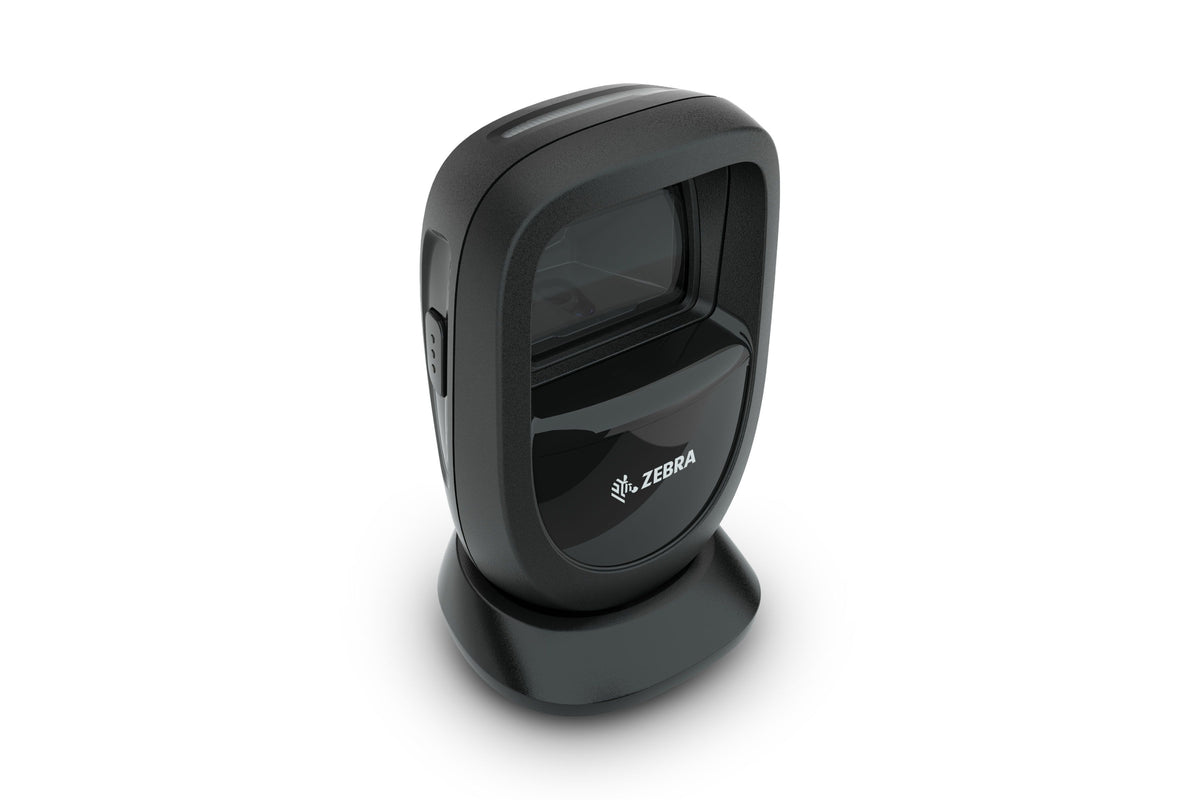

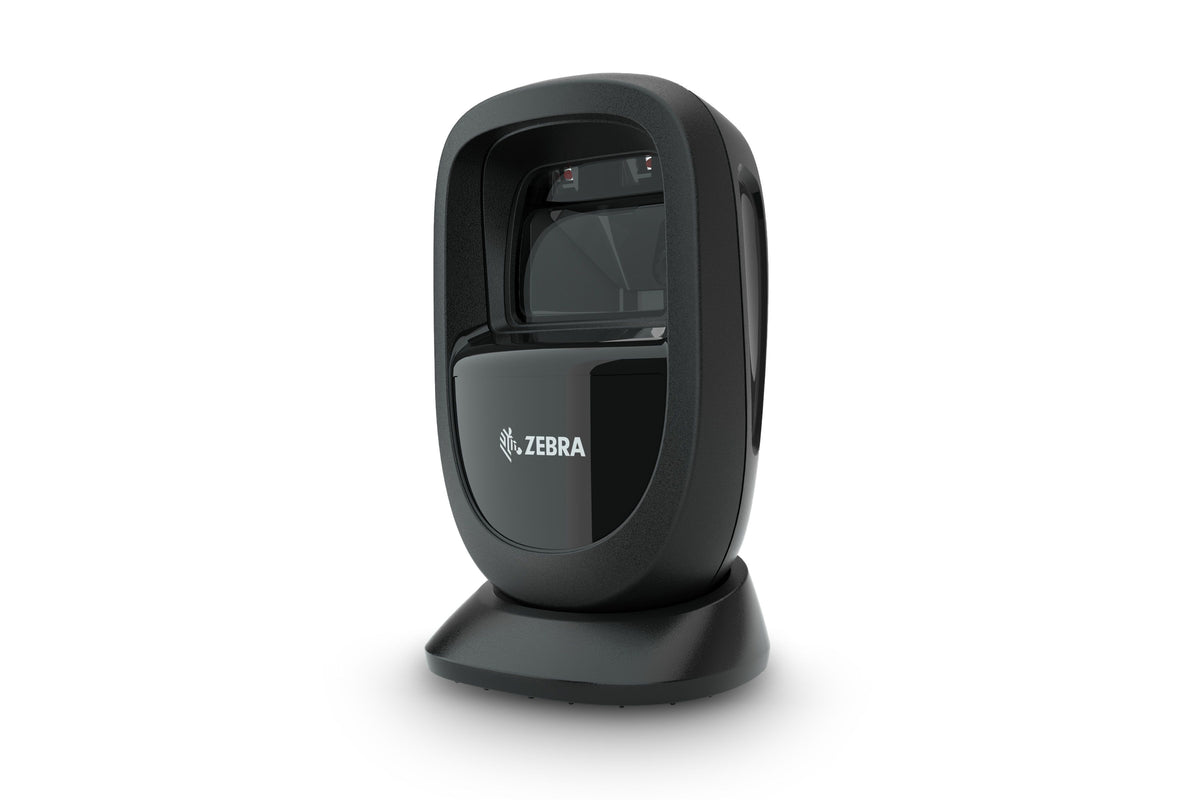

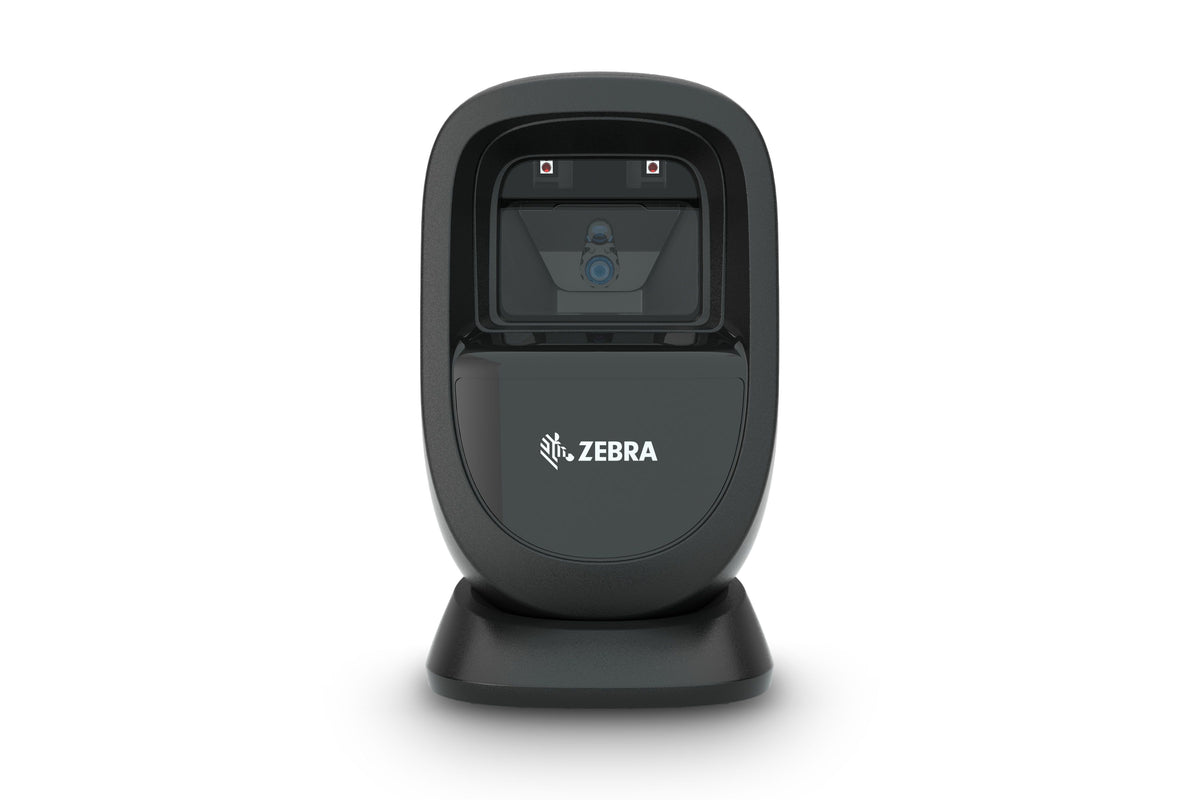

Zebra DS9308 1D/2D Corded Barcode Scanner Black USB DS9308-SR4U2100AZW

Key Features

• Rapid Presentation Scanning: Offers best-in-class swipe speeds and wide field of view for fast checkout.
• PRZM Imaging Tech: High-resolution sensor and software deliver accurate decoding across challenging barcode types.
• Compact and Stylish: Slim footprint fits retail counters, POS terminals, and mobile payment stations.
• Durable Design: IP52 sealing, drop and tumble ratings ensure long-term performance.
• Plug-and-Play Setup: USB model supports instant deployment with auto-detect interfaces and global keyboard support.
• Versatile Decode Support: Reads from paper, labels, computer screens, smartphones, and tablets.
• EAS Integration Ready: Compatible with electronic article surveillance (EAS) deactivation systems.
• Minimal Maintenance: Elevated circuitry and hidden beeper openings reduce downtime from debris or moisture.

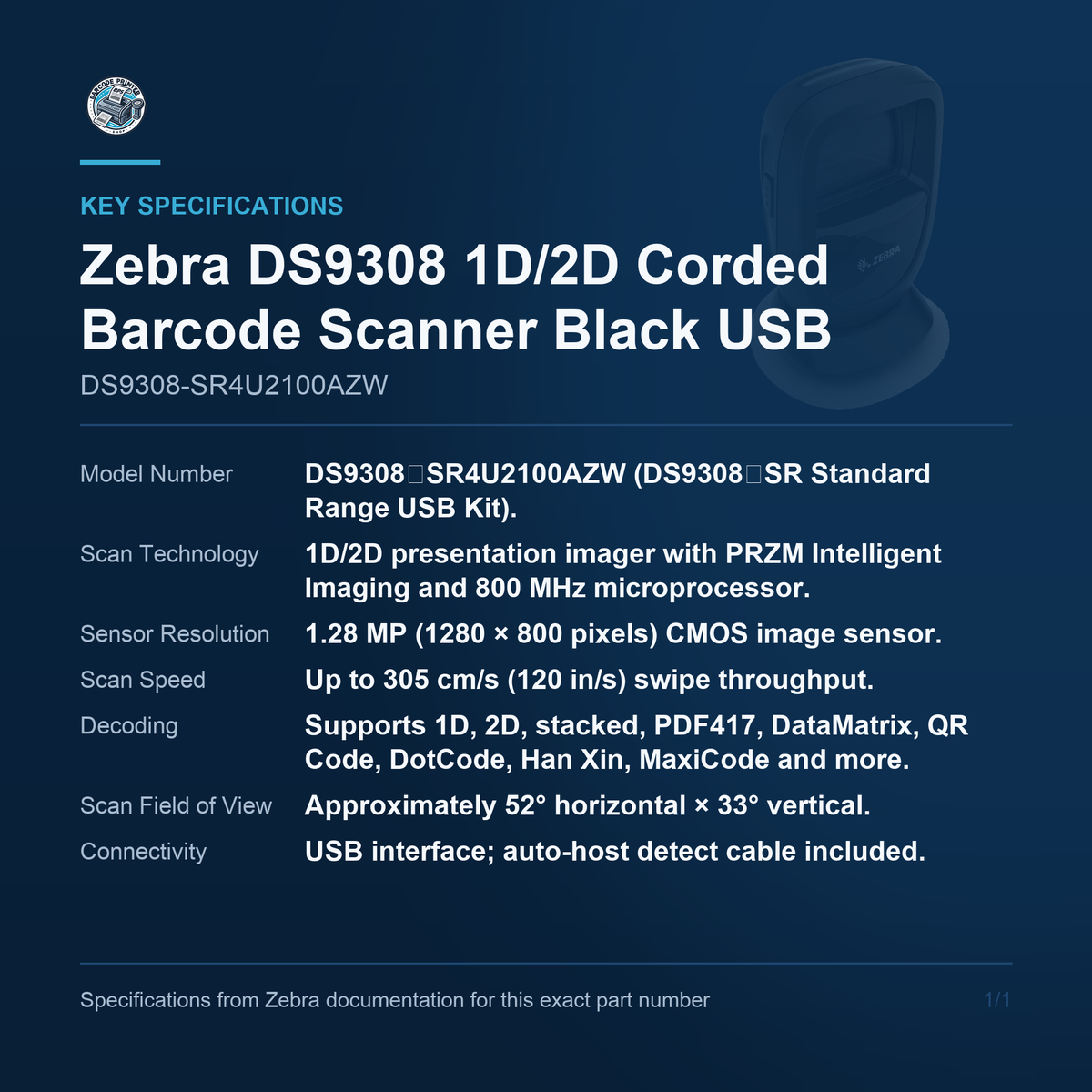

Key Specifications

• Model Number: DS9308‑SR4U2100AZW (DS9308‑SR Standard Range USB Kit).
• Scan Technology: 1D/2D presentation imager with PRZM Intelligent Imaging and 800 MHz microprocessor.
• Sensor Resolution: 1.28 MP (1280 × 800 pixels) CMOS image sensor.
• Scan Speed: Up to 305 cm/s (120 in/s) swipe throughput.
• Decoding: Supports 1D, 2D, stacked, PDF417, DataMatrix, QR Code, DotCode, Han Xin, MaxiCode and more.
• Scan Field of View: Approximately 52° horizontal × 33° vertical.

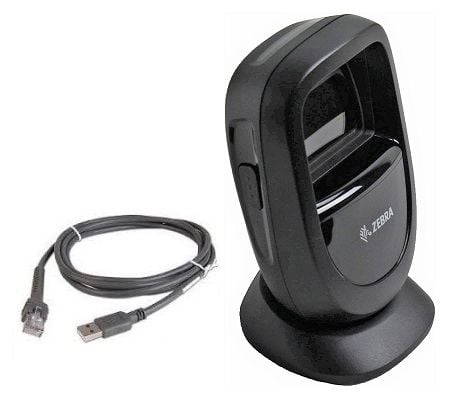

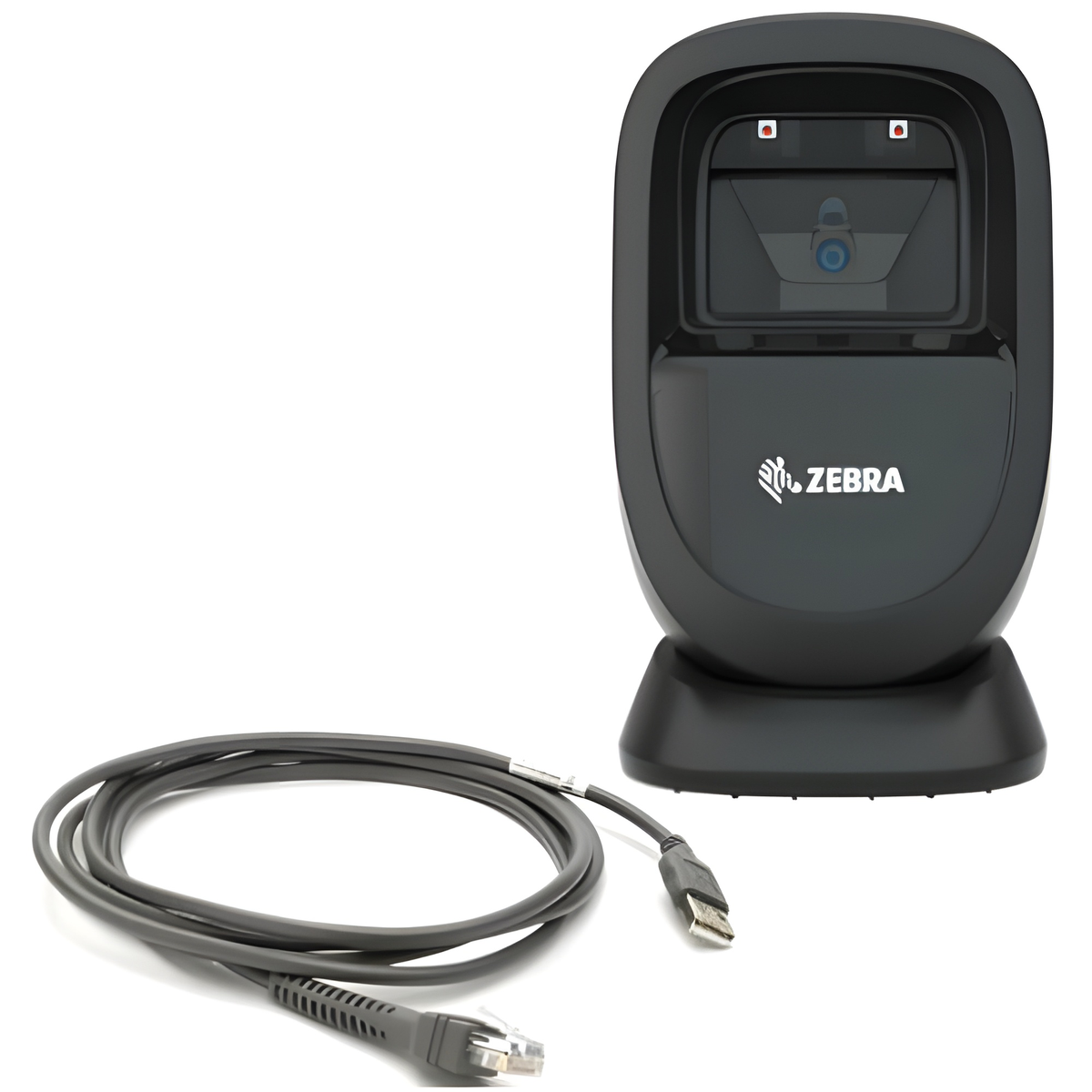

• Connectivity: USB interface; auto-host detect cable included.
• Durability: Rated IP52 against dust/spills; withstands 1.5 m (5 ft) drops and 1,000 tumbles at 0.5 m.
• Weight & Dimensions: Approximately 318 g (11.2 oz); size ~14.5 × 8.6 × 8.3 cm (5.7″ × 3.4″ × 3.3″).
• User Indicators: Beeper and front/back decode LEDs with adjustable volume and tone.
• Environmental Tolerance: Operates from 0 °C to 50 °C; storage −40 °C to 70 °C; up to 95% non-condensing humidity.

Product Overview

The Zebra DS9308‑SR4U2100AZW is a high-performance presentation scanner specifically designed for retail, hospitality, and point-of-sale environments where speed, space, and consistent performance are essential. Its compact form factor occupies minimal counter space while offering enterprise-grade scanning capabilities backed by Zebra’s PRZM imaging technology and a fast 800 MHz processor.

Scanning Capabilities

Equipped with a high-resolution CMOS sensor and wide field of view, the DS9308 captures both 1D and 2D barcodes—printed or digital—even when displayed on devices such as smartphones or tablets. With swipe speeds reaching up to 305 cm/s (120 in/s), it effectively decodes barcodes as presented, keeping lines moving efficiently during busy periods.

Durable Design

The device is built to perform consistently across demanding environments. It meets IP52 sealing standards to resist dust and spills and survives drops from heights of 1.5 meters and 1,000 tumbles at 0.5 meters. The architecture includes elevated circuit boards and a concealed beeper chamber to minimize maintenance needs and extend lifespan.

Effortless Deployment

Ease of deployment is a standout benefit: the USB kit includes an auto-detect cable supporting multiple host interfaces, with global keyboard support integrated. The DS9308 operates out of the box in presentation mode without special drivers or configuration, enabling rapid rollout in fast-paced retail setups.

User Experience

The scanner features dual decode LEDs on both the front and rear, along with a configurable beeper for audible confirmation, and adjustable volume and tone settings. The device also accommodates EAS deactivation systems when deployed in retail environments for seamless checkout integration.

Environmental Resilience

Operating effectively under a wide range of environmental conditions, the scanner functions reliably within temperatures from 0 °C to 50 °C and endures storage at temperatures from −40 °C to 70 °C, with humidity tolerance up to 95% non-condensing. Its thoughtful engineering caters specifically to real-world retail and counter-based scanning.

In summary, the Zebra DS9308‑SR4U2100AZW provides fast, precise barcode capture in a sleek, compact package. Its robust construction, user-friendly design, and plug-and-play deployment position it as an ideal choice for businesses pursuing performance without compromise at busy transaction points.
