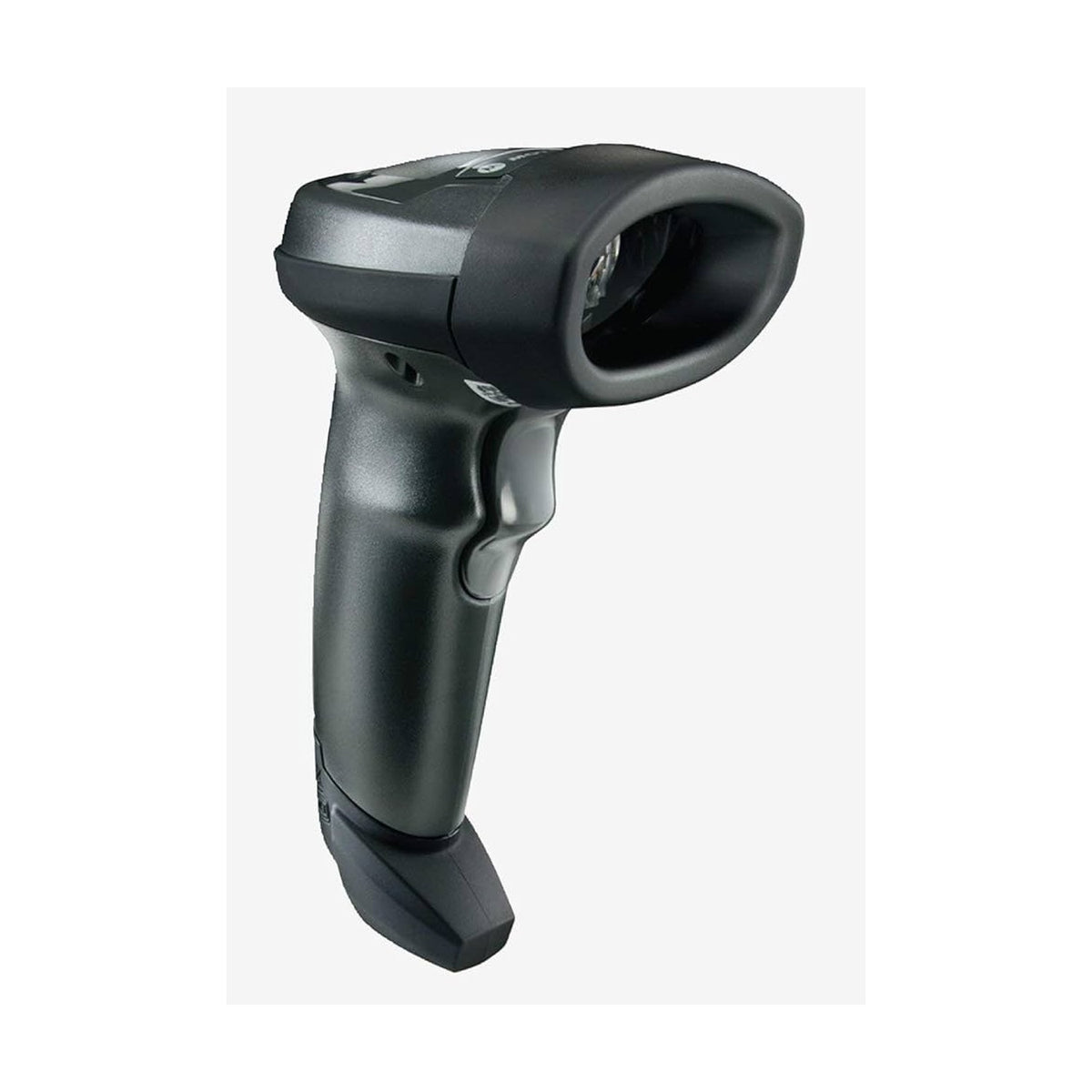

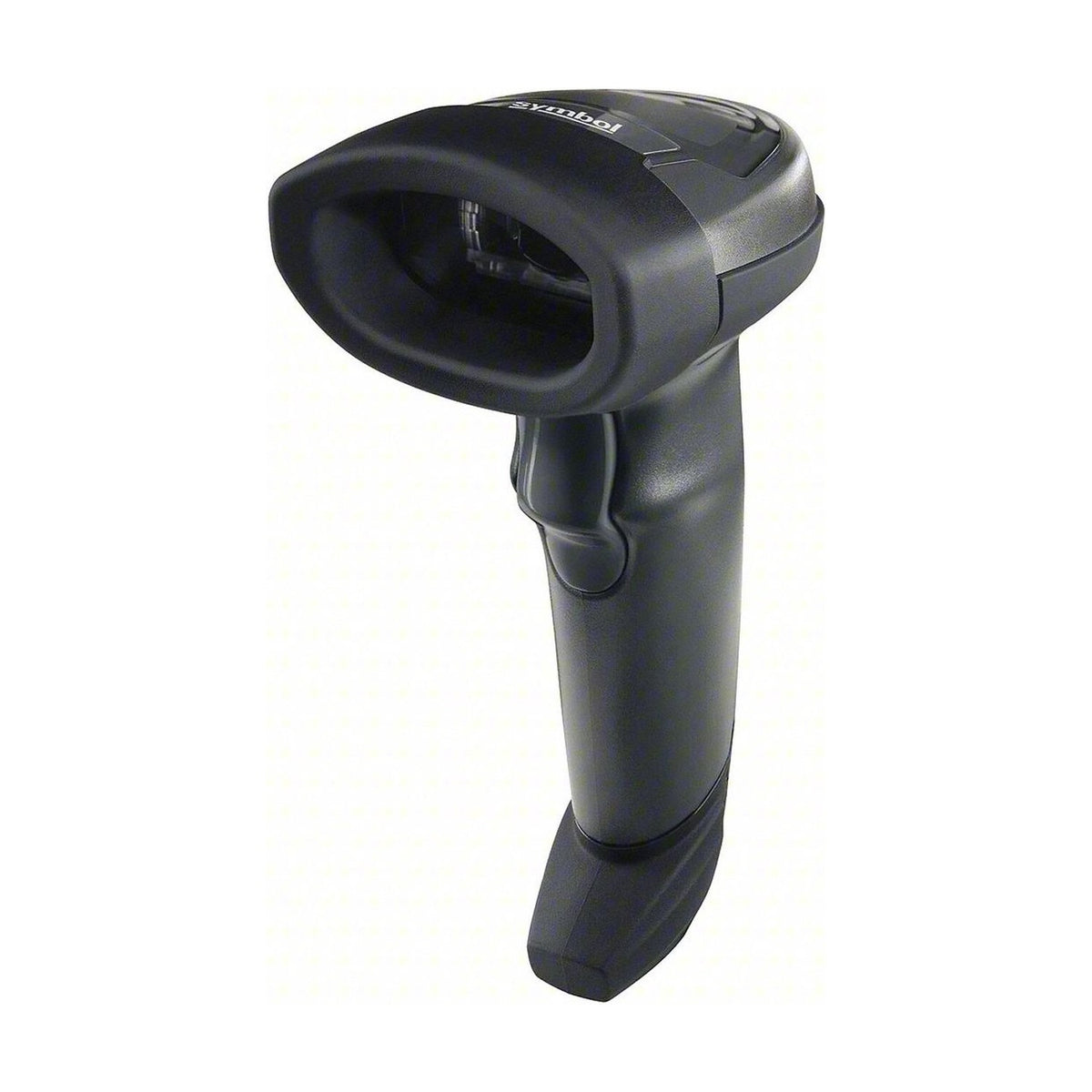

Zebra LI2208 1D Linear Imager USB Cable and Stand Kit North America LI2208-SR7U2100SGN

Key Features

• In the box: Scanner, a 7 ft shielded USB cable and the 20-61022-04R hands-free stand.
• Reads 1D linear codes at 547 scans per second, fast enough that the operator never waits on the beam.
• Tolerates 25 inches per second of motion, so codes can be read on the move rather than held still.
• Reads a 20 mil code from 1 inch out to 42 inches, and a 100% UPC from 1 inch to 31 inches.
• Reads down to 3 mil, which covers the small dense codes on electronics and pharmacy packaging.
• Handles UPC, EAN, Code 128, GS1-128, ISBT 128, Code 39, Trioptic and the rest of the retail and healthcare 1D set.
• Survives over 100 drops at 5 ft and 6 ft drops to concrete.
• Corded scanner with no radio and no battery, so there is nothing to charge and nothing to pair.
• Speaks USB, RS-232, keyboard wedge and IBM RS-485, so it drops into legacy point-of-sale as easily as a PC.
• IP42 sealed, and rated for 1,000 tumble cycles in a half-metre tumbler.
• Weighs 4.95 oz, the lightest scanner in this range.
• Carries a 60-month Zebra warranty.

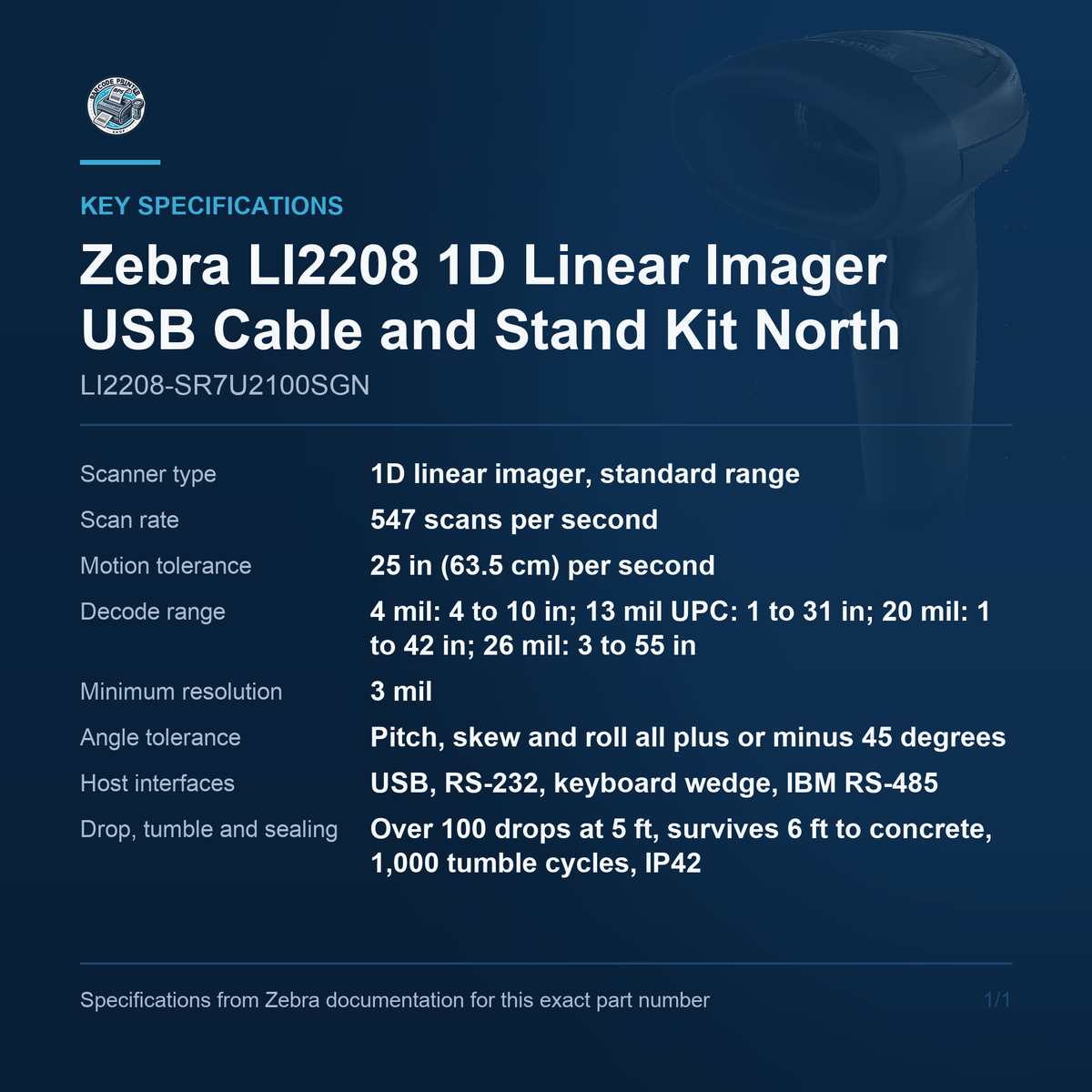

Key Specifications

• In the box: Scanner, a 7 ft shielded USB cable and the 20-61022-04R hands-free stand.
• Scanner type: 1D linear imager, standard range
• Scan rate: 547 scans per second
• Motion tolerance: 25 in (63.5 cm) per second
• Decode range: 4 mil: 4 to 10 in; 13 mil UPC: 1 to 31 in; 20 mil: 1 to 42 in; 26 mil: 3 to 55 in
• Minimum resolution: 3 mil
• Operating temperature: 32 to 122 F (0 to 50 C)
• Angle tolerance: Pitch, skew and roll all plus or minus 45 degrees
• Host interfaces: USB, RS-232, keyboard wedge, IBM RS-485
• Drop, tumble and sealing: Over 100 drops at 5 ft, survives 6 ft to concrete, 1,000 tumble cycles, IP42
• Dimensions and weight: 6.30 x 2.64 x 3.90 in (16 x 6.7 x 9.9 cm), 4.95 oz (140 g)
• Warranty: 60 months from date of shipment. North America build (trailing N)

Kit contents

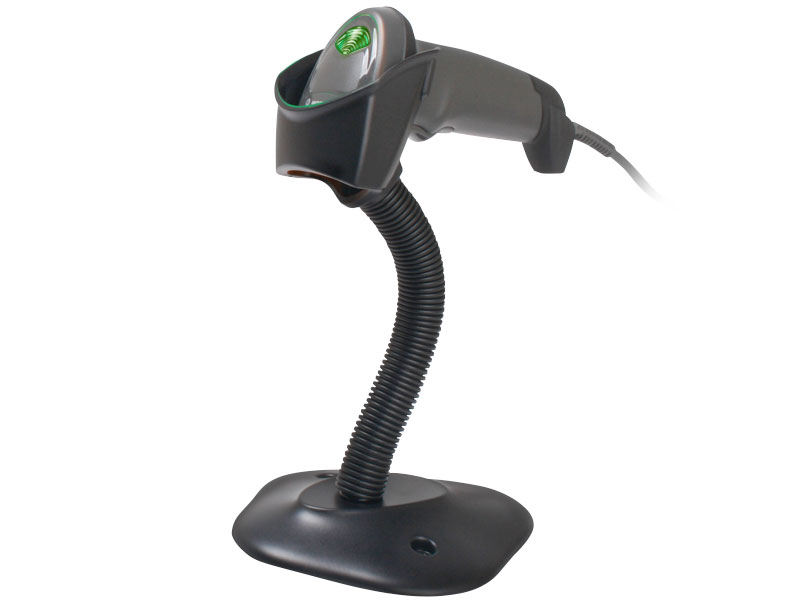

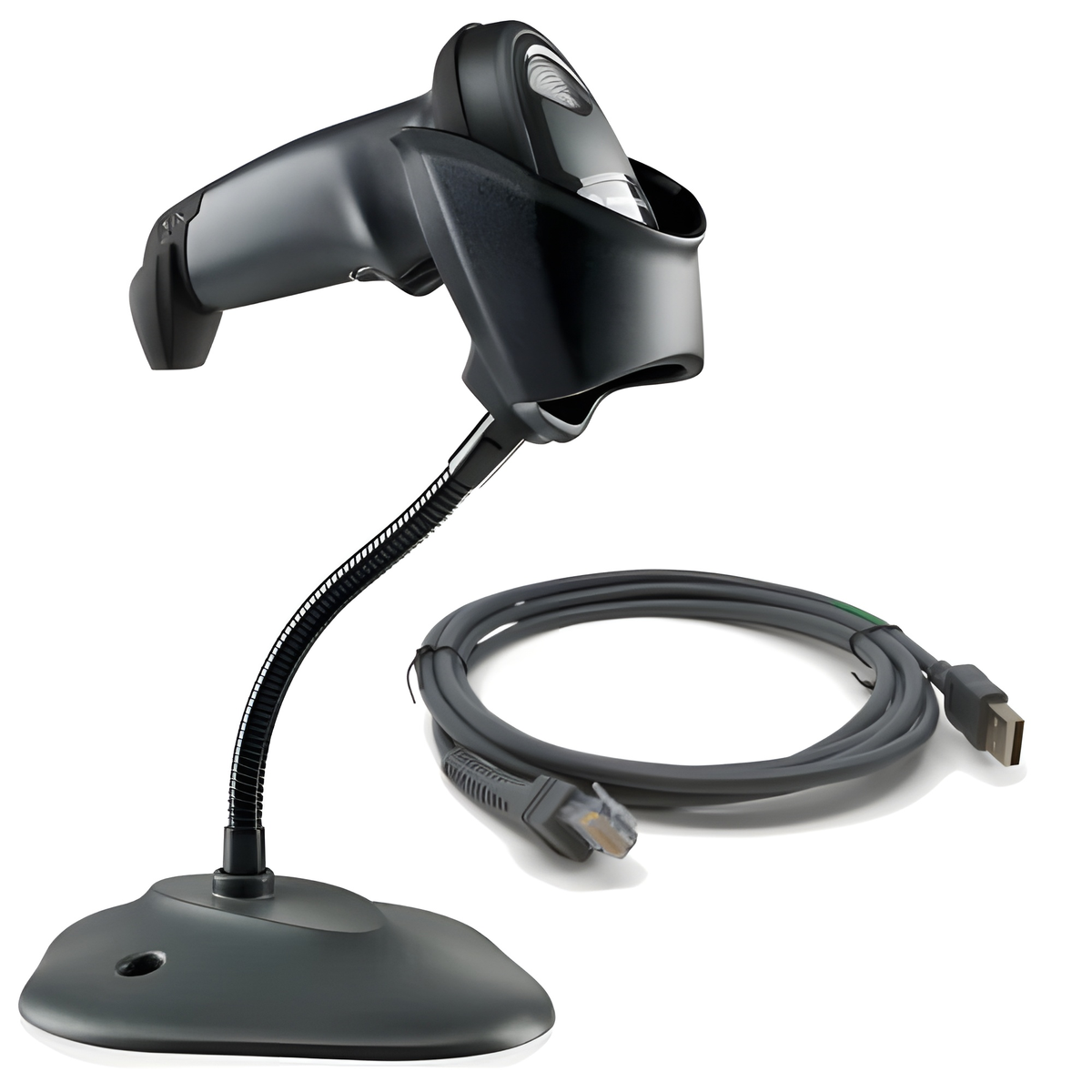

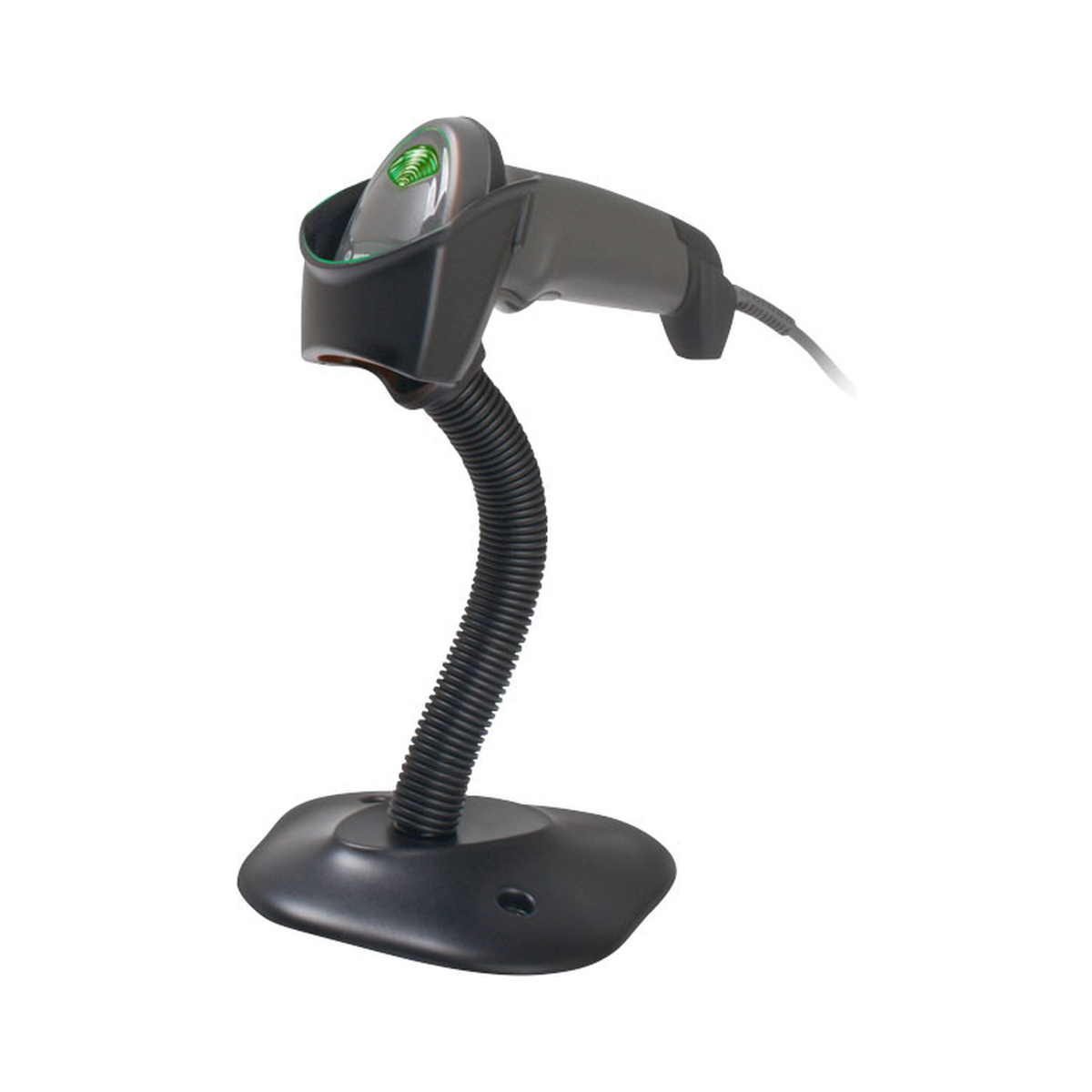

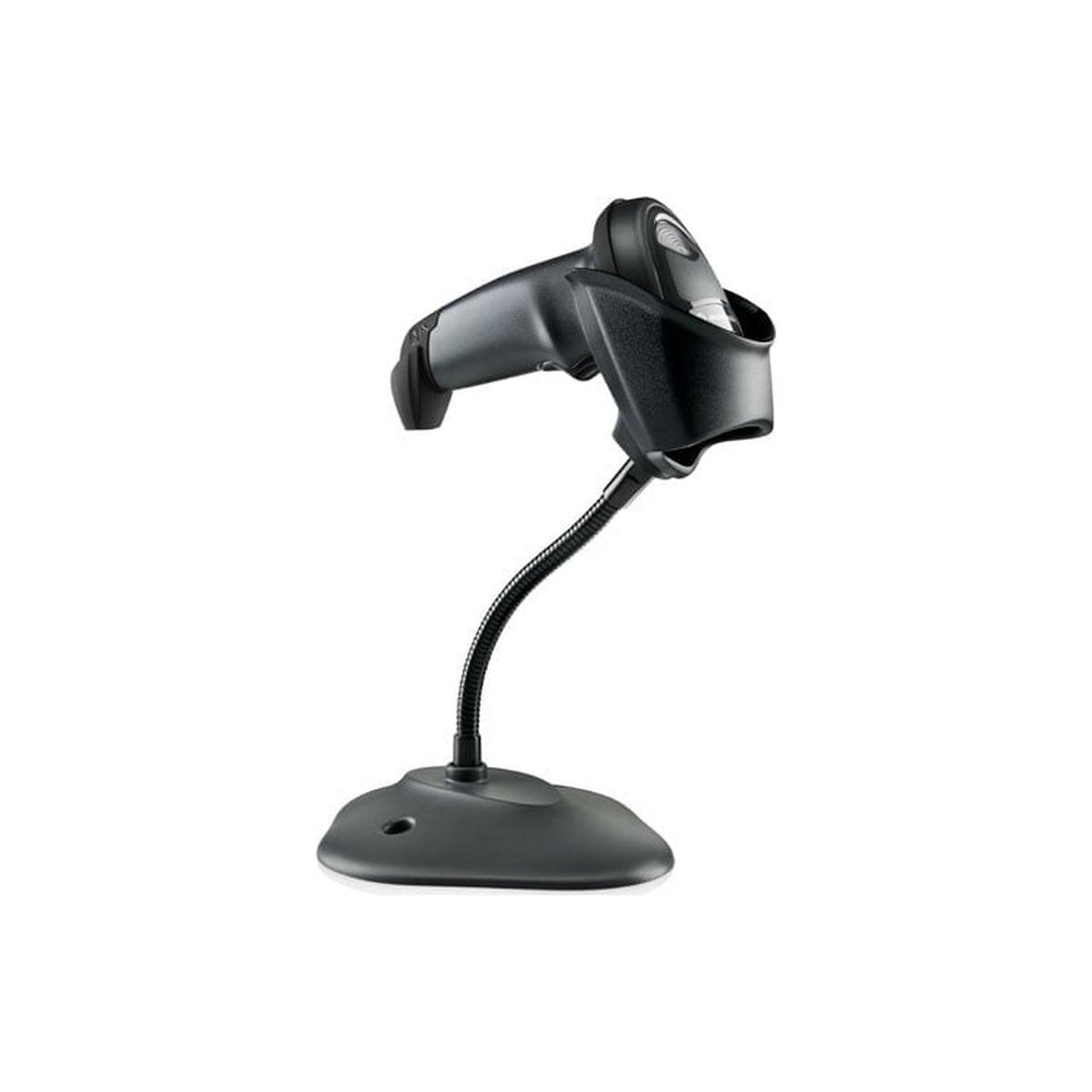

The kit is the scanner, the CBA-U21-S07ZBR shielded USB cable at 7 ft, and the 20-61022-04R hands-free stand. Note that stand part number. It is not the 20-71043-04R that ships with the DS4608 kits, and the two are not interchangeable in a bill of materials even though the scanners look alike on a counter. The cable is bus-powered and straight rather than coiled, so no external supply is required anywhere in this kit. The trailing N on the part number is the one thing to check before ordering: it marks this as the North America build, and it is the only region-restricted part number among the Zebra scanners we list.

Imaging engine

The imaging engine in this scanner reads 1D linear codes and only 1D linear codes. That is a deliberate specification rather than a shortfall: a linear imager built for the job is faster and cheaper than a 2D unit doing the same work, and in grocery, retail, warehousing and library circulation the codes are all linear anyway. It runs at 547 scans per second and tolerates 25 inches per second of motion, which together mean the operator sweeps the item past the beam rather than presenting and pausing. If any part of the workflow needs QR, DataMatrix or PDF417 — a driving licence, a mobile coupon, a 2D shipping label — this is the wrong scanner and a 2D imager is the right one.

Working range

Working range on the LI series is unusually wide for a linear imager and is the reason it turns up in warehouses as often as at tills. A 20 mil code reads from 1 inch out to 42 inches, and a 26 mil code at 200% magnification reaches 55 inches, which covers a rack label read from the aisle without a ladder. A 100% UPC reads from 1 to 31 inches, so the same scanner works at arm's length on a counter. Minimum resolution is 3 mil, and a 4 mil code wants to be held between 4 and 10 inches. Symbology coverage spans UPC, EAN, Code 128, GS1-128, ISBT 128 for blood banking, Code 39 and Trioptic Code 39.

Build and sealing

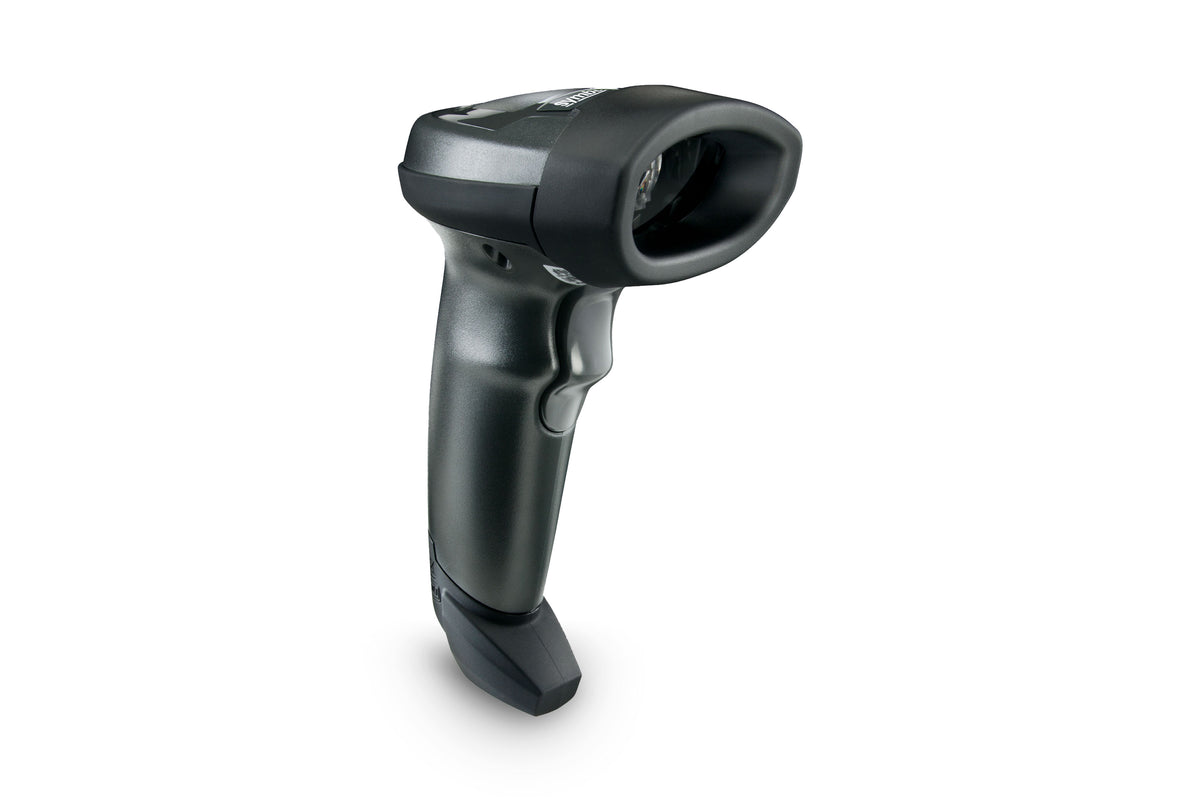

The LI2208 is corded, so there is no battery, no radio and no cradle: it draws power from the host cable and it is ready the moment it is plugged in. Zebra rates it for over 100 drops at 5 ft and says it survives 6 ft drops to concrete, with 1,000 tumble cycles in a half-metre tumbler. Sealing is IP42, which covers dust and dripping water but is a step below the DS4608's IP52 and worth knowing if the scanner lives somewhere wet. At 4.95 oz it is the lightest unit in this range. Zebra warrants it for 60 months, and angle tolerance is plus or minus 45 degrees on pitch, skew and roll alike.

Region restriction

The trailing N on this part number is a North America designation, and it is the single thing on this listing that needs checking before the order goes in. The scanner is lawful and correct for a US buyer and this is the standard US channel build, so for a domestic deployment there is nothing to do. What it must not be is exported or supplied to an end user outside North America; Zebra publishes a Worldwide-suffixed equivalent for that. Every other Zebra scanner we list carries a WW or W region code and has no such restriction, so this is the exception rather than the pattern and it is easy to miss on a repeat order.

Where it fits

The LI2208 is built for high-volume 1D scanning where the codes are known and will not change: grocery and general retail checkout, library circulation, blood banking and specimen handling on the ISBT 128 symbology, and warehouse picking against printed rack labels. The reason to choose it over a 2D imager is that it is faster and cheaper at the one job, and 547 scans per second with 25 inches per second of motion tolerance means an operator can sweep rather than present. The reason not to choose it is any 2D requirement at all. It cannot read QR, DataMatrix or PDF417, and no configuration setting changes that, so a mobile coupon or a 2D licence needs different hardware.
