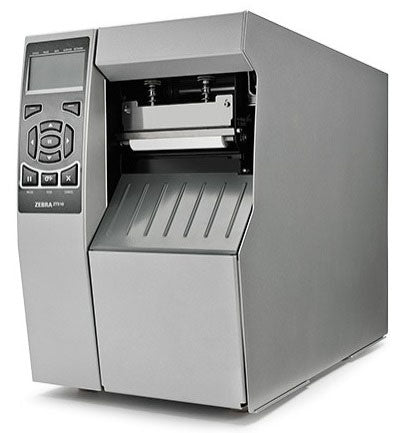

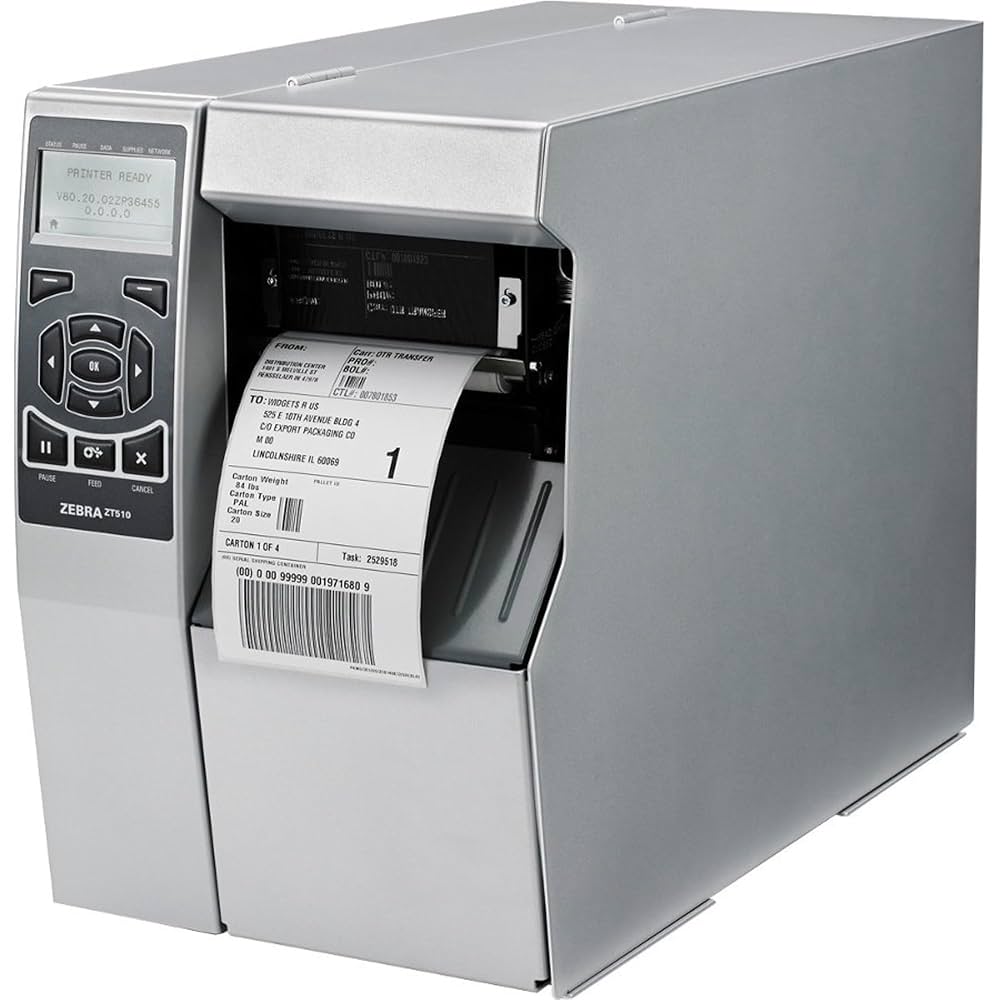

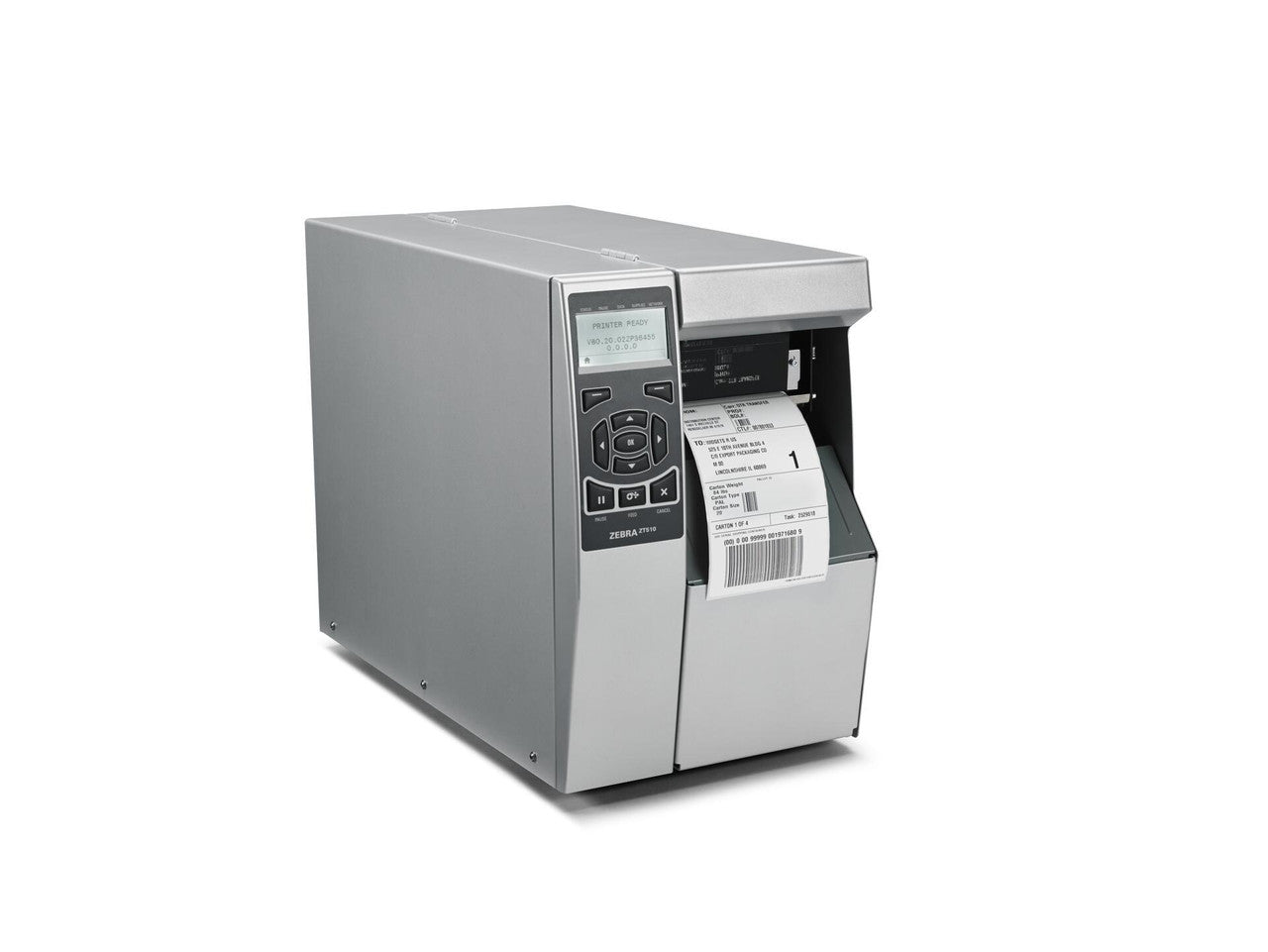

Zebra ZT510 4-Inch Industrial Thermal Transfer Label Printer 203 dpi 12 ips Gigabit Ethernet Bluetooth ZT51042-T010000Z

Key Features

• Zebra positions the ZT510 as the replacement for the 105SL and 105SL Plus, a metal-framed printer built for continuous duty.
• 203 dpi at up to 12 inches per second, double the ZT220 in the same print width.
• Prints a full 4.09 inches wide and up to 150 inches in a single label.
• Gigabit Ethernet rather than 10/100, alongside USB, RS-232 serial and Bluetooth.
• 512 MB of RAM and 2 GB of on-board Flash, four and sixteen times the ZT220.
• Backlit multi-line display with a keypad and password protection.
• Takes an 8-inch roll on a 3-inch core and 1,476 ft of ribbon on a 1-inch core.
• Two open communication slots for parallel, Wi-Fi or applicator cards.
• Tear-off on this part number, with rewind and cutter builds on other part numbers.
• Speaks ZPL and ZPL II with ZBI 2.0 and XML-enabled printing.
• 50 lb of metal, which is what a 24/7 production printer weighs.

Key Specifications

• Print method: Thermal transfer and direct thermal
• Resolution: 203 dpi (8 dots per mm), nominal dot 0.125 x 0.125 mm
• Print speed: 2 to 12 ips (51 to 305 mm per second) at 203 dpi
• Print width: 104 mm (4.09 in)
• Maximum print length: 150 in (3,810 mm) at 203 dpi
• Media: 0.79 to 4.5 in wide including liner, minimum tear-off length 0.7 in, maximum 39 in
• Ribbon: 1,476 ft (450 m), 2.00 to 4.33 in wide, 1.0 in core, coated outside unless a core kit is fitted
• Media handling: Tear-off on this part number. Rewind and cutter are separate part numbers
• Connectivity: USB, RS-232 serial, Gigabit Ethernet, Bluetooth, two open communication slots
• Memory: 512 MB RAM, 2 GB on-board linear Flash
• Display: Backlit multi-line monochrome display with keypad and password protection
• Dimensions and weight: 15.58 x 10.56 x 20.17 in (395.7 x 268.2 x 512.3 mm), 50 lb (22.7 kg)

Printer class

Zebra positions the ZT510 as the successor to the 105SL and 105SL Plus, and that lineage says more about the machine than any single specification. Those printers were bought to run continuously in production, and the ZT510 inherits the brief: an all-metal frame, 50 lb of it, a duty cycle meant for shifts that do not stop, and the memory and interfaces to be managed centrally rather than nursed individually. It is a genuinely different class of machine from the ZT220, which is often marketed alongside it as though the two were tiers of one product. They are not. The ZT220 is an entry industrial printer and this is a production one.

Speed and print length

Twelve inches per second at 203 dpi is double the ZT220 and it is the specification most buyers are actually paying for. On a line applying labels to cases as they pass, print speed sets the line speed, and the difference between 6 and 12 ips is the difference between one printer and two. Speed is programmable down to 2 ips, which matters for fine 2D codes that verify better printed slowly. Maximum print length is 150 inches at this resolution. Note that the 300 dpi ZT510 build runs 2 to 10 ips rather than 12, so a quotation for a 300 dpi unit should not carry this figure.

Connections and management

This part number carries USB, RS-232 serial, Gigabit Ethernet and Bluetooth as fitted interfaces, and Gigabit rather than 10/100 is the detail worth noting: it matters less for label data than for firmware pushes and central management across a fleet. Two open communication slots take parallel, dual-band 802.11ac Wi-Fi with Bluetooth, or an applicator interface, so the printer can be adapted after purchase rather than replaced. The backlit multi-line display with a keypad and password protection is the other management feature that separates this from the ZT220, which has no screen: settings can be read and changed at the machine and then locked.

Media and ribbon

The ZT510 takes an 8-inch outside-diameter roll on a 3-inch core and 1,476 ft of ribbon on a 1-inch core, with ribbon from 2.00 to 4.33 inches wide. Label width runs from 0.79 to 4.5 inches including liner, and label length from 0.7 inches at tear-off up to 39 inches on non-continuous media. One detail deserves attention at order time: Zebra's user guide states the printer can only use ribbon coated on the outside unless a separate core kit is purchased. Ink-side-in ribbon is common in some supply chains, so a site switching to this printer from other hardware should check which winding its existing stock uses before ordering a pallet of it.

Media handling fitted

This part number is the tear-off build, which Zebra's own configuration string for it confirms. Two other media-handling builds exist and neither is a kit: rewind, which internally rewinds a full roll of printed labels on a 3-inch core or peels and rewinds liner, and cutter, a front-mount guillotine with a catch tray. Both arrive as their own part numbers ordered from the factory. That is the standard industrial-printer trap and it is worth settling before the purchase order rather than after: a line that will eventually need cut labels should specify a cutter build now, because converting a tear-off machine later means buying most of a printer.

Memory and languages

512 MB of RAM and 2 GB of on-board linear Flash is a large allocation by industrial-printer standards and it exists for a reason. A production printer holds resident fonts, stored label formats, graphics and often ZBI programs on the machine itself, so that a host sends a few bytes of variable data rather than a whole label every time. That is what keeps a 12 ips printer fed. It speaks ZPL and ZPL II with ZBI 2.0 for on-printer logic and XML-enabled printing for direct integration with ERP output. Against the ZT220's 128 MB and 128 MB, this is four times the RAM and sixteen times the Flash.
